Hello there

Freelander Kv6 Jordan

Member

Posts

35

Location

Jordan

• Oct 5, 2020

• #1

Hello, let me first introduce my self. My name is Tamer lives in Amman- Jordan. I bought LR freelander 2001 with 2.5 KV6 engine. Mainly i have two issues that should be solves ASAP. Firstly i found leak from fuel rail ( need part number which consists of injectors front of the engine ).
Secondly the engine shakes on idle and nothing on Gear. Is it possible to be an engine mounts or trans mounts stuff. Thanks for help in advance. Looking for a solution from experts. Have a good day!



Nodge68

Well-Known Member

Posts

32,954

Location

Cornwall

• Oct 5, 2020

• #2

Can you post pictures of the components that are leaking?

The KV6 engine shouldn't shake on idle, it's absolutely silky-smooth. You can almost balance a coin on the top with it running.

If it rocks when you engage D or R, then the lower tie bar is the likely cause.



saxavordian

Well-Known Member

Posts

9,351

• Oct 5, 2020

• #3

welcome to the zoo.



Freelander Kv6 Jordan

Member

Posts

35

Location

Jordan

• Oct 6, 2020

• #4

Hi Nodge68 ,

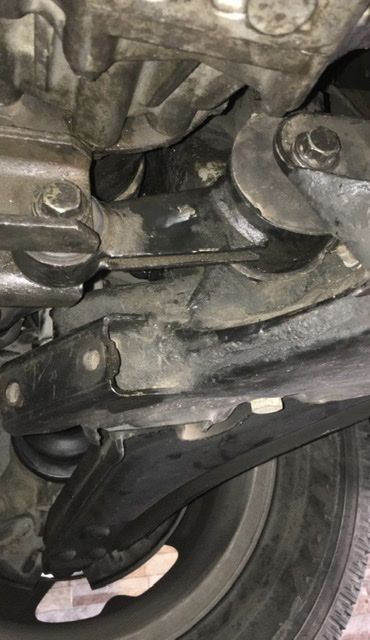

You mean this tie rod ? Will try to post the leaking rail.
Thanks for help



Attachments

•

  44.2 KB · Views: 77

Nodge68

Well-Known Member

Posts

32,954

Location

Cornwall

• Oct 6, 2020

• #5

Freelander Kv6 Jordan said:

Hi Nodge68 ,

You mean this tie rod ? Will try to post the leaking rail.
Thanks for help

Click to expand...

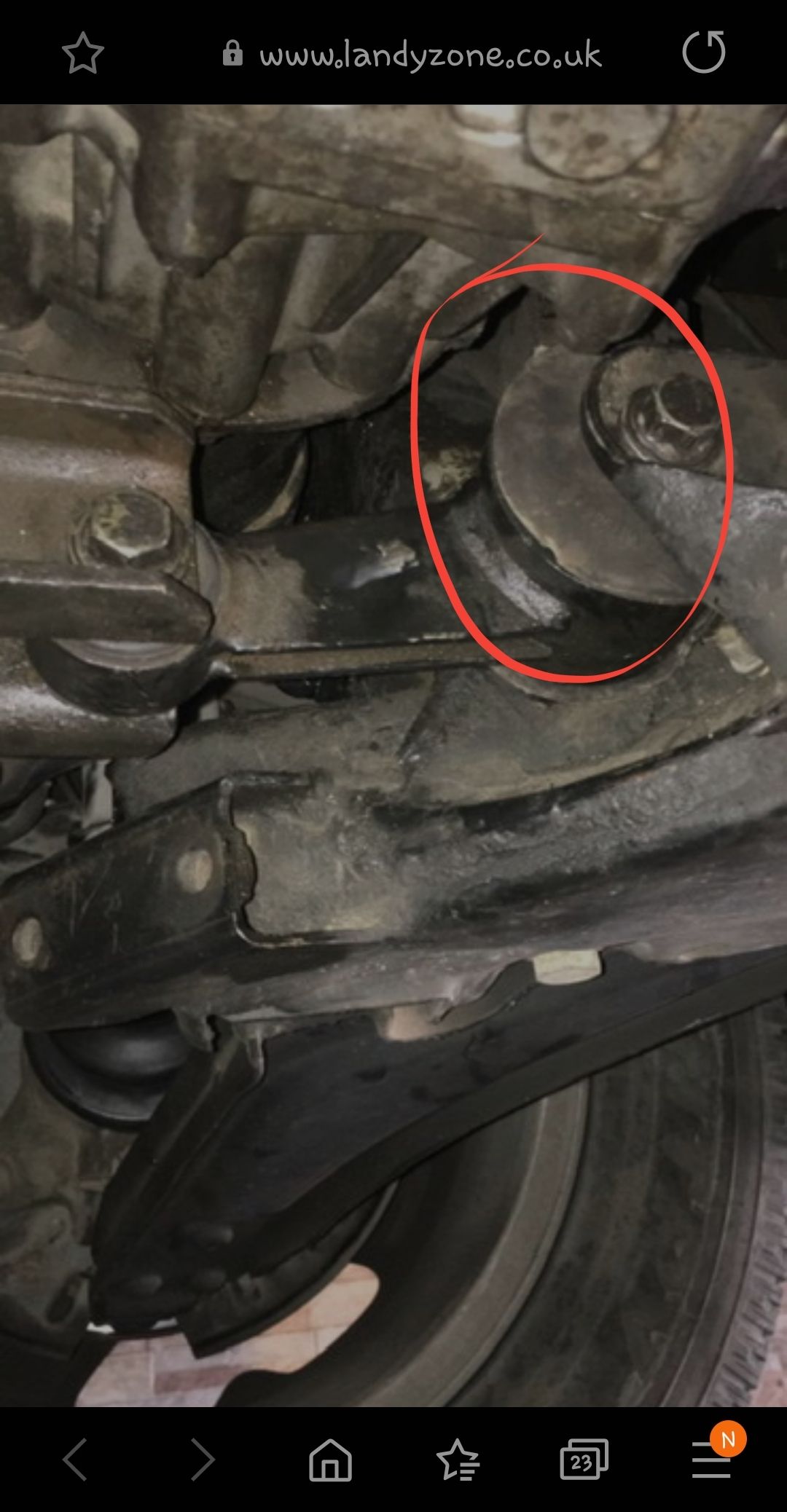

Yes. The large bush I've circled goes soft, allowing the engine to rock.

If you can move the engine by hand, then that bush has failed.



Freelander Kv6 Jordan

Member

Posts

35

Location

Jordan

• Oct 11, 2020

• #6

Nodge68 said:

Can you post pictures of the components that are leaking?

The KV6 engine shouldn't shake on idle, it's absolutely silky-smooth. You can almost balance a coin on the top with it running.

If it rocks when you engage D or R, then the lower tie bar is the likely cause.

Click to expand...

Hi Nodge68 , hope you’re doing well.

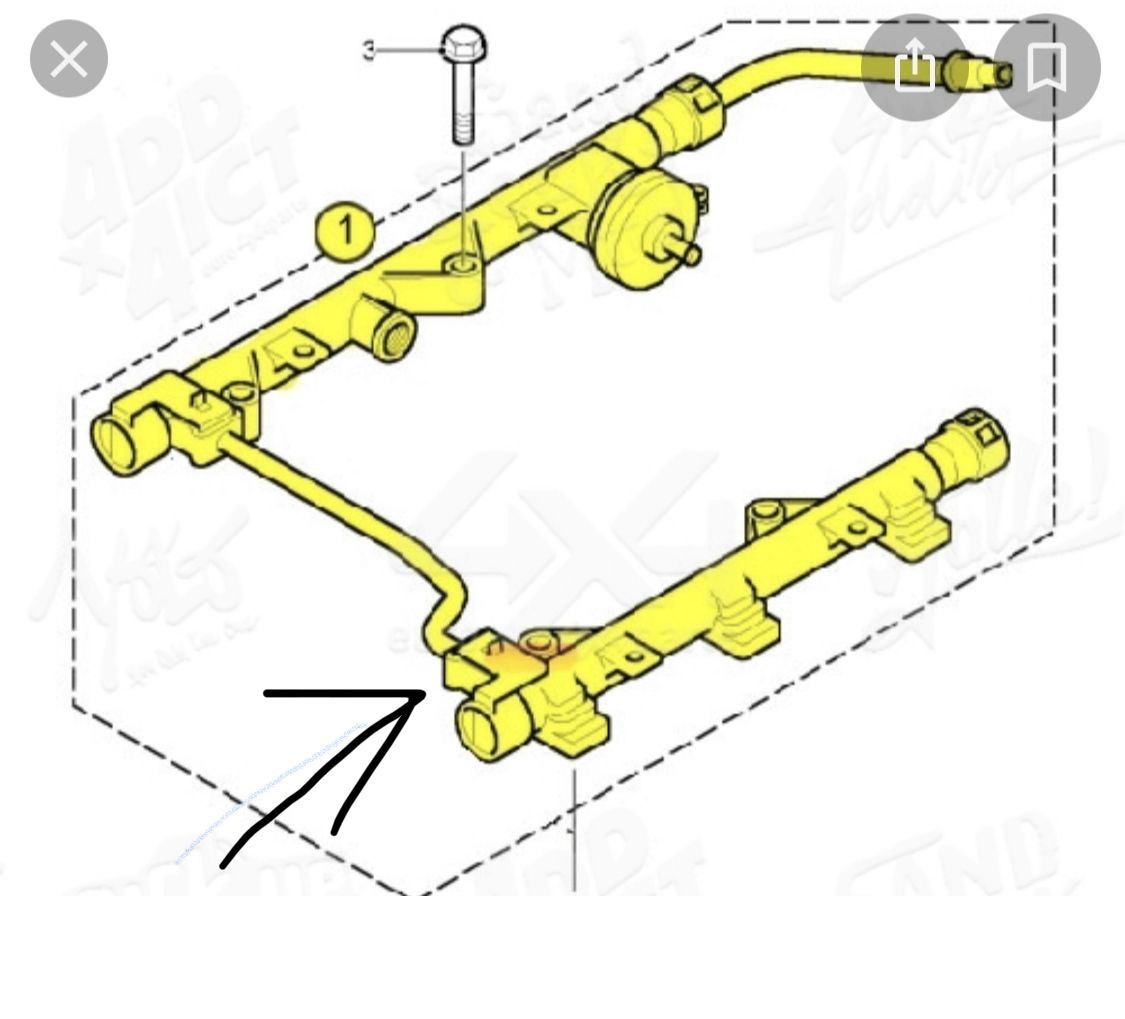

Here is a pic of what a leak present . Have a look at the black arrow . I figured out things... No fuel leak while engine is running. Fuel leaks when engine off. Furthermore fuel leak stopped when I opened fuel filler cap and hissing sound were there... i was thinking of no pressure release in system. So. Might be a defective fuel cap or purge valve.. what do u personality think?!



Attachments

•

  78.5 KB · Views: 74
