Disco 2 Heater fan full only
- Thread starter MJI
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Iancorky
Well-Known Member
- Posts
- 1,365
Pics are missing but might help
https://www.landyzone.co.uk/land-rover/blower-heater-cheap-fix-part-2.191095/
https://www.landyzone.co.uk/land-rover/blower-heater-cheap-fix-part-2.191095/
brian47
Well-Known Member
- Posts
- 8,867
It probably is. Unlike the old methods of motor control which was just a set of big resistors, the Face lift Disco 2 heater motor control is a power transistor on a heatsink. From my own experience of power transistors they can often fail with an internal short between the emitter and collector terminals. When that happens you lose all control over the transistor and therefore the motor which was being controlled by it.
I can't remember the type number of a replacement transistor right now, maybe somebody like @sierrafery has more information on that score.
I can't remember the type number of a replacement transistor right now, maybe somebody like @sierrafery has more information on that score.
Last edited:
- Posts
- 4,809
- Location
- Surrey / Hants border
2N3055?
brian47
Well-Known Member
- Posts
- 8,867
Probably not.
I remember reading somewhere that a suitable replacement power transistor was MJ11016
I don't know how true that is.
Both are NPN types. The MJ11016 has a max collector current of 30 Amps whereas the 2N3055 is listed as max 15 Amps. The power dissipation is also higher for the MJ11016 at 200 Watts compared to 115 Watts of the 2N3055
Last edited:
brianconwy
Well-Known Member
- Posts
- 1,112
- Location
- conwy, north wales

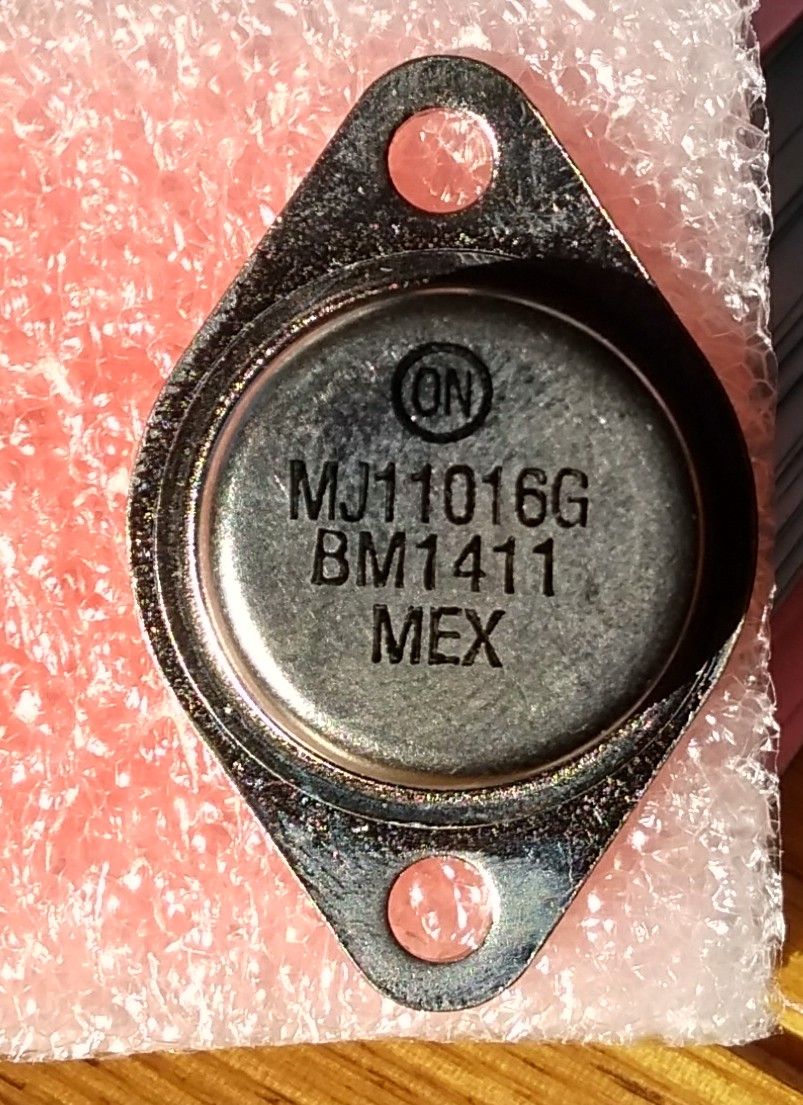

I have had one of these in for about 5 years now. This is my spare in case it ever goes again. Less than a fiver.
sierrafery
Well-Known Member
- Posts
- 17,103
- Location
- Arad/Romania
If your ES is facelift and your unit is the JGN100011 then all you need is one of these https://www.ebay.co.uk/itm/2SK2313-TRANSISTOR-TO-3P-K2313-/191910061403, for non facelifts with the JGN100010 unit is this(or direct replacement sold in UK): https://www.ebay.co.uk/itm/TOSHIBA-2SD1460-D1460-/122104859975
replaceing the transistor will fix things
brianconwy
Well-Known Member
- Posts
- 1,112
- Location
- conwy, north wales
Ours isn't an ES model but it is a facelift and the MJ11016 works really well and is easily obtainable and cheap on ebay. Best thing to do is take out the board and see what the transistor looks like.
sierrafery
Well-Known Member
- Posts
- 17,103
- Location
- Arad/Romania
I named the transistors which are originally fitted on the LR units, any direct replacement with same data sheet will work
brian47
Well-Known Member
- Posts
- 8,867
As @sierrafery has said, there are equivalent devices for those he has listed. Having taken a quick look, I would be happy to fit the MJ11016 as a replacement for the 2SD1460. Both are in the metal TO3 package and both have the current capability on the collector of 30A. Also both transistors are of a similar configuration, that is of a Darlington pair.
The other device which he mentions is the 2SK2313. The difference between it and the other types will be obvious just by looking since it is in the TO3P ceramic or plastic package. Electrically it is totally different to the previous devices in that it is a MOSFET, a high power Field Effect Transistor. However a quick look at the data sheet for the device shows some similarities ith the earlier devices. The "Drain" current (equiv to the collector current) is 60 Amps max and the power dissipation capability is 150 Watts.
I would tend to agree with @brianconwy here. If you have trouble open the unit and check the shape of the transistor.
The other device which he mentions is the 2SK2313. The difference between it and the other types will be obvious just by looking since it is in the TO3P ceramic or plastic package. Electrically it is totally different to the previous devices in that it is a MOSFET, a high power Field Effect Transistor. However a quick look at the data sheet for the device shows some similarities ith the earlier devices. The "Drain" current (equiv to the collector current) is 60 Amps max and the power dissipation capability is 150 Watts.
I would tend to agree with @brianconwy here. If you have trouble open the unit and check the shape of the transistor.
sierrafery
Well-Known Member
- Posts
- 17,103
- Location
- Arad/Romania
I can't really understand why LR fitted different power transistors while the rest of the circuit remained the same no matter if it's facelift or not.
the type of the unit is important though to know which kind transistor to fit to the cooler element that's all
the type of the unit is important though to know which kind transistor to fit to the cooler element that's all
brian47
Well-Known Member
- Posts
- 8,867
D2V82003
New Member
- Posts
- 1
- Location
- melbourne, australia
Pulled mine apart and the transistor was ok, the little white thermal fuse underneath the little circuit board was blown(will blow if gets too hot), replaced that for 50cents and all good now. So make sure you check that before going and buying transistors Now mine runs on all speeds again instead of just high
Now mine runs on all speeds again instead of just high
Last edited:
