P38A Heat Shield Injector Washer

BMW 2.5TDI Heat Shield Injector Washer, can they be replaced, seen them on the bay, I might have 1 injector thats just needs this, it was leaking from the copper washer, and the electrics were fine (I am sure) I will find out for sure on Saturday someone is going to test the electric bit for me, I know you can anneal copper but I dont know if the injector will like the heat to it or not

Dopey said:

BMW 2.5TDI Heat Shield Injector Washer, can they be replaced, seen them on the bay, I might have 1 injector thats just needs this, it was leaking from the copper washer, and the electrics were fine (I am sure) I will find out for sure on Saturday someone is going to test the electric bit for me, I know you can anneal copper but I dont know if the injector will like the heat to it or not

Click to expand...

It will need to be removed to anneal it. Heat until cherry red then drop in cold water. If it was leaking it would only be gas. If you had a fuel leak it was not from the copper washer.

So you can get it off and put this in then? http://www.ebay.co.uk/itm/BMW-2-5TD...741?pt=LH_DefaultDomain_3&hash=item1e867d847d
soz I dont know how to put a pic in from my computer

Dopey said:

So you can get it off and put this in then? http://www.ebay.co.uk/itm/BMW-2-5TD...741?pt=LH_DefaultDomain_3&hash=item1e867d847d
soz I dont know how to put a pic in from my computer

Click to expand...

If that is the correct one yes. How do you know it is leaking?

If I remember right (this is my old one) it was leaking from the copper so the seal wasn't working on it, but I think the sensor is ok (testing the sensor Saturday) if I can fix the washer I wont need to use the new one then

Dopey said:

If I remember right (this is my old one) it was leaking from the copper so the seal wasn't working on it, but I think the sensor is ok (testing the sensor Saturday) if I can fix the washer I wont need to use the new one then

Click to expand...

What was leaking? If it was leaking fuel it is NOT from that washer.

the injector was leaking Between the copper washer and where it sits into the hole, I dont think it was sealing it, when I got a new one it worked fine

Dopey said:

the injector was leaking Between the copper washer and where it sits into the hole, I dont think it was sealing it, when I got a new one it worked fine

Click to expand...

Yes but please specify WHAT was leaking. You can only get gas leaks from that washer you CANNOT get fuel leaks.

Well it was diesel it was ****ing out all over the engine, and it stank of the stuff, so I cant see how it wasn't???

Dopey said:

Well it was diesel it was ****ing out all over the engine, and it stank of the stuff, so I cant see how it wasn't???

Click to expand...

It was the injector leaking NOT the sealing washer to the head. Only thing that can leak past that is combustion gas. May show a few bubbles in your leaking diesel around where injector goes into head, but the diesel is NOT leaking past that. Injection takes place at maximum compression and goes bang and turns to gas it cannot come past that washer as liquid. Number four injectors are famous for leaking where the plastic electronic bit is attached to the injector.

OK so at least it can be fixed then, like I said will check the sensor bit, if thats ok, then I will get it refurbished, its good to have a working spare one anyway, I will google someone to see the cost of fixing it, if its not too expensive I will do it and keep it or sell it on, knowing me I will keep it, the shed is full of junk good valuable quality spare parts

Dopey said:

OK so at least it can be fixed then, like I said will check the sensor bit, if thats ok, then I will get it refurbished, its good to have a working spare one anyway, I will google someone to see the cost of fixing it, if its not too expensive I will do it and keep it or sell it on, knowing me I will keep it, the shed is full of junk good valuable quality spare parts

Click to expand...

Don't think you have taken in a word i have said.

You said the injector is leaking, not the copper seal, I was thinking it could be fixed, as long as the sensor is ok?

plastic electronic bit is attached to the injector. so thats the leak, and that cant be fixed, but its worth someone testing it to see shurly?

Dopey said:

plastic electronic bit is attached to the injector. so thats the leak, and that cant be fixed, but its worth someone testing it to see shurly?

Click to expand...

Get it tested if you want to, whether anyone can fix a leak from that area or not is doubtful.

True being plastic, and thats the weakness of it at the joins around the edges

Dopey said:

True being plastic, and thats the weakness of it at the joins around the edges

Click to expand...

Yes and whilst you can get new parts for the injector nozzle and needle and the injector can be reset to correct break pressure i don't think the electrical part is serviceable.

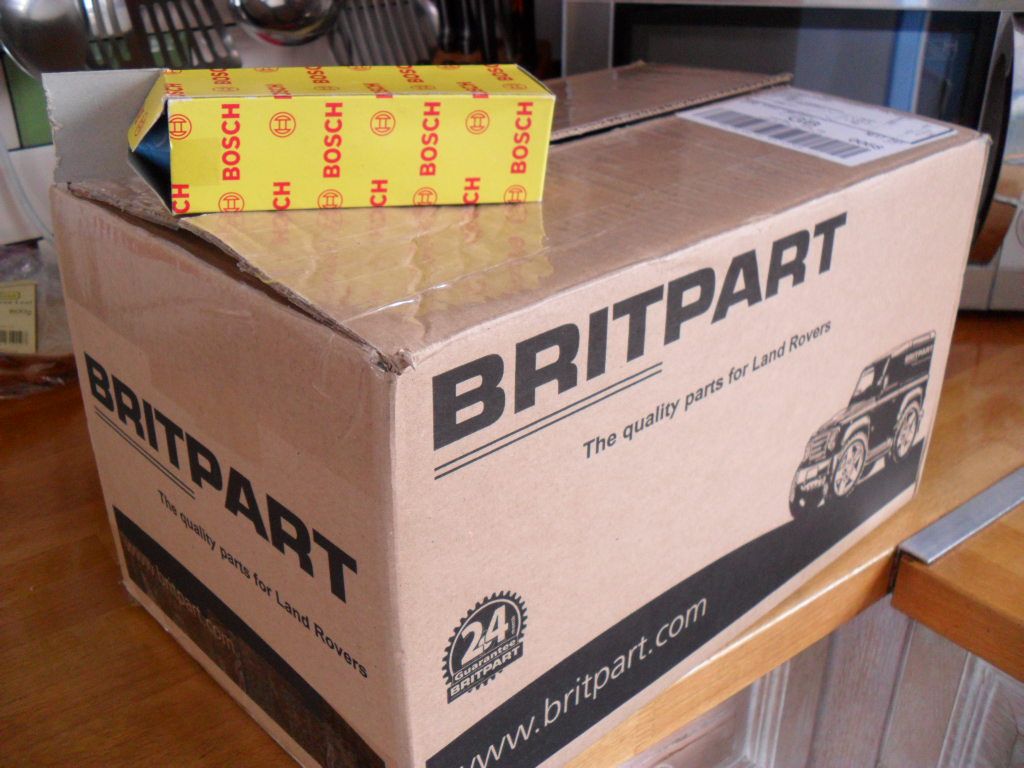

Well I got the injector... look at the size of the box!!! the injector is on top

Dopey said:

Well I got the injector... look at the size of the box!!! the injector is on top View attachment 89355

Click to expand...

Must have been from Island 4x4 they are famous for oversized boxes.
