Gearbox x member doesn't fit

Hi I have brought a new cross member, but it is 5mm too long, is there an easy way to install it?

Thanks in advance

harrytooth said:

Hi I have brought a new cross member, but it is 5mm too long, is there an easy way to install it?

Thanks in advanceView attachment 126263

Click to expand...

you jack the chassis rails apart enough to fit the cross member

jamesmartin said:

you jack the chassis rails apart enough to fit the cross member

Click to expand...

Thanks that is what i thought, just wanted to check

harrytooth said:

Thanks that is what i thought, just wanted to check

Click to expand...

Put some timber top and bottom of the jack to spread the pressure and avoid any damage.

Here's mine before it went in. Way too big, sat across the rails.

Here it is going in. I remember the rails creaking a bit as I jacked them apart!

With timbers either end of the jack, the jack to hold and pump, I had to use the trolley jack to hold the cross member in place and slowly jacked it in as the rails opened.

Al2O3 said:

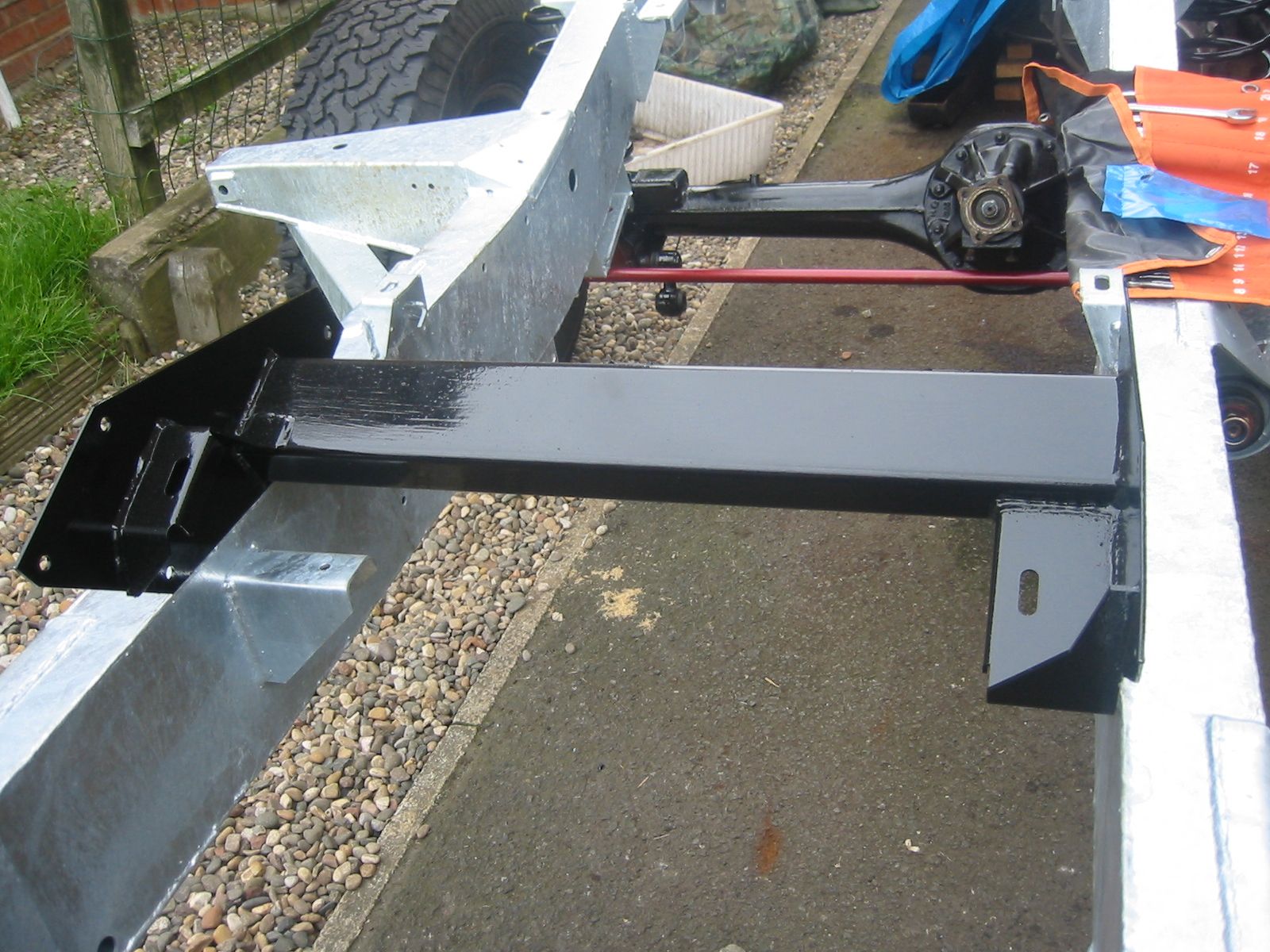

Here's mine before it went in. Way too big, sat across the rails.
View attachment 126266

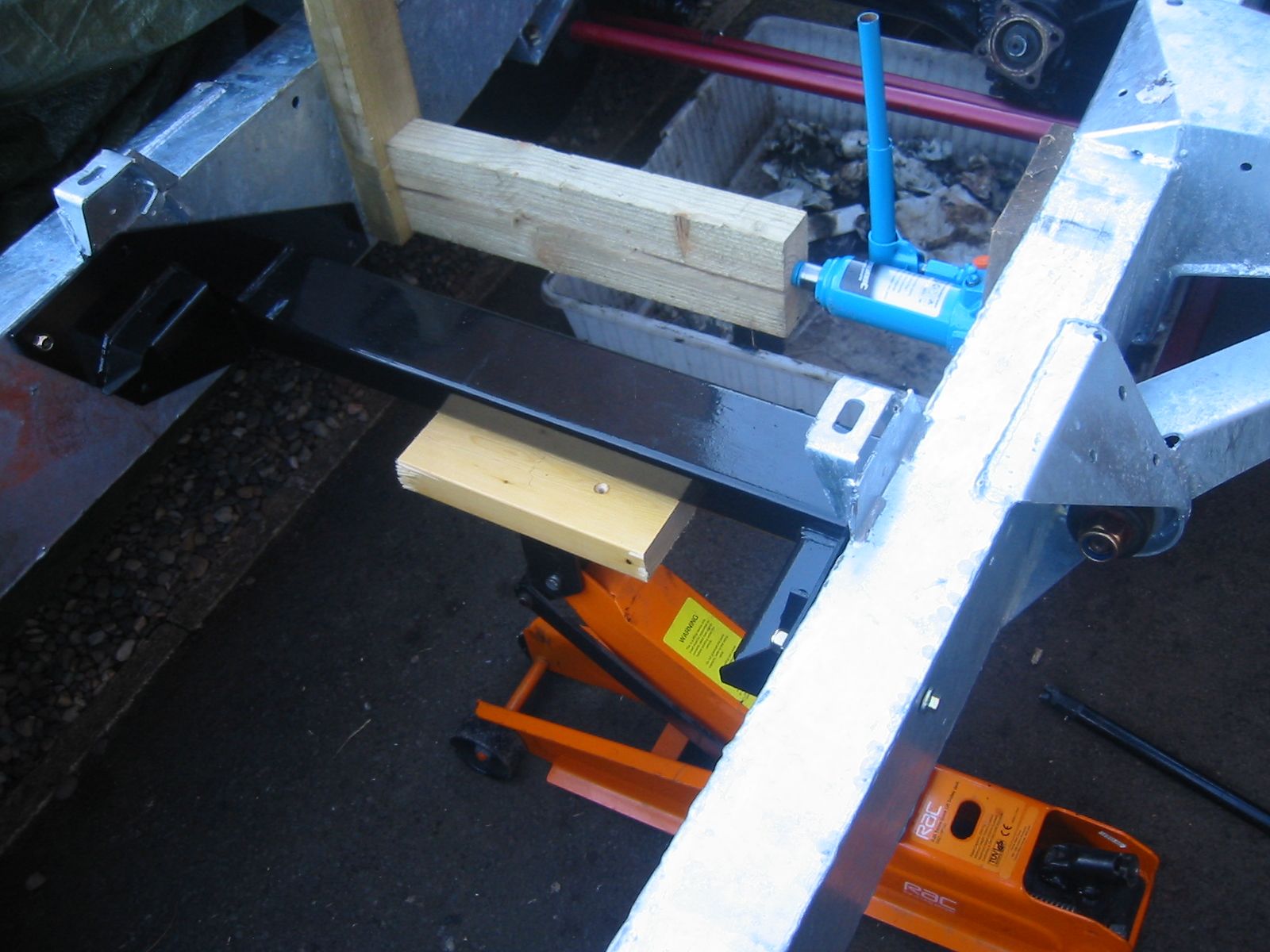

Here it is going in. I remember the rails creaking a bit as I jacked them apart!
View attachment 126267
With timbers either end of the jack, the jack to hold and pump, I had to use the trolley jack to hold the cross member in place and slowly jacked it in as the rails opened.

Click to expand...

Thanks, i managed to get it fitted

harrytooth said:

Thanks, i managed to get it fitted

Click to expand...

Did you use a bottle jack?

Al2O3 said:

Did you use a bottle jack?

Click to expand...

Yes I used a 2 ton bottle jack, worked perfectly
