Freelander 2 (LR2) Gearbox and driveshaft leak and a notable rumble

Discussion in 'Land Rover Freelander' started by AJV, Sep 9, 2020.

< Previous Thread | Next Thread >
  1. AJV

    AJV New Member

    Joined:
    Jan 11, 2020
    Posts:
    5
    Likes Received:
    0
    Location:
    Glasgow
    Hi

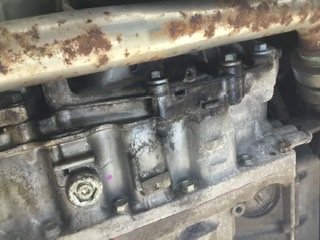

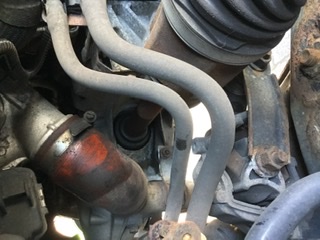

    I had the car up today to check the bearings as I there is a distinct familiar rumble coming from the front. No noise whilst spinning by hand but defo as driving especially on the mway. Would you go for a bearing replacement or the whole hub? Also I have noticed a misting on the drive shaft and a leak at the Gearbox is this a DIY fix or garage number. I shall attach pics. TIA 3FFDC083-4108-4A13-91D3-BDBBBEC64C5D.jpeg 111D2BB4-B16E-4F6D-8261-70D5D0A0A759.jpeg

  2. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    27,158
    Likes Received:
    7,531
    Location:
    Near Newquay
    None of those minor oil creeps are of any concern.

  3. AJV

    AJV New Member

    Joined:
    Jan 11, 2020
    Posts:
    5
    Likes Received:
    0
    Location:
    Glasgow
    Ideal. Thanks for reply

  4. AJV

    AJV New Member

    Joined:
    Jan 11, 2020
    Posts:
    5
    Likes Received:
    0
    Location:
    Glasgow
    Further to yesterday’s post and one snapped CV retainer bolt later. Firstly does anyone know the torque setting for this. I found somewhere saying it’s 110 nm but I am wary as it didn’t seem to take much to snap the thing first time around.
    Second point No grumbling from the bearing whilst spinning by hand, no play at 12-6 but definitely play at 9-3. The tyres on both outer edges front are significantly worn so am I right in thinking it’s more likely a tie rod issue than bearing. I am on the verge of pulling the trigger for buying all major servicing items is there a parts list with quantities/volumes for fluids. Thanks again

    Last edited: Sep 10, 2020
  5. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    27,158
    Likes Received:
    7,531
    Location:
    Near Newquay
    Which bolts are you referring to, the one in the end of the drive shaft? (referred to as halfshaft bolts in the manual).

    The torque for the halfshaft retaining bolts is 45nM + 80° rotation.

    Last edited: Sep 10, 2020
  6. AJV

    AJV New Member

    Joined:
    Jan 11, 2020
    Posts:
    5
    Likes Received:
    0
    Location:
    Glasgow
    That is the one. I really appreciate the feedback.
