Hi, Just picked my Freelander TD4 Serengeti Automatic up from MOT station and it failed on
Fuel System Component Leaking Offside Rear (6.1.3)
Any ideas? The mechanis told me it"s probably under the Plastic Cover over the rear wheel.



Nodge68

Well-Known Member

Posts

32,954

Location

Cornwall

• Sep 17, 2020

• #2

The low pressure fuel pump and filter are just in front of the OSR wheel. So it'll almost certainly be something to do with the pipes or connectors, pump, filter or sedimenter.



M

mudinuri

Active Member

Posts

673

Location

New Forest

• Sep 17, 2020

• #3

Can I cheek it out without removing the arch liners



Nodge68

Well-Known Member

Posts

32,954

Location

Cornwall

• Sep 17, 2020

• #4

mudinuri said:

Can I cheek it out without removing the arch liners

Click to expand...

No, but removing the arch liner isn't difficult, being held on by a few skivets and a couple of screws.



deangermouse

Active Member

Posts

255

Location

Newton Stewart, SW Scotland

• Sep 18, 2020

• #5

My fuel tank leaked when full as the breather pipe had come loose on top of the tank, easy to check by removing the inspection panel under the back seat



Arctic2

Well-Known Member

Posts

2,752

Location

Westmidlands

• Sep 18, 2020

• #6

Nodge68 said:

No, but removing the arch liner isn't difficult, being held on by a few skivets and a couple of screws.

Click to expand...

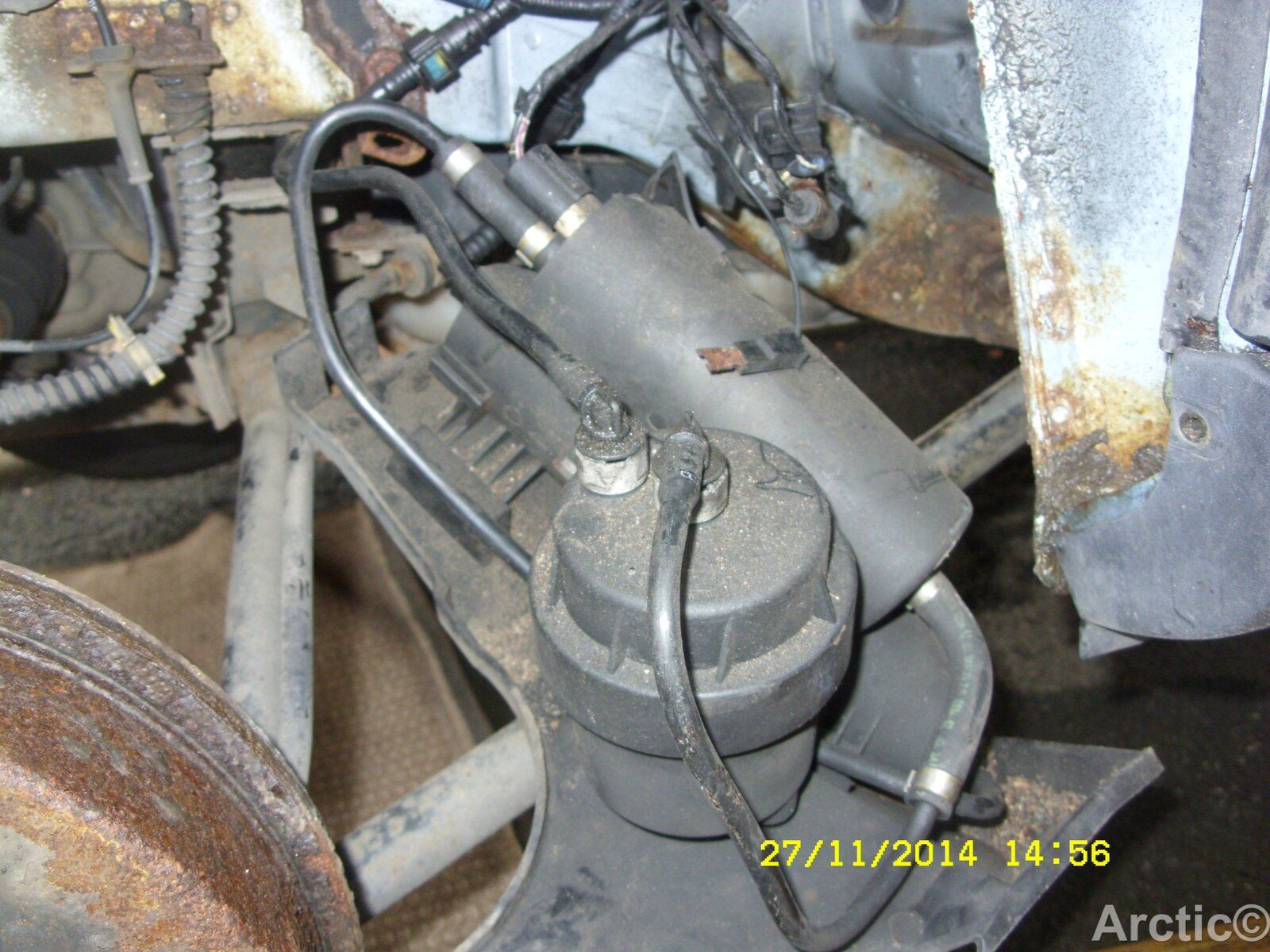

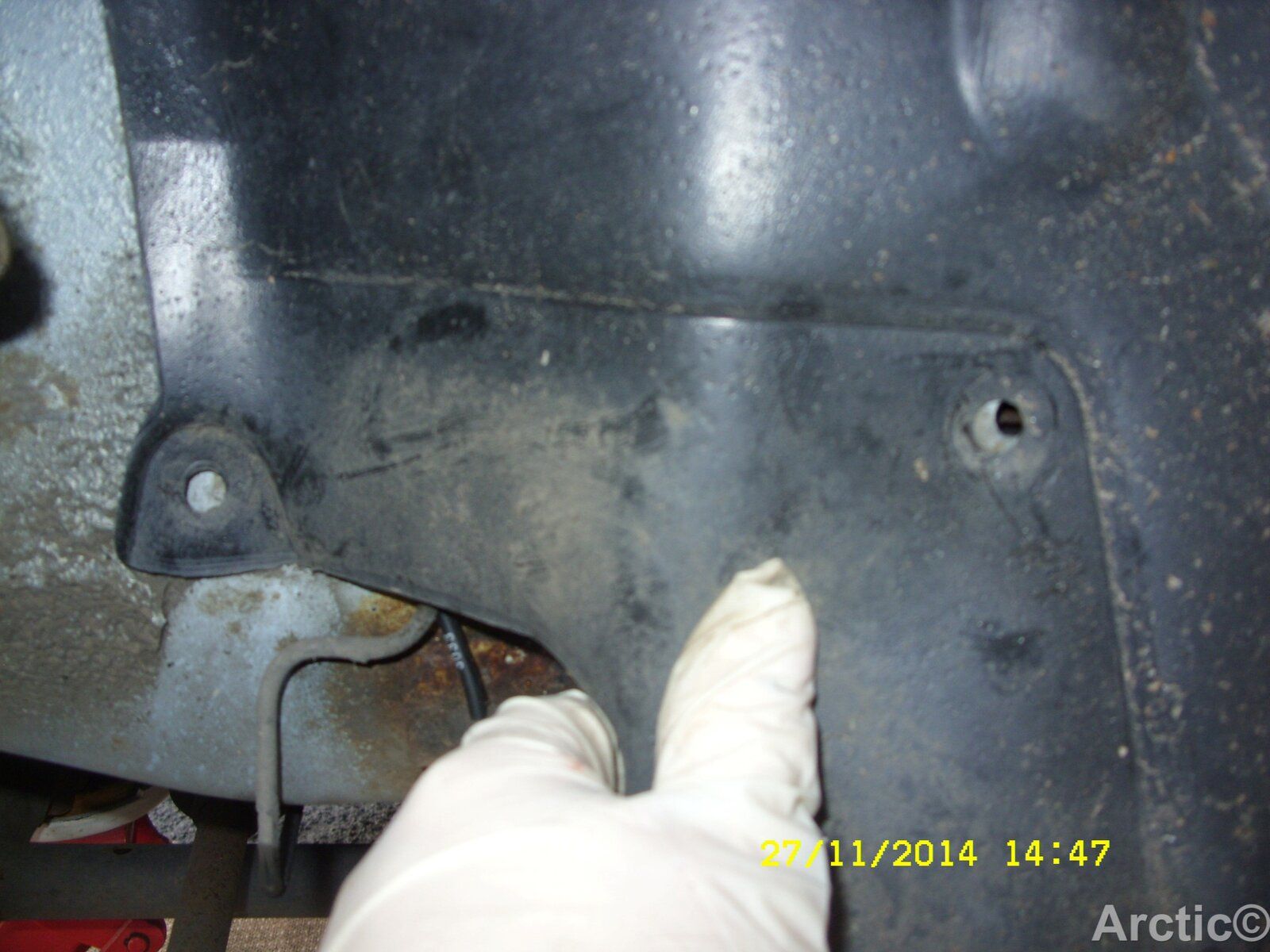

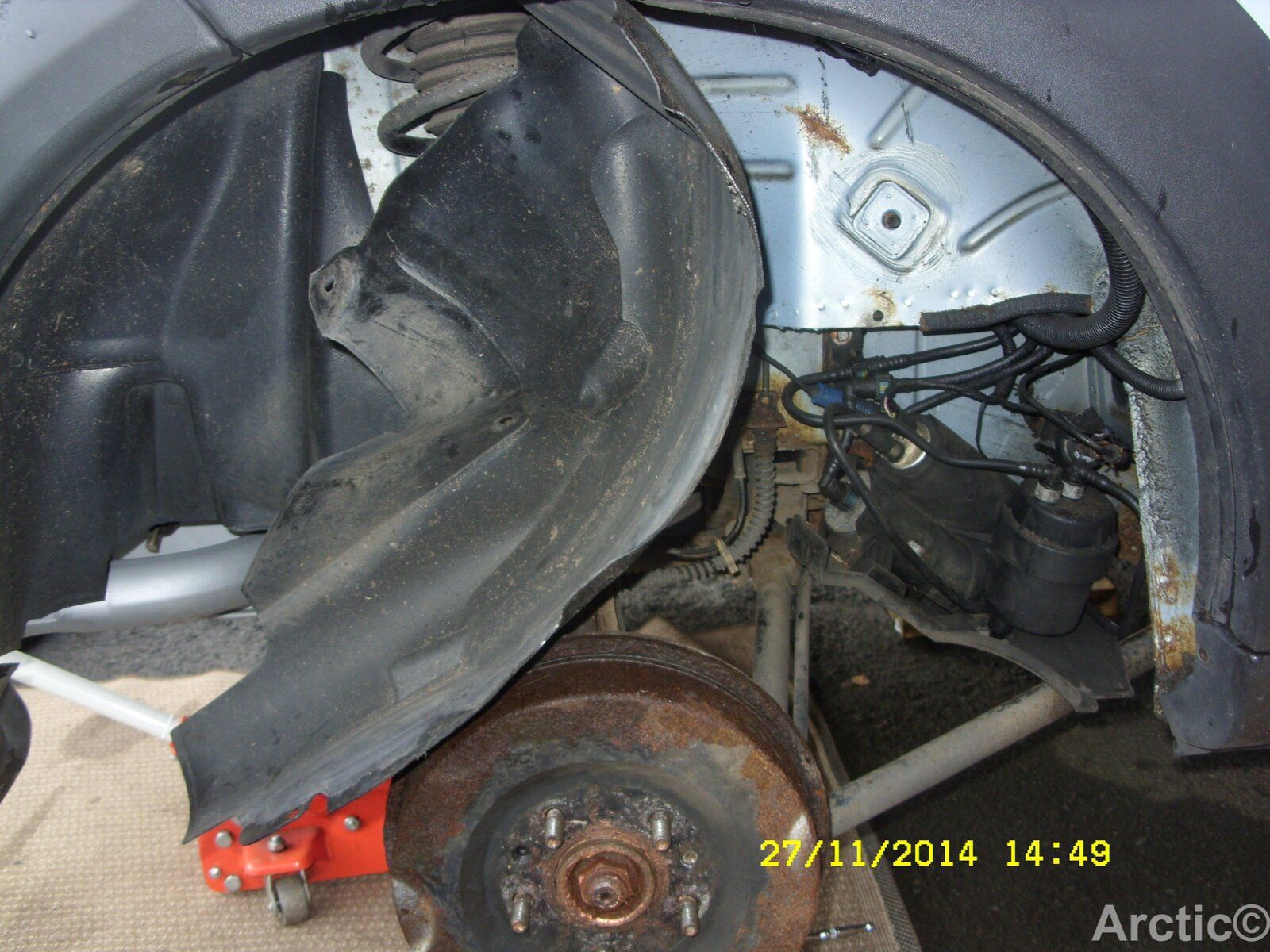

As John says above peel back the wheel arch liner to reveal the fuel pump etc.



Attachments

•

  196.9 KB · Views: 148
•

  302.6 KB · Views: 139
•

  252.1 KB · Views: 161
•

  287.6 KB · Views: 118
