Disco 2 Fuel pressure regulator

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
If you want to go cheap it's important to see what's leaking, cos if only the pressure regulator is leaking you dont need to mess with the pipes and o-rings and you can buy only the proper metal gasket and the FPR https://www.ebay.co.uk/itm/Bosch-Fuel-Pressure-Regulator-Control-Valve-0280160575-5-YEAR-WARRANTY/153027756026?_trkparms=aid=555021&algo=PL.SIMRVI&ao=1&asc=20190711100440&meid=03e1be27a7574654b9e4d9487f787145&pid=100047&rk=6&rkt=6&mehot=pf&sd=223309297947&itm=153027756026&pmt=1&noa=0&pg=2047675&_trksid=p2047675.c100047.m2108

or if the leak is from the pipes or gasket you can buy only those https://www.ebay.com/itm/Land-Rover-Defender-TD5-Fuel-Pressure-Regulator-Repair-Kit-Gaskets/200723716984?_trkparms=aid%3D1110001%26algo%3DSPLICE.SIM%26ao%3D1%26asc%3D2013123108
4308%26meid%3Df95f76bd947749d2bd0590c7c8dd5f91%26pid%3D100010%26rk%3D4%26rkt%3D12%26sd%3D200723717161%26itm%3D200723716984%26pmt%3D1%26noa%3D1%26pg%3D2047675&_trksid=p2047675.c100010.m2109

or even if you buy these two items separately it's £39, cheaper than what X8R sells cos that £54.99 is without VAT and Bosch doesnt make the gaskets/orings only the FPR

Last edited:
Did not realise you could get parts separate. Looking on various part suppliers and see how many manufacturers make the complete fpr with the housing with hoses I can see alot just replacing the whole unit .

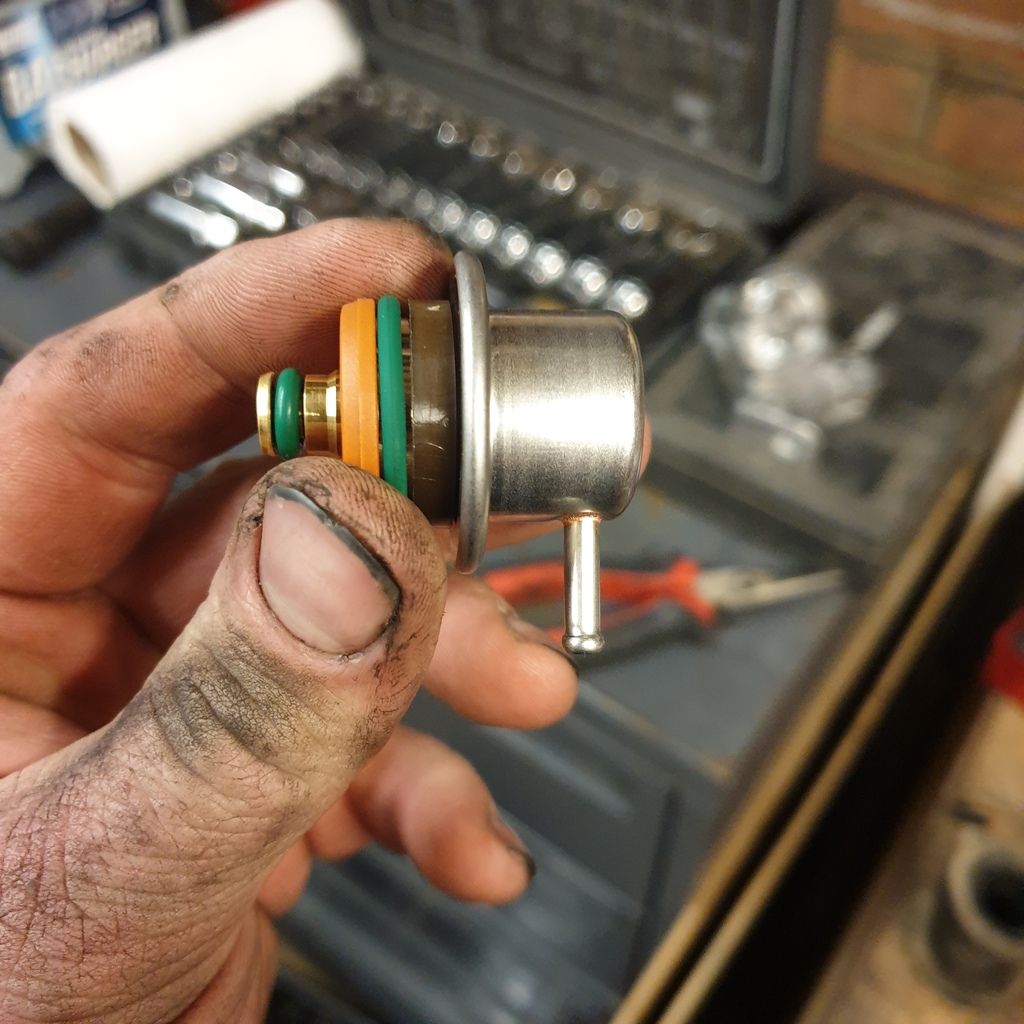

Right I ordered the bosch regulator and seal kit . What a **** of a job arms cut blood over the inlet manifold , what a nightmare! But noticed the bosch fpr has a nipple on end and a swadge like should be a vac hose of something. Have I got wrong part of just had a extra tube / nipple instead of a plain hole ?





Cheers

Sounds much easier taking the engine out to change il see what pipe I got and zip tie it out of the way .

I'm tempted to remove the inlet manifold to put back on tomorrow. My arm is looking a cat had a fight with me and very red where was wedged under the manifold!

Matt2e0fgx said:
Sounds much easier taking the engine out to change il see what pipe I got and zip tie it out of the way .

I'm tempted to remove the inlet manifold to put back on tomorrow. My arm is looking a cat had a fight with me and very red where was wedged under the manifold!
Click to expand...
I've done mine a few times, used a 1/4 drive socket set with a couple of extensions, its fiddly but possible.

Have you removed the regulator? Apparently you can access the bottom bolt by taking the wheel off and getting to it via the wheel arch. Perhaps removing the starter might get access to it from below. I hadn't had a problem with mine but I thought I would change it before putting the engine in.

brianconwy said:
Have you removed the regulator? Apparently you can access the bottom bolt by taking the wheel off and getting to it via the wheel arch. Perhaps removing the starter might get access to it from below. I hadn't had a problem with mine but I thought I would change it before putting the engine in.
Click to expand...

I have got it off yes . Putting back on tomorrow . The lower bolt you wont get through wheel arch . My main issue bolts so tight and only being able to get a 1/4" ratchet on with a uj and 4 extensions! Starter may be a idea though

brianconwy said:
I take it you have seen this article http://www.discovery2.co.uk/Fpr.html. He does say it is quite fiddly. lol.
Click to expand...


Yes I have . That guide make it sounds easy though ! It's not at all .

A good trick is put all bolts and gasket on and behind gasket put a rubber band to hold all together. Start each bolt off and snip the band off . Tighten up and replace pipes .

Well that's the theory !
