Front calipers gone, check out the state of these pads!

Discussion in 'Defender 90 / 110 / 130' started by nobber, Sep 2, 2018.

< Previous Thread | Next Thread >
  1. nobber

    nobber Well-Known Member

    Joined:
    Dec 29, 2006
    Posts:
    10,207
    Likes Received:
    5,194
    Location:
    Arse!

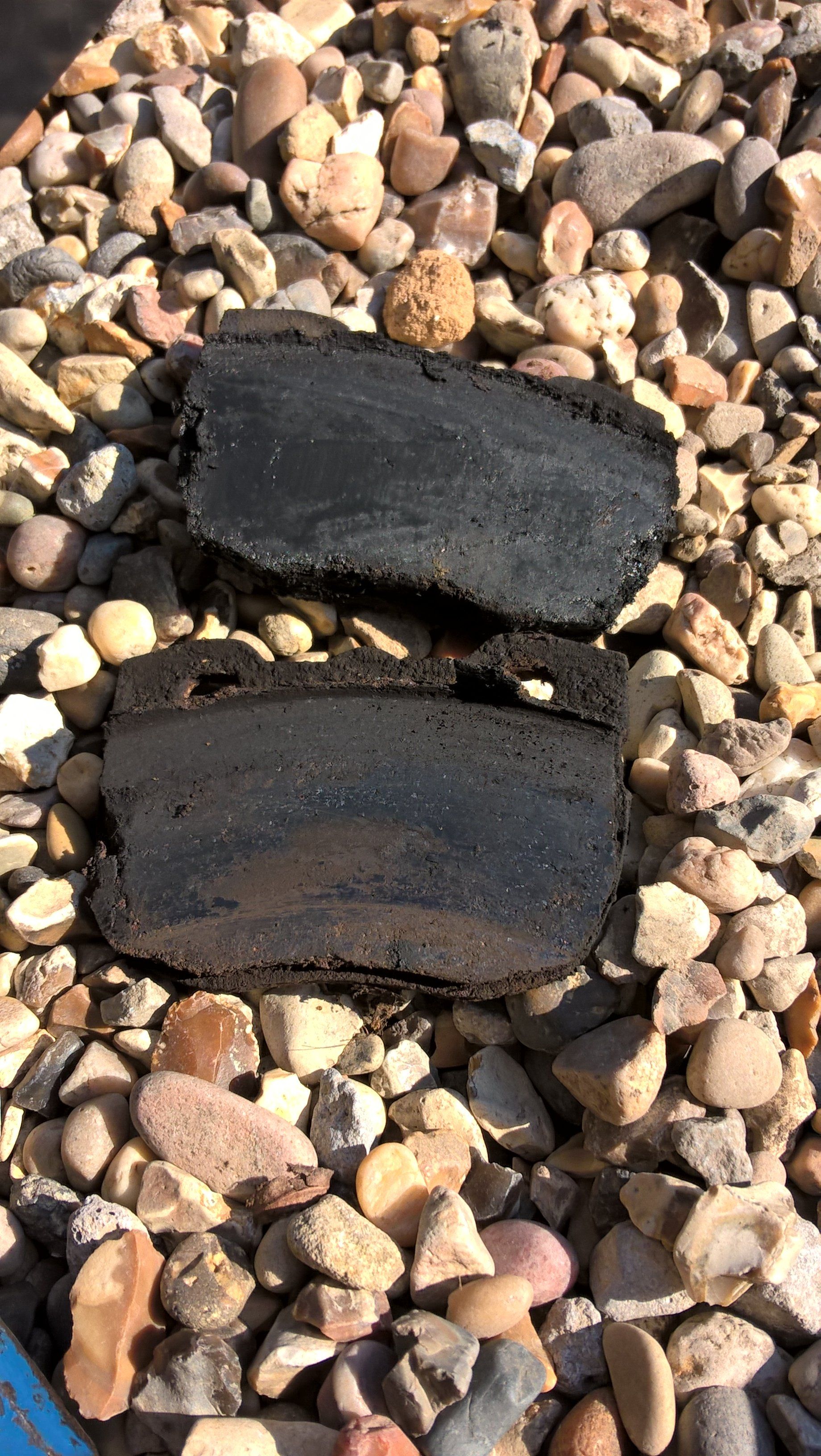

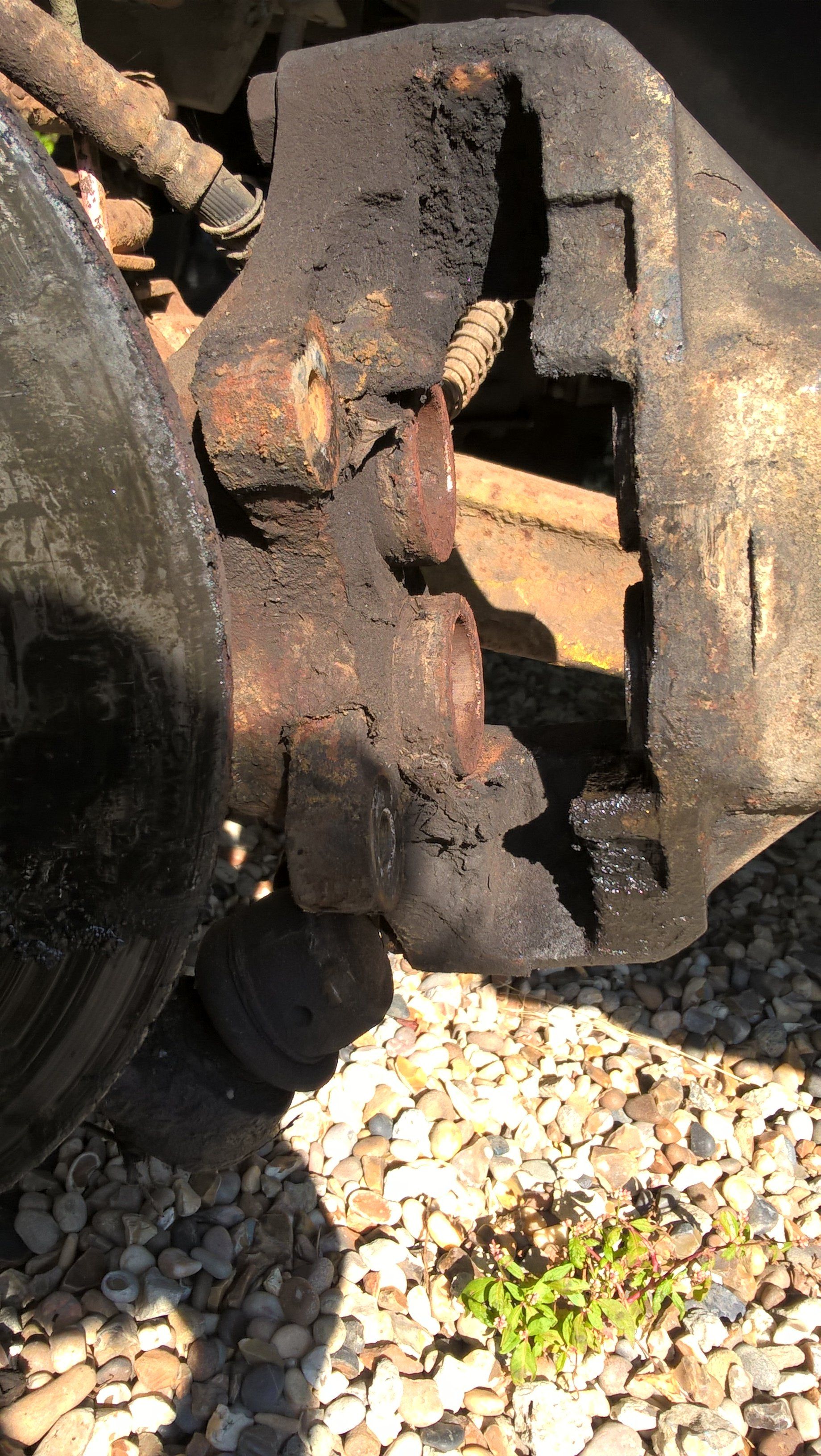

    I noticed my brakes were shot, thought from lack of use as its been laid up for a while , but no , leaking caliper,, look at the state of those pads!

    So, I need a couple of calipers and a set of pads, anyone know the Pt Numbers? single pipe, four piston, multi spline bolts. WP_20180902_15_22_27_Pro.jpg WP_20180902_15_23_46_Pro.jpg

    Gottschalk likes this.
  2. nobber

    nobber Well-Known Member

    Joined:
    Dec 29, 2006
    Posts:
    10,207
    Likes Received:
    5,194
    Location:
    Arse!
    Any ideas on part numbers guys? I think its a 300tdi axle, or a Rangie or something, I will try and get a better photo of the other side.


    Attached Files:

  3. Kwakerman

    Kwakerman Well-Known Member

    Joined:
    Jan 19, 2013
    Posts:
    3,278
    Likes Received:
    510
    Location:
    Hampshire
    Think you've had your moneys worth out of them!:D

  4. nobber

    nobber Well-Known Member

    Joined:
    Dec 29, 2006
    Posts:
    10,207
    Likes Received:
    5,194
    Location:
    Arse!
    Not sure when they last worked but during last winter now I know why I was doing 380 spins on the corners!

    Gottschalk likes this.
  5. Def90man

    Def90man Percy the Pedant Full Member

    Joined:
    Aug 31, 2016
    Posts:
    6,475
    Likes Received:
    14,305
    Location:
    Far out West
    Quick squirt of brake cleaner, new pads and they will be good for another few thousand miles:eek:

  6. nobber

    nobber Well-Known Member

    Joined:
    Dec 29, 2006
    Posts:
    10,207
    Likes Received:
    5,194
    Location:
    Arse!
    Do they look like RTC4998?

  7. dag019

    dag019 Well-Known Member

    Joined:
    May 18, 2014
    Posts:
    3,508
    Likes Received:
    1,535
    Location:
    Warwick
    I would refurb them rather than replace the calipers. Once yo know which caliper it is get some stainless pistons, stainless bleed nipples, GENUINE piston seals, and some gallery seals. Very straight forward job to do and once completed they will not need touching for a long time and no risk of seized pistons in the future. If you decide to go down this route I can give you some more detail on how to do it and see if I can find write up I followed.

    8ha likes this.
  8. suggsey

    suggsey Active Member

    Joined:
    Dec 7, 2017
    Posts:
    193
    Likes Received:
    48
    Location:
    essex England
    I’ve just upgraded my defender see pics posted last week and I have the Calipers and brake pad and the pads have hardly any wear if your interested

    Colthebrummie likes this.
  9. Roaming Wombat

    Roaming Wombat Well-Known Member

    Joined:
    Aug 16, 2015
    Posts:
    424
    Likes Received:
    126
    Location:
    Fortress Europa
    They look like Discovery 1 pads, found out the hard way the Disco 1 axles and running gear are identical to 90/110/Defender... except the brake callipers :rolleyes:
    Could be a good excuse to fit some vented discs... ;) and do the wheel bearings at the same time.

    The Disco 1 pads are smaller than the LR 90/110 ones. These are the ones I took off mine recently (they are Disco 1 pads) and the kit I replaced them with.

    Give Bearmach a call and they'll be able to rattle off the different part numbers.


    Attached Files:

  10. nobber

    nobber Well-Known Member

    Joined:
    Dec 29, 2006
    Posts:
    10,207
    Likes Received:
    5,194
    Location:
    Arse!
    There are only two different kinds of pads, with tab and without tab.

  11. nobber

    nobber Well-Known Member

    Joined:
    Dec 29, 2006
    Posts:
    10,207
    Likes Received:
    5,194
    Location:
    Arse!
    I might be interested in the calipers, can you get me a photo or two so I can match them up? I might not be too far from you, Im up in Suffolk.

  12. Lionhound

    Lionhound Well-Known Member

    Joined:
    Jan 22, 2014
    Posts:
    250
    Likes Received:
    110
    Location:
    Scotland.
    Whassup wi the pads?Aw man, you've taken em out too soon. Your coshh assessment should have thrown up the asbestos risk.
    Another coupla thousand miles would have seen that risk removed from the equation.
    Try to be a bit more forward thinking in future. :rolleyes::);)

  13. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    91,883
    Likes Received:
    20,278
    Location:
    louth lincs
    90 and disco used the same pads till 300tdi came then 90 used the larger 110 pads /calipers

    Roaming Wombat likes this.
  14. nobber

    nobber Well-Known Member

    Joined:
    Dec 29, 2006
    Posts:
    10,207
    Likes Received:
    5,194
    Location:
    Arse!
    See that's the problem, those pads would never have worn because the caliper wasn't working. Strangely it braked in a straight line.

  15. suggsey

    suggsey Active Member

    Joined:
    Dec 7, 2017
    Posts:
    193
    Likes Received:
    48
    Location:
    essex England
    Will post pics soon I hope not only of the calipers but also the pads, then you will know for sure.

  16. Oldseadog

    Oldseadog Well-Known Member

    Joined:
    May 27, 2011
    Posts:
    9,270
    Likes Received:
    1,053
    Location:
    Tynemouth
  17. suggsey

    suggsey Active Member

    Joined:
    Dec 7, 2017
    Posts:
    193
    Likes Received:
    48
    Location:
    essex England
    Nobber have a lookey at these pics 02F55462-6FB4-440F-AC78-AE61615221B7.jpeg ED9B5678-0BE8-4AEB-818F-7D2F51E74F81.jpeg 2B1E19F9-132A-4489-9503-F855EA2832BF.jpeg 4F1E3D31-B33B-4930-AC64-814267BEE4C7.jpeg 0FF769F9-0D94-4A09-AC2E-7BFDDEC57E2E.jpeg


    Attached Files:

  18. suggsey

    suggsey Active Member

    Joined:
    Dec 7, 2017
    Posts:
    193
    Likes Received:
    48
    Location:
    essex England
    And the discs look good as well F6DCA5B3-5C4C-4A21-91A0-3184E82A5437.jpeg 8312F139-DDCF-496D-84FB-AF1771F62604.jpeg 8312F139-DDCF-496D-84FB-AF1771F62604.jpeg F5F4D059-DAB7-4D6F-97D5-020926EC9E91.jpeg


    Attached Files:

    Hippo and Dippypud like this.
  19. nobber

    nobber Well-Known Member

    Joined:
    Dec 29, 2006
    Posts:
    10,207
    Likes Received:
    5,194
    Location:
    Arse!
    Thanks suggsey but those are different to mine , I think mine are RTC4998 , can anyone confirm? I still need part numbers for the pads and the rigid pipe from flexy to caliper, my parts catalogue doesnt support these type of caliper, anyone have a catalogue that does?

    Also guys does anyone know a supplier that could have these to me on Friday/Saturday?




  20. Oldseadog

    Oldseadog Well-Known Member

    Joined:
    May 27, 2011
    Posts:
    9,270
    Likes Received:
    1,053
    Location:
    Tynemouth
    Isn't there someone close by with a pipe bender and a flaring tool?
