P38A Front bushes

oakey · May 10, 2019

95 V8 auto 186k
Hi folks, I am thinking of making a thingy for changing the front suspension bushes.
Does anyone have the sizes for such a thing?
I have the Laser unit for the rears. It was advertised for the fronts too but doesnt.
ta much

RangeRoller dt · May 11, 2019

For the radius arms?

You can guess who’s prices they are

If they are to fit the bushes, can you not get the measurements from the bushes themselves?

tomcat59alan · May 11, 2019

RangeRoller dt said:
For the radius arms?

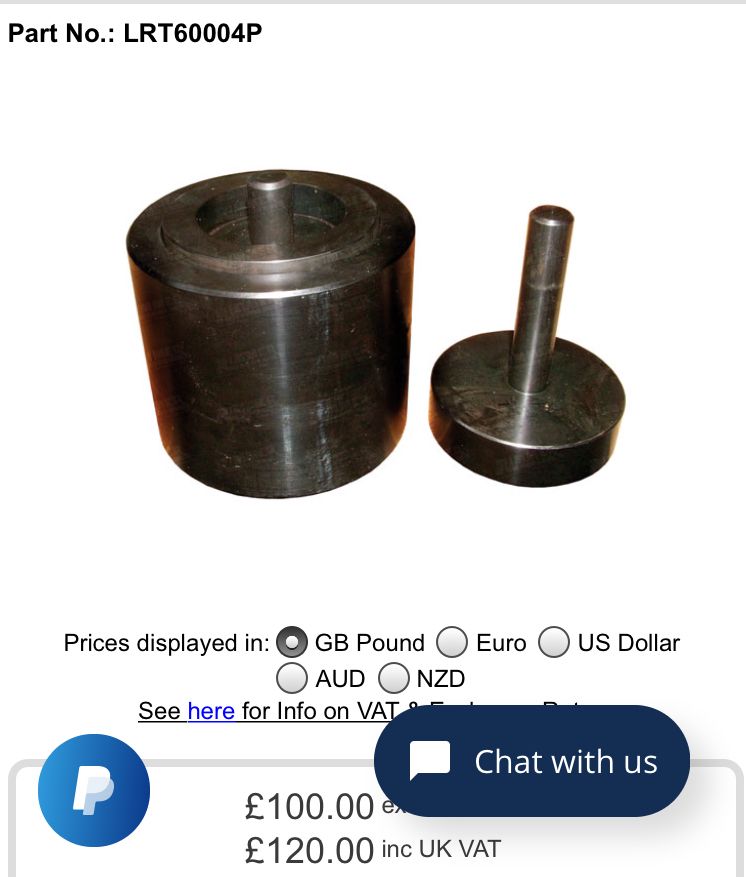

View attachment 177603
You can guess who’s prices they are

If they are to fit the bushes, can you not get the measurements from the bushes themselves?

No the the tool is an internal taper that squeezes the bush so it will fit in to the hole in the arm

tomcat59alan · May 11, 2019

The first time I replaced mine I put them in hot water then squeezed them with jubilee çlips then pressed them in. The second time I used poly bushes

Dead easy as they come in two pieces.only used them at the axle end and I never noticed any ride difference.

wammers · May 11, 2019

Made an insertion tool from 1 inch Micarta. Internal bore tapers from 62 mm to 59 mm over the 1 inch depth. Then suitable press blocks to press bush through tool and into eye with 20 ton press. Easy job.

oakey · May 11, 2019

Thank you for all your replies
