Freelander 2 designer must of gone to Hogwarts

Discussion in 'Land Rover Freelander' started by Snaggapuss, Sep 16, 2019.

< Previous Thread | Next Thread >
  1. Snaggapuss

    Snaggapuss Active Member

    Joined:
    Oct 5, 2010
    Posts:
    108
    Likes Received:
    43
    Location:
    Vilhelmina, Sweden
    Just done the oil change on my F2, normally do it at a mate's garage and use his tools. Today decided to do at home in my barn. Must of used every combination of sockets and wrenches I have to get that pesky oil filter off. Reckon the guy who designed it must of been a magician, and was probably a member of Slithering with a mean streak a mile wide. How on earth do normal muggels such as ourselves attempt to remove said oil filter. Or is there a special wand to do the job. I'm not a small guy, 6'2, 94 kilo's and my hands have a real problem getting to that filter, and as for getting a wrench to easily turn in that minuscule space well ...........How does everyone else cope. Suggestions for the next time in 6 months time please.

  2. Henry_b

    Henry_b Well-Known Member

    Joined:
    Jan 29, 2018
    Posts:
    7,528
    Likes Received:
    5,122
    Location:
    Herefordshire'
    Pfft try doing a TD5.

    [​IMG]

    I don't have the smallest hands and you have to pretty much break your wrist to mangle yourself in there to undo it ;)

    Snaggapuss likes this.
  3. Snaggapuss

    Snaggapuss Active Member

    Joined:
    Oct 5, 2010
    Posts:
    108
    Likes Received:
    43
    Location:
    Vilhelmina, Sweden

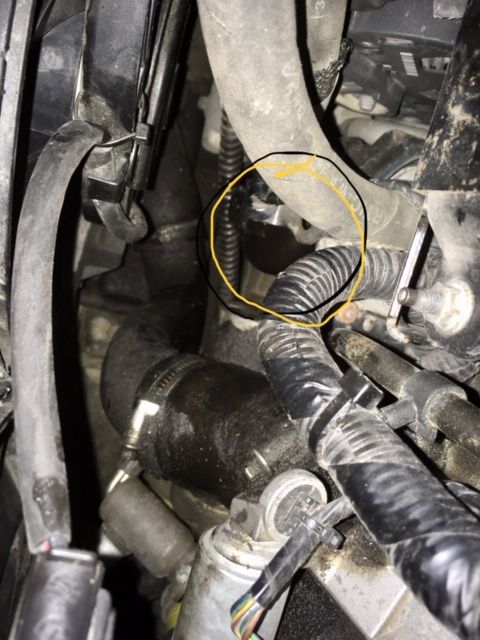

    But but but you can see yours, you can just see the plastic *nut* head in the yellow IMG_3125.JPG circle

  4. Henry_b

    Henry_b Well-Known Member

    Joined:
    Jan 29, 2018
    Posts:
    7,528
    Likes Received:
    5,122
    Location:
    Herefordshire'
    But u can't really get your hands on the TD5 filter. ;)

    The problem is engineers don't talk to mechanics ;)

    Snaggapuss likes this.
  5. freelance

    freelance Well-Known Member

    Joined:
    Mar 5, 2009
    Posts:
    6,963
    Likes Received:
    2,838
    Location:
    essex and beyond
    27mm ratchet end combination spanner

    Snaggapuss likes this.
  6. freelance

    freelance Well-Known Member

    Joined:
    Mar 5, 2009
    Posts:
    6,963
    Likes Received:
    2,838
    Location:
    essex and beyond
    ( it’s a bought in ford engine) so blame the welsh, made in Bridgend

    Snaggapuss likes this.
  7. Snaggapuss

    Snaggapuss Active Member

    Joined:
    Oct 5, 2010
    Posts:
    108
    Likes Received:
    43
    Location:
    Vilhelmina, Sweden
    uhmmm have to see if i can hold of one of those, problem is remembering to pick one up when I get to the big city, live in the bush bush in northern sweden.

  8. td4van

    td4van Well-Known Member

    Joined:
    Jun 17, 2012
    Posts:
    1,549
    Likes Received:
    191
    Location:
    Gloucestershire
    It’s a Peugeot Citroen engine made in France so blame the EU

    Hippo, freelance and Snaggapuss like this.
  9. Arctic2

    Arctic2 Well-Known Member

    Joined:
    Oct 2, 2014
    Posts:
    1,460
    Likes Received:
    273
    Location:
    Westmidlands

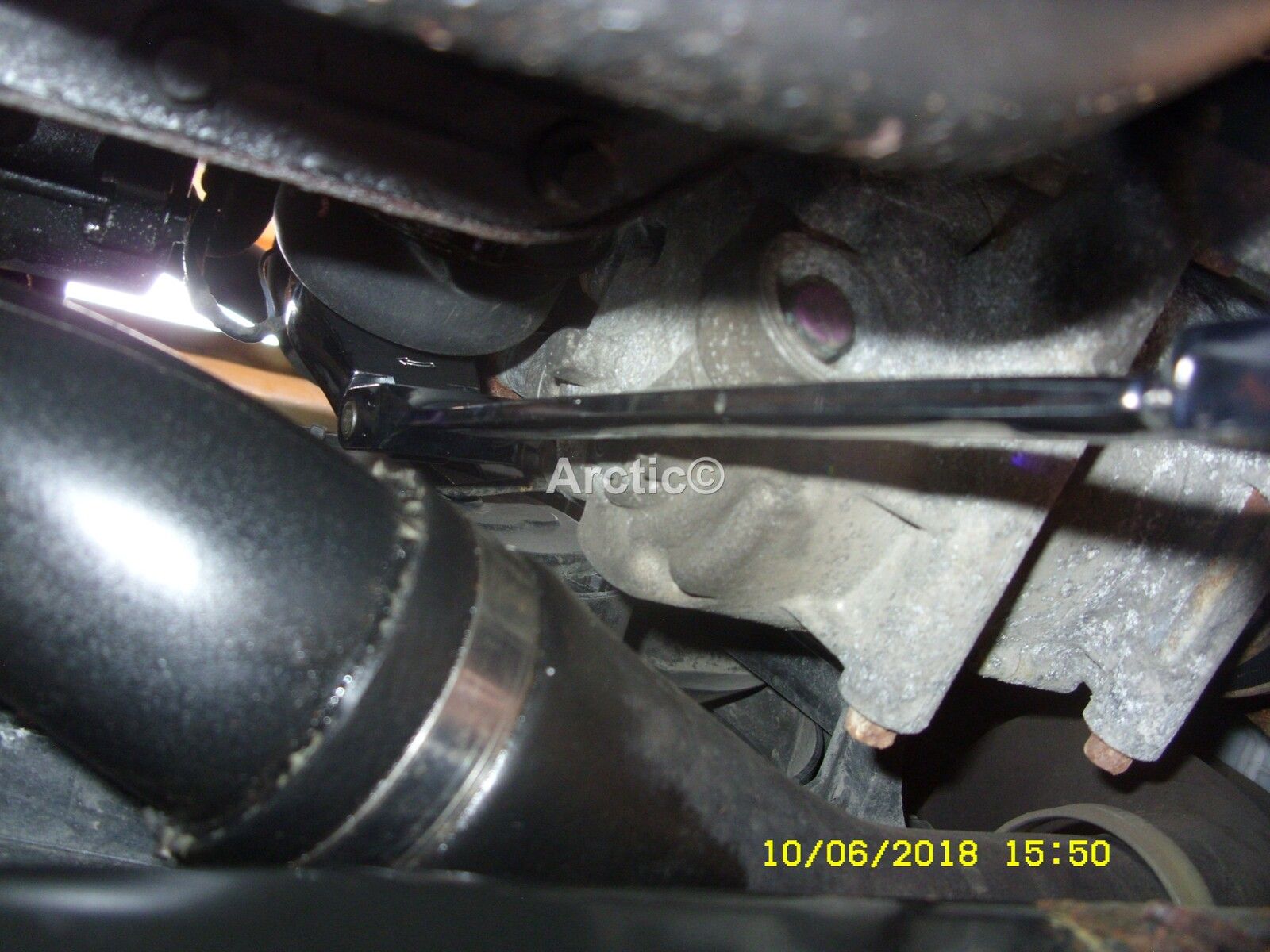

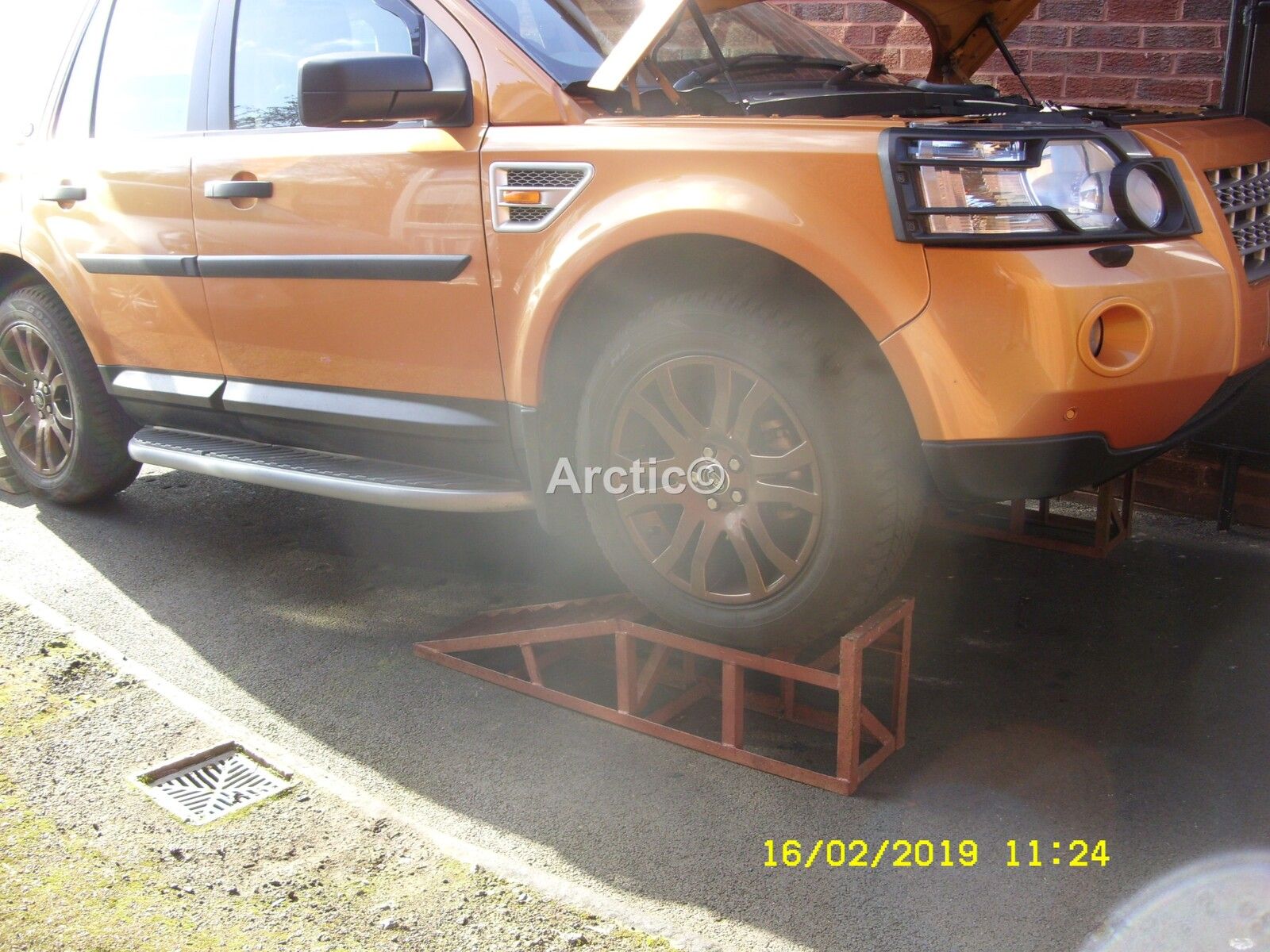

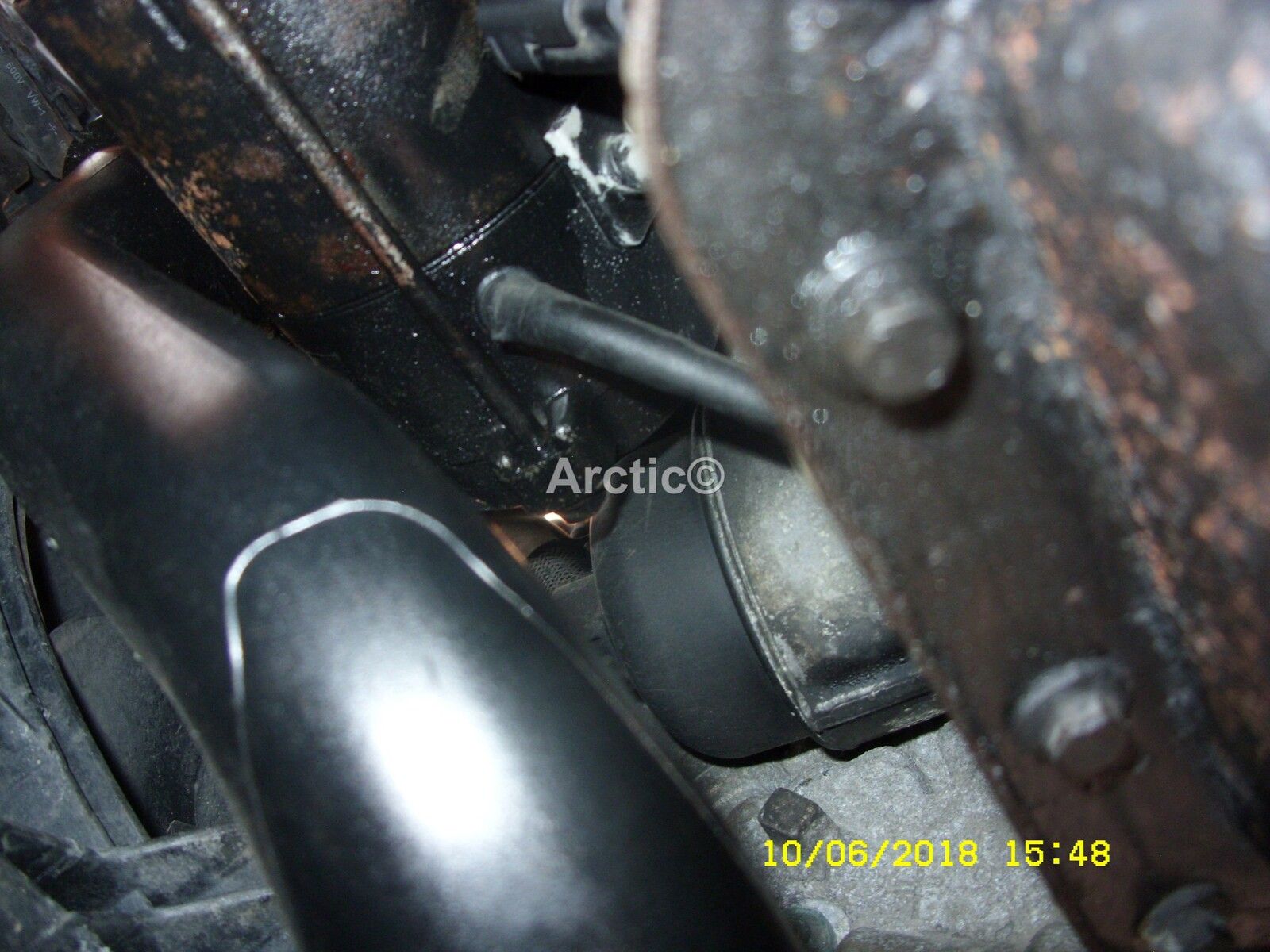

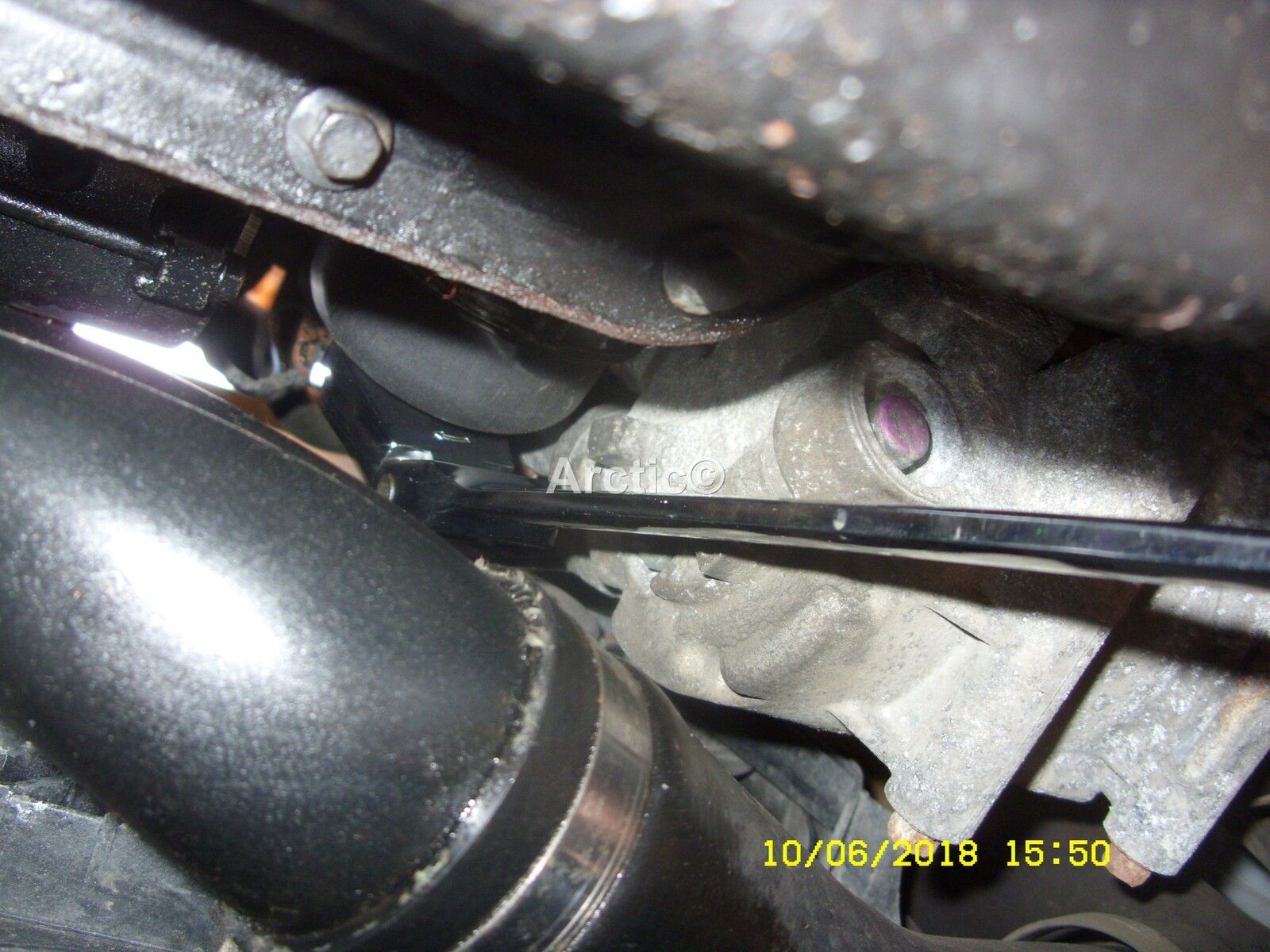

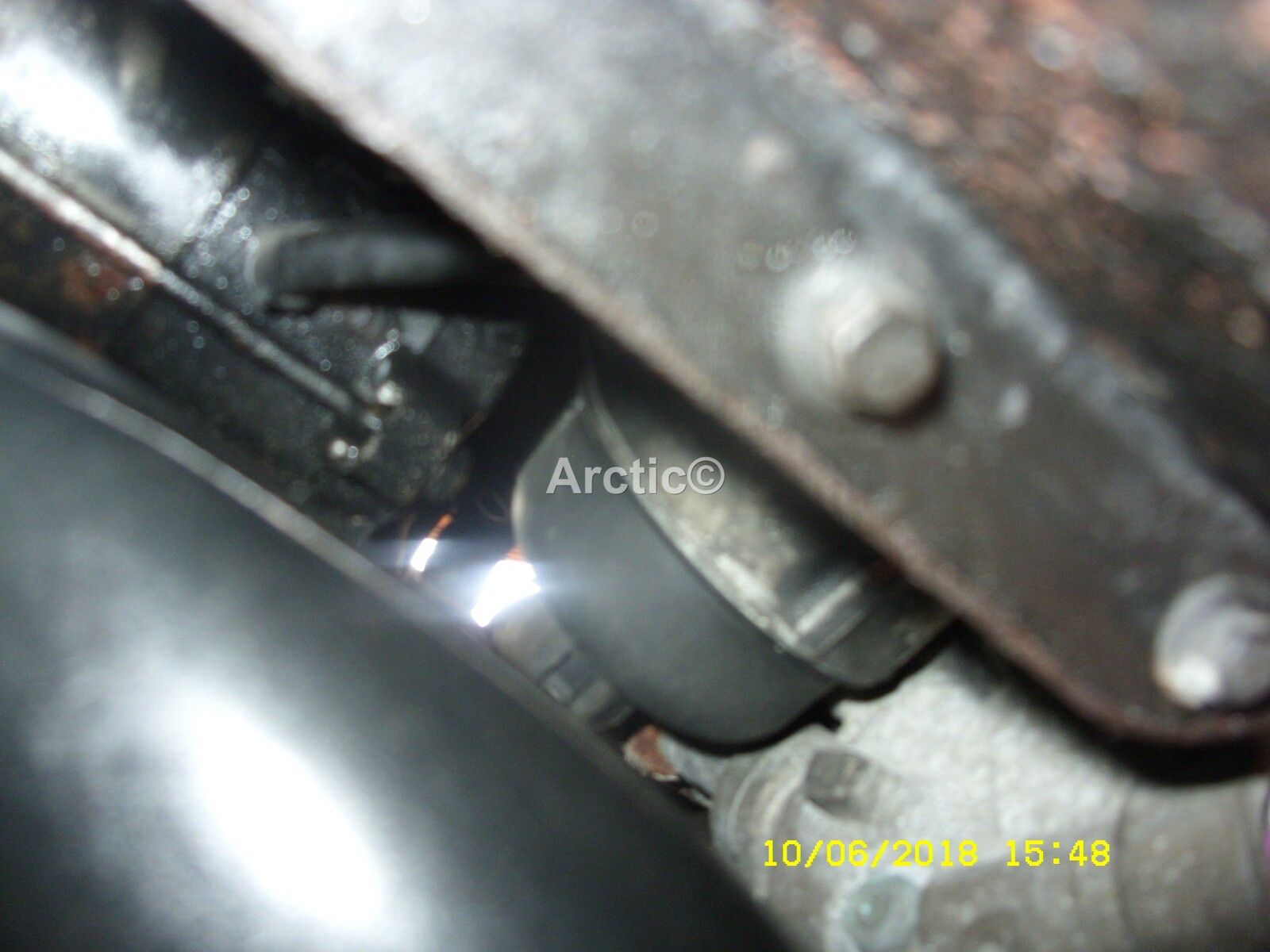

    You do it from below and use one of these below, also you have to move the hose slightly backwards, the ratchet combination spanner is the best tool, use of some decent ramps also help the higher the better, usually takes about 20 minutes.


    Attached Files:

  10. freelance

    freelance Well-Known Member

    Joined:
    Mar 5, 2009
    Posts:
    6,963
    Likes Received:
    2,838
    Location:
    essex and beyond
    Woops, France - Wales , all the same to me

    Snaggapuss likes this.
  11. Snaggapuss

    Snaggapuss Active Member

    Joined:
    Oct 5, 2010
    Posts:
    108
    Likes Received:
    43
    Location:
    Vilhelmina, Sweden
    brilliant pics, and now I know a flexible ratchet is required, nicely done Arctic 2, thanks

  12. Snaggapuss

    Snaggapuss Active Member

    Joined:
    Oct 5, 2010
    Posts:
    108
    Likes Received:
    43
    Location:
    Vilhelmina, Sweden
    :)

  13. Hippo

    Hippo Lord Hippo

    Joined:
    Nov 22, 2007
    Posts:
    31,094
    Likes Received:
    9,030
    I change mine recently on the SD4. I have thin arms and small hands so it was easier. Let the oil drain from the sump for a while before removing the oil filter so there wasn't any mess others have talked about from the filter dripping oil. I put a fine tooth ratchet on it to start off the filter then turned by hand when it was lose enough. Hardest part I found was getting the oil filter out of the plastic top as I didn't want to snap the plastic top if too forceful. I did try to buy a 27mm ratchet spanner at the last minute but shops don't seem to stock them.
