Fitting Heater Box

border · Feb 16, 2020

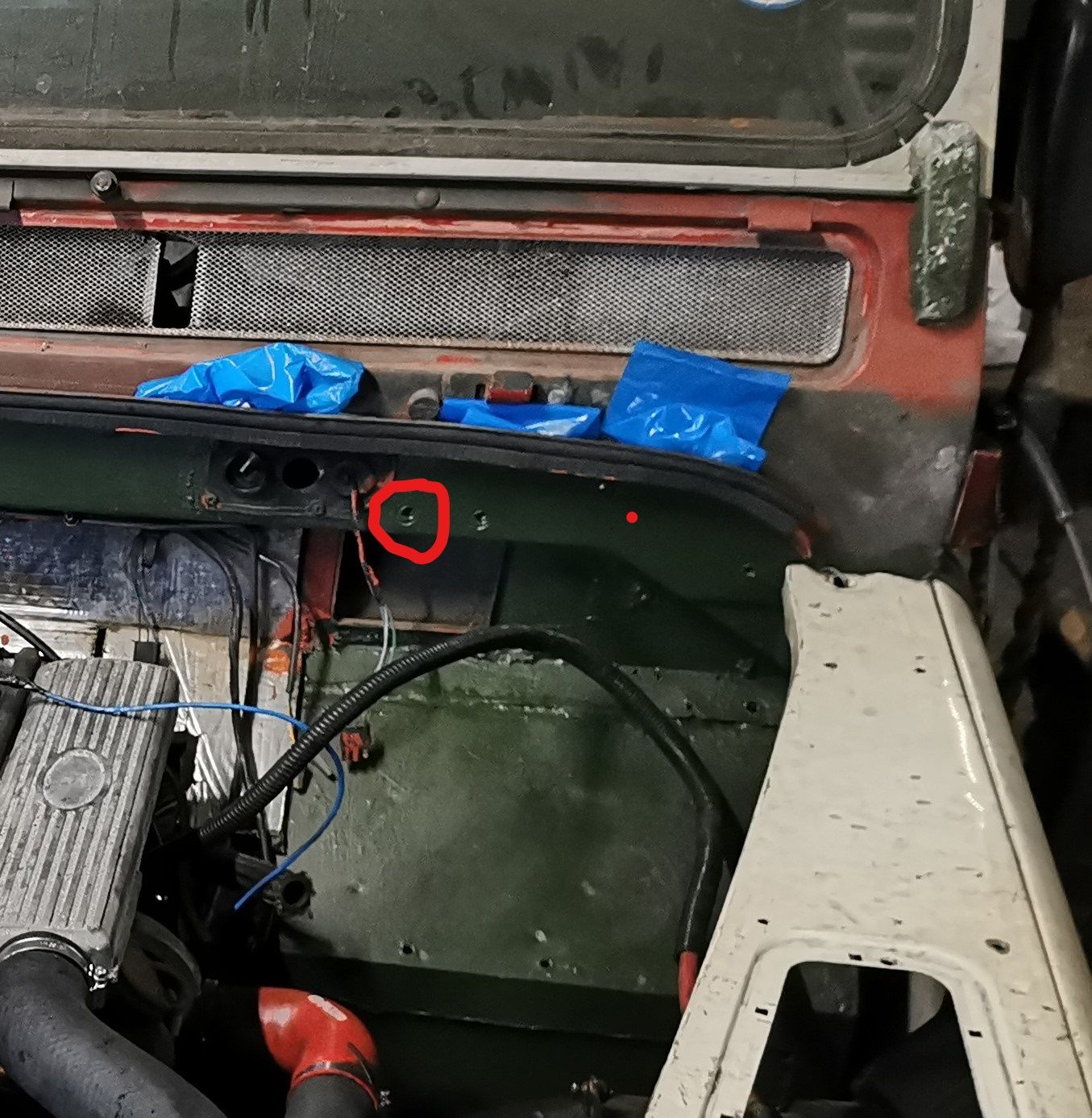

Was going to bolt my heater box in tonight but one of the nut inserts is missing circled in pic,
I know the part number but don't think my local Landy place will have one.
Is there another way I can get round this or will I have to order the correct part for it. ?

mick 1986 · Feb 16, 2020

border said:
Was going to bolt my heater box in tonight but one of the nut inserts is missing circled in pic,
I know the part number but don't think my local Landy place will have one.
Is there another way I can get round this or will I have to order the correct part for it. ?

Just use an M8 or M10 Rivnut. That’s how I done mine.

border · Feb 16, 2020

mick 1986 said:
Just use an M8 or M10 Rivnut. That’s how I done mine.

Thanks Mick just googled rivnut, That's how thick I am

Probably the same as part number. Do you just push them in ?, I know the thread is M8

v8250 · Feb 16, 2020

Shame you're not darn Sarf'...have just had ~200 rivnuts arrive this week. Would happily of donated an M8/M10

v8250 · Feb 16, 2020

border said:
Thanks Mick just googled rivnut, That's how thick I am Probably the same as part number. Do you just push them in ?, I know the thread is M8

you need a rivnut gun...do not buy one of the blue handled cheapo jobbies, they're crap. buy one of these - there's a zillion rivnuts on landies

https://www.ebay.co.uk/itm/HAND-RIVET-NUT-GUN-Blind-Riveter-16-Rivnut-Setting-Tools-11-mandrels-110-Nuts/392640636081?ssPageName=STRK:MEBIDX:IT&_trksid=p2057872.m2749.l2649

mick 1986 · Feb 16, 2020

border said:
Thanks Mick just googled rivnut, That's how thick I am Probably the same as part number. Do you just push them in ?, I know the thread is M8

You would need to see which one fits the hole the best. From memory M10 fits better, but standard should be M8.

The rivnut does just push in yes, but then needs a force applying to “pull” the thread towards the flanged face. I have two different tools for fitting them, but I have used a bolt, coupe of nuts and washers to fit them too. I will see if I can find a video.

mick 1986 · Feb 16, 2020

Link to tighten rivnut without insert tool.

The better of the two I have is like the one posted by @v8250

border · Feb 16, 2020

mick 1986 said:
Link to tighten rivnut without insert tool.

The better of the two I have is like the one posted by @v8250

Spot on Mate will have a go at it.

payydg · Feb 17, 2020

Yeh just put a rivnut in

Litch · Feb 17, 2020

"You would need to see which one fits the hole the best. From memory M10 fits better, but standard should be M8."

I think Mick is correct.

When I bought my new bulkhead it was not fitted with rivnuts for the heater & steering column bolts and while M8 may have been what would have been fitted in the factory, I found that M10 rivnuts fitted the holes perfectly. Everything bolted together with the larger bolts no problem.

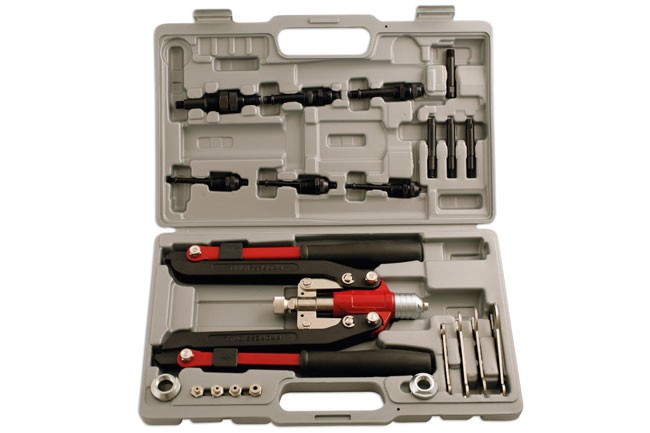

Always used to tighten rivnuts manually but a few years ago bought the Laser tool (shown below). Excellent tool and makes setting even large rivnuts an easy operation, also does rivstuds and pop rivets.

border · Feb 17, 2020

Litch said:
"You would need to see which one fits the hole the best. From memory M10 fits better, but standard should be M8."

I think Mick is correct.
When I bought my new bulkhead it was not fitted with rivnuts for the heater & steering column bolts and while M8 may have been what would have been fitted in the factory, I found that M10 rivnuts fitted the holes perfectly. Everything bolted together with the larger bolts no problem.

Always used to tighten rivnuts manually but a few years ago bought the Laser tool (shown below). Excellent tool and makes setting even large rivnuts an easy operation, also does rivstuds and pop rivets.

View attachment 200870

Thanks will get a couple of each, M8 and M10. I have seen other Rivnuts on other parts of my Bulkhead, not sure what bolts in to them Yet but will find out when I come to them.

nobber · Feb 18, 2020

If you remove the cover over the wiper motor you can drill through and use a long bolt, but I would use and have used a rivnut. It wouldn't hurt to get some oil squirted into the bulkhead while you are in there! I use a mix of paraffin and engine oil to squirt into places that may other wise rust out, especially when working on the bulkhead.

nobber · Feb 18, 2020

Although this looks like a decent bit of kit!

border · Feb 18, 2020

nobber said:
Although this looks like a decent bit of kit!

Looks a great tool that, I finally got the missing rivnut in the old fashioned way, not perfect but its in and bolted heater box on. Never thought about squirting some oil In. I did cover it all with that Carust stuff a while back but only on the outside,

border · Feb 19, 2020

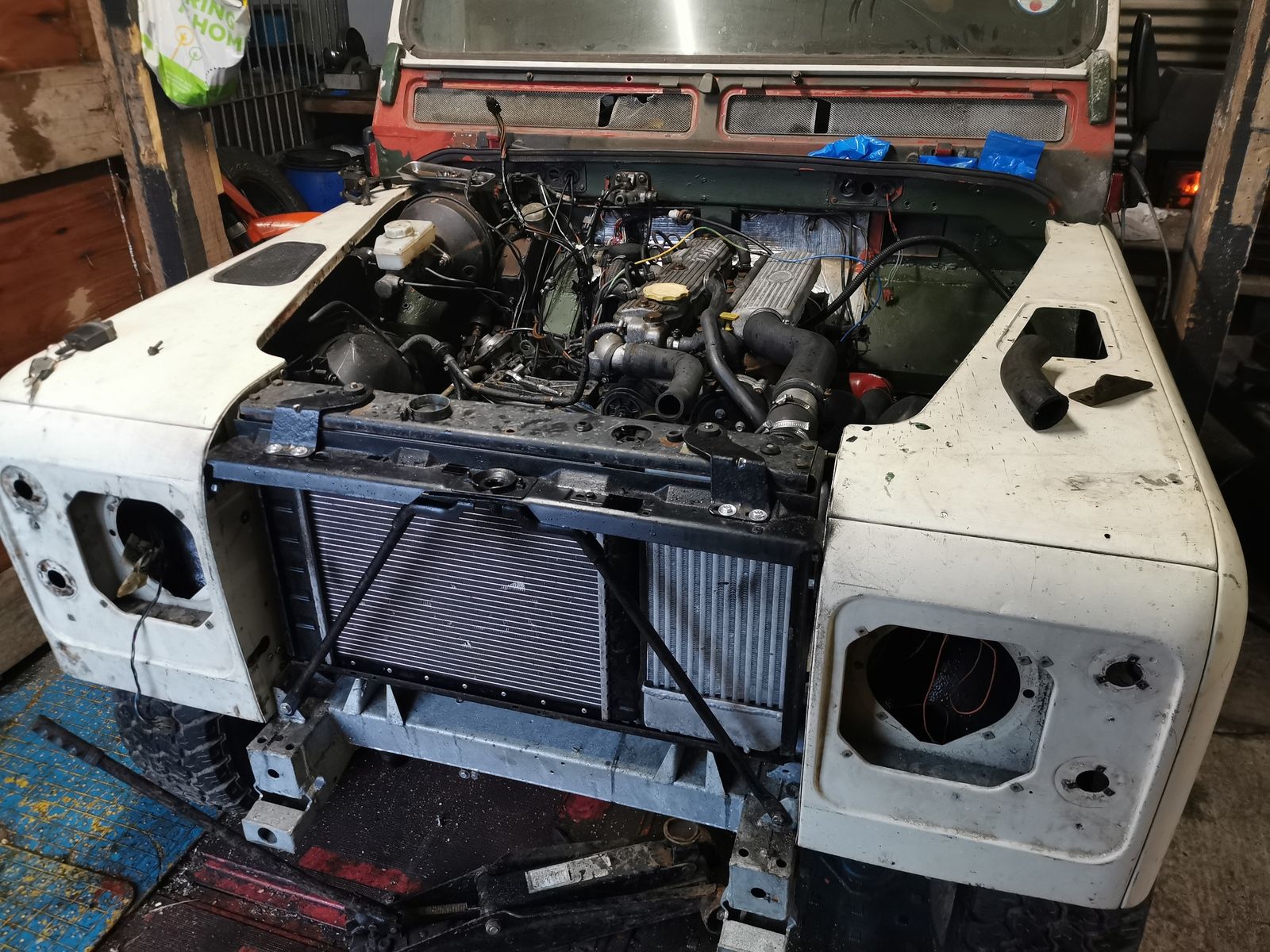

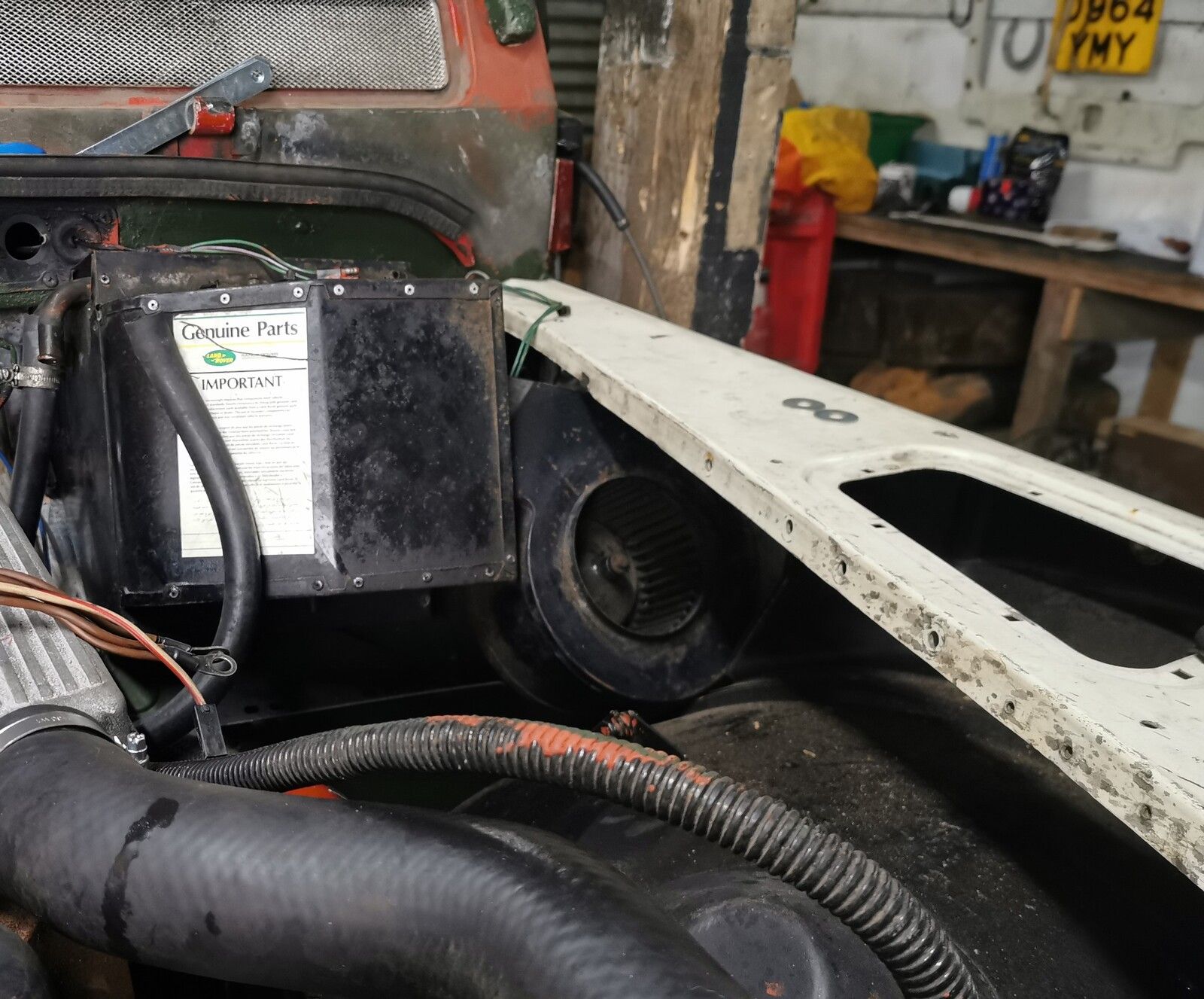

Its in place, and I found the heater duct, number 14 on Diagram, Will I need number 11 ? as don't think its there , also number 12 is a foam seal, Im sure I could make one out of some thick foam, or should I get the correct part ?
https://www.lrworkshop.com/diagrams...ating/heating-system/heater-assembly_52982#11

jamesmartin · Feb 19, 2020

border said:
Its in place, and I found the heater duct, number 14 on Diagram, Will I need number 11 ? as don't think its there , also number 12 is a foam seal, Im sure I could make one out of some thick foam, or should I get the correct part ?
https://www.lrworkshop.com/diagrams...ating/heating-system/heater-assembly_52982#11

yes you need 11its just a white plastic top hat tube and you no12could make a foam seal

border · Feb 19, 2020

jamesmartin said:
yes you need 11its just a white plastic top hat tube and you no12could make a foam seal

Thanks will have to order one , unless I find it somewhere, Ive had number 14 in my shed of parts all this time and wondered what it was until I seen the diagram.

border · Feb 19, 2020

Also Missing the wing top Intake, are 16 and 17 on Diagram the same thing, not sure which one to get. /

jamesmartin · Feb 19, 2020

border said:
Also Missing the wing top Intake, are 16 and 17 on Diagram the same thing, not sure which one to get. /

ones a blank for other wing the others a grille needed for air intake
you need mrc9939

border · Feb 19, 2020

jamesmartin said:
ones a blank for other wing the others a grille needed for air intake
you need mrc9939

Right thanks. Other wing has this, only missing one for heater side, so do I get AWR2215
