Everything JLR SDD related (feel free to add experiences/help).

PotatoOfDestiny said:

I'm looking at kit with the laptop, software and cable, about £300. As I've said, I'm not well up on this stuff, so maybe I'm looking at the wrong set up, but I'm not sure that £30 would get me everything I need or how use-able any of it would be with different software.

Click to expand...

If you have any laptop this will work with just the cable.

The laptop I have is Windows 10, from what I've read, SDD doesn't like 64bit?

Can you guide me on where is good (and relatively safe) to get the software and leads that will work with Win10 if that can be made to work? Cheers

Just a few posts back I have made available the virtual machine files with software ready to go (in a VM)
Nodge68 privided the link of the cable earlier, I've purchased it days ago and have it in my glovebox now. I've spent a few hours getting it sorted to work on modern laptops such as mine (Lenovo t490) specifically for this reason of not willing to run windows 7 or dedicate/purchase/keep a laptop separate for it.
If you need help setting it up pm me and I can do it remotely with team viewer for you will take a few minutes at most.

Here is the example how this works:

Oh god! I'm so sorry! I think my eyes had glazed over and I didn't even see that right in front of my face. Cheers for the help, I'll have a closer look once I'm a little bit more with it!

@Nodge68 look what I've found

PRO said:

@Nodge68 look what I've found

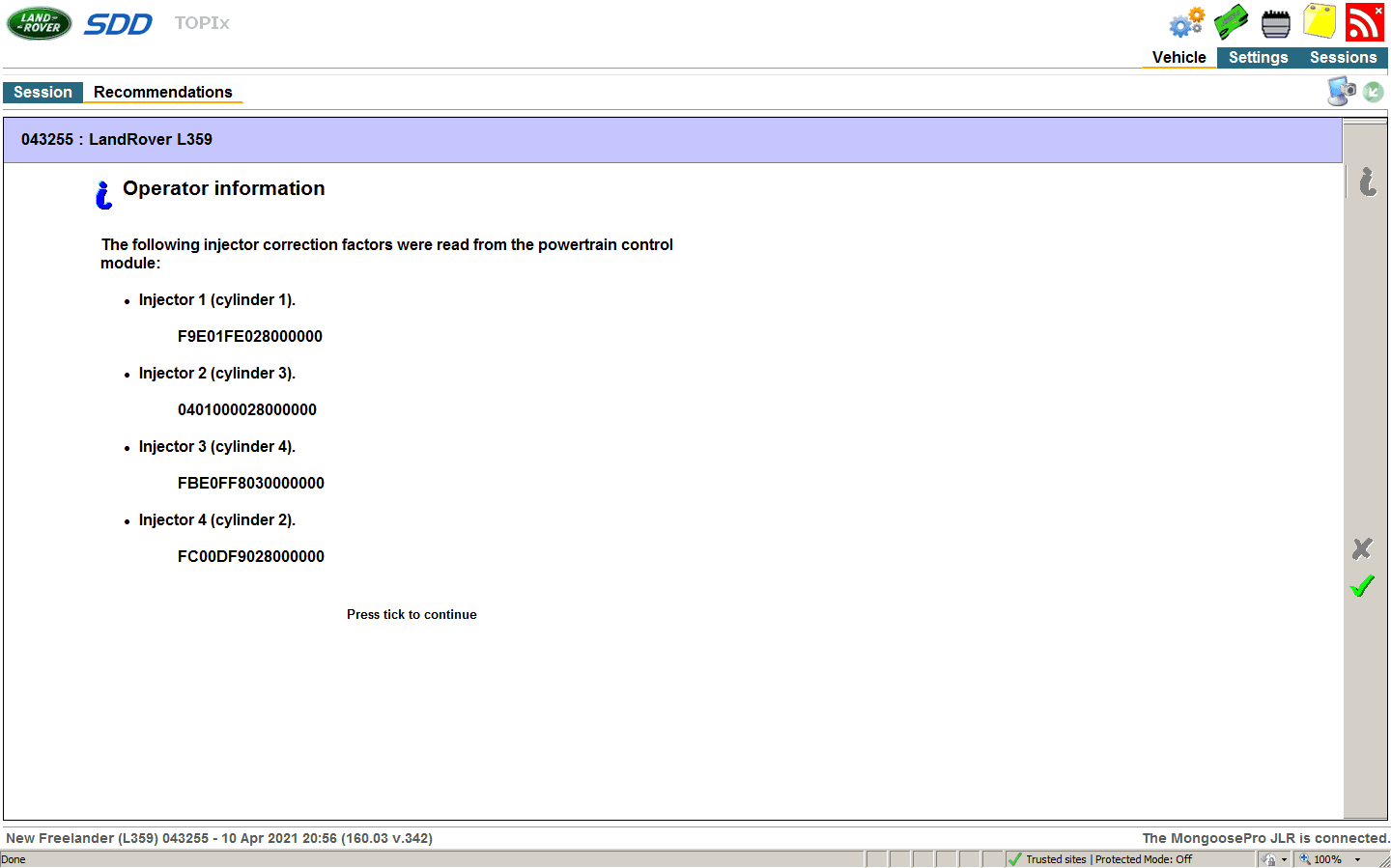

View attachment 235616

Click to expand...

I couldn't find that page on mine. I had to plug in the WOW Delphi, which gave me the injector numbers, which I then corrected with SDD.

I went to session, service functions, waited for all modules to scan and then went to recommendations and it was somewhere on bottom on pcm.

But this is confusing me, is cyl1-2-3-4 not from cam left to right?

PRO said:

But this is confusing me, is cyl1-2-3-4 not from cam left to right?

Click to expand...

On the FL2 dw12 diesel TD4/SD4, cylinder 1 is next to the gearbox.

PotatoOfDestiny said:

I'm considering buying a SDD system for my 2005 Disco 3, but I've been warned that not all 2005s are supported by it. Can anyone help me to figure out how to tell?
Thanks!

Click to expand...

I'd buy the Gap Diagnostics IID BT for a D3, as it's fully featured, and easier to use than SDD. It'll also alter the vehicle programming to none standard configurations, that SDD can do.

PRO said:

But this is confusing me, is cyl1-2-3-4 not from cam left to right?

Click to expand...

Cam belt end is No4, with No1 being at the gearbox end.
It's a PSA thing.

Nodge68 said:

I'd buy the Gap Diagnostics IID BT for a D3, as it's fully featured, and easier to use than SDD. It'll also alter the vehicle programming to none standard configurations, that SDD can do.

Click to expand...

SDD is not that bad once you play with it. The GAP unfortunately costs about 500 and if something does not match/work then it's going to be a sad purchase.
I need to program a key now but I need to be confident I am not erasing the only key I actually have. Too many warnings when I do that, need to investigate.

PRO said:

SDD is not that bad once you play with it. The GAP unfortunately costs about 500 and if something does not match/work then it's going to be a sad purchase.

Click to expand...

It's expensive, but it does do loads of stuff on the D3 which adds to the appeal and usefulness of the early models. Like it'll add 3 flash indicators, and put the clock on the dash, which is a feature I'd like on my FL2, but unfortunately the IID doesn't do that on the FL2, as it's not so well featured.

If you can find a way to improve the Ipack, then that would be cool. There's a Russian guy who added loads of extra screens to his FL2 Ipack, things like instantaneous MPG, battery voltage and a few others, which has done by using SDD to add extra files to the Ipack firmware.

That extra screens sounds interesting especially battery voltage. Links please?

PRO said:

That extra screens sounds interesting especially battery voltage. Links please?

Click to expand...

I think I read about it on the freel2 forum.
https://www.freel2.com/forum/topic17821.html?highlight=clock+dash

Or maybe here, again on freel2.
https://www.freel2.com/forum/topic19314.html

Nodge68 said:

I think I read about it on the freel2 forum.
https://www.freel2.com/forum/topic17821.html?highlight=clock+dash

Or maybe here, again on freel2.
https://www.freel2.com/forum/topic19314.html

Click to expand...

Thank you I am going ahead with that!

PRO said:

Thank you I am going ahead with that!

Click to expand...

Let me know how you get on, as I'd love to have all the additional features on my LCD.

First I've found injector codings all wrong. Updated that.
Did you update your modules? cause mine has no such option and I cannot download anything apparently.

PRO said:

First I've found injector codings all wrong. Updated that.
Did you update your modules? cause mine has no such option and I cannot download anything apparently.

Click to expand...

Mine were wrong too, but was easily corrected with SDD.

Which module are you referring too? I changed my ECM, as my original had been badly prised open, so I replaced it with a second hand one from ebay.

There was an option in SDD to replace or update modules, I'm sure I used the replaced module option. It wasn't difficult to do, as I managed ok.
