electrical confusion

landyjoe · Apr 10, 2011

just finishing off my 200tdi conversion and ive got 4 wires left and i dont know where they go one is green and has two plugs on it one is white with brown tracer and one is white with red tracer does any one know where there ment to go
cheers

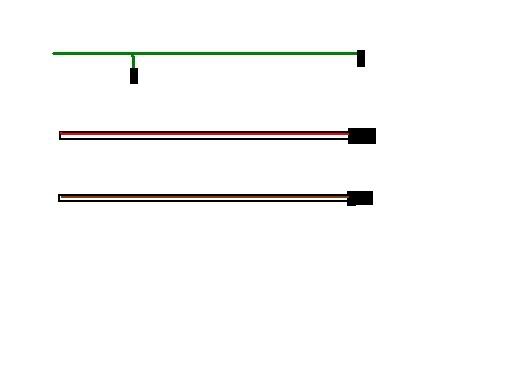

this is what the wires look like

jamesmartin · Apr 10, 2011

white red trace solenoid on starter,white brown oil pressure,other not sure temp is blue

landyjoe · Apr 10, 2011

yer i got a thick white+red wire going to the starter solenoid but still got a thinner one left

jamesmartin · Apr 10, 2011

theres usually feed to glow plug relay thats white red
