Door latching pillar cracked

Discodevon · Jul 27, 2022

My drivers door latching pillar is cracked, it’s been like it for years I guess the door was opened and shut a lot whilst it was in the Royal Air Force and I forgot about it until I looked at it today, my doors shut lovely now since fitting new optimil hinges, is there any simple repairs anyone can recommend please? I really don’t want to have to move the door hinges about again

miktdish · Jul 27, 2022

Do you mean this bit ... https://www.bits4landys.co.uk/defender/defender-door-striker-spacers.htm
They are easy to refit ... the bolts are held by a plate behind the B pillar and move about. The std pillar is hollow and spaced out by thin 'W' spacers.
You don't need to touch the door hinges.

Discodevon · Jul 27, 2022

miktdish said:
Do you mean this bit ... https://www.bits4landys.co.uk/defender/defender-door-striker-spacers.htm
They are easy to refit ... the bolts are held by a plate behind the B pillar and move about. The std pillar is hollow and spaced out by thin 'W' spacers.
You don't need to touch the door hinges.

Thanks I mean the actual metal is cracked around where that latching bit is bolted on sadly

Discodevon · Jul 27, 2022

https://www.ebay.co.uk/itm/29484798...MI68H4vveZ-QIVibbtCh160wGhEAQYASABEgJjyvD_BwE I think something like this is what I need

turrican · Jul 28, 2022

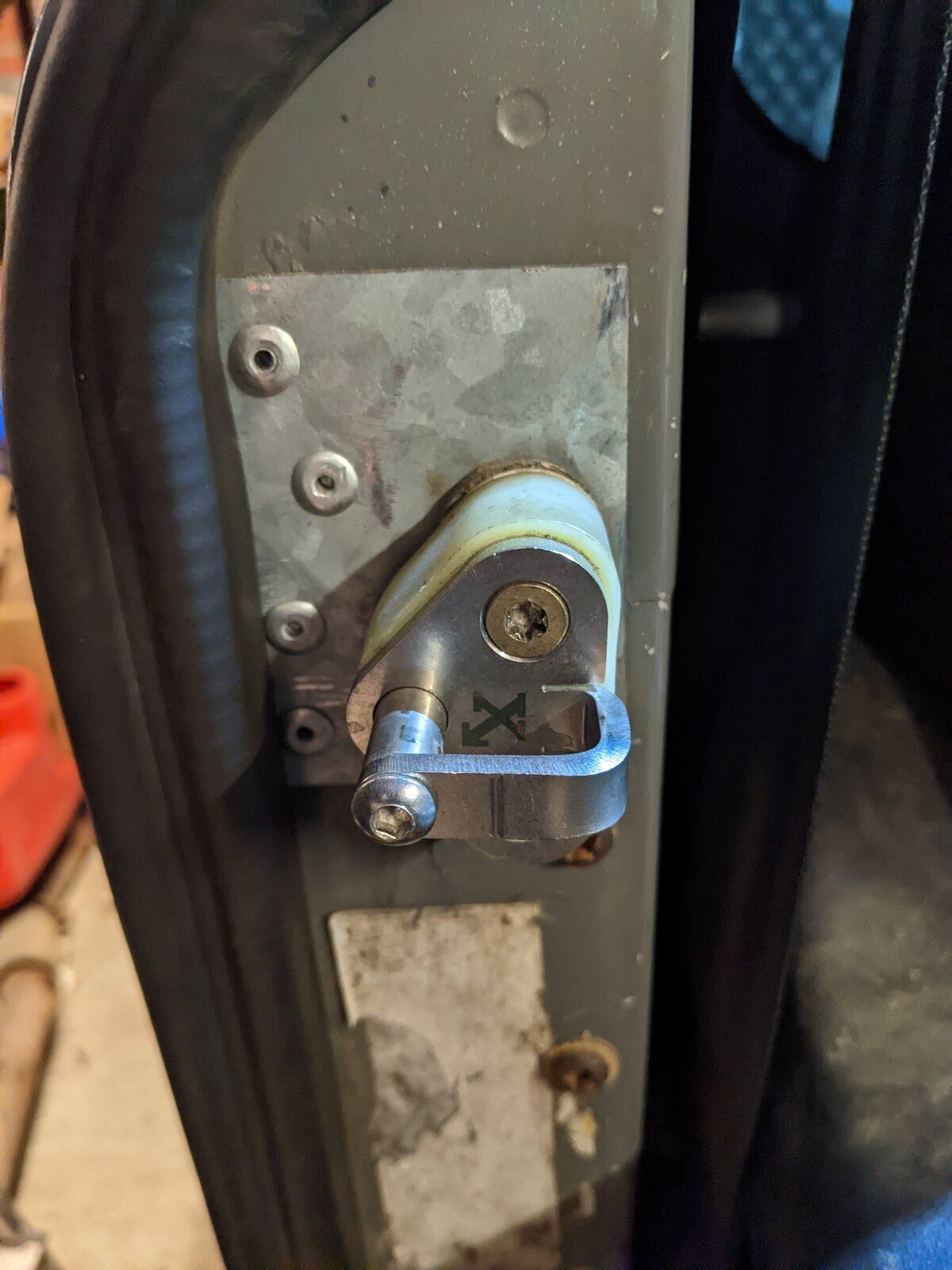

I riveted 2 bits of aluminium either side. It doesn't look pretty but should look better once painted.

meego · Jul 30, 2022

Discodevon said:
My drivers door latching pillar is cracked, it’s been like it for years I guess the door was opened and shut a lot whilst it was in the Royal Air Force and I forgot about it until I looked at it today, my doors shut lovely now since fitting new optimil hinges, is there any simple repairs anyone can recommend please? I really don’t want to have to move the door hinges about again

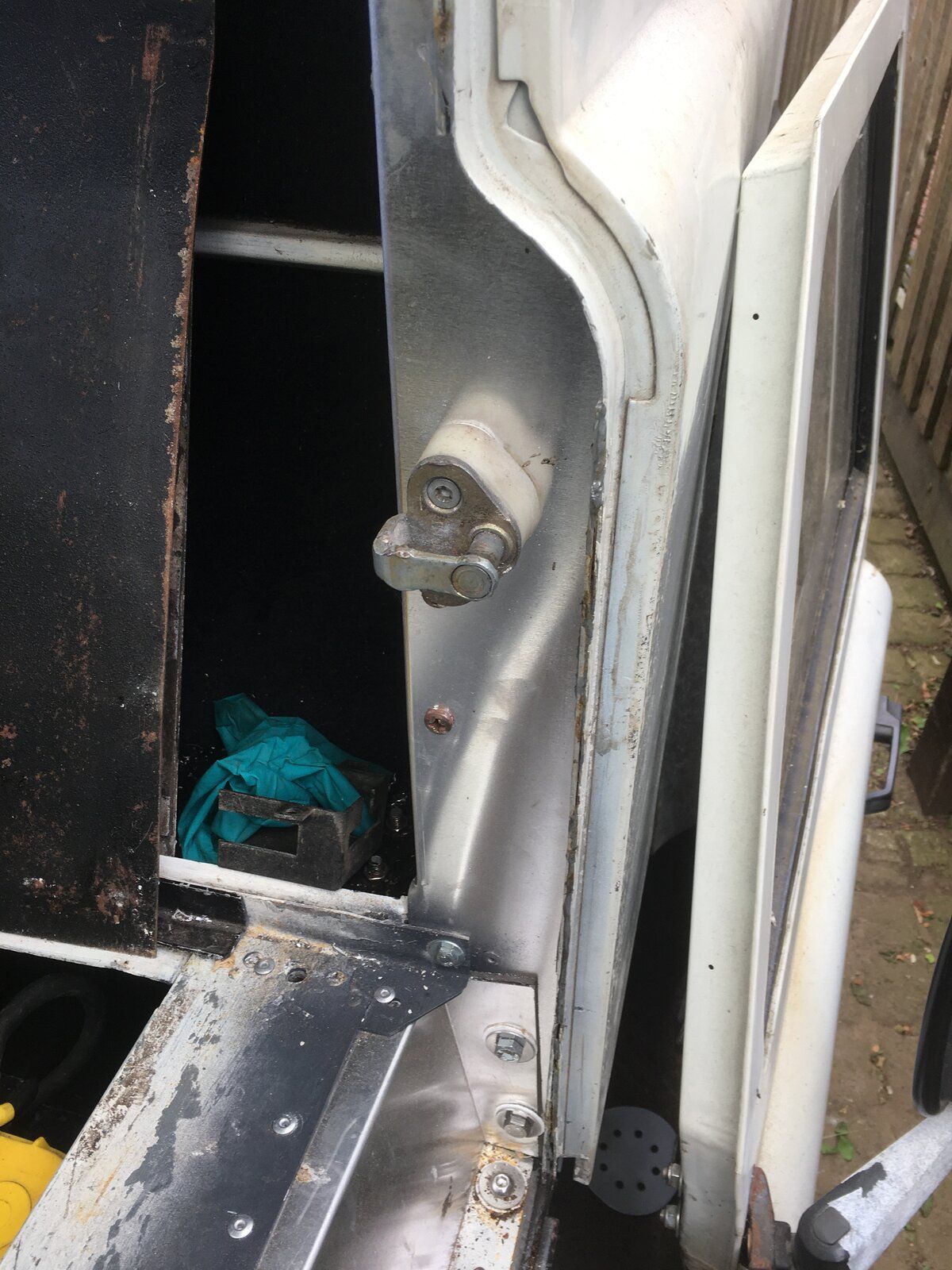

I just done mine with a repair panel from YRM. I drilled out the spot welds and the old piece came out, then fitted the new one with structural adhesive.

Al2O3 · Aug 2, 2022

meego said:
I just done mine with a repair panel from YRM. I drilled out the spot welds and the old piece came out, then fitted the new one with structural adhesive.
View attachment 270484

But was the end of the tub that houses the door latch and your seat box ends corroded?

Al2O3 · Aug 2, 2022

@Discodevon can you post a picture or two of the cracks? They sound unusual for a vehicle in the condition yours is in.
Given what I've seen of yours I suspect I'd be getting it welded up. Someone near you will do ali welding. Pictures would be handy though.

meego · Aug 2, 2022

Al2O3 said:
But was the end of the tub that houses the door latch and your seat box ends corroded?

No. It’s a double skin. The new outer skin is what you see in my photo and the original was corroded at the bottom. I am going to do the drivers side soon which is cracked and also corroded at the bottom. I’m also renewing the seat box ends when I’m at it.
