Door handle 1988 Defender

Discussion in 'Defender 90 / 110 / 130' started by mikehump, Nov 25, 2020.

< Previous Thread | Next Thread >
  1. mikehump

    mikehump New Member

    Joined:
    Oct 3, 2019
    Posts:
    5
    Likes Received:
    1
    Location:
    geneva
    Help!

    I have a 1988 Defender 90 soft top with two piece doors and sliding windows. My left hand internal door catch has broken. I tried to buy a new one but they are apparently not made any more. Does anybody have any suggestions as to what I can do? I am getting a little sick of opening my window every time I want to open my door !

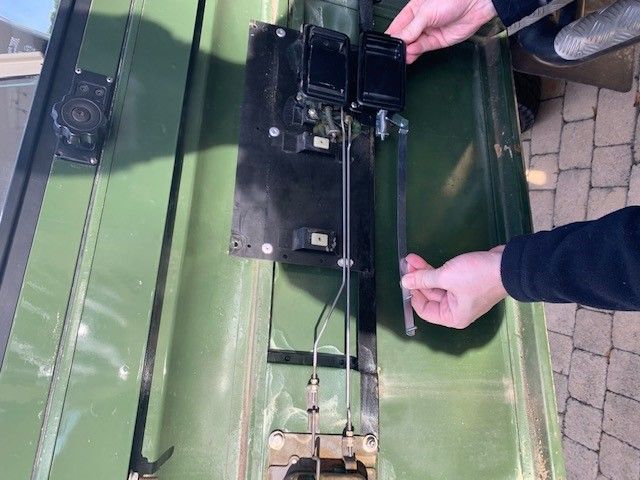

    Below is a picture of the offending piece and the replacement that I was sent (which obviously doesn't fit!)
    Defender door catch.jpg
    Thanks in advance,

    Mike

  2. Cavey_P38

    Cavey_P38 Well-Known Member

    Joined:
    Oct 8, 2009
    Posts:
    769
    Likes Received:
    164
    Location:
    The Flat lands of Cambridgeshire
    you did well to get the replacement that you have that one fits mine, early 90 pre defender.

    I couldn't find one to buy anywhere eventually got 1 fabricated and then put the old linkage back on.

    Can you not take swap the linkage or is it thelinkage that is broke

  3. mikehump

    mikehump New Member

    Joined:
    Oct 3, 2019
    Posts:
    5
    Likes Received:
    1
    Location:
    geneva

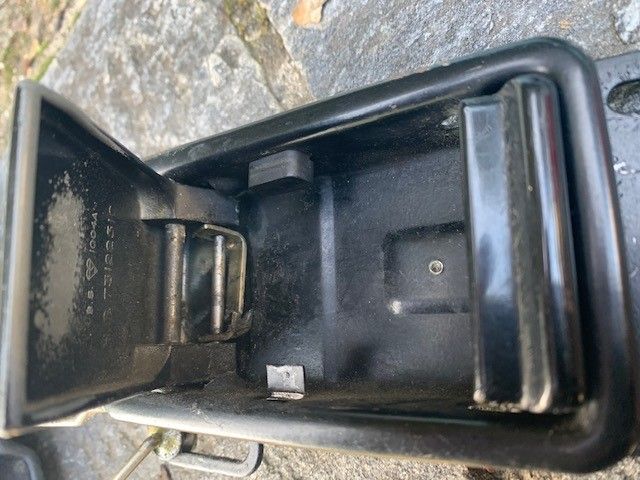

    Unfortunately it is the little bar that holds the linkage that has broken. You can just see it in this photo (the bronze coloured part). The bar and link in the replacement part is not interchangable :-(


    I may have to take the thing apart and try to get someone to fabricate a new metal bar.

    LR catch 2.jpg

  4. Mingus

    Mingus Active Member

    Joined:
    Jan 3, 2015
    Posts:
    119
    Likes Received:
    44
    Bit leftfield but could you swap the door lock/handle for a series version and do away with the door card and broken handle mechanism

    Hicap phill likes this.
  5. Hicap phill

    Hicap phill Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    9,341
    Likes Received:
    16,379
    Location:
    Wiltshire
    That inner handle is for an early 90/110 with windup windows.
    Iv not seen that arrangement on your door. Most would just have lift up handles.
    Do you have door cards ?
    Thanks

  6. mikehump

    mikehump New Member

    Joined:
    Oct 3, 2019
    Posts:
    5
    Likes Received:
    1
    Location:
    geneva

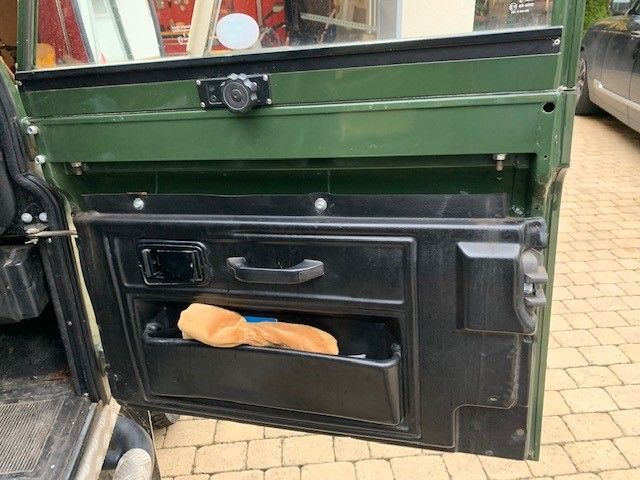

    Thanks for the comments/thoughts, most appreciated! LR door cards.jpg

    I seem to have quite a rare door configuration?
    I do indeed have door cards. This is a picture of the door card and catch.
    Swapping for a series handle and door cards might work but I'm not sure if the catch is the same? I can take a more detailed photo if that would help?

    Hicap phill likes this.
  7. v8250

    v8250 Well-Known Member

    Joined:
    Jun 23, 2019
    Posts:
    1,606
    Likes Received:
    1,657
    Location:
    Berkshire
  8. Hicap phill

    Hicap phill Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    9,341
    Likes Received:
    16,379
    Location:
    Wiltshire
    Rare door....not seen any like this
    So can you remove the flat bar & replace with the old rod?
    Handle looks the same in the picture.

  9. zeaphod

    zeaphod Well-Known Member

    Joined:
    Aug 13, 2013
    Posts:
    3,038
    Likes Received:
    848
    Location:
    Belfast, Norn Iron
    I'm pretty sure you're right - same door handle in lots of old british vehicles - the MGB one looks identical. I can vouch for the fact that the outer trim is the same - the part number even matches!

    v8250 likes this.
  10. Cavey_P38

    Cavey_P38 Well-Known Member

    Joined:
    Oct 8, 2009
    Posts:
    769
    Likes Received:
    164
    Location:
    The Flat lands of Cambridgeshire
    Believe might also be found in a sherpa van..

    I had a quick search when i broke mine round our local scrap yards and gave up, got on fabricated in metal for MOT having driven it for months and opened the window to open the outside handle..lol

    Swapped the fabricators labour for use of our workshop ramp over a weekend...top result love a bit of barter

    That is a very unusual door card i must say looks a bit of a cross between a series and an early 90 /110

  11. v8250

    v8250 Well-Known Member

    Joined:
    Jun 23, 2019
    Posts:
    1,606
    Likes Received:
    1,657
    Location:
    Berkshire
    You're right, had forgotten about the Sherpa vans...they are the same

  12. zeaphod

    zeaphod Well-Known Member

    Joined:
    Aug 13, 2013
    Posts:
    3,038
    Likes Received:
    848
    Location:
    Belfast, Norn Iron
    I've just bought a complete handle from fleabay for £30!
