Discovery 3 Rear Toe Spindal Rods

slim jim · Sep 22, 2021

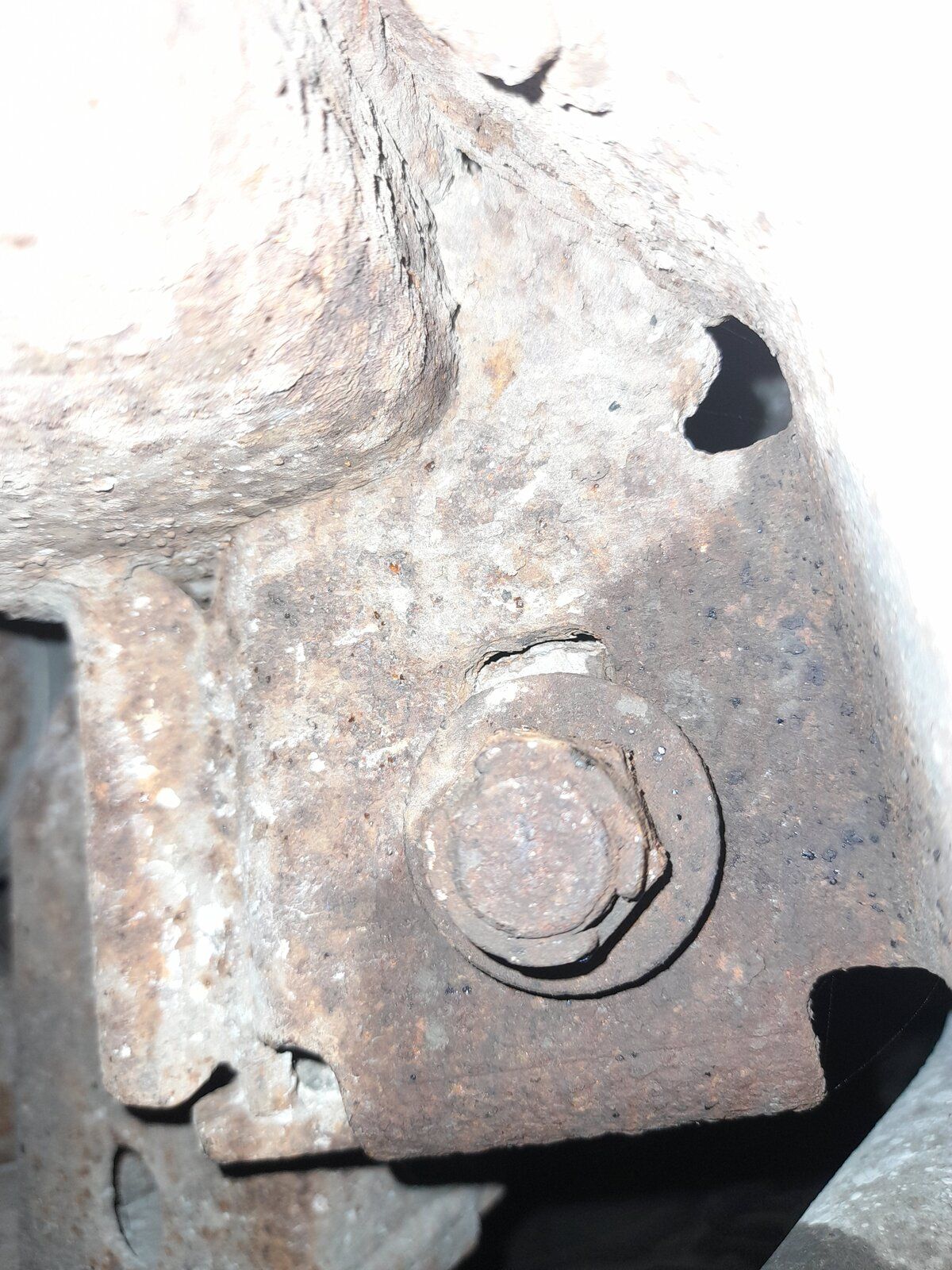

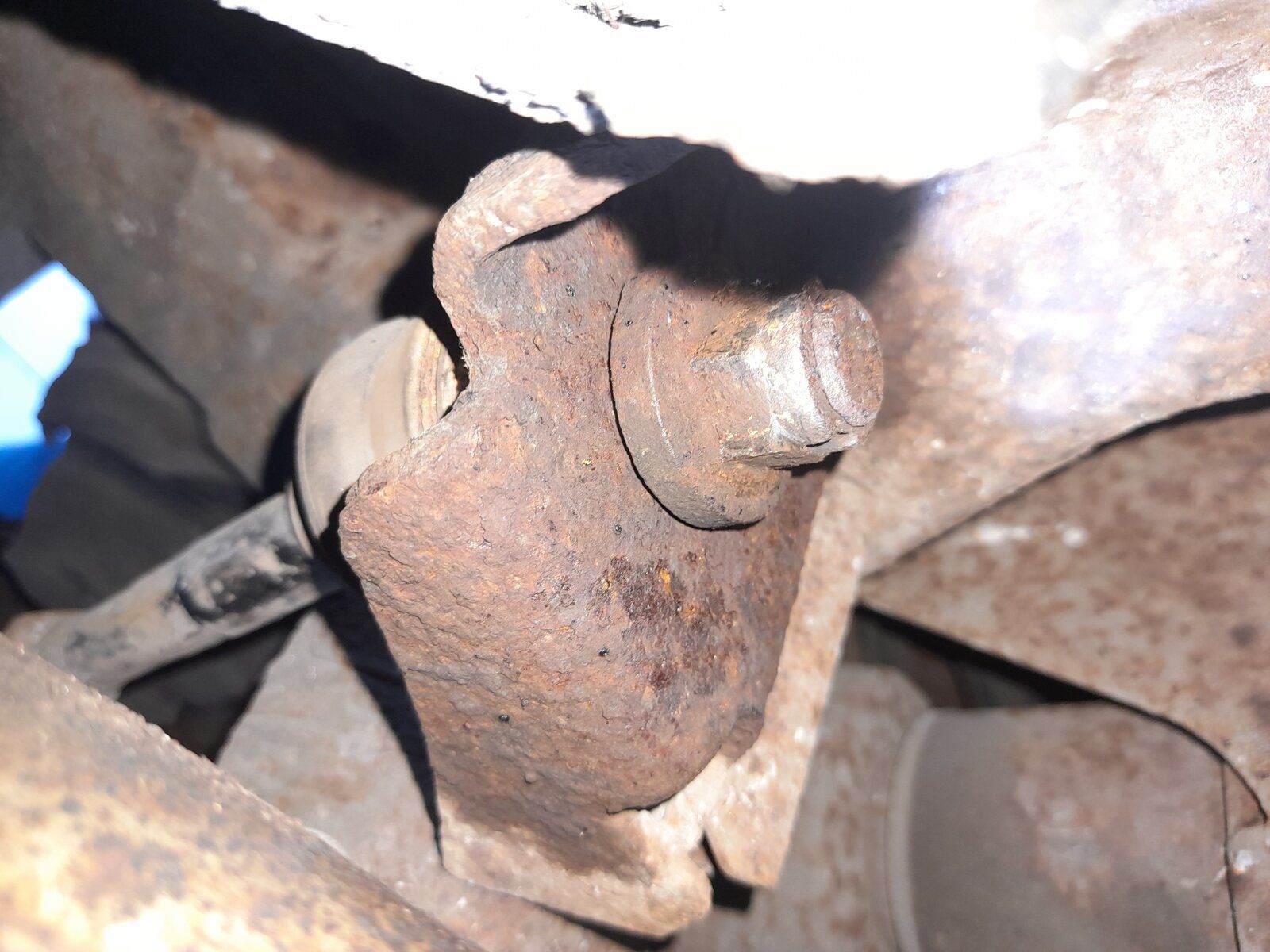

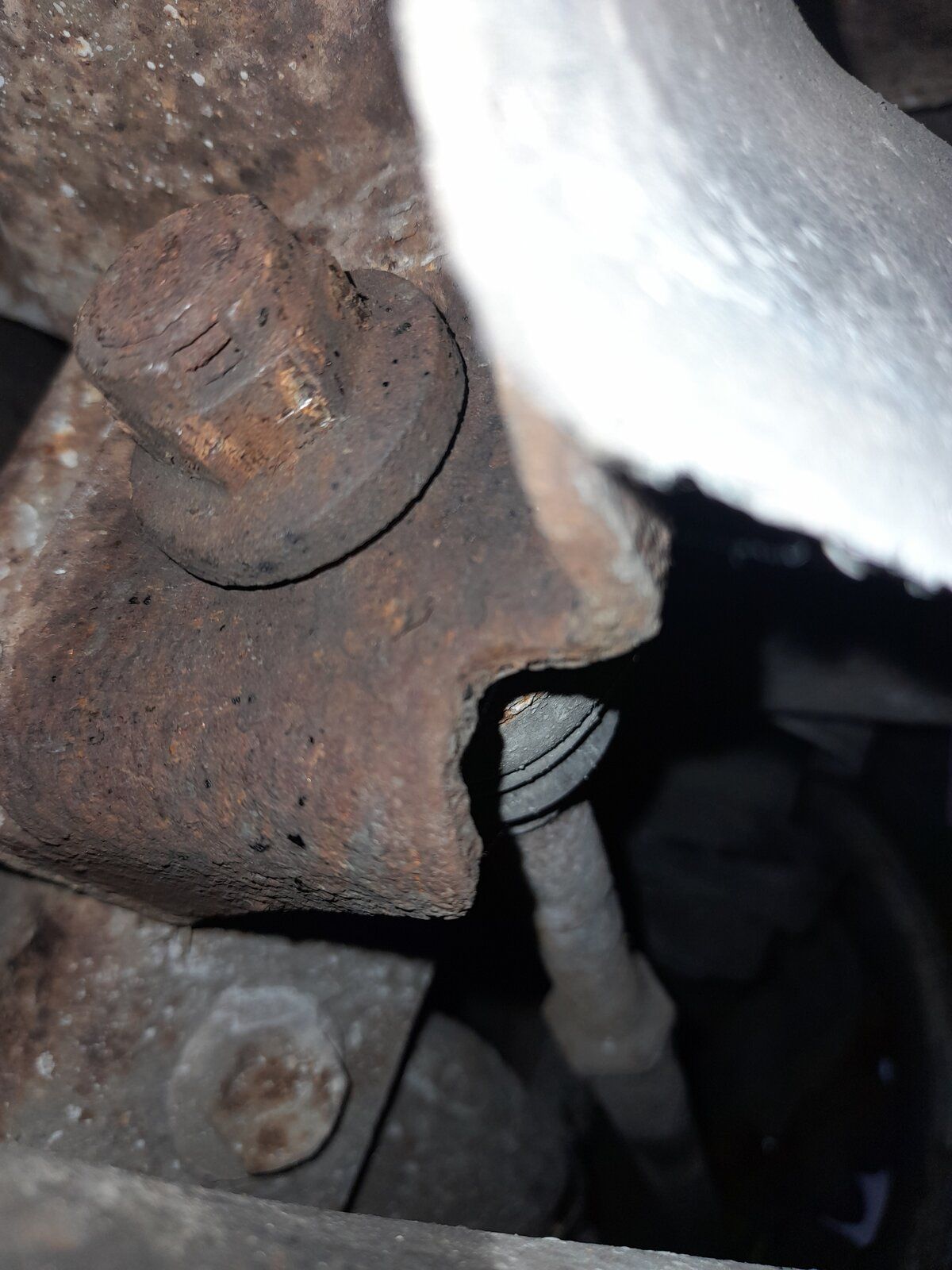

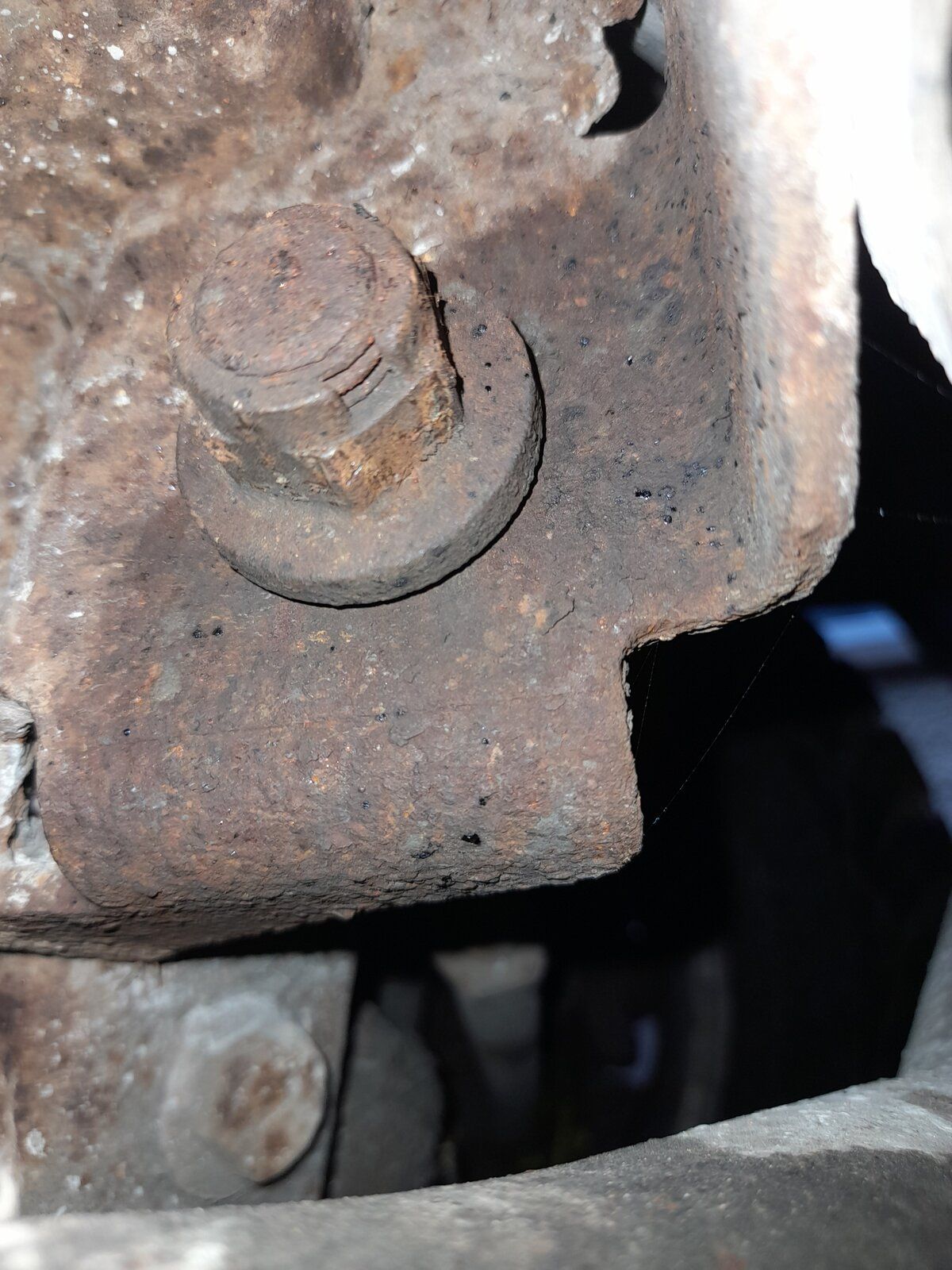

I have posted some pictures of two nuts that I cant budge, on the inside of the toe spindal rods. They take 23mm sockets and not with a breaker bar, nor an impact gun, would they move.
I have the new spindal rods but they came without the nuts, it's a 17mm diameter thread and I cant find nuts to match anywhere close to me, so I cant just cut them off.
Is there any obvious way in which I can take these off that I may have missed. Any help would be much appreciated.

Pawl · Sep 22, 2021

It's unlikely they're a 17mm dia thread - that would be a very, very unusual size.
On my L322 RR I had to cut the tie rods out with a reciprocating saw as the bolts were rusted solid in the bushes.

slim jim · Sep 22, 2021

[GALLERY=][/GALLERY]

Thats close enough for me .

lynall · Sep 23, 2021

I would try an M16 nut for size, as your caliper jaws dont seem to be square on the threads?

slim jim · Sep 23, 2021

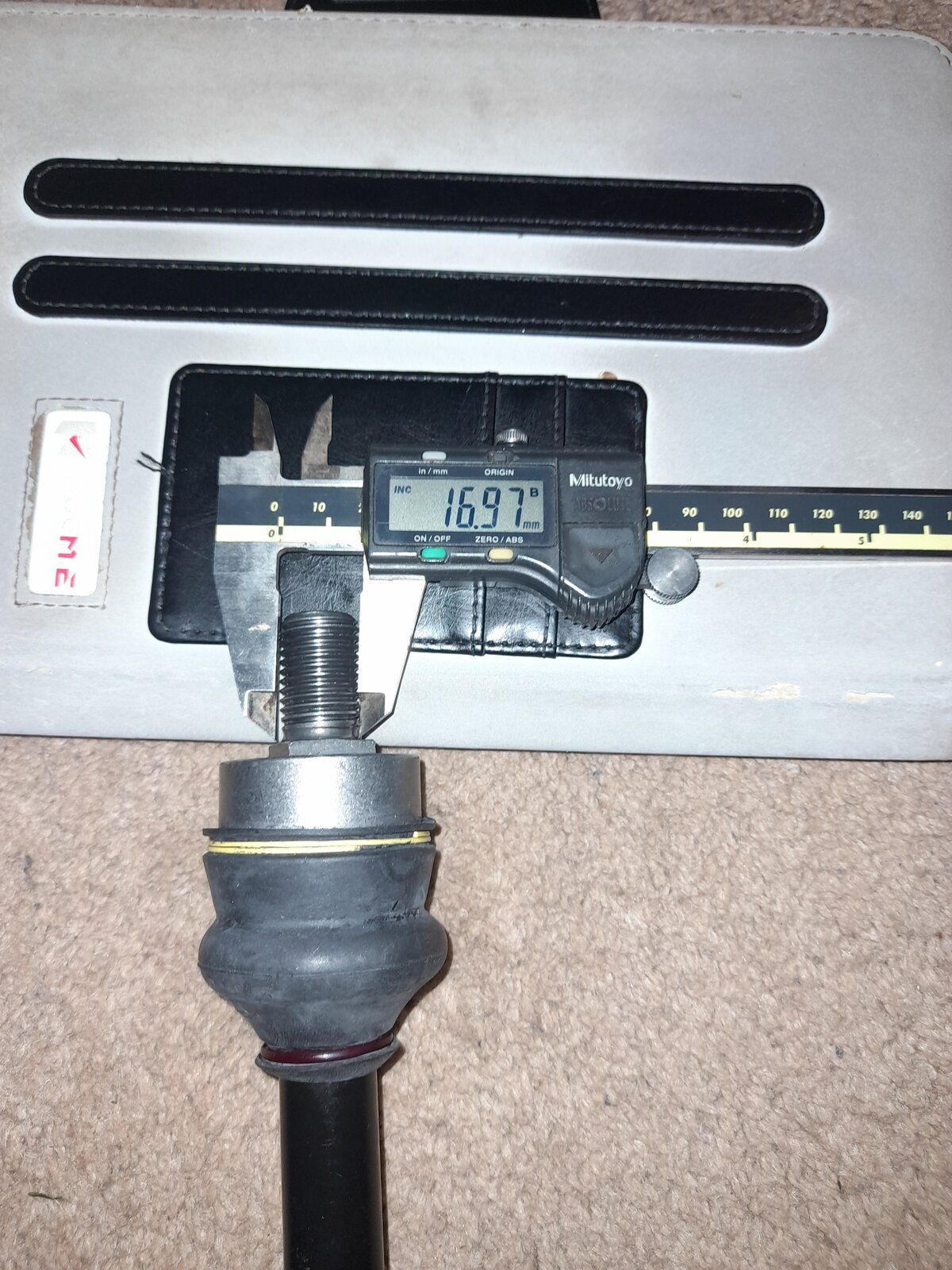

I have tried 16 and 18 mm . It's not square because I could not hold it and photograph it at the same time. The thread is 17 mm or .6695 of an inch, 21/32.
The size of the nut and bolt are a fact trust me please this is not my first rodeo.
I think I'll try to cut it between the chassis and nut and then unthread the nut on a vice.
I just thought that maybe the force of the Jack or weight of the suspension might play a part in why it's so tight, apart from the obvious rust and dirt.

Pawl · Sep 23, 2021

That definitely looks like 17mm - wierd!
As you're measuring what I assume is the replacement part, you've presumably got the mating nut too. If not, try Island4x4 as they can be quick.
The photo on the car looks to show some type of castellated nut - unless it's an odd prevailing torque nut?
Good luck

frostythor · Sep 23, 2021

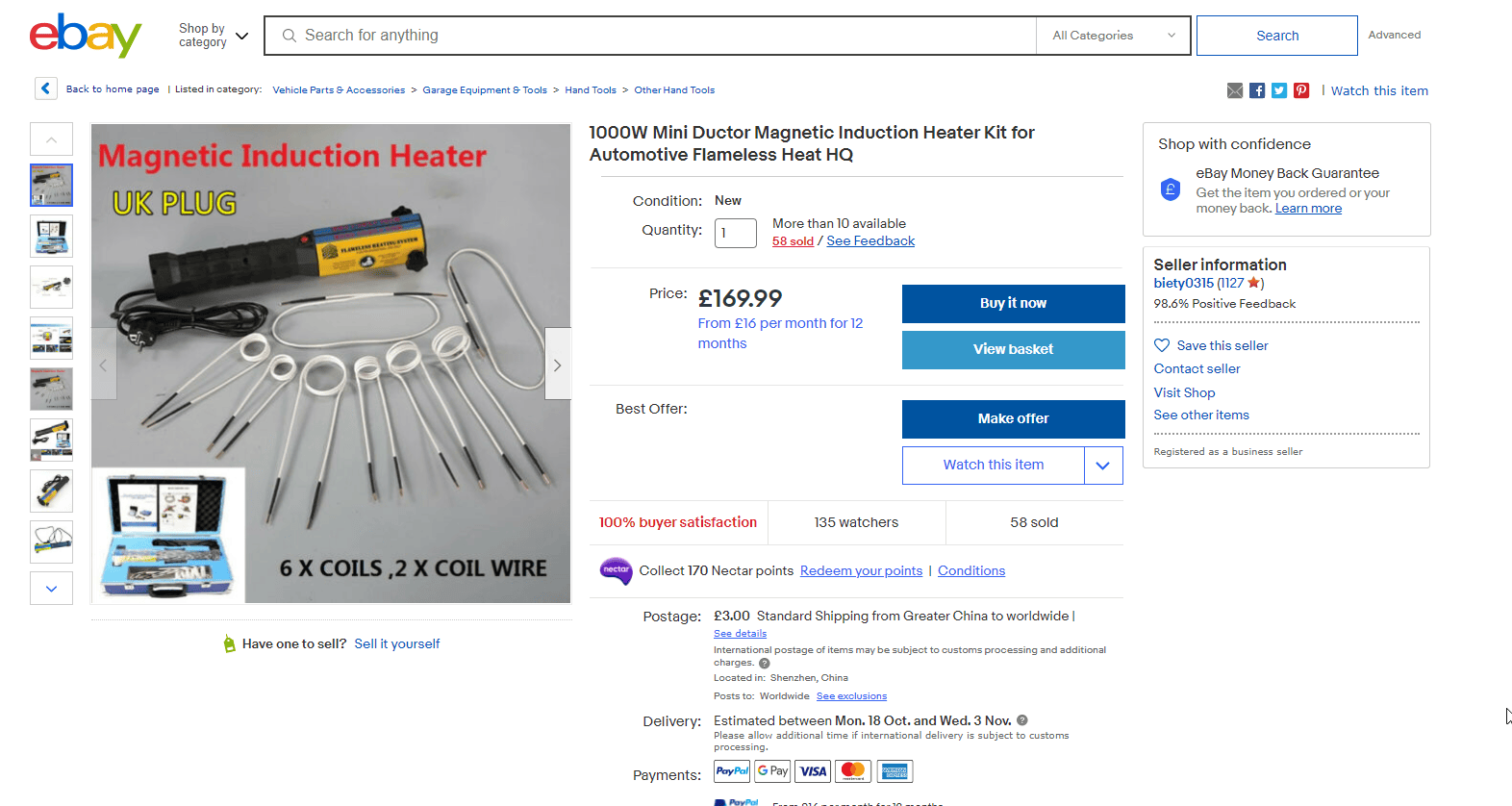

gas torch should do it or hire an induction coil heater

lynall · Sep 23, 2021

Pawl said:
That definitely looks like 17mm - wierd!
As you're measuring what I assume is the replacement part, you've presumably got the mating nut too. If not, try Island4x4 as they can be quick.
The photo on the car looks to show some type of castellated nut - unless it's an odd prevailing torque nut?
Good luck

Looks like one of them lock nuts that is all steel, ie the ears are slightly bent inwards.

slim jim · Sep 23, 2021

Yes its a castellated nut but no split pin through the bolt ?
No they never sent out the nuts but they were not part of the kit I ordered.
I ll have a go at lifting up ends of the nut it might be some kind of lock nut, I have a defender I thought Id seen types by now.
Thanks for all the help so far.

Pawl · Sep 23, 2021

Part No. is RYH500116 - they look readily available.
According to island4x4 it is 17mm as you've measured

slim jim · Sep 23, 2021

Parts will be here Saturday morning thanks Pawl,
I could not that part number anywhere on line.
