Discovery 1 Diff Lock help needed.

firepower · Jul 1, 2011

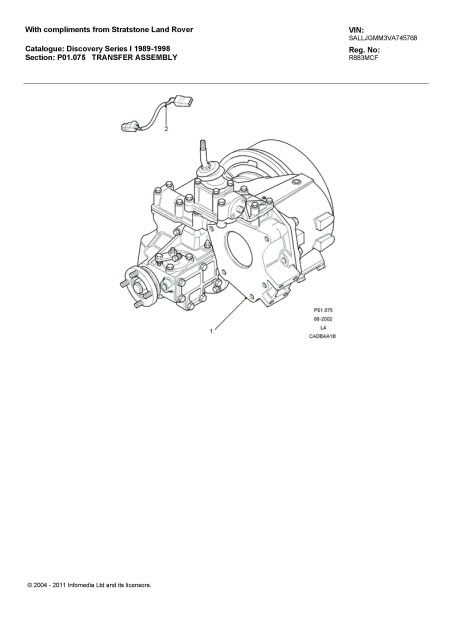

Land Rover just emailed me the diagram of my transfer box. There is no linkage as the diff lock lever enters the top of the box directly. Is this a later box to the Disco 1 ?

jamesmartin · Jul 1, 2011

what vehicle

firepower · Jul 1, 2011

It is a Discovery 1

300bhp/ton · Jul 1, 2011

firepower said:
Land Rover just emailed me the diagram of my transfer box. There is no linkage as the diff lock lever enters the top of the box directly. Is this a later box to the Disco 1 ?

More like a D2 I think.

jamesmartin · Jul 1, 2011

diff lock enters through selector in 3x bolt housing on top of front output housing on tbox ,on disco 1 this is connected to lever assembly by pivot lever a disco 2 if fitted with diff lock mechanism will have the same

GRATCH · Jul 1, 2011

Have a look here

firepower · Jul 1, 2011

GRATCH said:
Have a look here

Cheers mate you are a star
