difflock for dummies

muckypat · May 4, 2009

hi peeps , just want to ask if theres a simple diagram with some instructions regarding operation , as the one i bought has no handbook & to be honest never really needed it before , have had a nose about but come up blank on a simple guide with pics , ie what pos should it be in normally (assume neutral) how to engage and appropriate use of hi & low range & i'd rather sound a fool now than when i break something cos i'm plainly a numpty lol:doh:

hughesy · May 4, 2009

Do a search mate this has been covered twenty gazillion times and I'm not exxagerating.

muckypat · May 5, 2009

cheers , i had done a quick search before posting but had not found a really clear dummies guide , best one i found now was this:
http://www.landyzone.co.uk/lz/f8/discovery-basics-69611.html
just want to say thanks to all concerned and cheers to those who had a laugh at my expense lol

tankduck · May 5, 2009

there is a link inside the link you posted titled 'diff lock', halfway down the page, click on that and have a read, pretty big thread if I recall.

shinydiscoball · May 6, 2009

if i wasnt just about to go to bed I'd post the relevant handbook pages so I'll do it tomorrow after 5pm if thats any help........zzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzz

muckypat · May 6, 2009

cheers man ,all donations to the mentally baffled welcome ,

shinydiscoball · May 6, 2009

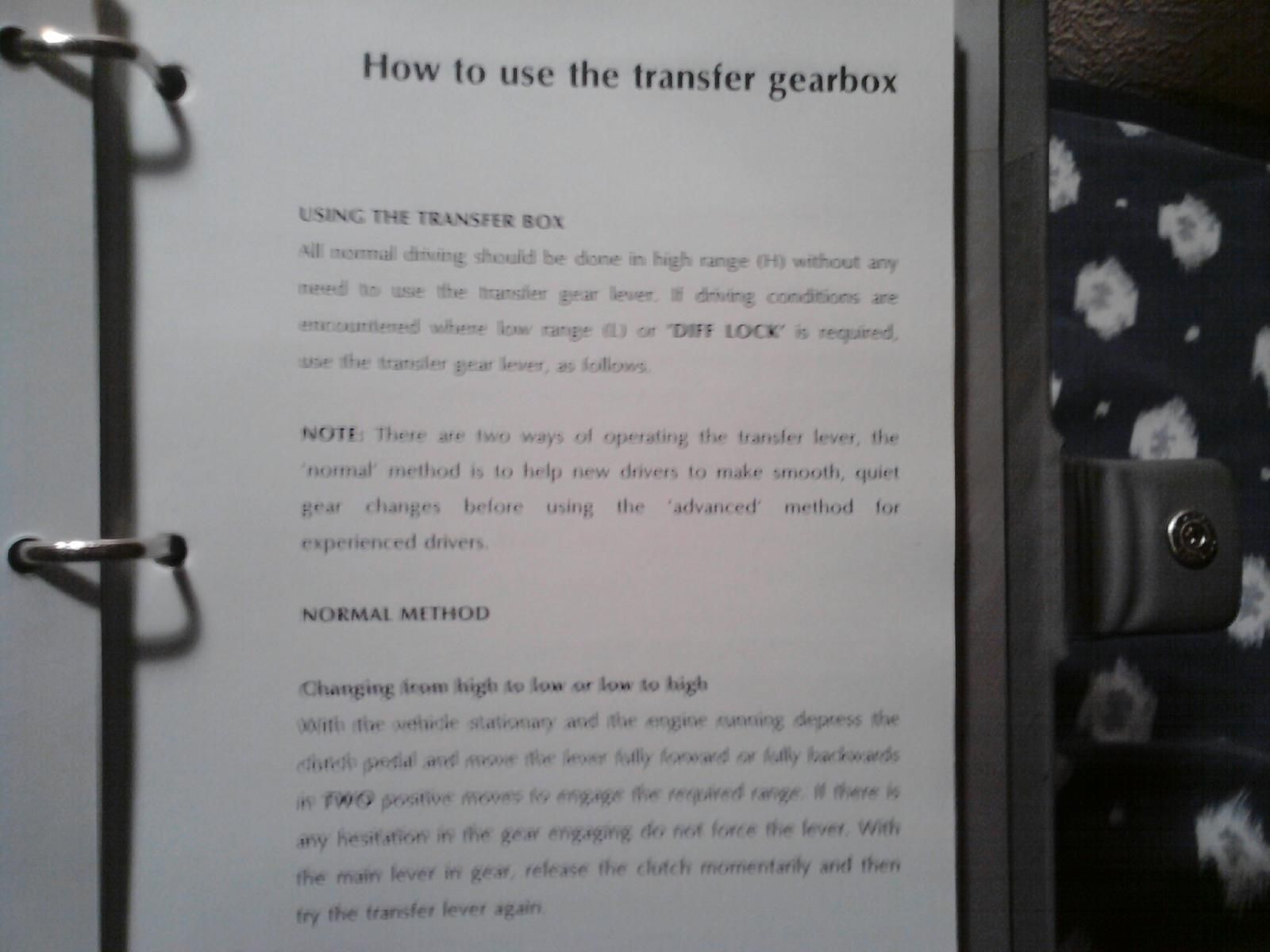

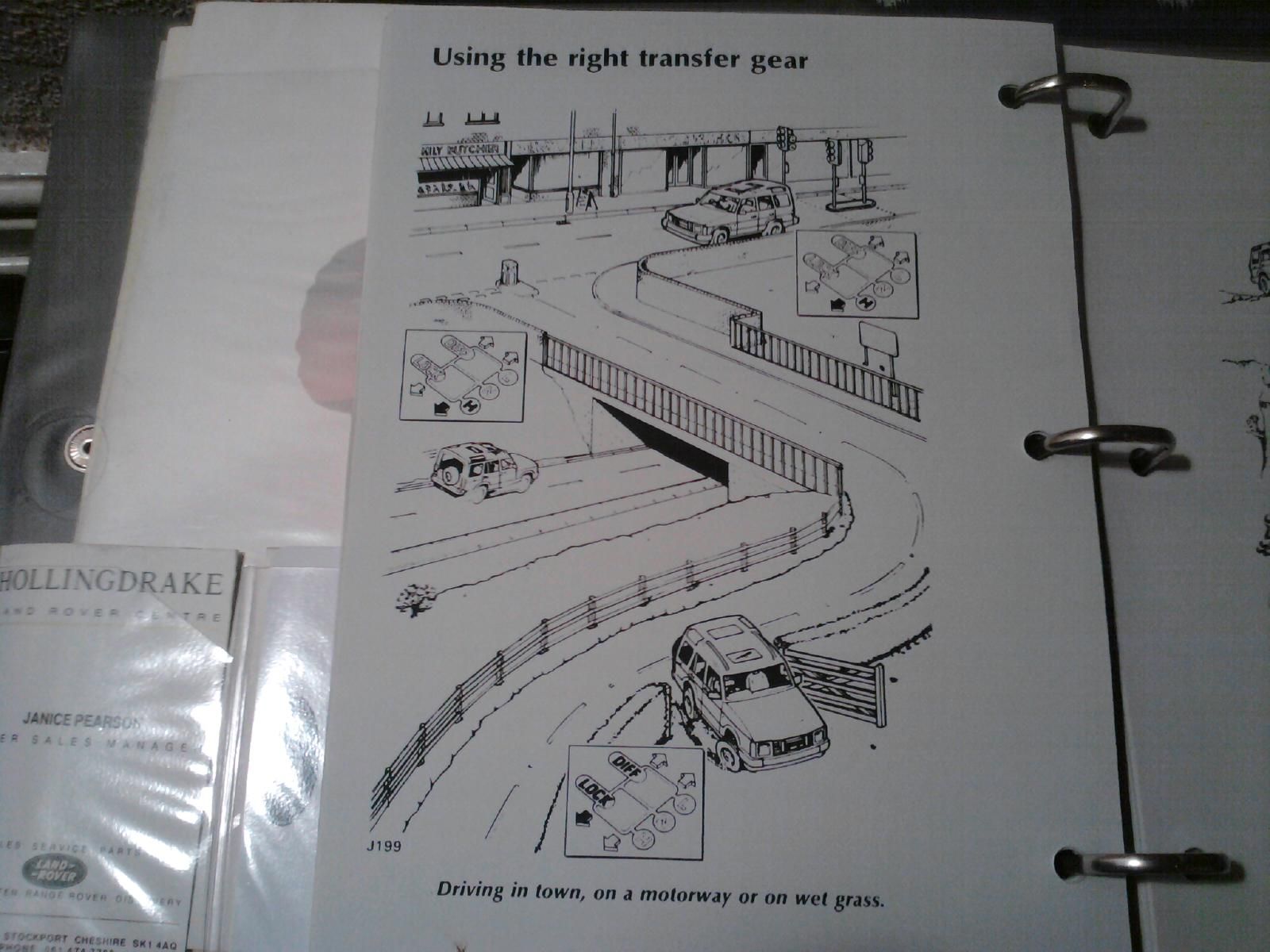

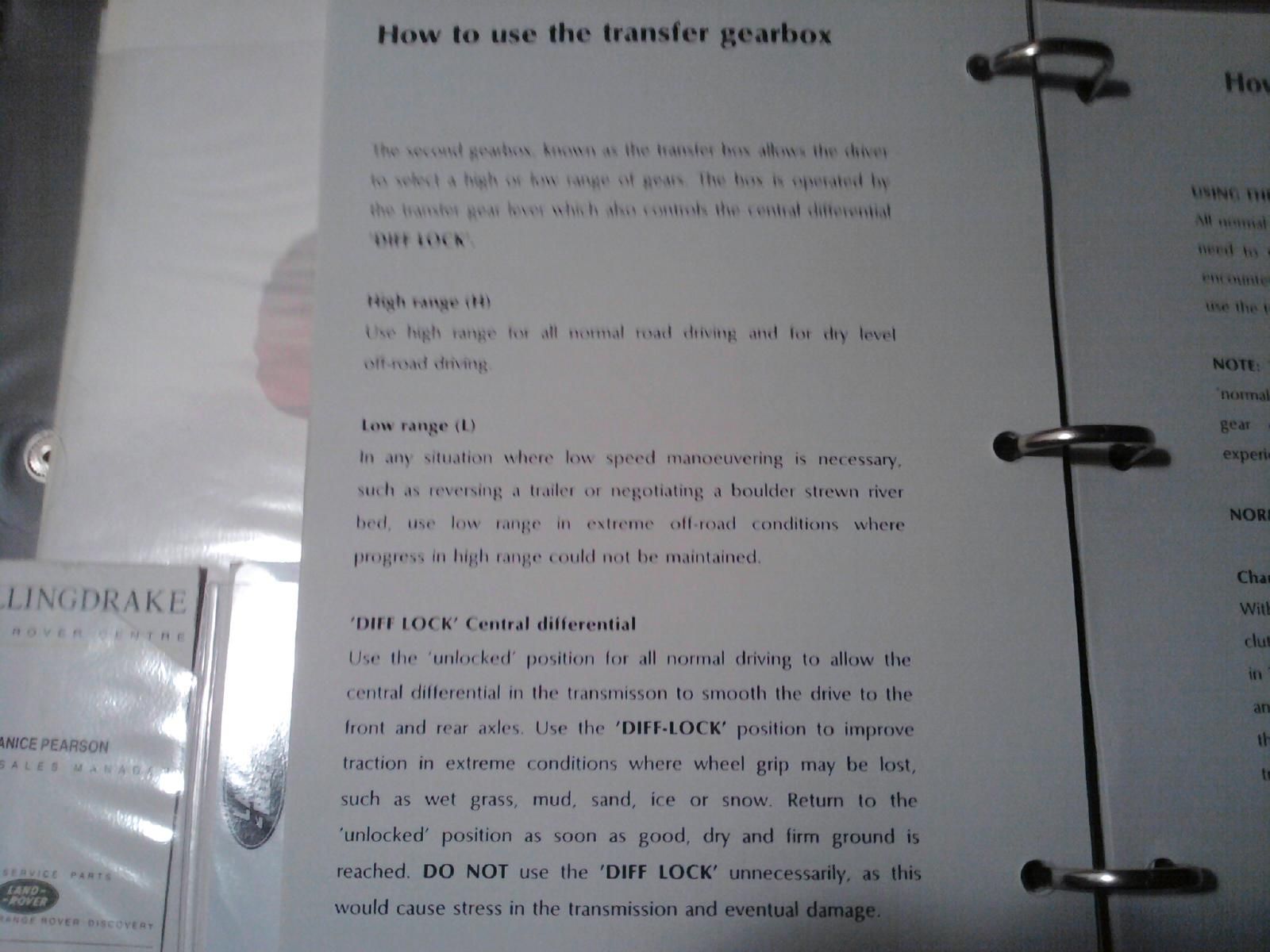

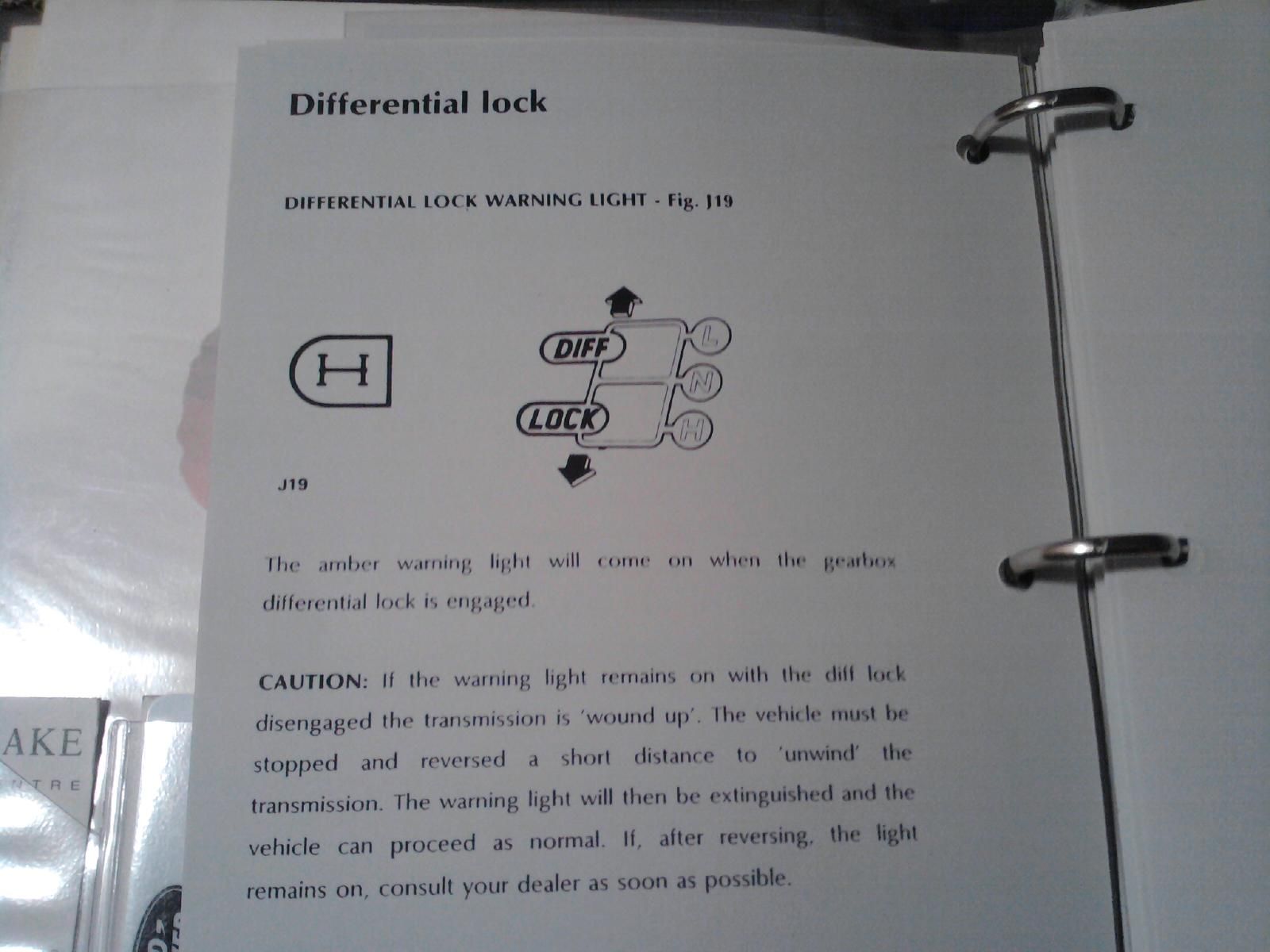

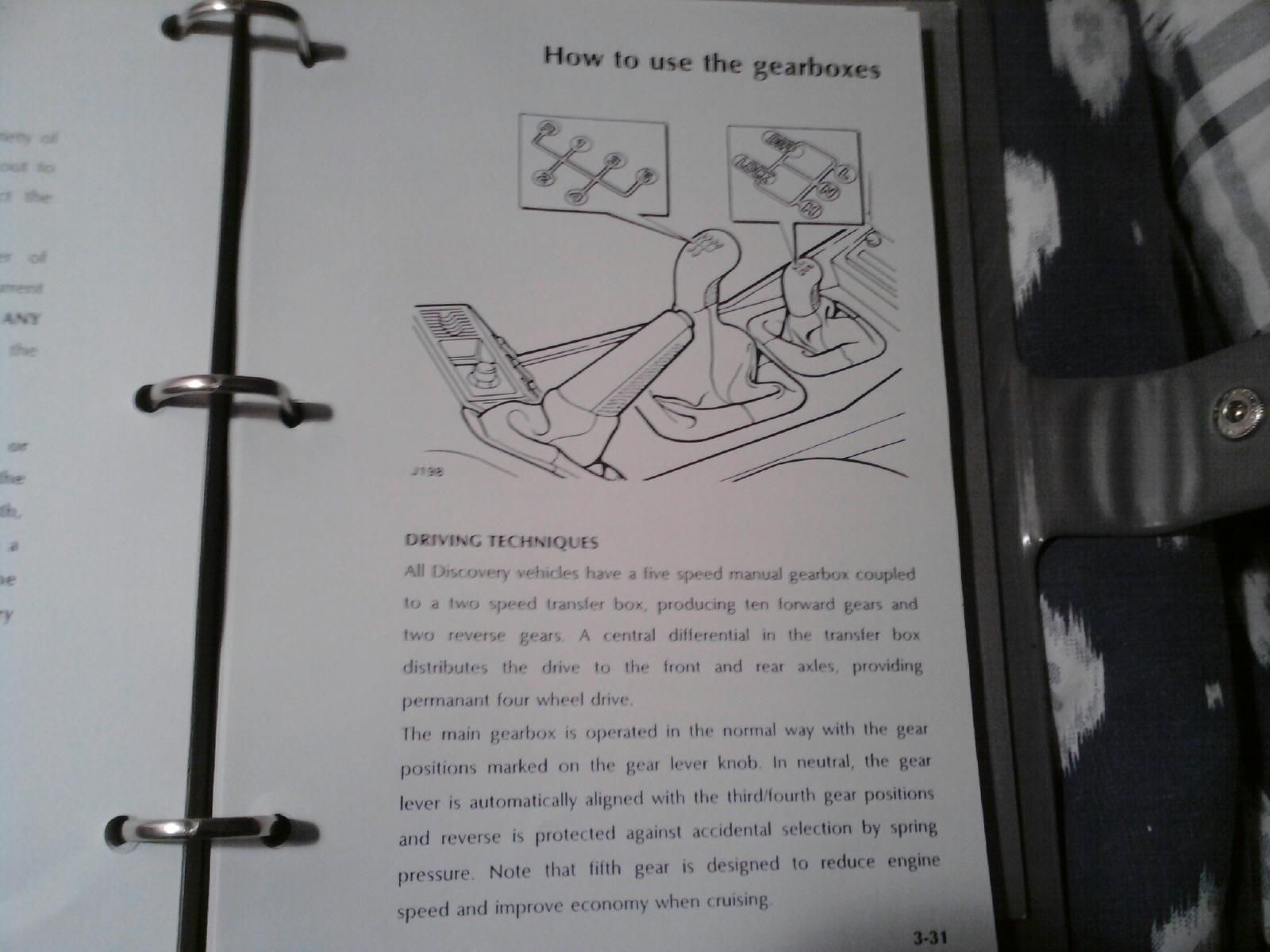

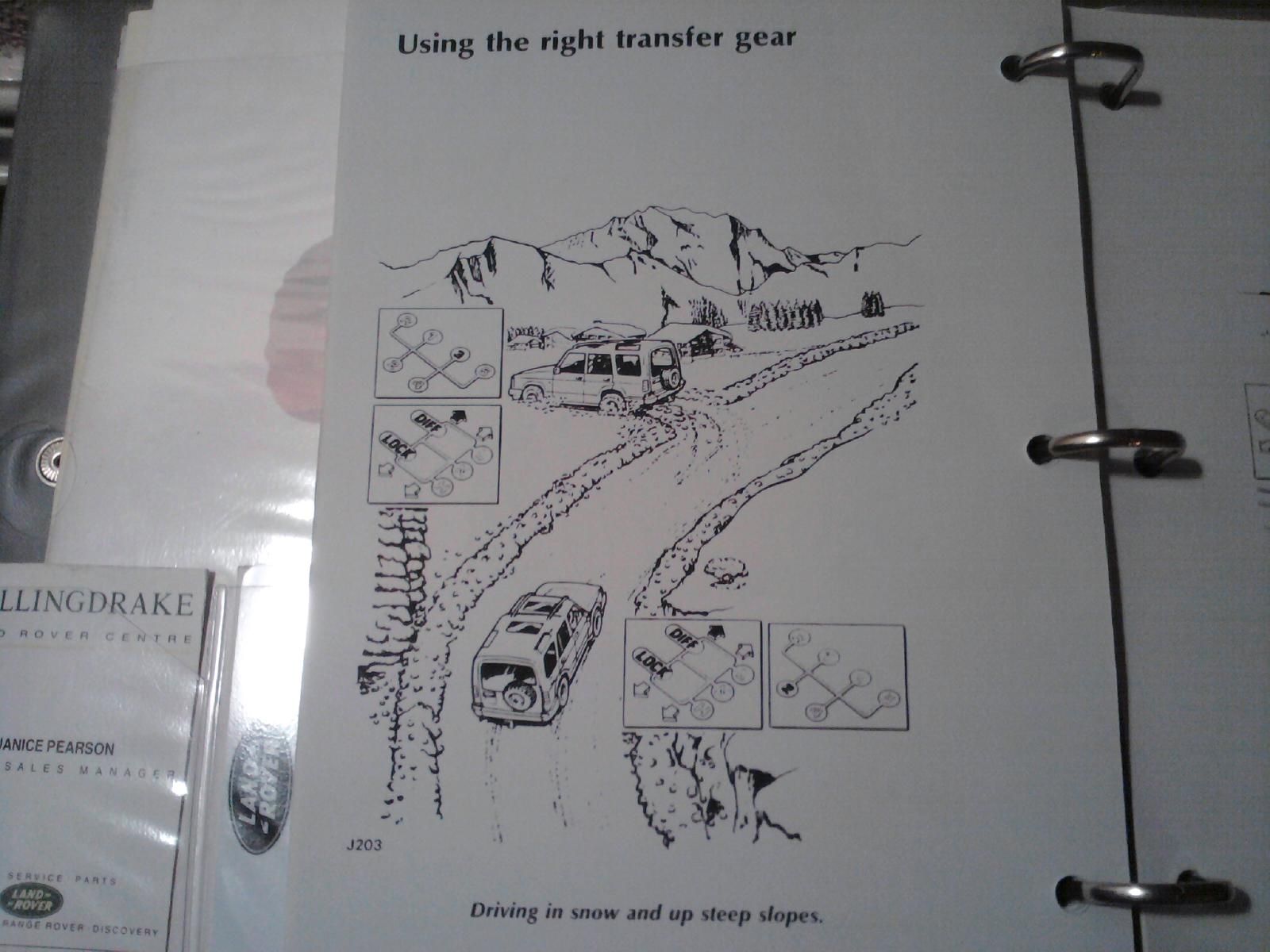

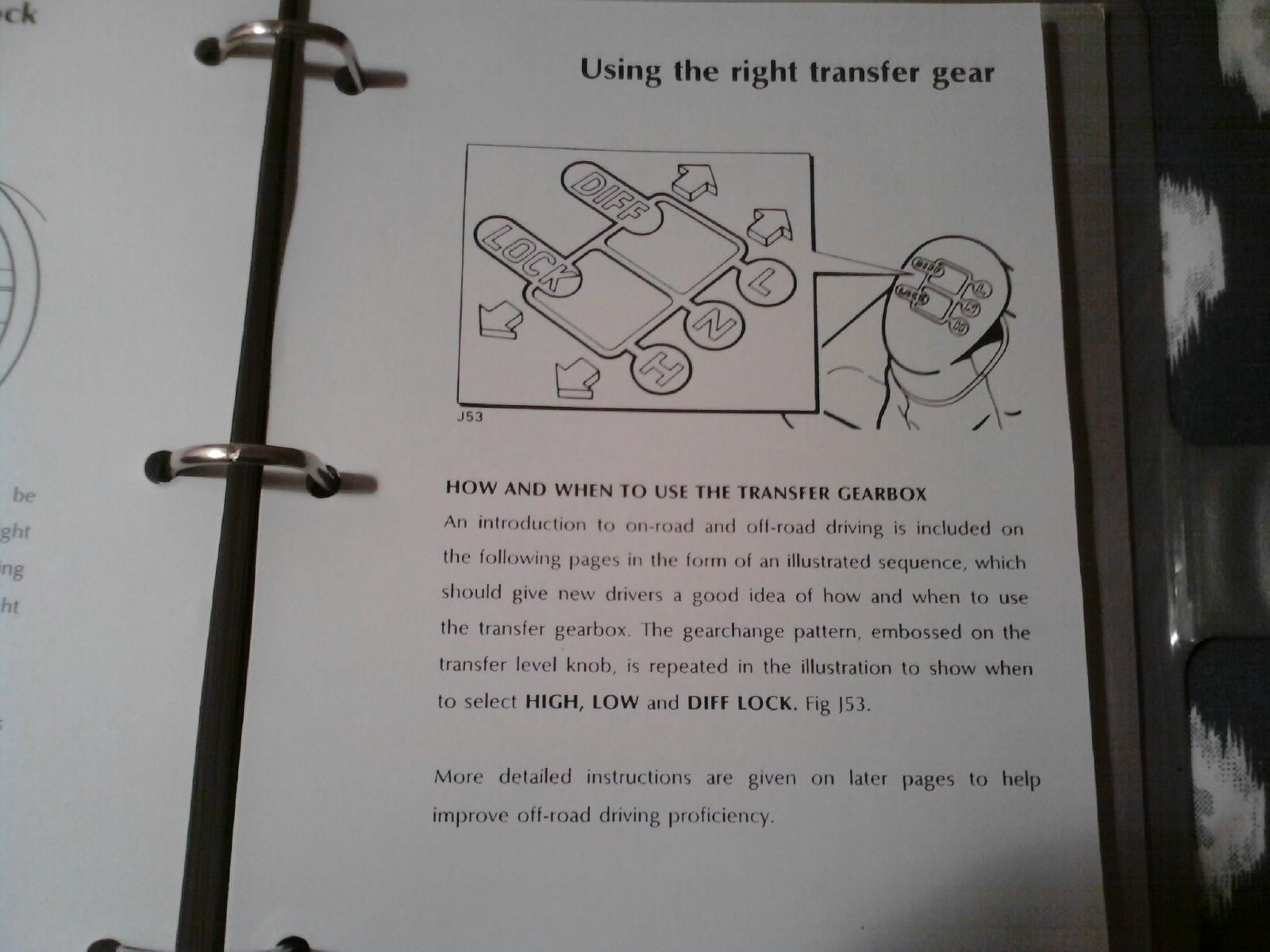

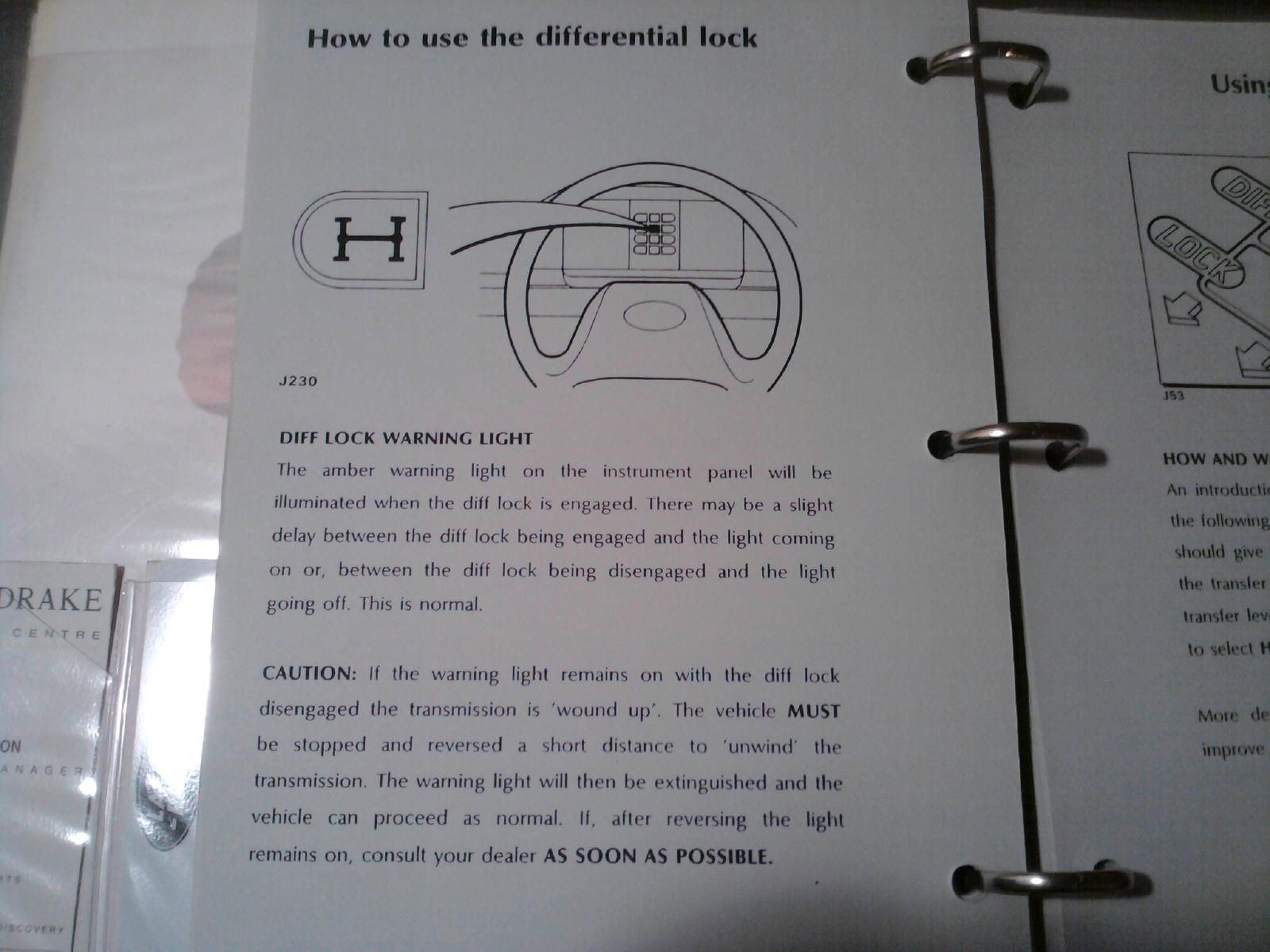

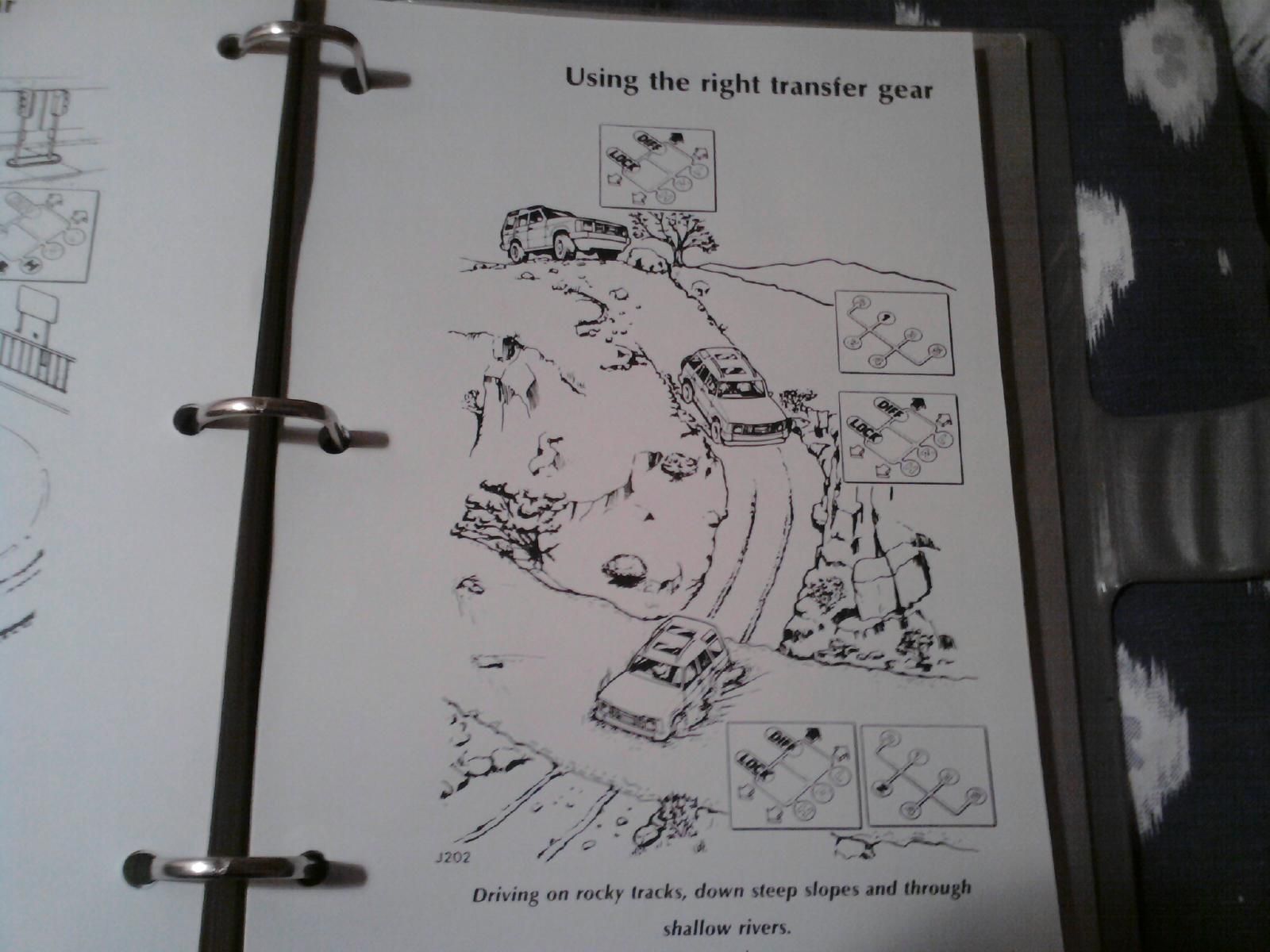

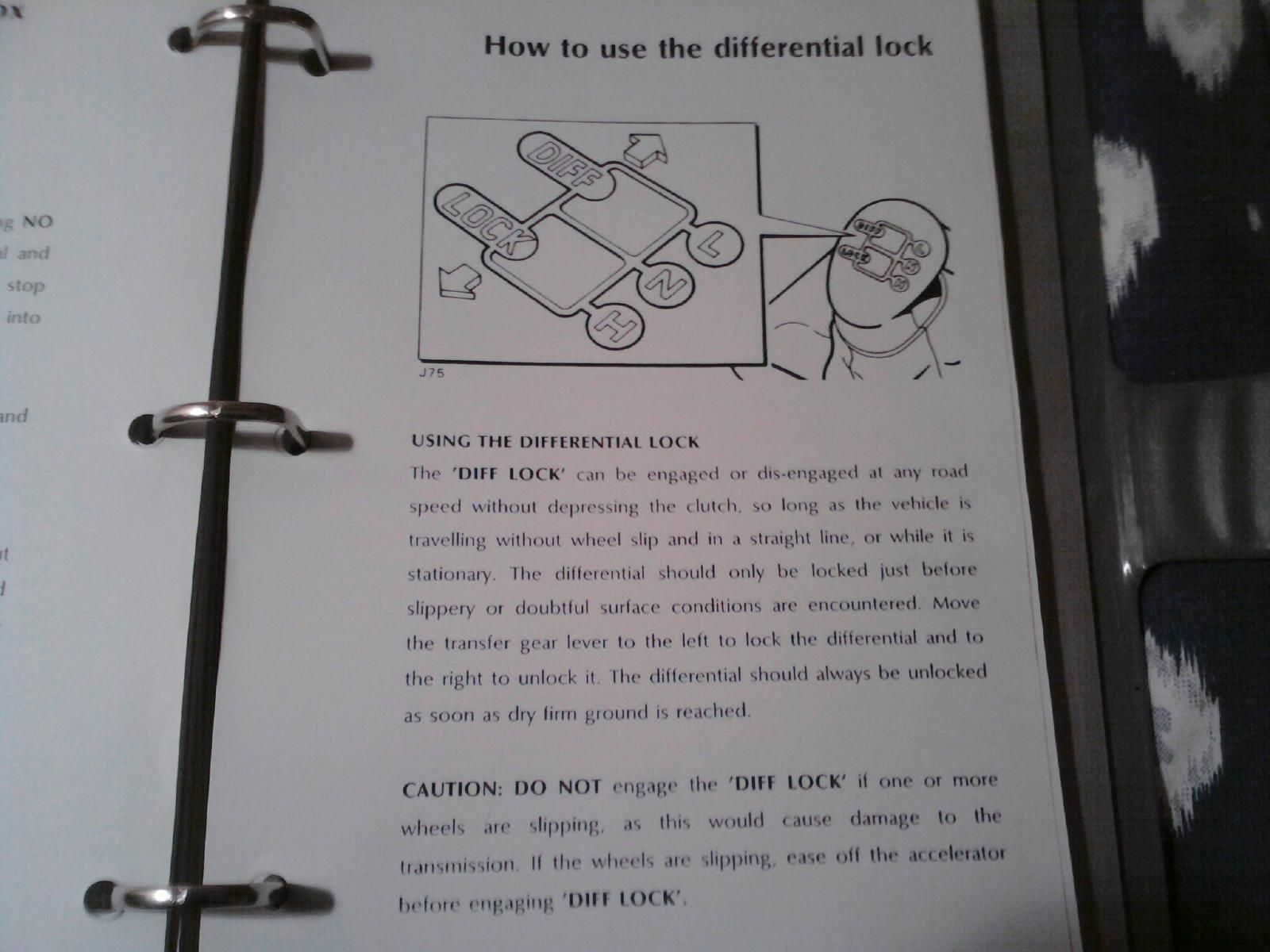

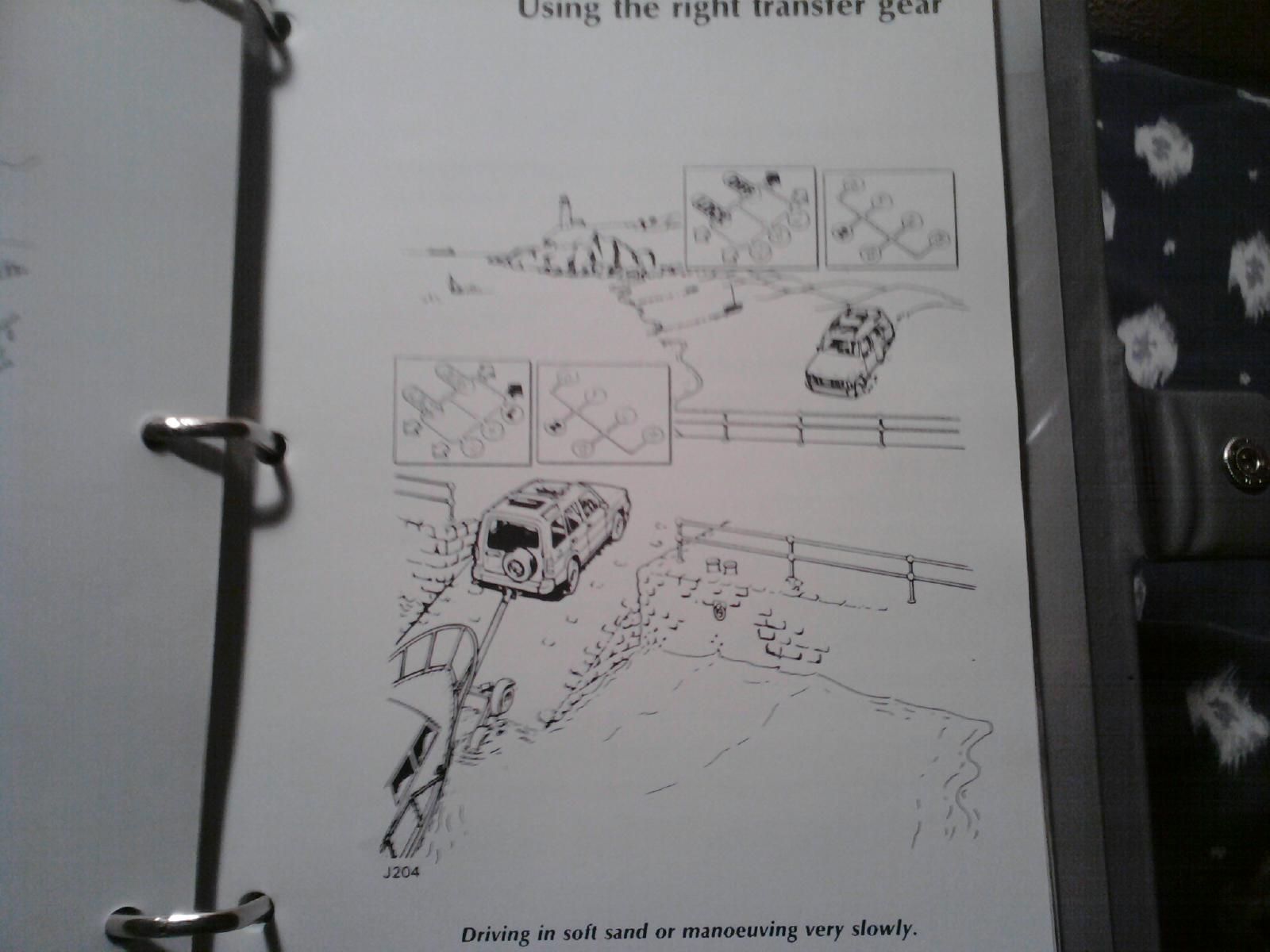

Here ya go then.

shinydiscoball · May 6, 2009

muckypat · May 6, 2009

mucho gracias mate , was about to pick up the disco this evening when i got a call to say that as he had found some rot on the boot floor & if i was ok with waiting 24 hrs he would like to have it all cut out and welded up and the power steering belt adjusted before i took it if that was ok with me , bloody great as far as i'm concerned , hopefully that bodes well for my future with the disco :banana:

shinydiscoball · May 6, 2009

No bother bud, hope the new bus serves you well and you enjoy her

sastek · May 7, 2009

You can download the full owners manual at Land Rover Owner Information (WAR00556)

muckypat · May 7, 2009

thanks very much guys , i couldn't have asked for better

, sorry to be a pain in the harris
