P38A Diesel upper timing chain rail

Datatek said:

In with the EDC in the box behind the battery where there is also a fuse.

Click to expand...

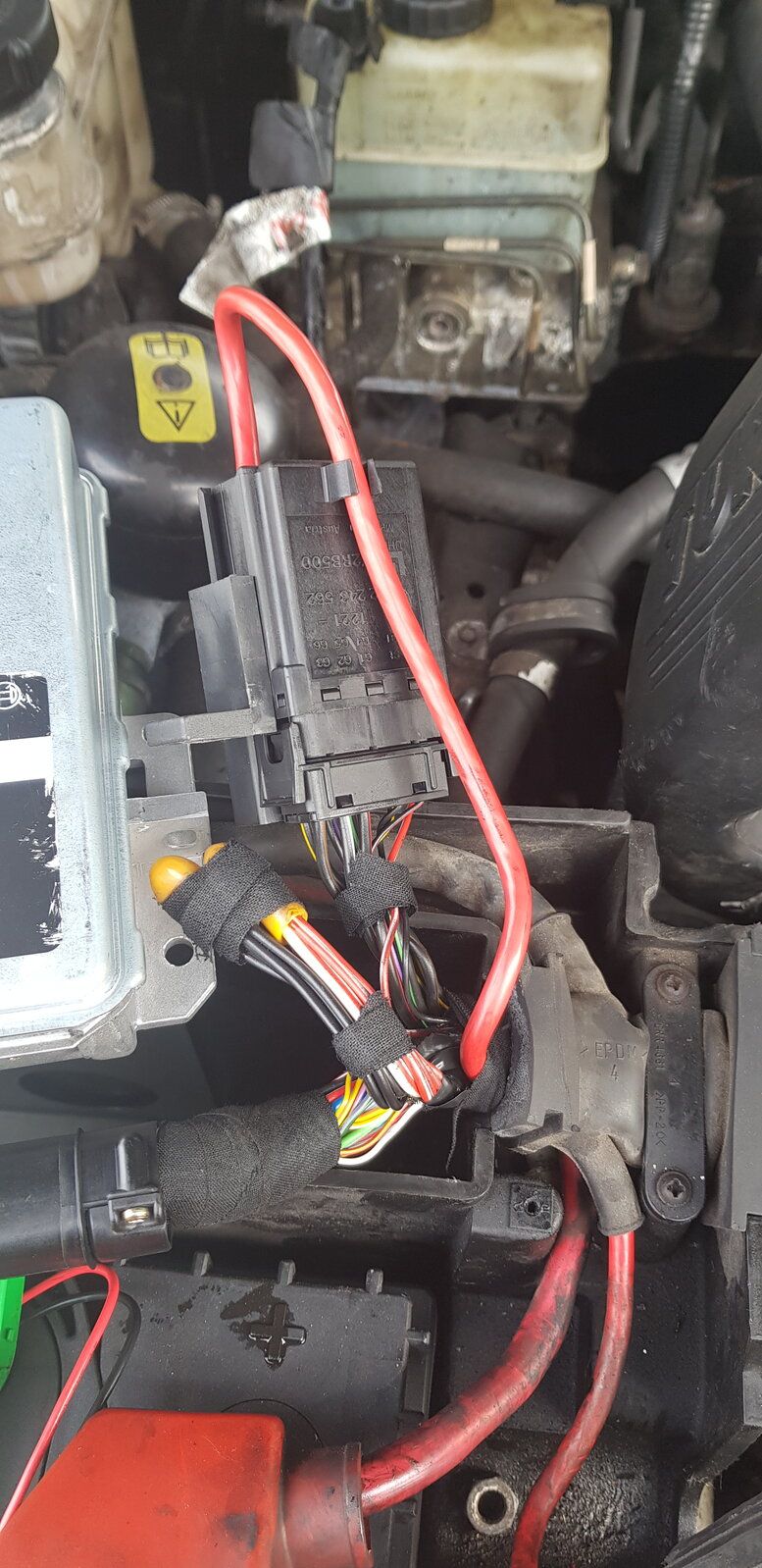

Is this it? Looks like fuse has gone? Can this be replaced?

Lukas018 said:

Is this it? Looks like fuse has gone? Can this be replaced?

Click to expand...

That's it and yes the fuse can be replaced. Never had to do it so cannot tell you where to get one.

Datatek said:

That's it and yes the fuse can be replaced. Never had to do it so cannot tell you where to get one.

Click to expand...

Think ebay do them, this is a defo that no glow plugs at all.

Would the diagnostic pick up cps if engine is not running?

Lukas018 said:

Is this it? Looks like fuse has gone? Can this be replaced?

Click to expand...

Yep. Odd, I thought we had ruled glow-plugs out as working.

Grrrrrr said:

Yep. Odd, I thought we had ruled glow-plugs out as working.

Click to expand...

It was to do with are glow plugs new or old.

Some thing like this.

https://gocableties.co.uk/electrica...h5LkTsBW7Q7VIzgOLwN43O-9sUnlHlq8aArd7EALw_wcB

I can't actually find a part number for it.

Did you forget to disconnect the battery before commencing work?

80 amp strip fuse.

wammers said:

80 amp strip fuse.

Click to expand...

Thanks @wammers did any values on those diagnostic make any sense?

Lukas018 said:

Thanks @wammers did any values on those diagnostic make any sense?

Click to expand...

Only the glow relay bit you don't really get anything unless the engine has run.

Replaced glow plug fuse to no avail. Also the sync mate or hawkeye now wont connect to the car. The engine ECU I found was partially unplugged so put that back now these issues have arisen. I assume this causes an issue?

For future reference. https://www.ebay.co.uk/itm/STRIP-LI...hash=item2cb36bc17b:m:mdq2odKoHoF6lAPaZm0NIxQ

wammers said:

For future reference. https://www.ebay.co.uk/itm/STRIP-LI...hash=item2cb36bc17b:m:mdq2odKoHoF6lAPaZm0NIxQ

Click to expand...

Thanks @wammers just put an issue up on my last comment you able to advise at all?

Lukas018 said:

Replaced glow plug fuse to no avail. Also the sync mate or hawkeye now wont connect to the car. The engine ECU I found was partially unplugged so put that back now these issues have arisen. I assume this causes an issue?

Click to expand...

Look at fuse 33 engine bay fuse box. 5 amp. Playing with electrics as you have done if battery is connected is not a good idea.

wammers said:

Look at fuse 33 engine bay fuse box. 5 amp. Playing with electrics as you have done if battery is connected is not a good idea.

Click to expand...

Checked that is fine

Lukas018 said:

Checked that is fine

Click to expand...

Have you checked all the fuses?

wammers said:

Have you checked all the fuses?

Click to expand...

Yep they all ok have cleaned connections in drivers footwell only other thing to check is fuse box connections but then again sync-mate just flashes red? Hawkeye says cannot communicate with engine ecu?

Since changing fuse the glow plug light doesnt even come on wasnt doing that before

Lukas018 said:

Yep they all ok have cleaned connections in drivers footwell only other thing to check is fuse box connections but then again sync-mate just flashes red? Hawkeye says cannot communicate with engine ecu?

Since changing fuse the glow plug light doesnt even come on wasnt doing that before

Click to expand...

When the ignition is switched on the engine ECU gets a signal from the green temp sensor on the head, if the temp is low enough it energises the glow plug relay and switches on the glow lamp. Plugs will stay on for various times subject to engine temp. You have disturbed something, only thing i can suggest is you go over everything you have done. Maybe ignition control relay has failed i don't really know. It's just a case of checking everything until you find what you have disturbed.

wammers said:

i don't really know..

Click to expand...
