Air - fuel - compression (other than loss of sync or something).

No loose connectors or rag left in airbox pipe?

Checked all that all seems fine. Compression came back ok. Attached 2 photos took inlet manifold off to check connections and glow plugs

Lukas018 said:

Checked all that all seems fine. Compression came back ok. Attached 2 photos took inlet manifold off to check connections and glow plugs

Click to expand...

Glow-plugs all good?

Grrrrrr said:

Glow-plugs all good?

Click to expand...

Yeah mate they brand new.

RangeRoller dt said:

Air - fuel - compression (other than loss of sync or something).

Click to expand...

There would not be fuel to injectors if it had lost sync.

I dont understand fuel is getting to injectors and not firing. Only thing is a crank position sensor is new I marked the old location and put new on is as it but would this really stop it from starting?

Compression is "ok" what are the readings?

I had issues with a DSE yesterday, after replacing the pump..

I gave it 1/2 throttle and gave 'er a turn, spluttered into life..

Failing that a snort of ether, just make sure she's turning over when given the snort

Lukas018 said:

I do yeah when was cranking diesel spitting out nice and clear was crank 10-15 seconds to ensure fuel was coming out.

Click to expand...

Are the glow plugs working?

Lukas018 said:

I dont understand fuel is getting to injectors and not firing. Only thing is a crank position sensor is new I marked the old location and put new on is as it but would this really stop it from starting?

Click to expand...

I hope you did not undo the bracket for the crank sensor? If you did getting it back with the right clearance is a palava

^^^ tolerance on cps movement is very small you’d need special tool.

In photo looks like your glowplug control isn’t plugged in (above starter)

Cps will cause a non start if the signal is missing.... You didn't move the bracket did you

RangeRoller dt said:

^^^ tolerance on cps movement is very small you’d need special tool.

In photo looks like your glowplug control isn’t plugged in (above starter)

Click to expand...

Glow plug Control above the starter???????????????????

Sh#t I did remove the bracket fu#k as it was ****ed and marked its place but could be the issue.

How do I dig myself out of this hole please?

Anyone have special tool I could borrow?

Datatek said:

Glow plug Control above the starter???????????????????

Click to expand...

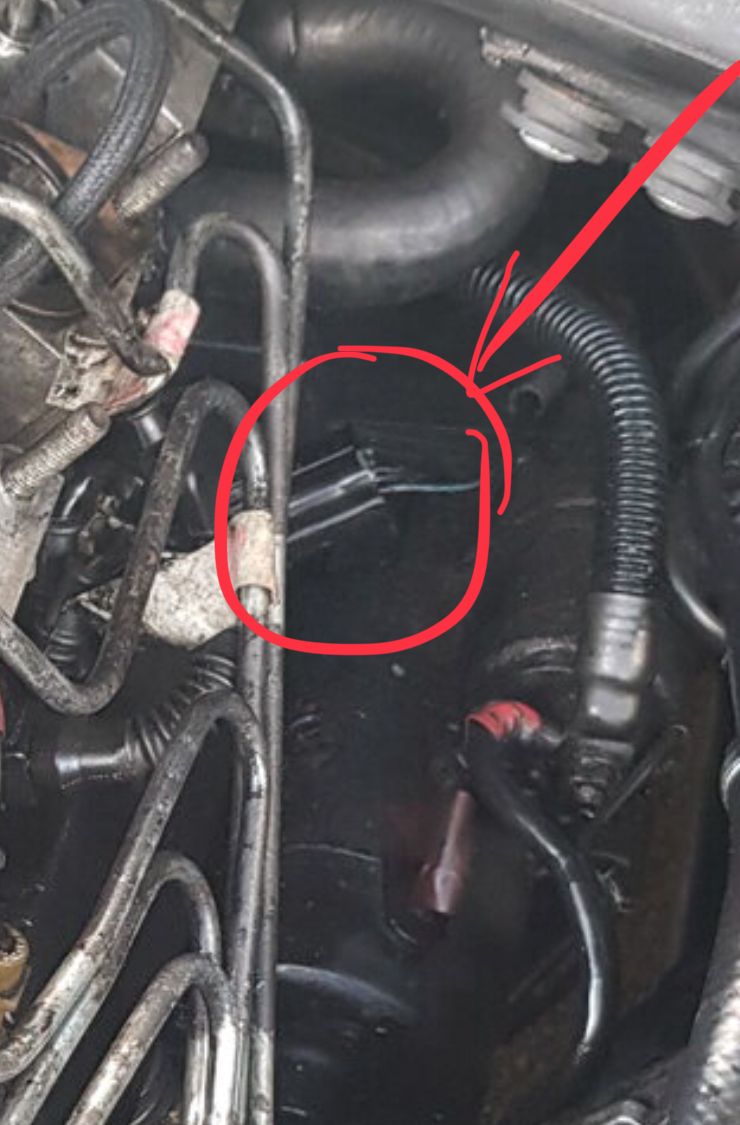

This is off

what do Nissan call it?

RangeRoller dt said:

This is off
View attachment 210096
what do Nissan call it?

Click to expand...

That is plugged in ok when photo was taken mate.

Lukas018 said:

Sh#t I did remove the bracket fu#k as it was ****ed and marked its place but could be the issue.

How do I dig myself out of this hole please?

Anyone have special tool I could borrow?

Click to expand...

Never been down that rabbit hole but now you know a potential issue. Best read RAVE. You've got it all marked up so it cannot be far off. The sensor needs to be close to the teeth so maybe check it is all the way in?

Remove the starter motor and you may be able to get a feeler gauge in there. Never tried it but it looks as if it might be possible.

Ok do you know what the air gap should be please?

Turn the engine until one of the timing pips is showing at centre of the sensor position. You will need a light and mirror for this. Use old sensor if in good condition and superglue a shim on the end 0.060" or 1.5 mm thick, fit bracket loose and bolt sensor to bracket. Push bracket and sensor in until shim contacts timing pip, tighten bracket. Remove old sensor and fit new one. Job done.
