Diesel Leak from Timing Case

border · May 25, 2020

Got a Leak coming from Wading Plug Hole on Timing Case Didn't know Diesel could get through here.
Suspect a Seal, or could it be something else ?

Disco1BFG · May 25, 2020

Almost certainly the seal on the front of the FIP - can be done DIY - use a genuine Bosch seal, and make damn sure it goes in square.... Your local FIP specialist should be able to do it for a few quid ...

border · May 25, 2020

Disco1BFG said:
Almost certainly the seal on the front of the FIP - can be done DIY - use a genuine Bosch seal, and make damn sure it goes in square.... Your local FIP specialist should be able to do it for a few quid ...

Thanks Might have a go myself, will look for a Guide or Vid on youtube. Do you know Part Number for seal ?

Disco1BFG · May 25, 2020

border said:
Do you know Part Number for seal ?

No - but have a nosy on eblag - item 152096623396 - or search on here - quite a common problem .....

border · May 25, 2020

Disco1BFG said:
No - but have a nosy on eblag - item 152096623396 - or search on here - quite a common problem .....

Thanks Mate. So is that seal on the Injection Pump at top, cant see any Leaks around that area, only coming from bottom Wading hole.

lynall · May 26, 2020

Shaft seal, so you have to remove the pump to do the repair, you aill also have to lock the pump shaft up using the buit in keeper plate.
The fact you have derv in the timing chest means your cambelt will also need replacing.

doriz · May 26, 2020

If you are doing any seals in that area it would be sensible to replace the belt if you have no history.

Disco1BFG · May 26, 2020

border said:
Thanks Mate. So is that seal on the Injection Pump at top, cant see any Leaks around that area, only coming from bottom Wading hole.

Sadly not - as Lynall says, post #6 - shaft seal.... and also, as post #7, timing belt will need doing too

border · May 27, 2020

Thanks Everyone so far.
Is this the right Tool I need to remove Pump https://www.ebay.co.uk/itm/Big-Red-...ng-Kit-for-Diesel-Engines-SWE145/321984610886

neilly · May 27, 2020

border said:
Thanks Everyone so far.
Is this the right Tool I need to remove Pump https://www.ebay.co.uk/itm/Big-Red-...ng-Kit-for-Diesel-Engines-SWE145/321984610886

I use the same tools to change my 300tdi fuel pump.

Cheers

neilly · May 27, 2020

border said:
Thanks Everyone so far.
Is this the right Tool I need to remove Pump https://www.ebay.co.uk/itm/Big-Red-...ng-Kit-for-Diesel-Engines-SWE145/321984610886

if you are stripping the fuel pump , review britannia restoration videos, ho does a strip dwn and rebuild reference this seal. When I stripped mine down I also got the full socket set for the pump.
Make sure to take lots of pictures if you are stripping ti right down.

Cheers

border · May 27, 2020

neilly said:

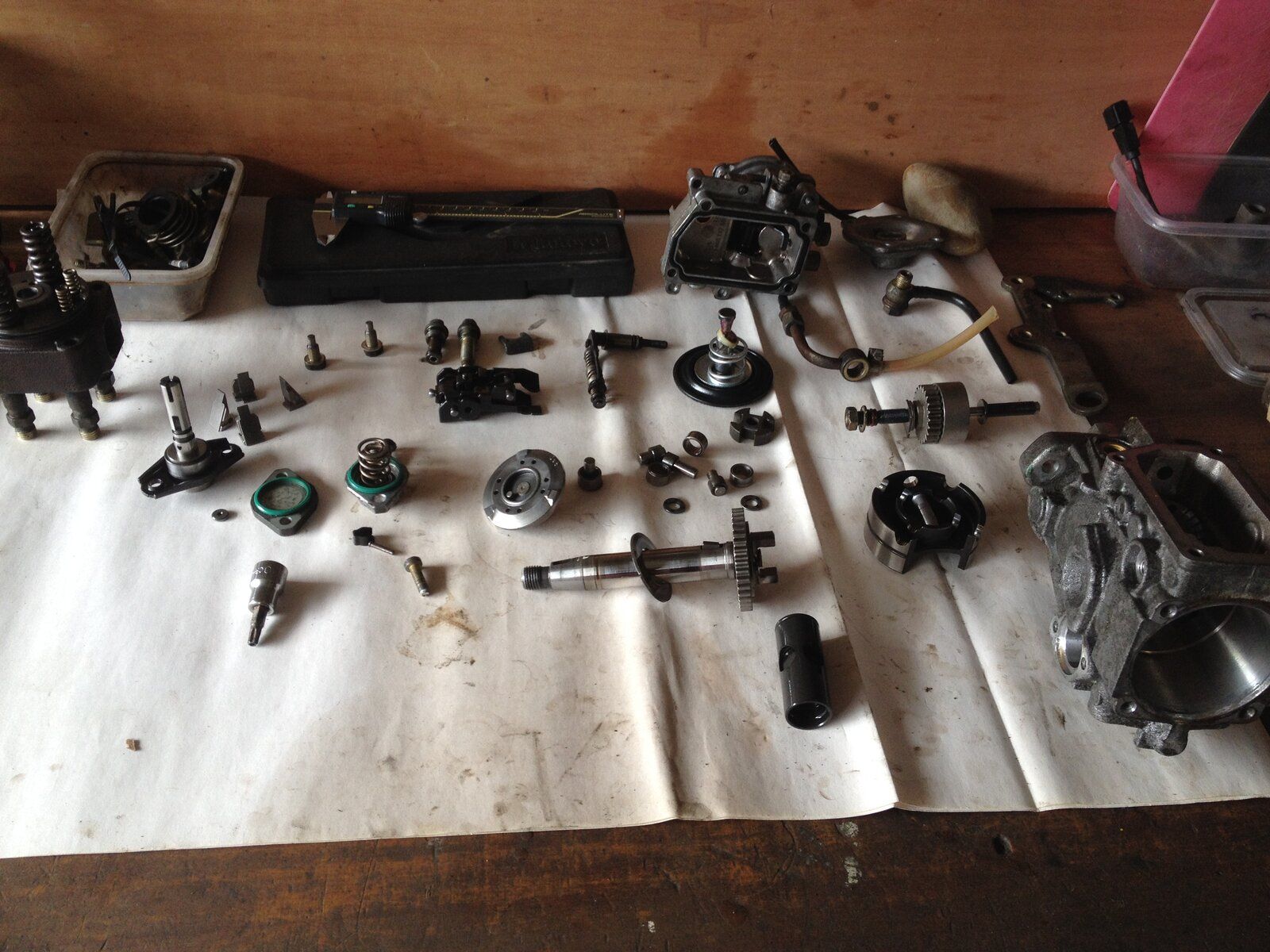

if you are stripping the fuel pump , review britannia restoration videos, ho does a strip dwn and rebuild reference this seal. When I stripped mine down I also got the full socket set for the pump.
Make sure to take lots of pictures if you are stripping ti right down.

View attachment 210524
Cheers

My God there's no way I attempt that,

what's your other job Brain Surgeon

That's way out of my League
Called in to Local Diesel Specialist today he says its the seal at front If I can get pump off and take it in he will change it.

neilly · May 27, 2020

border said:
My God there's no way I attempt that, what's your other job Brain Surgeon That's way out of my League
Called in to Local Diesel Specialist today he says its the seal at front If I can get pump off and take it in he will change it.

I was bored. Actually I am a part time Gynaecologist...LOL

Best way, get someone else to do it, can I ask ? how much did he reckon to do it? Check to see if the pump has the lock bolt on it. If it does, when you refit it , do not forget to remove it. If you are doing the timing belt as well then that kit you posted will also do you for that as well.

Cheers

border · May 27, 2020

neilly said:
I was bored. Actually I am a part time Gynaecologist...LOL

Best way, get someone else to do it, can I ask ? how much did he reckon to do it? Check to see if the pump has the lock bolt on it. If it does, when you refit it , do not forget to remove it. If you are doing the timing belt as well then that kit you posted will also do you for that as well.

Cheers

Thanks Again, Will get someone to take it off for me, where is the lock bolt, He said about 25 to 30 Quid with the seal.
New Timing belt Kit and Water Pump was fitted couple of months ago, only been started half a dozen times since, longest running about 10 minuets so don't know if Diesel will of affected it, Might take a chance of it drying out,and just remove and refit the pump without going in to the case. Or is that a Bad Idea.

neilly · May 27, 2020

border said:
Thanks Again, Will get someone to take it off for me, where is the lock bolt, He said about 25 to 30 Quid with the seal.
New Timing belt Kit and Water Pump was fitted couple of months ago, only been started half a dozen times since, longest running about 10 minuets so don't know if Diesel will of affected it, Might take a chance of it drying out,and just remove and refit the pump without going in to the case. Or is that a Bad Idea.

Lock bolt is on the underside of the pump. Look at both of these, one even shows the front seal leak.

Cheers

border · May 28, 2020

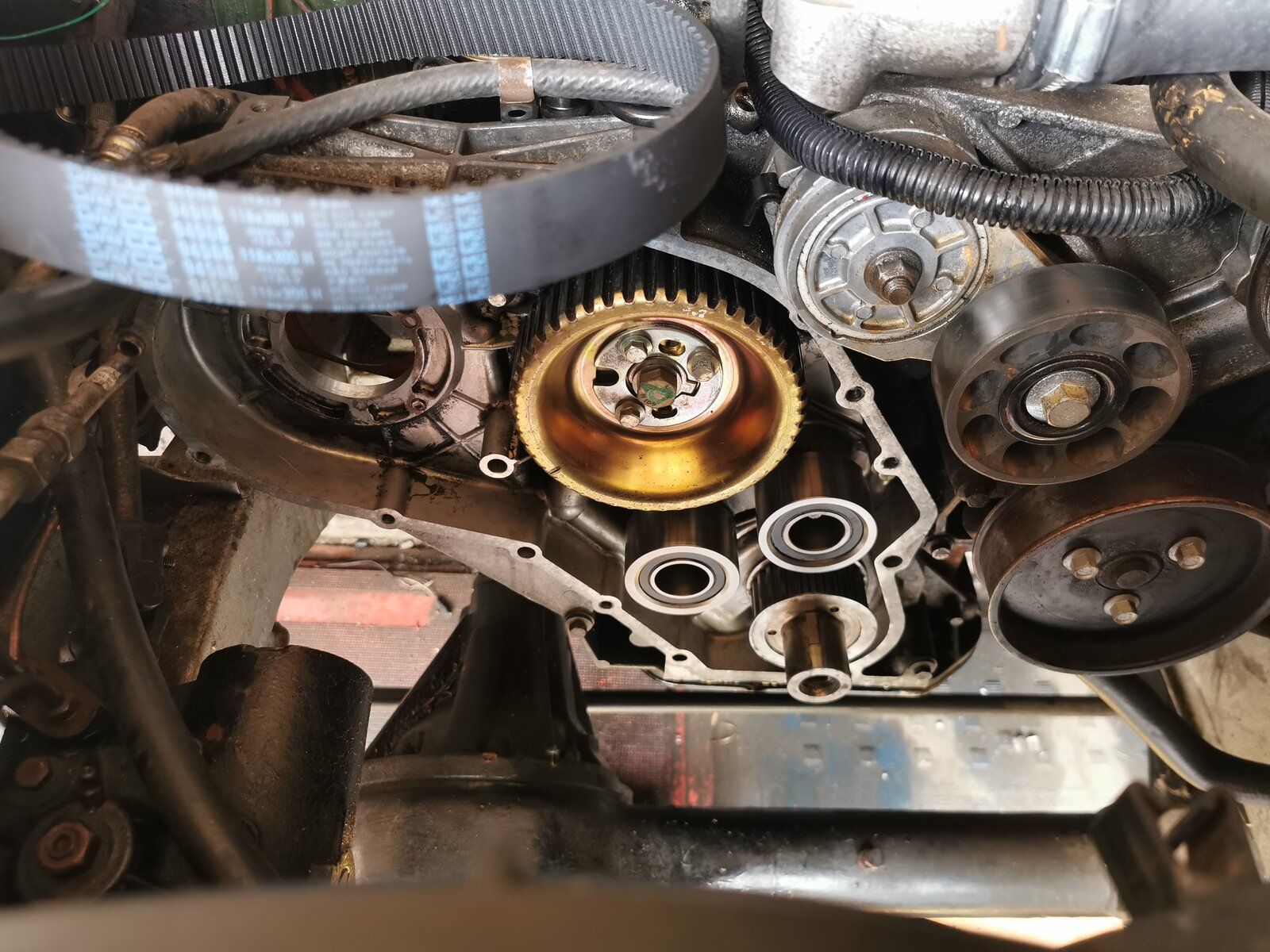

Does not look to bad in there, belt was slightly wet but has completely dried now, gonna spray brake cleaner everywhere to get it nice and clean before refitting. No sign of any Oil leak just Diesel .
Pump is at Diesel place hopefully ready to pick up tomorrow.

border · May 29, 2020

Another thing I meant to ask, I didn't get the Tool to refit, what size Bolt or Drill Bit is used as the Pin when setting it up ?

jamesmartin · May 29, 2020

border said:
Another thing I meant to ask, I didn't get the Tool to refit, what size Bolt or Drill Bit is used as the Pin when setting it up ?

9.5mm

border · May 29, 2020

jamesmartin said:
9.5mm

Thanks James, bet I aint got one,

neilly · May 29, 2020

border said:
Does not look to bad in there, belt was slightly wet but has completely dried now, gonna spray brake cleaner everywhere to get it nice and clean before refitting. No sign of any Oil leak just Diesel .
Pump is at Diesel place hopefully ready to pick up tomorrow.

So clean. almost like new.

iirc there is a difference for the belt tension if it was used or new.

Cheers
