Defender 300tdi wiring.

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

Matty p

Member
Posts
48
Location
Norfolk
Good afternoon all, I am trying to find a diagram/photo of the engine loom plug and the bulkhead loom plug together. My replacement engine that i purchased has no connector plug and neither does the bulkhead loom. Unfortunately it is not as straightforward as just matching the wire colours as they are different. I have the new econoseal connectors but just need a bit of assistance with the wire locations. Any help is greatly appreciated. thanks.

Assuming 1997
97 defender c162c448.png

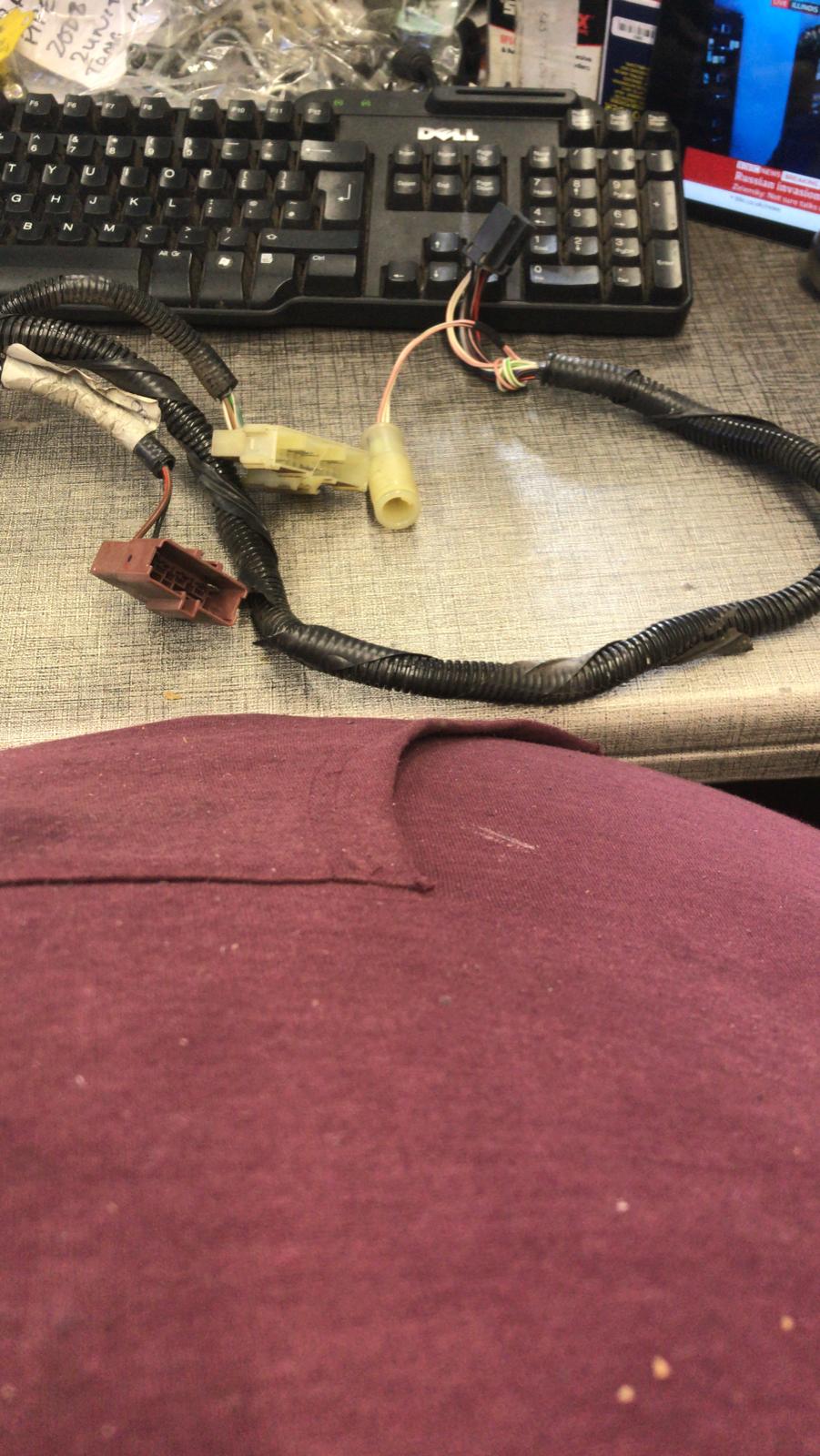

So I thought I would try on the off chance, contacting the breakers where I bought the engine and see iff they still had the vehicle and hopefully the engine loom plug. So,the 300tdi engine came from a discovery (not sure if this makes a difference) and is being fitted in a defender.They found,what they think is the loom section but im not sure looking at it, compared to others I've seen online. Could i get some opinions please?


Attachments

  • IMG-20220228-WA0003.jpg
    265.9 KB · Views: 118
  • IMG-20220228-WA0002.jpg
    193.7 KB · Views: 112
