Dash

border · Apr 21, 2020

On with Wiring and Trying to build my Dash back up with the bits Ive got, I know I will be parts missing, as I bought the project all in bits,

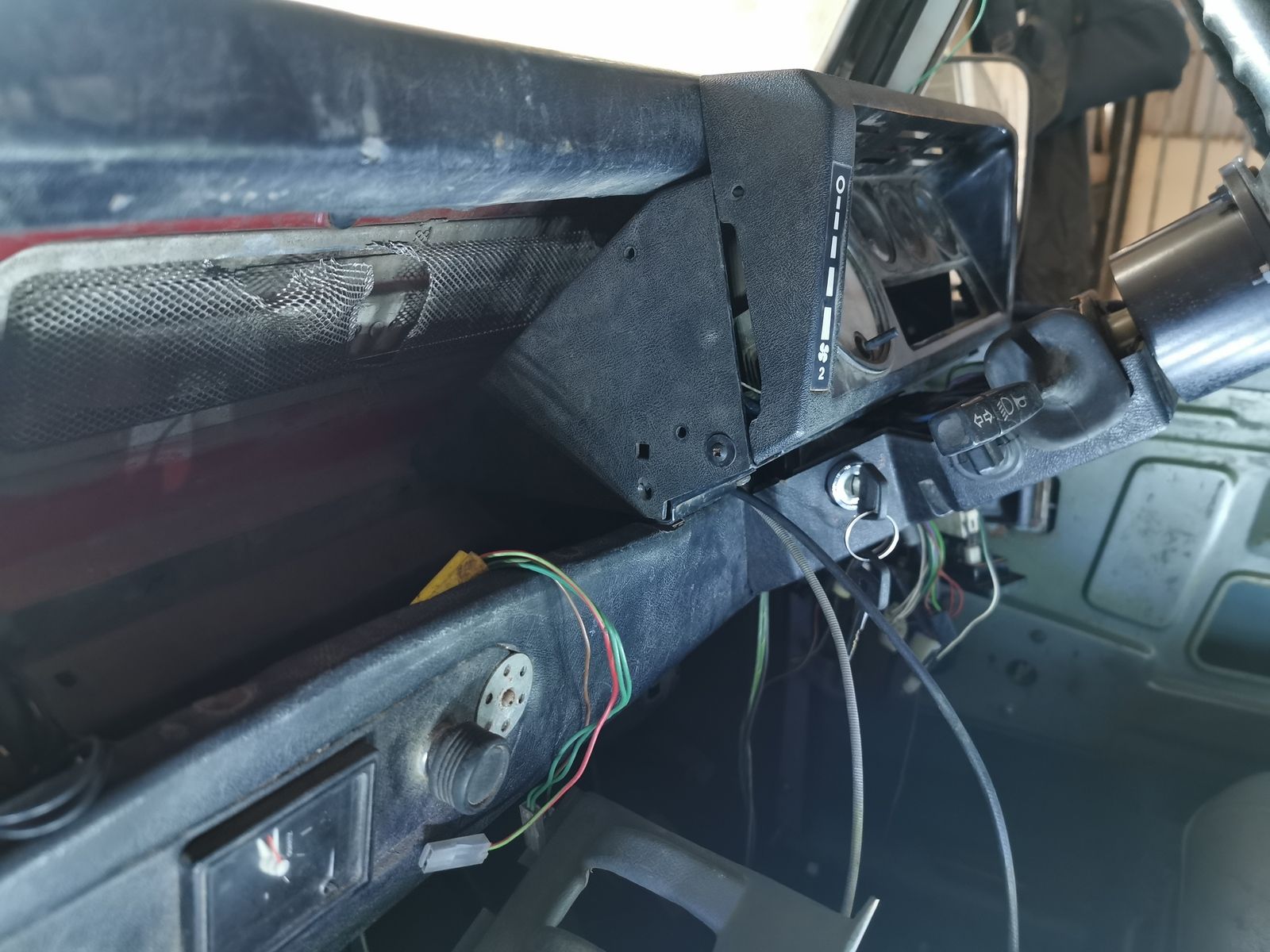

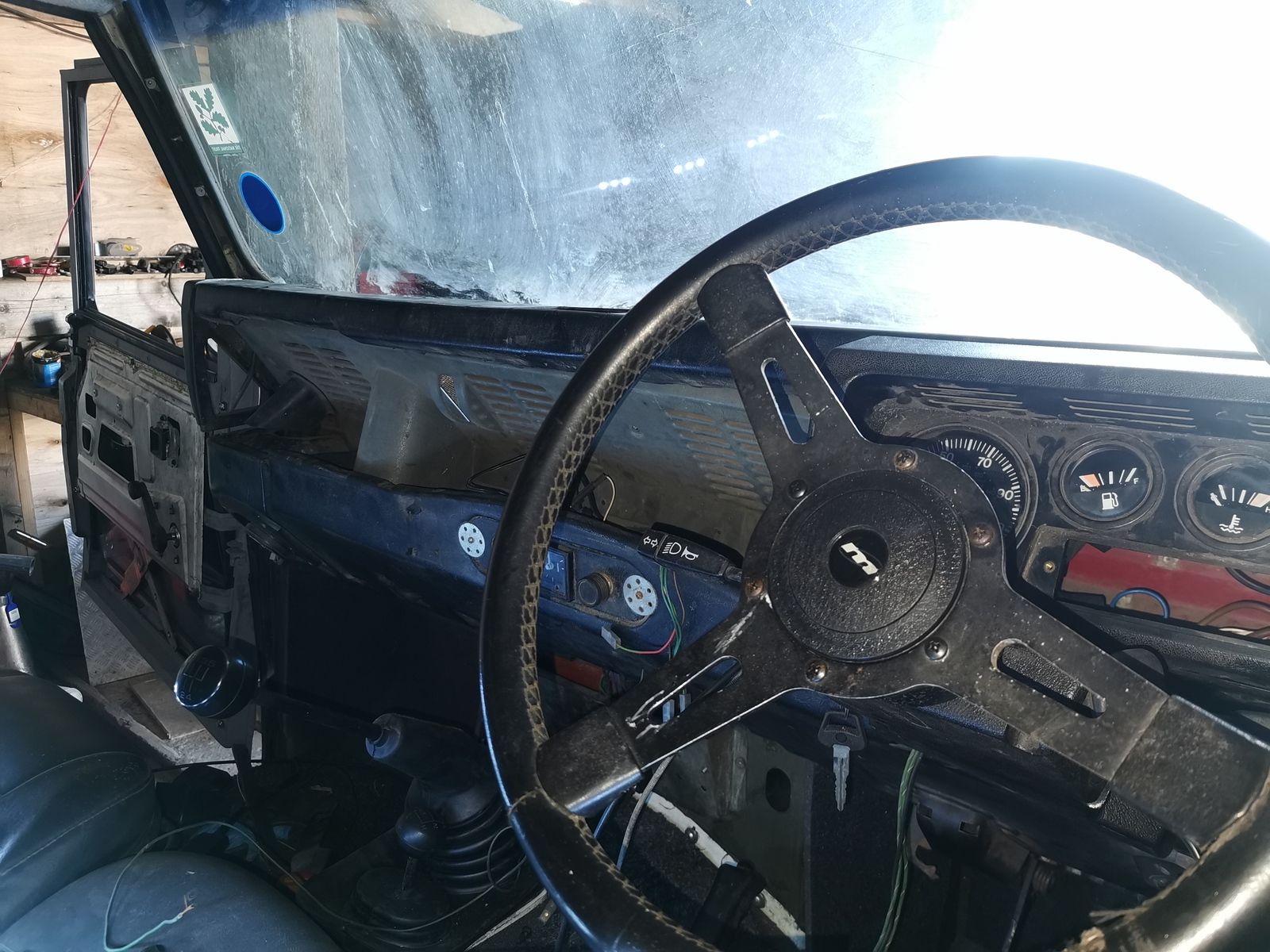

Pics are just a Mock set up with bits Ive found so far, nothing screwed in yet.

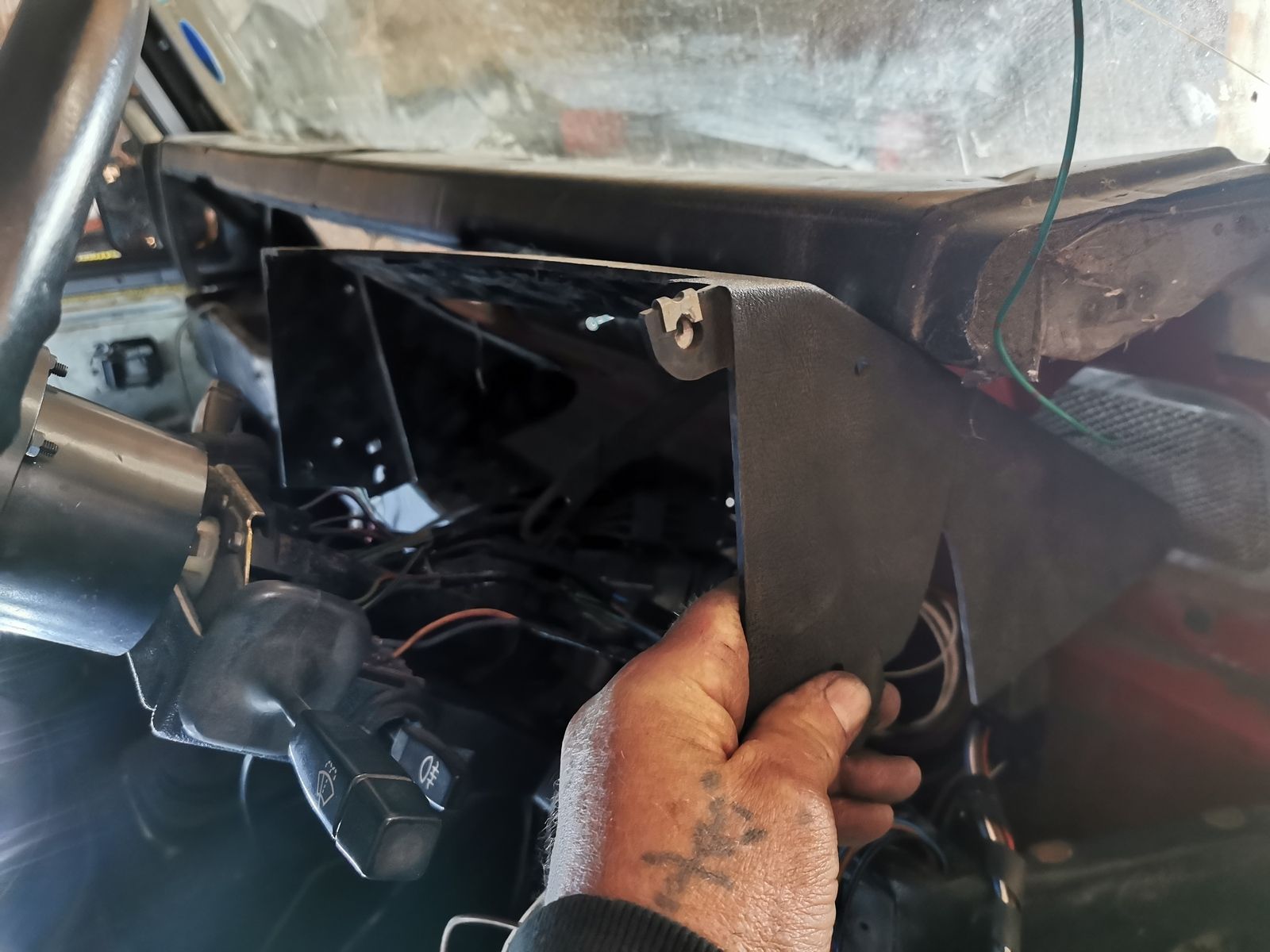

Most of the screw holes line up, but its the Binnacle bit I don't know where it fits / screws in as there seems nothing to fix it to or am I missing something ?, also need to wire the dials up before finally fixing it in place.
Been looking for info and guides on building up but cant find anything, just going off pictures . Anyone got any pics of where this bloody Binnacle thingy fixes in ?
Thanks

doriz · Apr 21, 2020

You'll be very lucky if you have any of the original screw locations. All mine have snapped of and if being held together with bracing strips of steel. I have bought a new fabricated binnacle frame and I plan to buy the pressed replacement front from Raptor in the future.

border · Apr 21, 2020

doriz said:
You'll be very lucky if you have any of the original screw locations. All mine have snapped of and if being held together with bracing strips of steel. I have bought a new fabricated binnacle frame and I plan to buy the pressed replacement front from Raptor in the future.

They must have as I Was looking for holes but theres none there,

Will have to find out how it goes together , or near enough, then improvise. I know its not the best but it will have to do as low on funds now, no work with the Situation we are in, but We will all get through it Eventually.

resto_d1 · Apr 21, 2020

I only did this the other day but can’t work out your right hand side. Obviously you have your fan control to bolt in on left and on the right there’s an additional cover that goes over your temp/direction control and caps that big of the top dash off

border · Apr 21, 2020

resto_d1 said:
I only did this the other day but can’t work out your right hand side. Obviously you have your fan control to bolt in on left and on the right there’s an additional cover that goes over your temp/direction control and caps that big of the top dash off

Think Ive got All of the Fan controls , not sure about the rest.

resto_d1 · Apr 22, 2020

Let me know if you ever need any pics. Mines td5 but don’t think dash is much different. One think I realized is install everything very loosely until all is in place lol. Drove me mental

border · Apr 22, 2020

resto_d1 said:
Let me know if you ever need any pics. Mines td5 but don’t think dash is much different. One think I realized is install everything very loosely until all is in place lol. Drove me mental

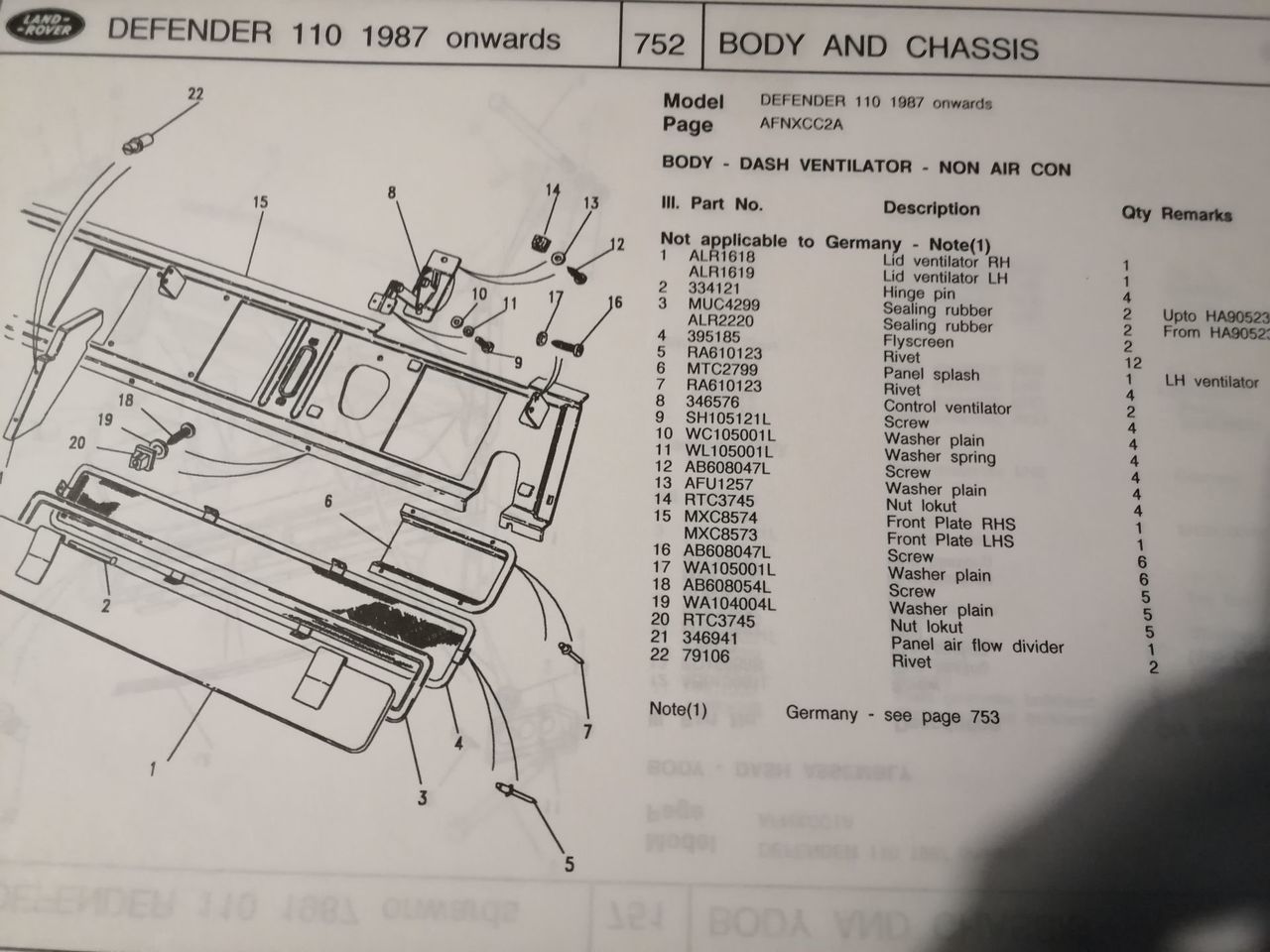

Thanks Mate. Did you fit number 15 on this pic, Think im missing that bit.

jamesmartin · Apr 22, 2020

border said:
Think Ive got All of the Fan controls , not sure about the rest.

binnacle fits in before the top padded panel

border · Apr 22, 2020

jamesmartin said:
binnacle fits in before the top padded panel

Thanks James, I'm missing the bit above in Diagram number 15 . No one recognises the part number must have been superceeded or something. Probably an Expensive thing knowing my luck.

Hicap phill · Apr 22, 2020

border said:
Thanks Mate. Did you fit number 15 on this pic, Think im missing that bit.

This no 15 goes on between the grey vent panel & bulkhead

jamesmartin · Apr 22, 2020

border said:
Thanks James, I'm missing the bit above in Diagram number 15 . No one recognises the part number must have been superceeded or something. Probably an Expensive thing knowing my luck.

youlll need that as binnacle screws to it mxc8574 is still a good number, i may have one

border · Apr 22, 2020

jamesmartin said:
youlll need that as binnacle screws to it mxc8574 is still a good number, i may have one

How much do you want for it James.? Still not coming up on the usual Paddocks, Island 4x4 ect.

jamesmartin · Apr 22, 2020

have you tried just googling the number

Hicap phill · Apr 22, 2020

https://www.lrparts.net/mxc8574-plate.html

border · Apr 22, 2020

jamesmartin said:
have you tried just googling the number

Only one that comes up is the one Hicap phill has found Ive emailed them to see if it is in stock, but no reply yet.

Hicap phill said:
https://www.lrparts.net/mxc8574-plate.html

Cheers Mate that's the only one I found.

Hicap phill · Apr 22, 2020

So say on another forum you can use a TD5
But move 1 bracket

border · Apr 22, 2020

Just got through on Chat to LR Parts and he says its Discontinued and going to remove it from site. good job I didn't order .

border · Apr 22, 2020

This is Britcars Reply.
Hello Kevin,

Thank you for your enquiry.

Unfortunately MXC8574 is now fully obsolete from all suppliers, I have carried out a Europe wide search and there are no dealers anywhere showing stock of this part.

Hicap phill · Apr 22, 2020

@border did you strip the bulkhead?

border · Apr 22, 2020

Hicap phill said:
@border did you strip the bulkhead?

No mate It came like it is now with parts I have in boxes.
