dash board waring lights

Discussion in 'Land Rover Discovery' started by Tillytomp, Jan 17, 2017.

< Previous Thread | Next Thread >
  1. Tillytomp

    Tillytomp Active Member

    Joined:
    Jul 12, 2016
    Posts:
    585
    Likes Received:
    77
    Location:
    Hampshire
    tried to find some answers before asking but could not find anything quite the same so.....
    Some of the dash lights seem to have fallen off or they have stopped working.they are the glow plug light, low beam, the symbol for what gear its in (auto) next to the milage.
    but luckily the 3 amigos still work:D

    any ideas please:rolleyes:

  2. neilly

    neilly Well-Known Member Full Member

    Joined:
    Jan 10, 2011
    Posts:
    20,019
    Likes Received:
    10,456
    Location:
    Oxfordshireness
    Hi Tilly,

    Haveyou checked to see if they are individual replaceable bulbs in Rave?


    Cheers

  3. Tillytomp

    Tillytomp Active Member

    Joined:
    Jul 12, 2016
    Posts:
    585
    Likes Received:
    77
    Location:
    Hampshire
    Er no :(, stupid question now that im getting to know a bit about the disco 2, would they all "blow" at the same time ??

  4. neilly

    neilly Well-Known Member Full Member

    Joined:
    Jan 10, 2011
    Posts:
    20,019
    Likes Received:
    10,456
    Location:
    Oxfordshireness
    I highly doubt it,

    But if you look at the Electrical diagram in the download it may show a common point ot look at.

    Cheers

  5. biggeeeee

    biggeeeee Retired - Living the dream

    Joined:
    Feb 28, 2008
    Posts:
    11,090
    Likes Received:
    2,043
    Location:
    Lanarkshire or Argyll
    There are only 3 or 4 bulbs in the rear of the clocks and all light up the clocks.
    I'm sure the warning lights are all LED's.

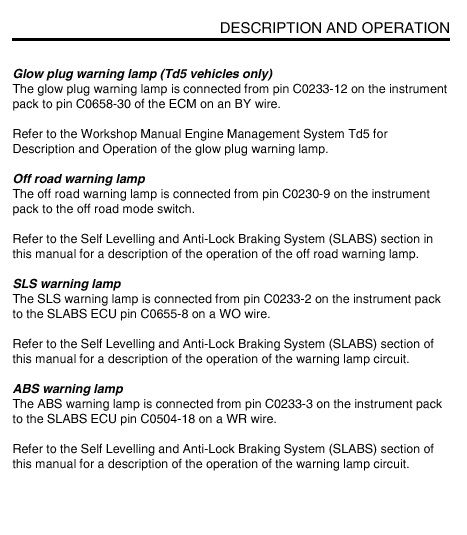

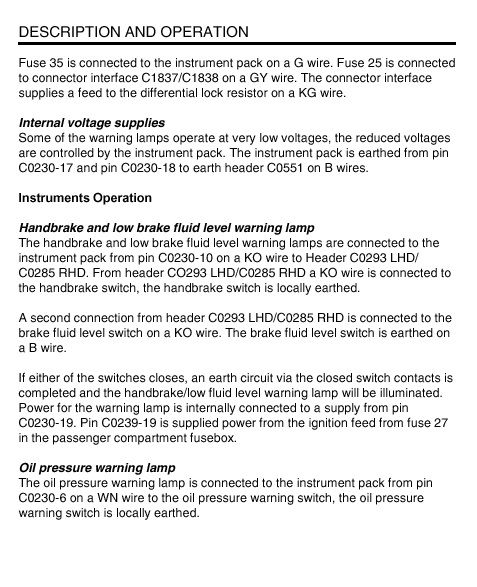

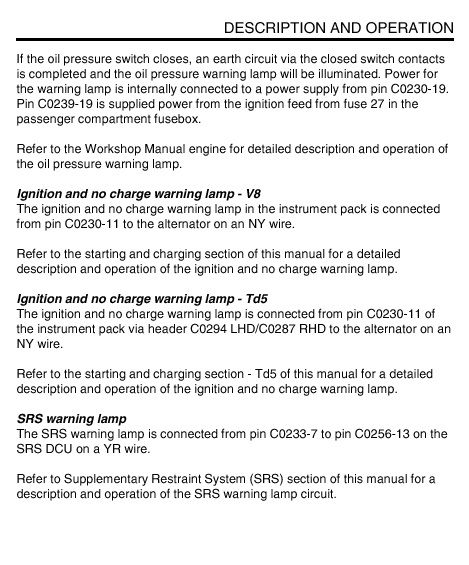

    I'm off to visit RAVE, be back shortly

  6. biggeeeee

    biggeeeee Retired - Living the dream

    Joined:
    Feb 28, 2008
    Posts:
    11,090
    Likes Received:
    2,043
    Location:
    Lanarkshire or Argyll
  7. brian47

    brian47 Well-Known Member

    Joined:
    Jan 24, 2013
    Posts:
    8,876
    Likes Received:
    5,376
    Location:
    Bridgend, Mid Glam. Somebody's got to live here.
    I can't say whether they're filament lamps or LEDs. The only one which is expressly referred to as a LED is the intruder alarm LED. All the others are referred to as "lamps" and the circuits show them as being the tiny 1.2 watt devices.

  8. Tillytomp

    Tillytomp Active Member

    Joined:
    Jul 12, 2016
    Posts:
    585
    Likes Received:
    77
    Location:
    Hampshire
  9. biggeeeee

    biggeeeee Retired - Living the dream

    Joined:
    Feb 28, 2008
    Posts:
    11,090
    Likes Received:
    2,043
    Location:
    Lanarkshire or Argyll
    Just prior to selling my TD5. I took the clocks out to replace one of the bulbs and I'm sure there were 3 big and 2 small bulbs but thought they were for the lighting up of the clocks.

  10. biggeeeee

    biggeeeee Retired - Living the dream

    Joined:
    Feb 28, 2008
    Posts:
    11,090
    Likes Received:
    2,043
    Location:
    Lanarkshire or Argyll
    Found this image on the net under TD5 warning lights but not sure if its for the Discovery or Defender


    Possibly the defender, but no doubt the Discovery would have much the same technology

  11. sierrafery

    sierrafery Well-Known Member

    Joined:
    Jun 30, 2007
    Posts:
    15,256
    Likes Received:
    2,732
    Location:
    Arad
    The warning lights are all LEDs i can confirm that 100% and i've never seen one failed but even in the unlikely case of a failure it's highly unlikely to be more at the same time, what do you mean by "low beam" light though? as about the others, was a nanocom plugged in lately?(it can alter some BCU settings without request) ...if you have one plug it in and make sure that it's not set to petro and manual in
    BCU- Settings - Instrument pack :
    1. Transmission
    must be automatic
    2. Engine must be diesel diesel

    Last edited: Jan 17, 2017
  12. Tillytomp

    Tillytomp Active Member

    Joined:
    Jul 12, 2016
    Posts:
    585
    Likes Received:
    77
    Location:
    Hampshire
    well im in ore of your expertise and i bow down to your knowledge, She had been plugged into the nanocom about a week ago, to see what fault codes were looged, and bless her she clearly has aspirations to be a V8 Manual,!!!!!!
    anyway changed her back but not sure what the two top settings are so i left them off (i gather HDC is hill decent, and thatTR C is traction), but what are "police and gulf"

    thanks so much:):):):):)

  13. sierrafery

    sierrafery Well-Known Member

    Joined:
    Jun 30, 2007
    Posts:
    15,256
    Likes Received:
    2,732
    Location:
    Arad
    I'm glad it was an easy fix... remember for the next time you work with nanocom in BCU that it used to have a mind of it's own, eventually upgrade it to the last firmare update cos some bugs were fixed... the HDC and TC lights should be enabled... about that police and Gulf thing i dont know more than what's in the guide"
    · Gulf: This setting is used to configure the instrument pack for Gulf operation. Its
    operation on non Gulf specification instrument packs is unknown.
    · Police: This setting is used to configure the instrument pack for Police force vehicles. Its
    operation on non Police specification instrument packs is unknown.

    Last edited: Jan 21, 2017
