Hi guys

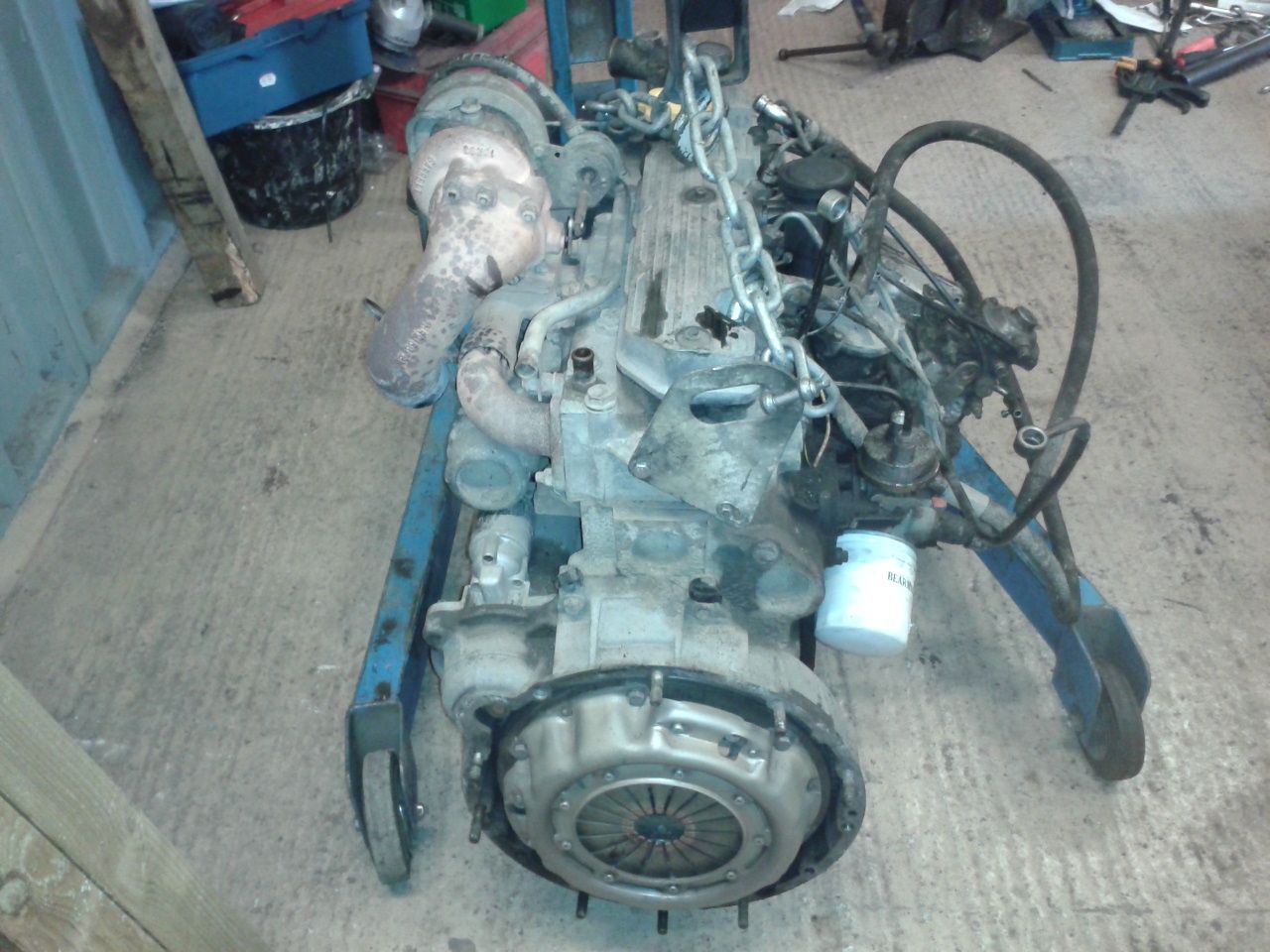

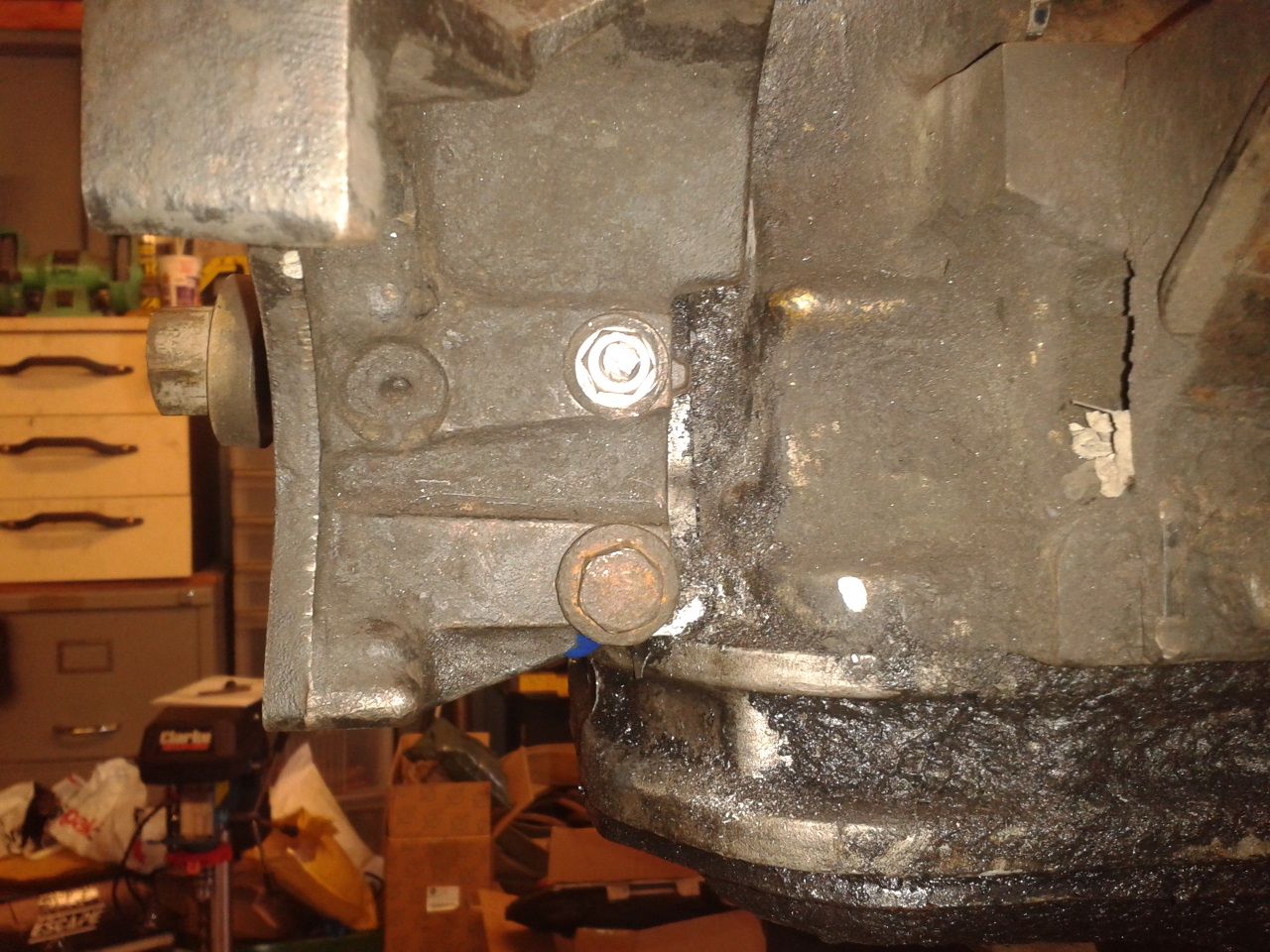

Yesterday i removed the engine ( defender 200tdi ) to sort out the damaged power steer pump mounting bracket holes on the timing case ( one smashed off and the other has stripped threads) so the plan is if the timing case is thick enough to clean the face up on the damaged hole then drill and tape to 10MM and locktite 2 studs in place.

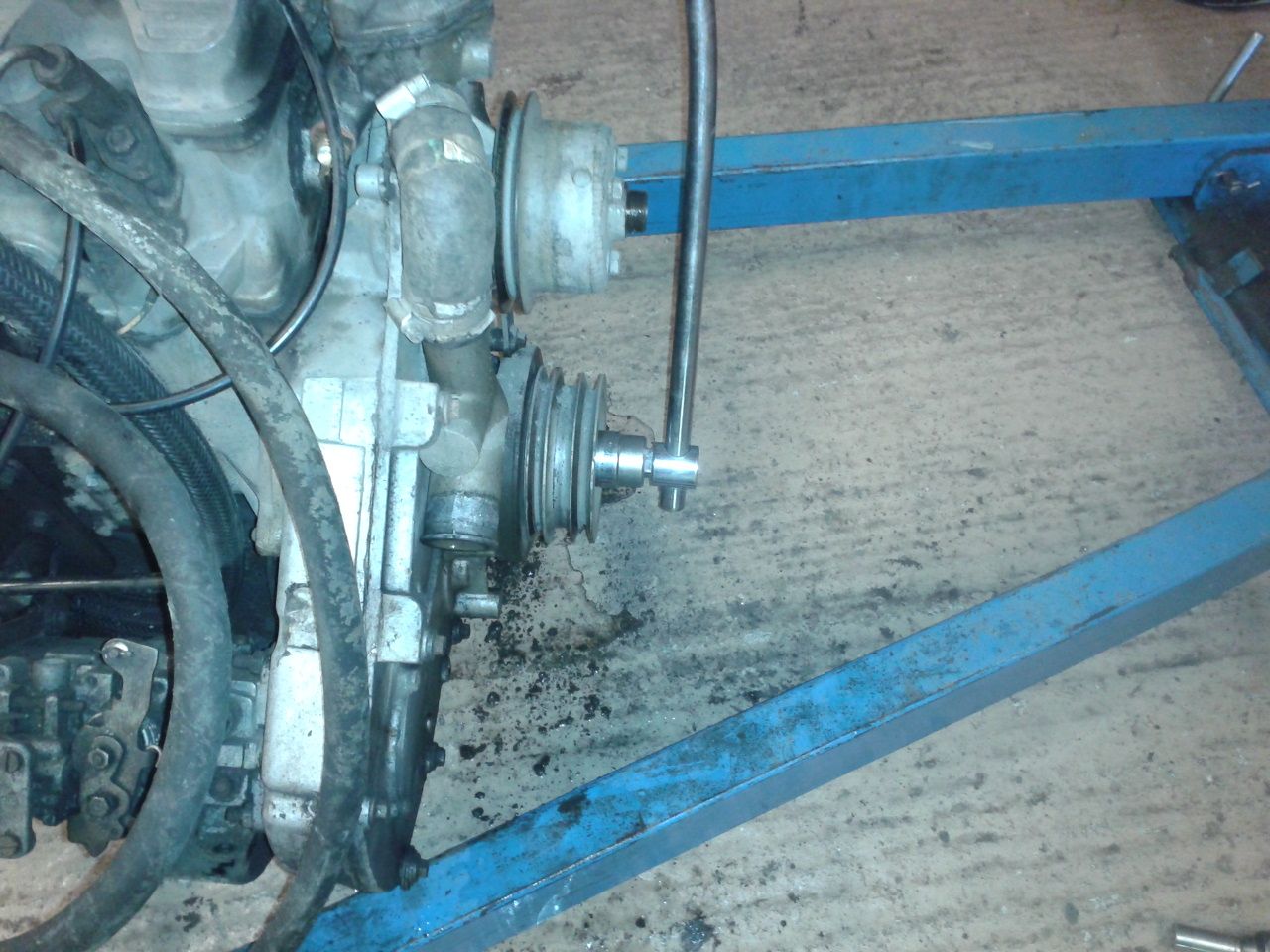

then once the engine was out i made a flywheel locking tool so i could undo the damper bolt, here are some pic's
Yesterday i removed the engine ( defender 200tdi ) to sort out the damaged power steer pump mounting bracket holes on the timing case ( one smashed off and the other has stripped threads) so the plan is if the timing case is thick enough to clean the face up on the damaged hole then drill and tape to 10MM and locktite 2 studs in place.
then once the engine was out i made a flywheel locking tool so i could undo the damper bolt, here are some pic's
