D2 TD5 fuel filler flap

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

Andy Warren

Well-Known Member
Full Member
Posts
2,061
Location
Hertfordshire
Hi all, would some be so kind as to send me a picture of

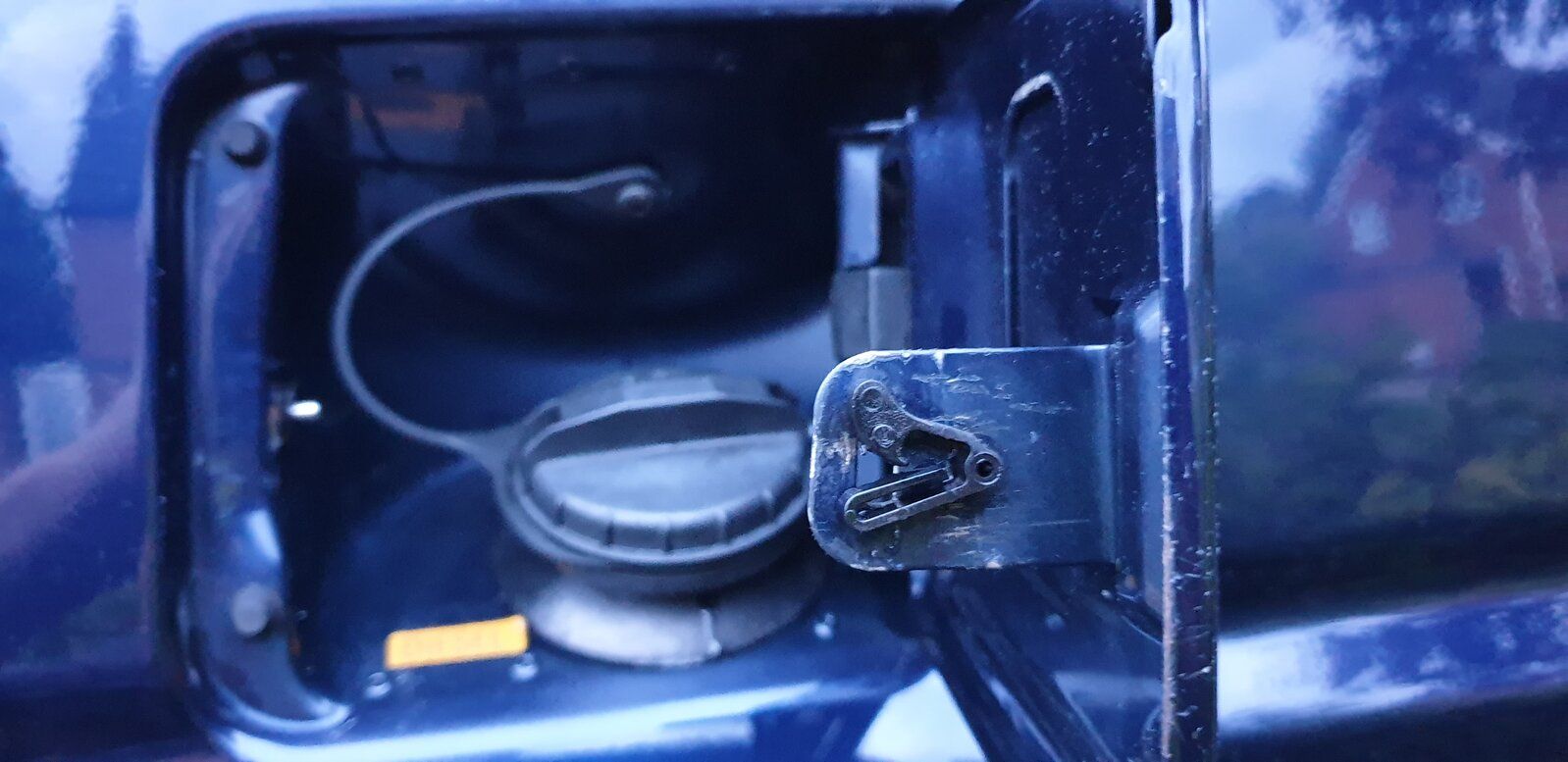

1. Fuel filler flap with the way the plastic clip is fitted.

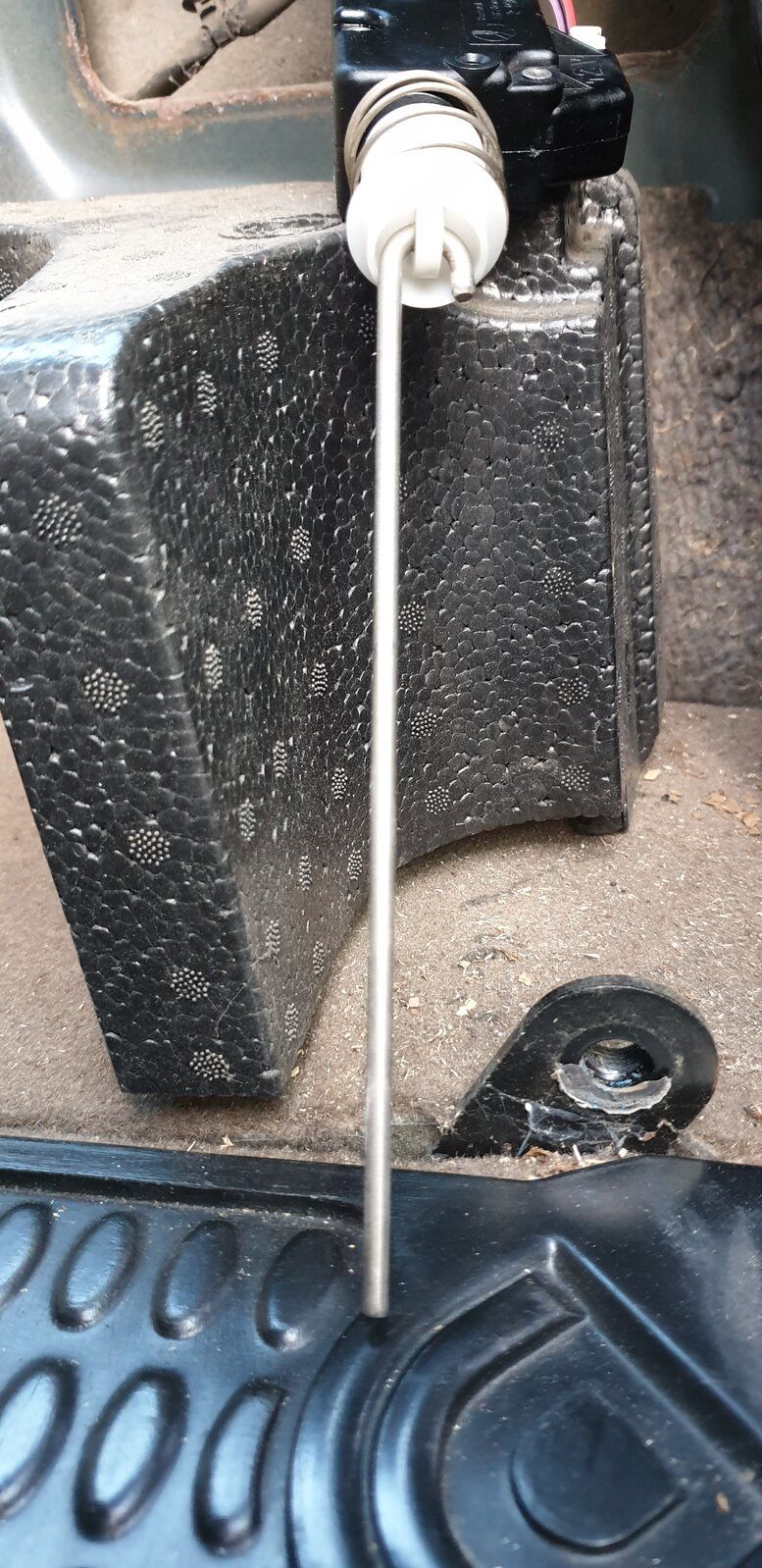

2. The end of the rod(connected to the solenoid) inside the filler flap.

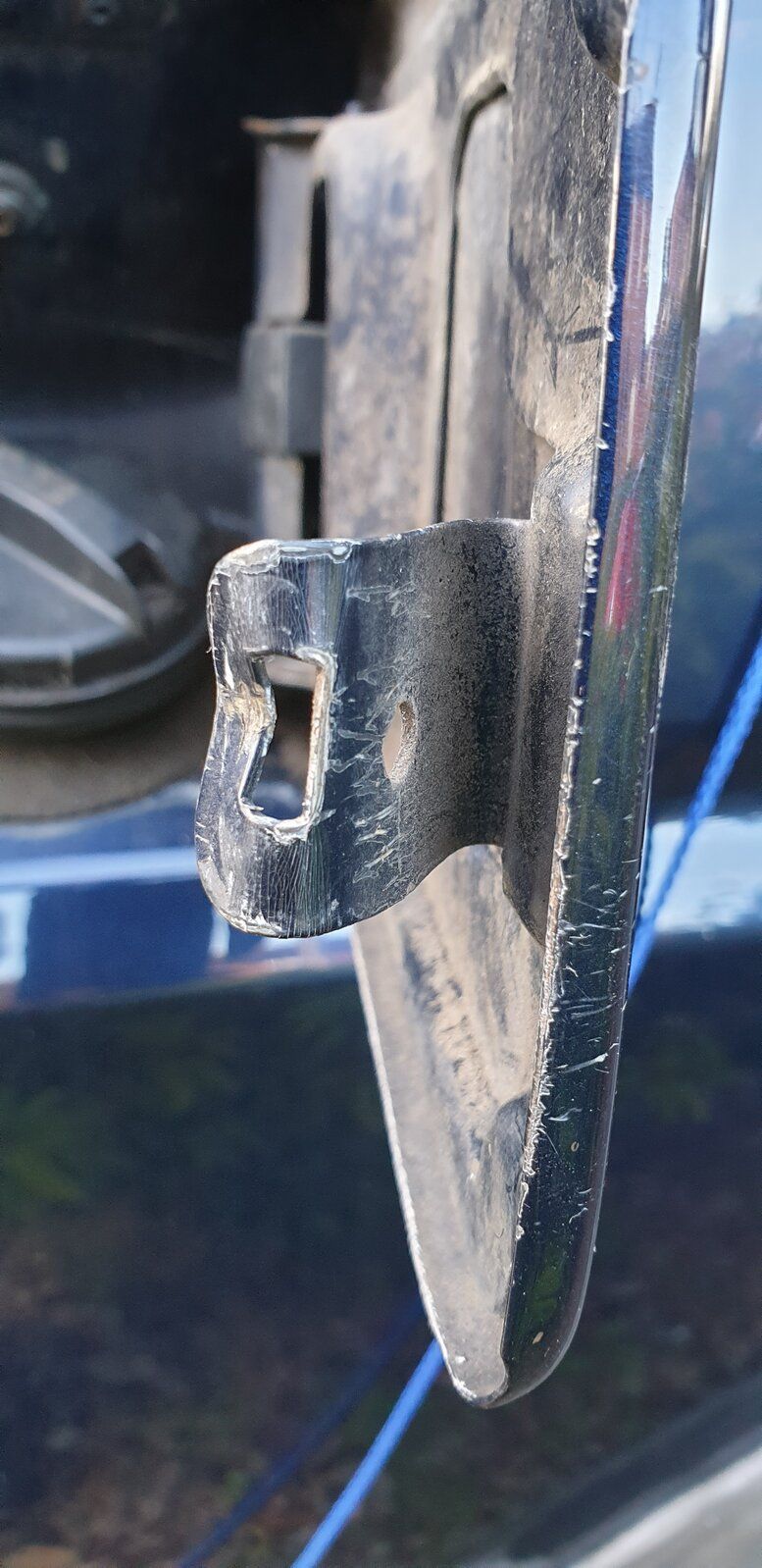

As you can see from mine the solenoid had stopped working so someone has 'by-passed' it !:mad: I've now got the solenoid working & a new plastic clip but need pictures of what it should look like. Many thanks.

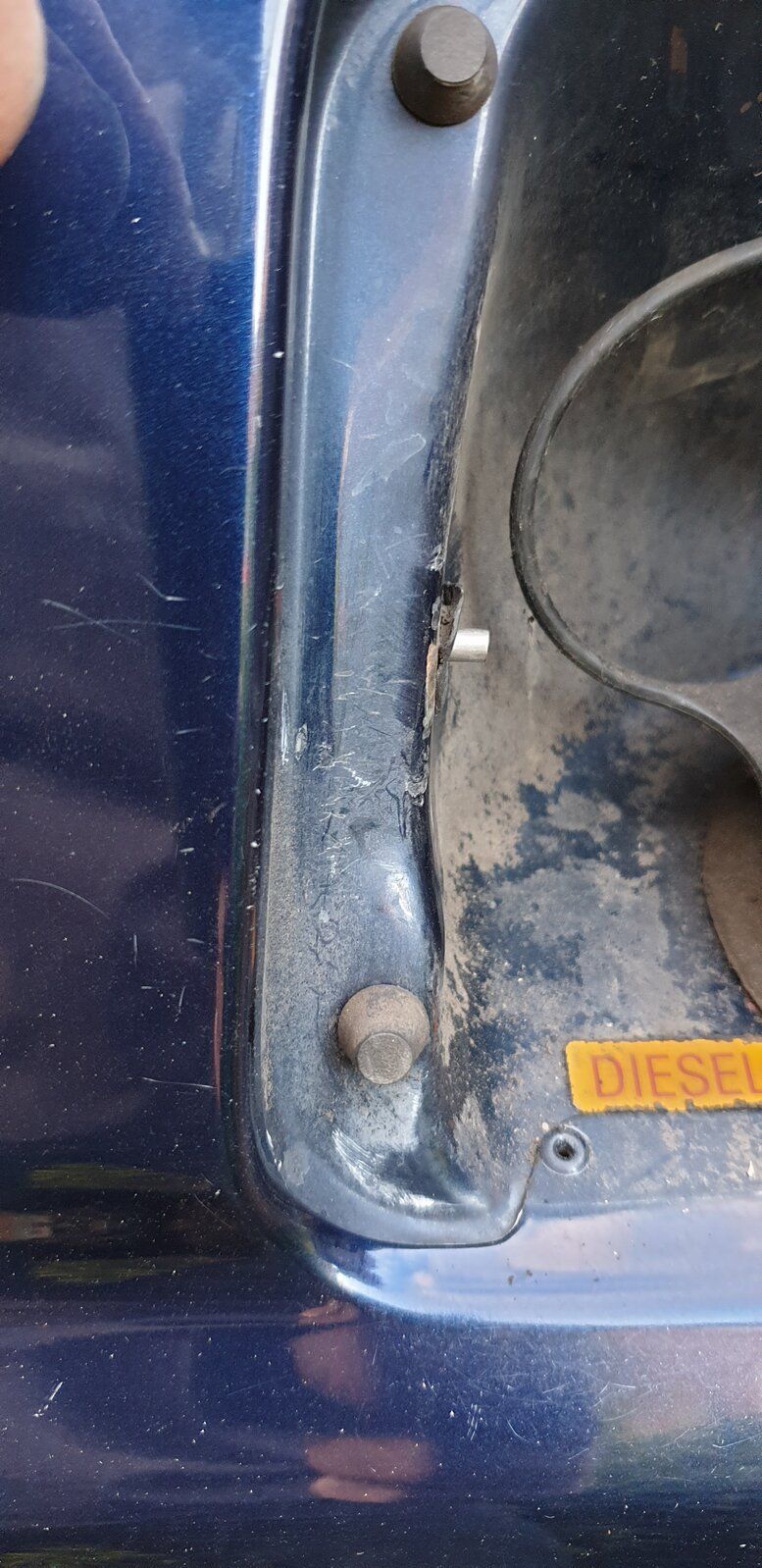

I think some has lopped a lump off the steel rod even with the solenoid adjusted to the front of the elongated holes this is all that sticks through![GALLERY=][/GALLERY]

Last edited:

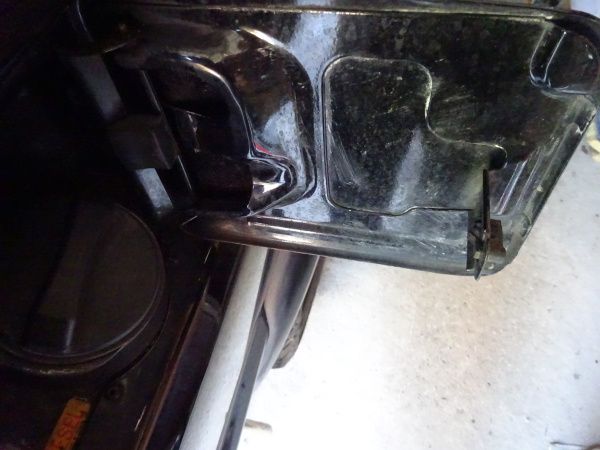

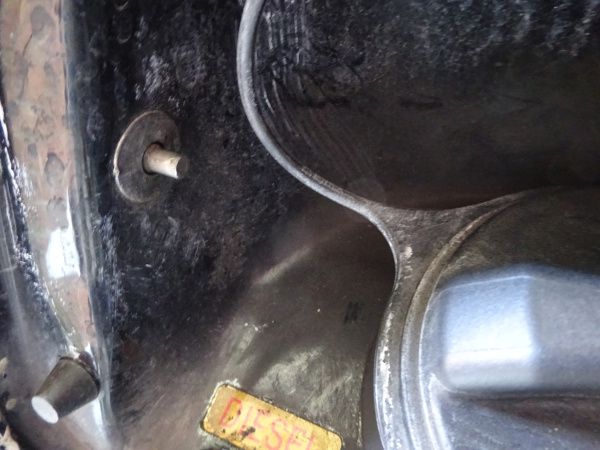

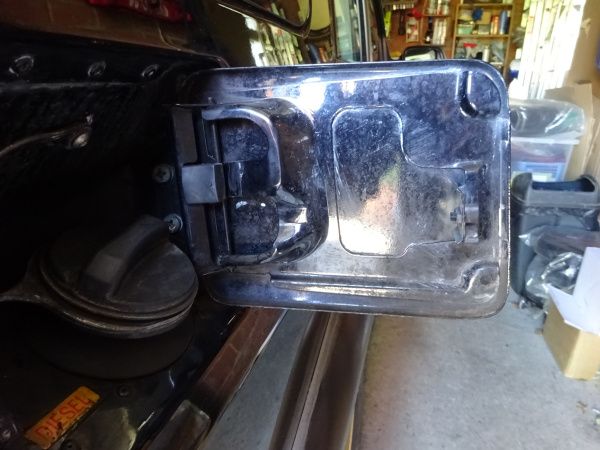

Hi Andy, Do these help?


Attachments

  • Flap 4.jpg
    Flap 4.jpg
    39.1 KB · Views: 121
  • Flap 3.jpg
    Flap 3.jpg
    47 KB · Views: 117
  • Flap 2.jpg
    Flap 2.jpg
    43.8 KB · Views: 117
  • Flap 1.jpg
    Flap 1.jpg
    42.6 KB · Views: 120
