Disco 2 D2 Bobtail let alarm think doors closed for EAK

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

chu017

Active Member
Posts
82
Location
uk
I need to enter the EAK on my D2, I have the code.
It has been bobtailed so rear door and boot doors / locks no linger exist.
for the EAK to work all doors etc must be closed.

so with to locks and doors missing will the system think the doors are open or closed?
if it will think them open are there appropriate wires I can short to ground to make it think they are closed?
if so what wires?

when you open the doors other than the drivers door the circuit is earthed so providing the two rear and tail door door cables are insulated the alarm will think the doors are closed PLG via header C0285 to C0660-4 on the 2000 and 2003 body control unit


Attachments

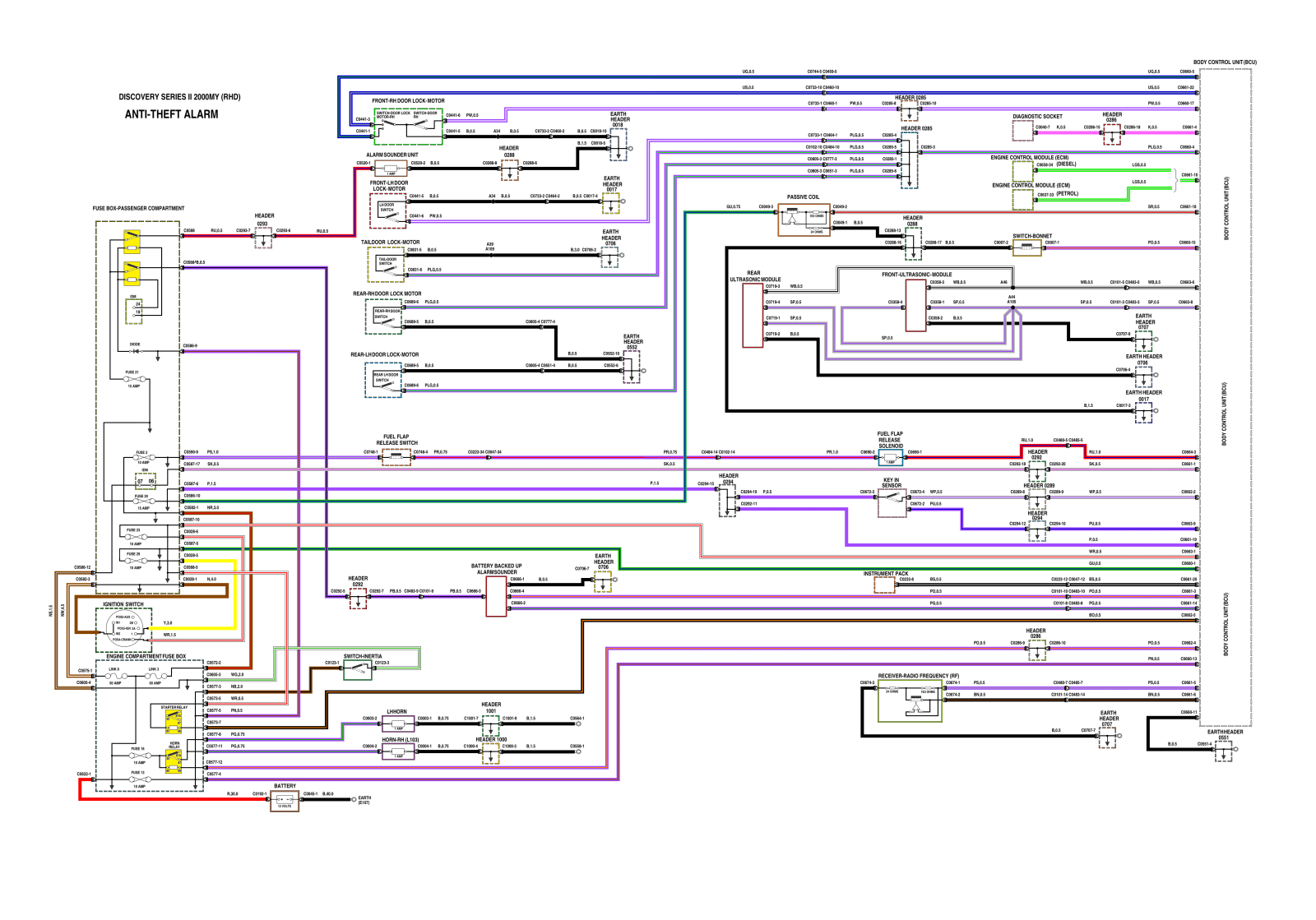

  • Circuit diagrams 00MY RHD-ALARM.png
    Circuit diagrams 00MY RHD-ALARM.png
    334.6 KB · Views: 51

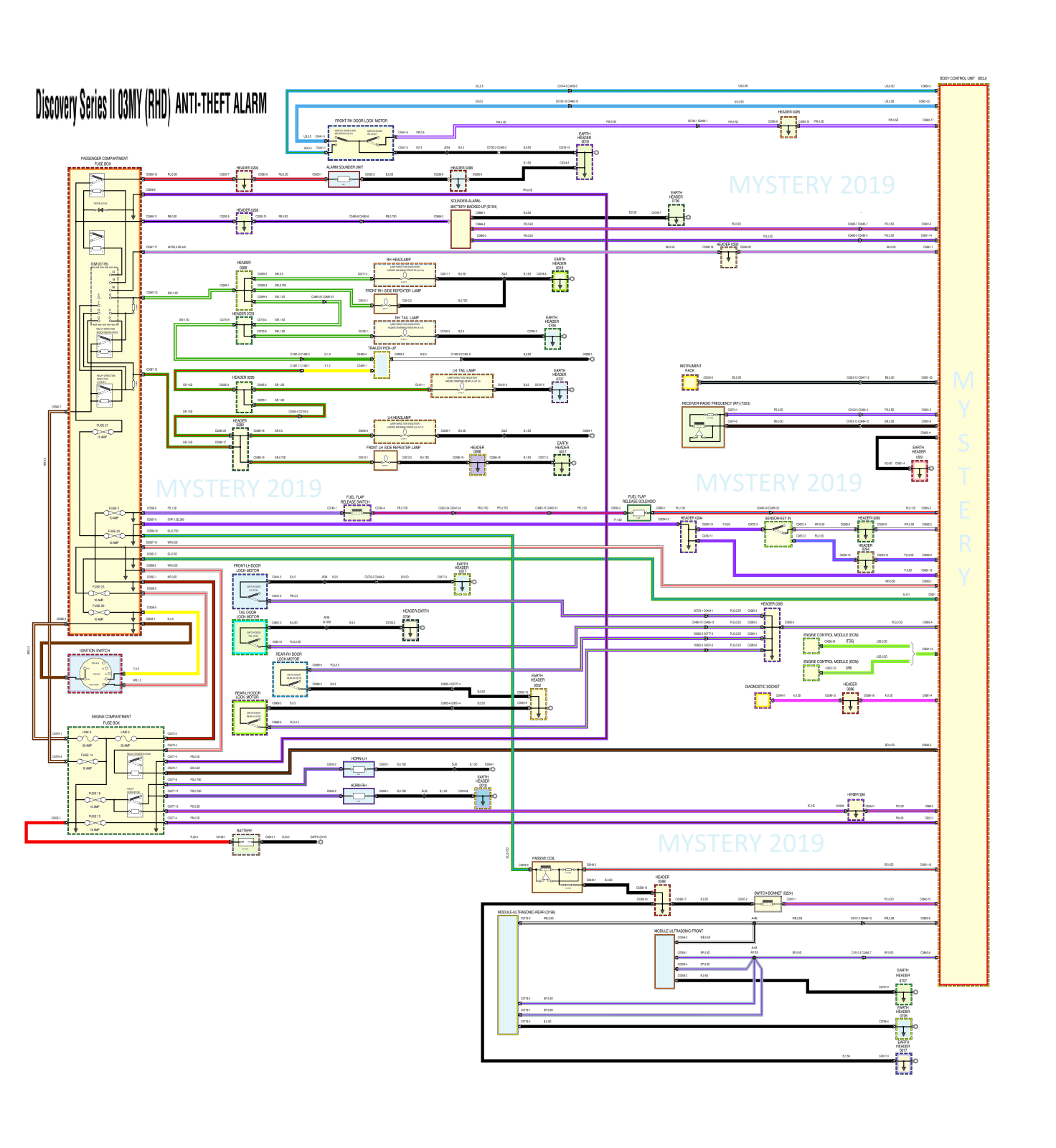

  • DISCOVERY 2 03MY ALARM.png
    DISCOVERY 2 03MY ALARM.png
    381.6 KB · Views: 42
+1 for the above... to simplify: if any door latch connector is unplugged that door is considered closed for the BCU... also for accuracy, the code is EKA not EAK ;)
