Disco 1 D1 Steering wheel horn tab

Rustynail · Feb 7, 2024

Hi, there, I have just deleted EDC and Airbags from my 96 D1. To get the horn to work with new/old steering wheel I need the contact spring tab that touches the contact ring on steering wheel, see pic. I can't find this anywhere nor the part number. Can anyone help with part number or have one that they could sell me?
Cheers

sierrafery · Feb 7, 2024

Try QTN100260LNF

Rustynail · Feb 7, 2024

Thanks sierrafery, nice try, that's actually for the horn button that goes in centre of wheel.

I need the copper strip spring contact that just to the left of centre.

sierrafery · Feb 7, 2024

There are only two parts linked to electrics on the steering wheel there, that for the horn which you say it's not what you need and the other is STC2910 which is a so called "indicator/trip slip ring" so not much for horns, nr 4 and 12 https://parts.jaguarlandroverclassic.com/parts/index/part/id/13.55776.56170.59615/brand/land-rover/ if you need something else it doesnt have a part number

discool · Feb 7, 2024

Rustynail said:
Thanks sierrafery, nice try, that's actually for the horn button that goes in centre of wheel.

I need the copper strip spring contact that just to the left of centre.

Yes only two types horn pushes are listed in the parts catalogue, the brass or copper item u require isn't unfortunately.

You could use a micro switch with a long arm and a bit of wire instead.

Rustynail · Feb 7, 2024

Thanks both of you, I appreciate your time to answer. Time to get creative then!!

D1Nut · Feb 8, 2024

Will be following this tread as my "horn' hasn't worked on years - I am under the impression that a new clock spring is required on mine but they cost 400 billion ronts

Rustynail · Feb 10, 2024

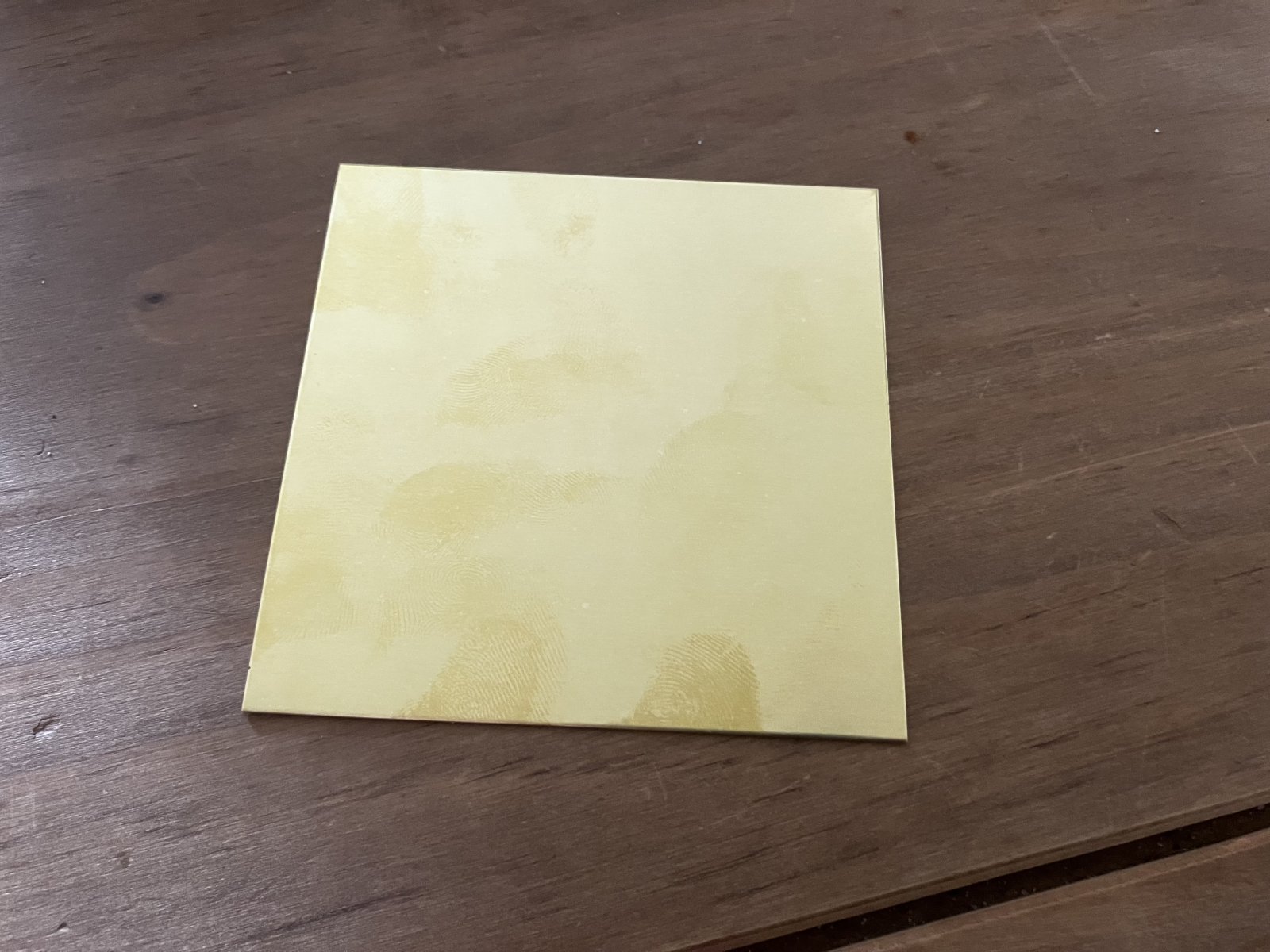

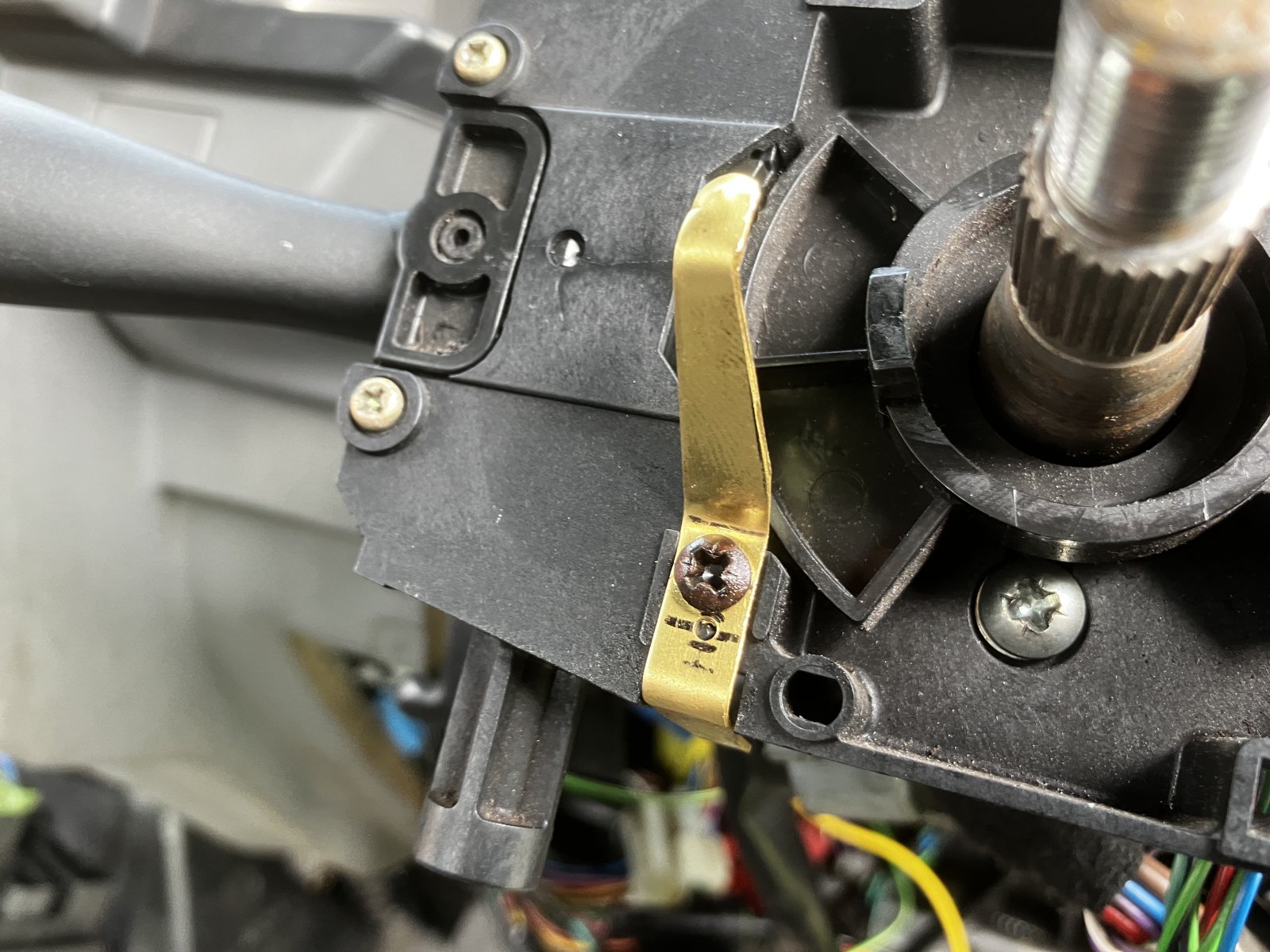

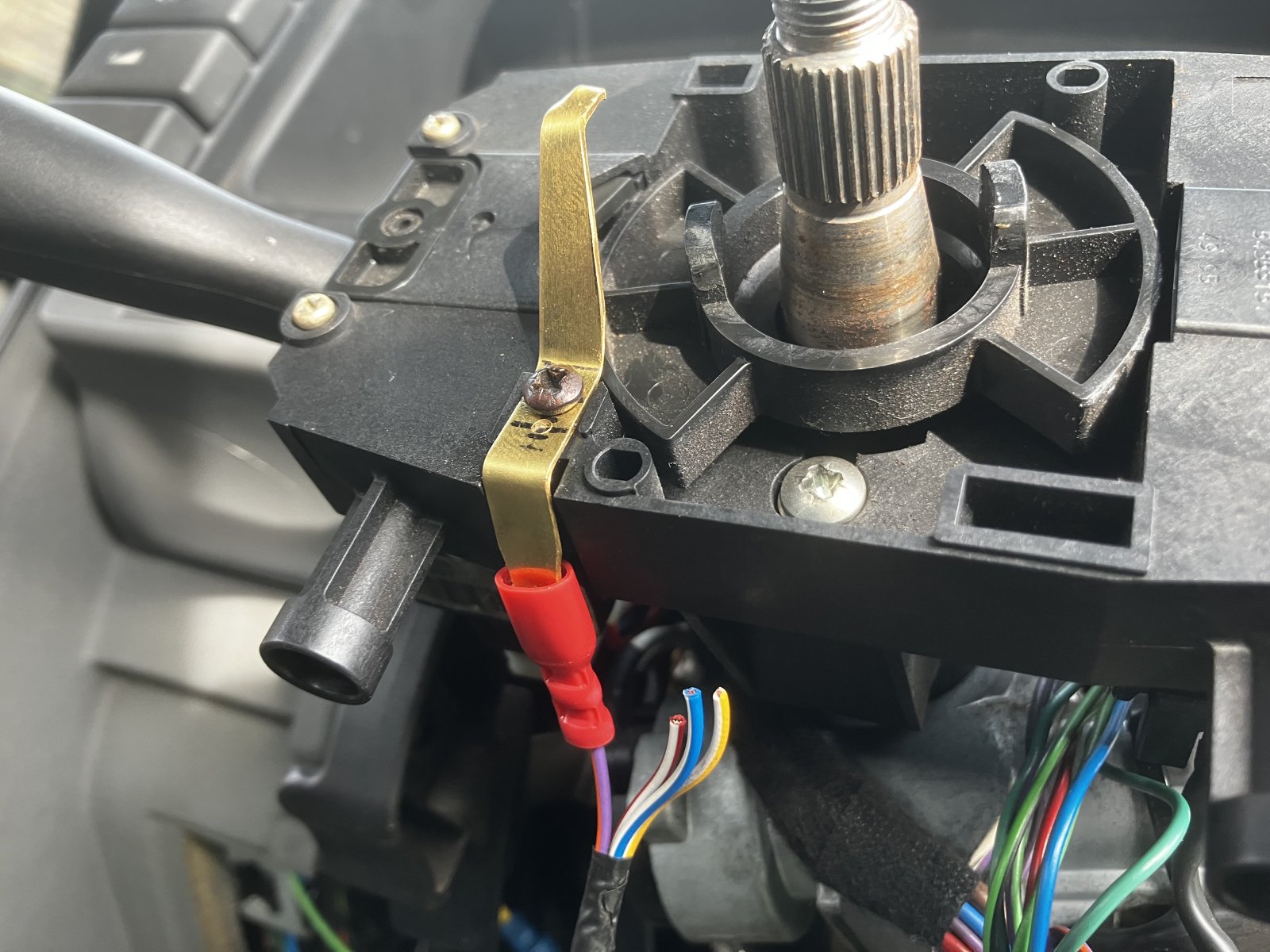

Case solved, bought a small sheet of 0.8mm brass, cut and folded a new one. Worked straight out of the can. Took about an hour.

@D1Nut, I don't have a clock spring anymore, getting rid of that was part of my Airbag delete, getting rid of all the crap that goes wrong.

discool · Feb 11, 2024

Rustynail said:
View attachment 310101 View attachment 310102 View attachment 310103

Case solved, bought a small sheet of 0.8mm brass, cut and folded a new one. Worked straight out of the can. Took about an hour.

@D1Nut, I don't have a clock spring anymore, getting rid of that was part of my Airbag delete, getting rid of all the crap that goes wrong.

Looks good, make a few more and put them on eBay
