Crankshaft bolt.

Discussion in 'Defender 90 / 110 / 130' started by mick the builder, Mar 26, 2020.

< Previous Thread | Next Thread >
  1. mick the builder

    mick the builder Well-Known Member

    Joined:
    Jul 12, 2010
    Posts:
    3,806
    Likes Received:
    2,017
    Location:
    Sligo,Wild West of Ireland.
    Time to change the crank oil seal that I should have done when I changed the belt. I thought it would spin out as didn't use thread lock and it was only done about 8 months ago. Not a chance. My new makita wouldn't budge it and that was the reason I bought it. Breaker bar? No. Breaker bar with 6 ft. Steel gas pipe? Bent the pipe. Borrowed mates Milwaukee impact that spun it off before? No. Scaffold tube next. Hope it works, dont fancy the bar on chassis and spin her over technique.

    Hicap phill likes this.
  2. Rougharse Racing

    Rougharse Racing Well-Known Member

    Joined:
    Jan 27, 2017
    Posts:
    521
    Likes Received:
    250
    Location:
    The Grim North
    The bar on the ground and a quick flick of the starter is very effective.

    Stanleysteamer and resto_d1 like this.
  3. resto_d1

    resto_d1 Well-Known Member

    Joined:
    Apr 30, 2018
    Posts:
    2,116
    Likes Received:
    1,232
    Location:
    Wiltshire
    Breaker and scaffold ontop has got every tough bolt on mine off for me!

  4. Kev12

    Kev12 Well-Known Member

    Joined:
    Jan 1, 2018
    Posts:
    951
    Likes Received:
    438
    Location:
    Cornwall
    Bar against chassis did it for me, but just flick it dont hold it if it doesnt loosen right away

    Stanleysteamer likes this.
  5. tottot

    tottot Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    4,253
    Likes Received:
    896
    Location:
    west wales coast
    Bar on the chassis is the way I have done it as above. Some plus gas may help. Put it back with thread lock, not only prevents loosening but helps stop corrosion on the threads.

    wireman likes this.
  6. mick the builder

    mick the builder Well-Known Member

    Joined:
    Jul 12, 2010
    Posts:
    3,806
    Likes Received:
    2,017
    Location:
    Sligo,Wild West of Ireland.
    All wd,d up and ready with scaffold tube tomorrow.

    Hicap phill likes this.
  7. nobber

    nobber Well-Known Member

    Joined:
    Dec 29, 2006
    Posts:
    9,479
    Likes Received:
    4,554
    Location:
    Arse!
    Try shocking it loose, although the gun should have done that anyway. What are you doing to lock the engine up?

  8. Shippers

    Shippers Well-Known Member

    Joined:
    Mar 7, 2017
    Posts:
    4,916
    Likes Received:
    2,991
    Location:
    Algarve
    50/50 acetone to atf fluid is the best release agent you can use forget any off the shelf stuff WD is not for releasing fittings it's a water displacement agent...

    lynall, resto_d1 and mick the builder like this.
  9. mick the builder

    mick the builder Well-Known Member

    Joined:
    Jul 12, 2010
    Posts:
    3,806
    Likes Received:
    2,017
    Location:
    Sligo,Wild West of Ireland.
    In gear on the floor, mrs on the brake pedal.

  10. mick the builder

    mick the builder Well-Known Member

    Joined:
    Jul 12, 2010
    Posts:
    3,806
    Likes Received:
    2,017
    Location:
    Sligo,Wild West of Ireland.
    All I've got in shed at the moment.

  11. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    83,709
    Likes Received:
    13,480
    Location:
    louth lincs
  12. mick the builder

    mick the builder Well-Known Member

    Joined:
    Jul 12, 2010
    Posts:
    3,806
    Likes Received:
    2,017
    Location:
    Sligo,Wild West of Ireland.
  13. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    83,709
    Likes Received:
    13,480
    Location:
    louth lincs
    no cos having your foot on the brakes out of gear does nothing to stop the engine turning

    Flossie and mick the builder like this.
  14. mick the builder

    mick the builder Well-Known Member

    Joined:
    Jul 12, 2010
    Posts:
    3,806
    Likes Received:
    2,017
    Location:
    Sligo,Wild West of Ireland.
    Of course.

    Flossie likes this.
  15. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    83,709
    Likes Received:
    13,480
    Location:
    louth lincs
    4th is the only one you should use but the tool i linked to is a better choice,that or a big impact gun

    mick the builder likes this.
  16. dag019

    dag019 Well-Known Member

    Joined:
    May 18, 2014
    Posts:
    2,787
    Likes Received:
    1,055
    Location:
    Warwick

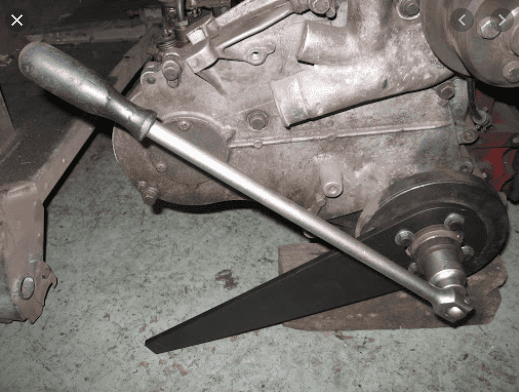

    you need a crank locking tool like one of these (google), you can but them or make one up yourself if you have a thick enough piece of steel. This locks the crank in place without any risk to the gearbox, it sits against the chassis rail when the engine is still in the vehicle.

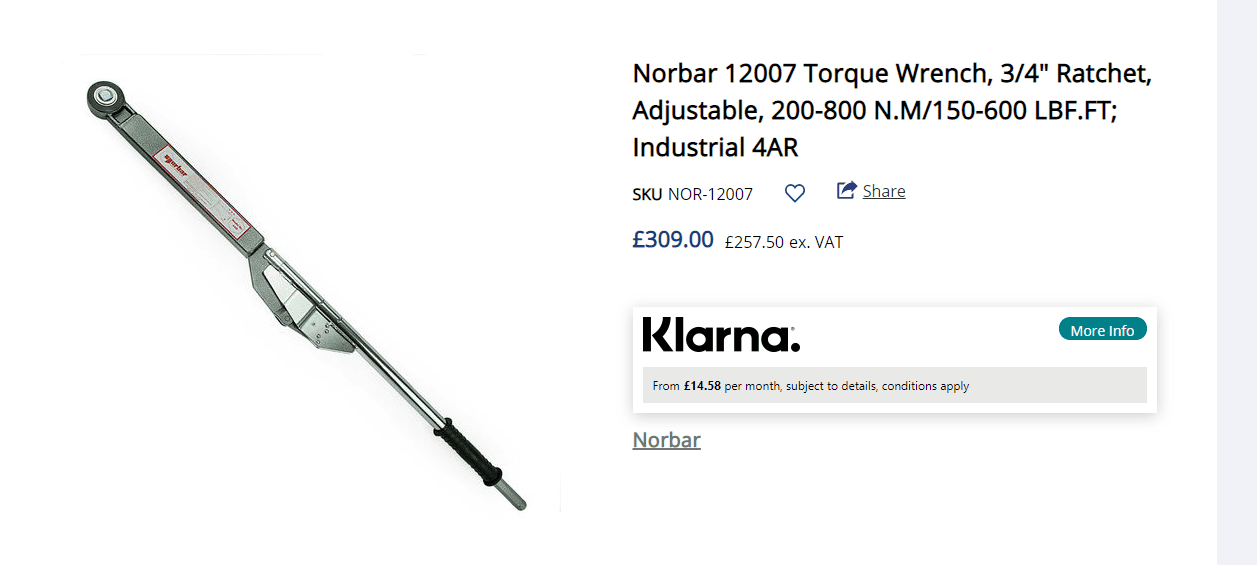

    To get the bolt undone (and done back up to the correct torque) I have one of these 300-1000NM. I know they are very expensive to buy new but I picked mine up second hand for about £60. It more than paid for itself the first time I did my timing belt. Having done that a few times now and used it for other things (vw wheel bearings, tractor wheel nuts) it would probably have paid for itself by now if I had bought it new.


    Prices look like they have moved on a bit since I got mine (was a few years ago now) but still avavaible second hand for a lot less than new:
    Link 1
    Link 2

    Last edited: Mar 27, 2020
    mick the builder likes this.
  17. mick the builder

    mick the builder Well-Known Member

    Joined:
    Jul 12, 2010
    Posts:
    3,806
    Likes Received:
    2,017
    Location:
    Sligo,Wild West of Ireland.
    Thanks dag, after snapping my extension bar in half with a 6ft scaffold tube, I bit the bullet and tied my breaker bar under under the chassis rail, took of wire to stop solenoid and gave it a spin. 2nd go, it cracked open. Thanks for all advice everyone. Lot of oil in there.:D

    v8250, lynall, tottot and 1 other person like this.
  18. mick the builder

    mick the builder Well-Known Member

    Joined:
    Jul 12, 2010
    Posts:
    3,806
    Likes Received:
    2,017
    Location:
    Sligo,Wild West of Ireland.
    Someone please give me the answer I want to hear. Gasket snapped taking the cover of. I want to just clean it and put it back with a dab of rtv over the breaks? It's not like its keeping any oil in is it. Really dont want to wait days for a delivery.

  19. tottot

    tottot Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    4,253
    Likes Received:
    896
    Location:
    west wales coast
    It will be fine with RTV :)

    mick the builder and nobber like this.
  20. nobber

    nobber Well-Known Member

    Joined:
    Dec 29, 2006
    Posts:
    9,479
    Likes Received:
    4,554
    Location:
    Arse!
    That'll be fine, its more for keeping water out.

    mick the builder likes this.
