Comprehensive service td5

Discussion in 'General Land Rover Forum' started by resto_d1, Apr 29, 2020.

< Previous Thread | Next Thread >
  1. resto_d1

    resto_d1 Well-Known Member

    Joined:
    Apr 30, 2018
    Posts:
    2,305
    Likes Received:
    1,365
    Location:
    Wiltshire
    Evening lockdown loons

    I was planning on getting some nice seats etc but thought first things first let’s go through the mechanicals and get her pampered. I wasn’t to do a rather comprehensive service. On list so far:
    Axle fluid changes
    Transfer oil change
    Gearbox oil change
    Engine oil change with filters
    Fuel filter
    Thermostat
    Fresh Coolant
    Bleed screw
    Air filter
    Replaced fuel reg with Bosch already
    Pump looked a little dirty but sounds alright.
    Buy spare crank angle sensor
    Brakes seem ok
    Clutch fluid bled through and replaced last month

    @Henry_b @haza88 any thoughts? 15p engine 140k. @haza88 which clutch spring did you get?

  2. Henry_b

    Henry_b Rover V8 Powered

    Joined:
    Jan 29, 2018
    Posts:
    10,640
    Likes Received:
    8,680
    Location:
    Hereford****e
    Looks like a good start ;)

    resto_d1 likes this.
  3. Spot1

    Spot1 Well-Known Member

    Joined:
    Aug 6, 2017
    Posts:
    376
    Likes Received:
    175
    Location:
    Somerset, UK
    When was the brake fluid last changed? They say it should be done every 2 years.

    serpentine belt would be easy to change whilst you’ve got the fan off to do the thermostat.

    Rear air bags? Again depending on their age. Should be considered a service part, every 5 years depending on use.

    resto_d1 likes this.
  4. resto_d1

    resto_d1 Well-Known Member

    Joined:
    Apr 30, 2018
    Posts:
    2,305
    Likes Received:
    1,365
    Location:
    Wiltshire
    good shout, thank you - tis a tractor so no bags in rear just pigs

    Gottschalk likes this.
  5. ronsealdeath

    ronsealdeath Sagging Member

    Joined:
    Aug 30, 2012
    Posts:
    1,478
    Likes Received:
    145
    Location:
    Swansea, Wales
    New injector loom and rocker gasket, clean oil out of ecu, new front cam cover, check bottom rad hoses from thermostat as they get neglected and are cheap, and most importantly clean, rust convert, paint and wax chassis. If you take the belt off check all ancillaries for bearing noise and also fan for binding. Then you can sacrifice the goat to banish the evil spirits.
    Add cavity wax to sills also if this is a D2?
    Oh yeah, clean map and oil wastegate actuator, check for boost leaks.....

    resto_d1 likes this.
  6. resto_d1

    resto_d1 Well-Known Member

    Joined:
    Apr 30, 2018
    Posts:
    2,305
    Likes Received:
    1,365
    Location:
    Wiltshire
    thank you for these details. Full dinitrol kit is on the list at some point and have access to steam cleaner. It’s a fender. Had new injector loom, cam cover bung and rocker cover prior to my purchase and no leaks. Checked ecu and no oil. Hoses etc are a great shout. Need to order a viscous fan spanner too

  7. RangeRoller dt

    RangeRoller dt Well-Known Member

    Joined:
    Dec 23, 2018
    Posts:
    9,001
    Likes Received:
    3,593
    Location:
    Trapped inside my head @ LZ asylum
    Grease your UJs
    How old are the glows

    resto_d1 likes this.
  8. haza88

    haza88 Well-Known Member

    Joined:
    Nov 10, 2009
    Posts:
    625
    Likes Received:
    199
    Check out lof website mate good bits of kit on ther

  9. haza88

    haza88 Well-Known Member

    Joined:
    Nov 10, 2009
    Posts:
    625
    Likes Received:
    199

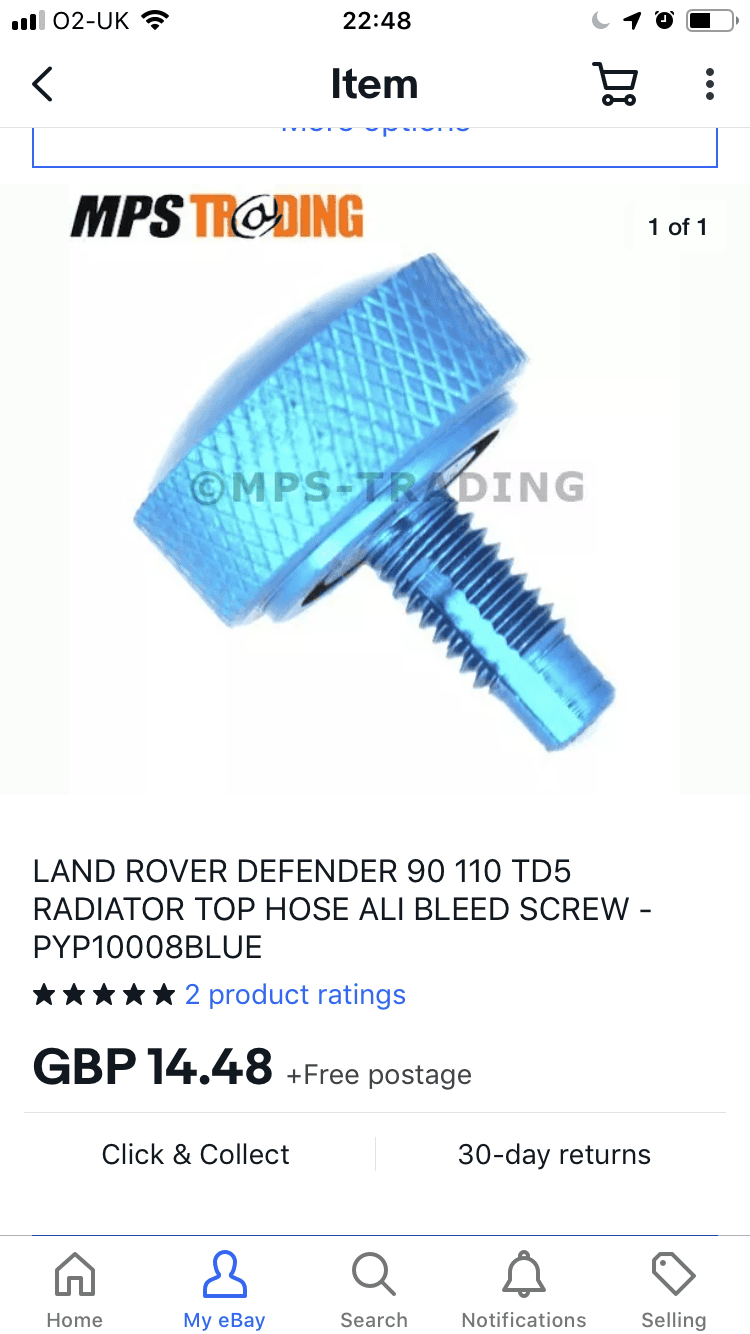

    Get a pair of the ally coolant hose bleed screws to bargain and well worth buying the oem plastic ones are rubbish

    resto_d1 likes this.
  10. haza88

    haza88 Well-Known Member

    Joined:
    Nov 10, 2009
    Posts:
    625
    Likes Received:
    199

    resto_d1 likes this.
  11. haza88

    haza88 Well-Known Member

    Joined:
    Nov 10, 2009
    Posts:
    625
    Likes Received:
    199
    Got two of these on mine well worth buying

  12. resto_d1

    resto_d1 Well-Known Member

    Joined:
    Apr 30, 2018
    Posts:
    2,305
    Likes Received:
    1,365
    Location:
    Wiltshire
    cheers I thought there was only one at the top so only bought one!

  13. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    86,087
    Likes Received:
    15,197
    Location:
    louth lincs
    there is only one

  14. haza88

    haza88 Well-Known Member

    Joined:
    Nov 10, 2009
    Posts:
    625
    Likes Received:
    199

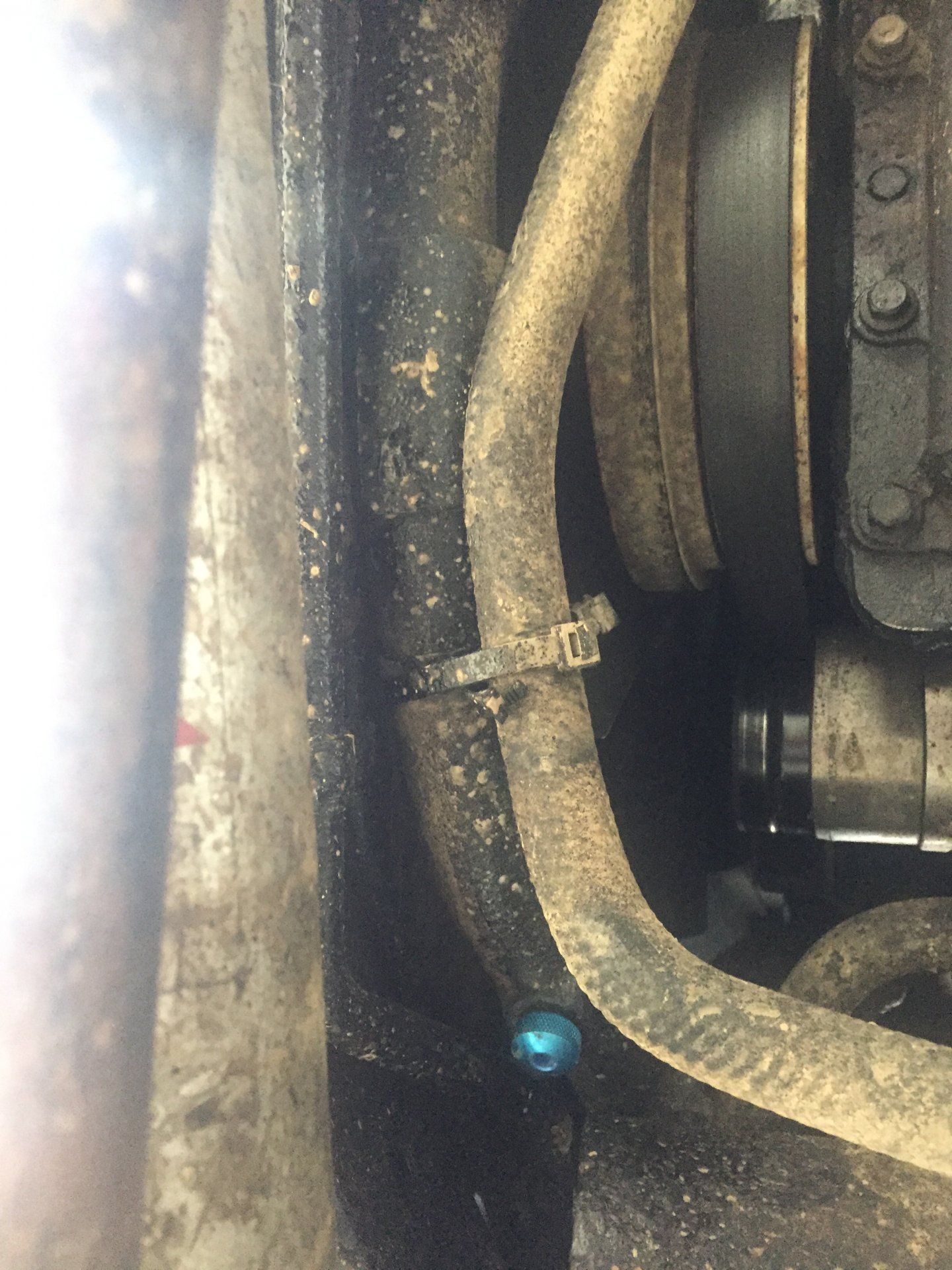

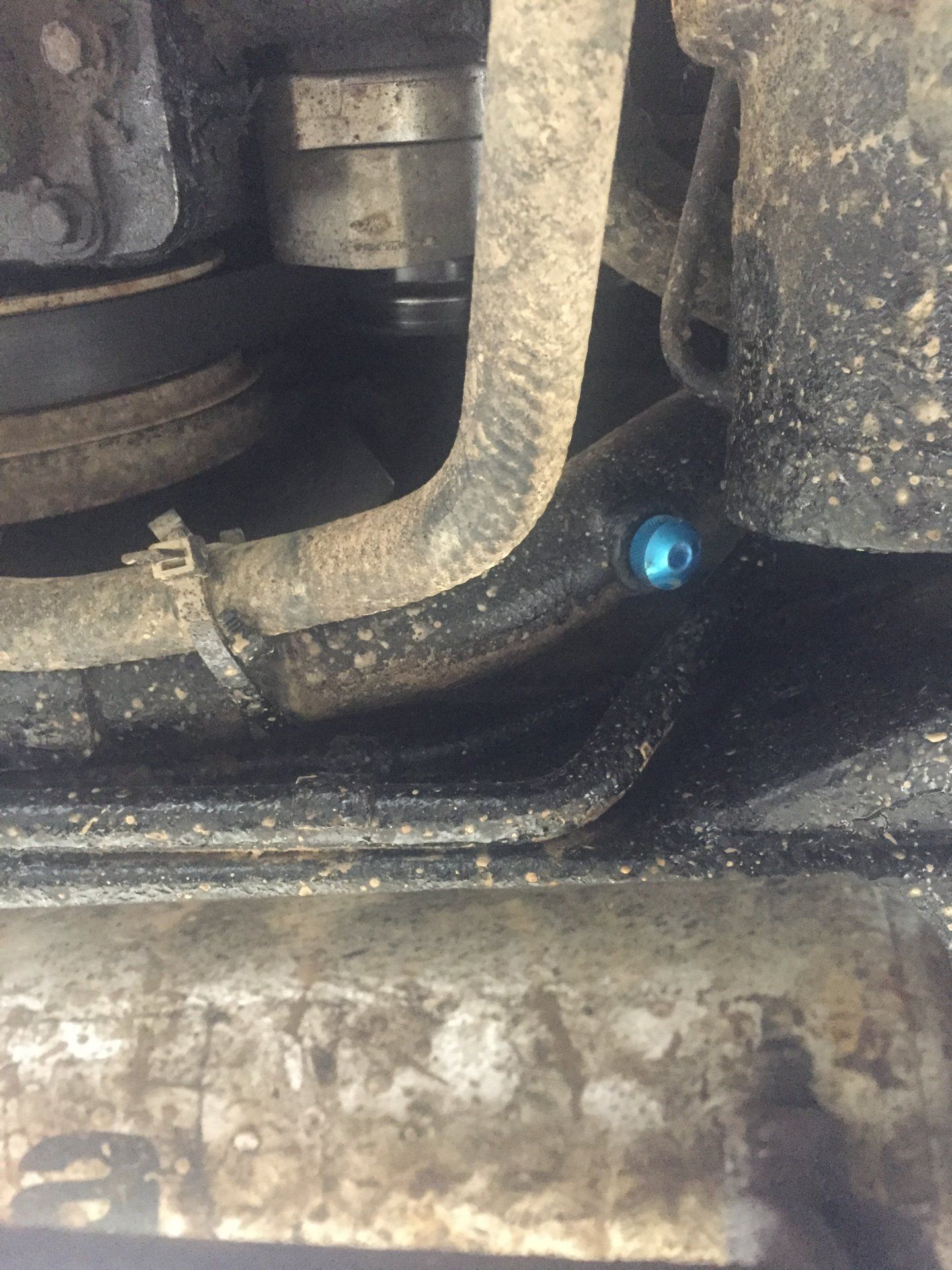

    Mines got one on top hose and one on bottom hose

  15. haza88

    haza88 Well-Known Member

    Joined:
    Nov 10, 2009
    Posts:
    625
    Likes Received:
    199

    jamesmartin likes this.
  16. haza88

    haza88 Well-Known Member

    Joined:
    Nov 10, 2009
    Posts:
    625
    Likes Received:
    199

  17. resto_d1

    resto_d1 Well-Known Member

    Joined:
    Apr 30, 2018
    Posts:
    2,305
    Likes Received:
    1,365
    Location:
    Wiltshire
    Took a while to bleed!!
