compatibility seatbelts defender 130 td5

Dear all,

I bought a 2000' td5 130 with a seat setup for two persons but I want to add two single seats on the back (instead of the original bench).
There are currently no seatsbelts on the back, but I have to install them on the left and the right side. There are many offers with used parts in the internet and I want to know which of them fit in my vehicle.
When I check some Landrover parts shops new belts costs up to 250€ for just one.

Can somebody please tell me which are compatibel? Maybe that ones from 110 does fit in 130 or not, maybe 130'td4 does fit or not? e.g. there is an offer for 150€ for all of them from a 2010' 110 td4 I just found some days ago.

Many thanks & kind regards

Take a look here for seat belt ref' & part no's https://www.lrworkshop.com/diagrams/land-rover-defender-seats/seat-belts - 250 euros for 1x unit is madness, walk away from this vendor. Correct seat belt installation is down to

1. seat types
2. ensuring seat belt reinforcement plates are fitted
3. and finally, the seat belt

Most three point seat belts are near enough the same with primary difference being the length of the webbing/strap. I don't like seats that have the belt receiver built into the seat,it's much safer to have the belt receiver to be a separate mounting.

Re' price, I recently installed new fronts to the 90...they were Securon units costing £140 for the two including all mounting hardware.

Hello and thanks at V8250,

I added my vehicle @lrworkshop and looked for the parts I need.

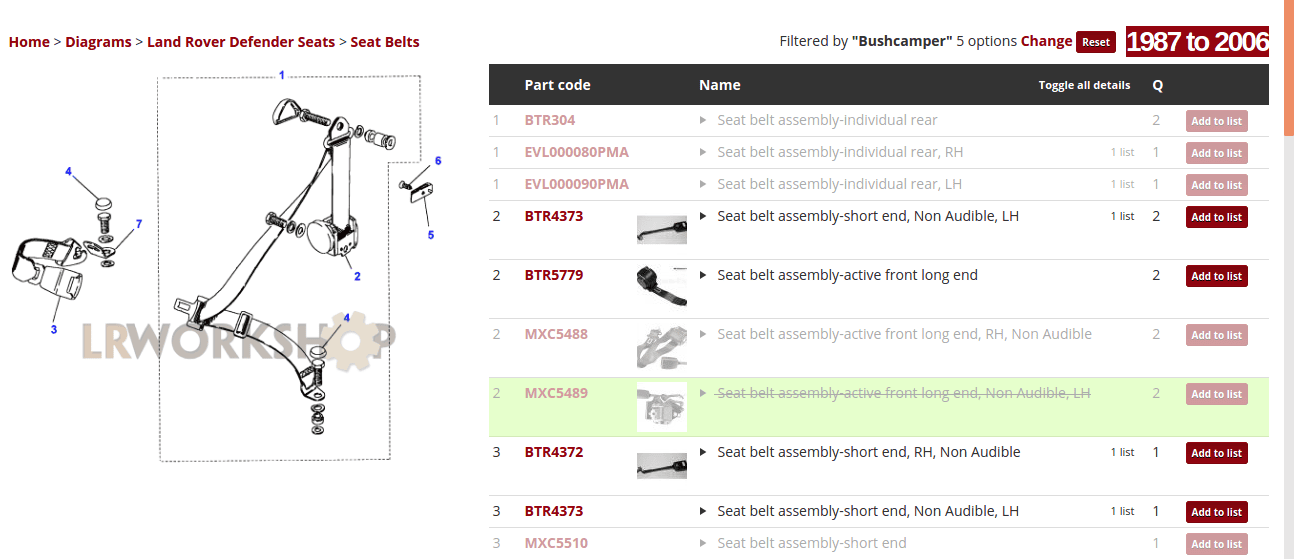

Theems to be that I need some of this parts: https://www.lrworkshop.com/diagrams...t-belt-forward-facing-outer-static-type_53648

Should it be ok to order
2x BTR5779 ( Seat belt assembly-active front long end )
1x BTR4372 (Seat belt assembly-short end, RH, Non Audible )
1x BTR4373 ( Seat belt assembly-short end, Non Audible, LH )
?

Is there any further installation equipment needed? (all was removed by previous owner)

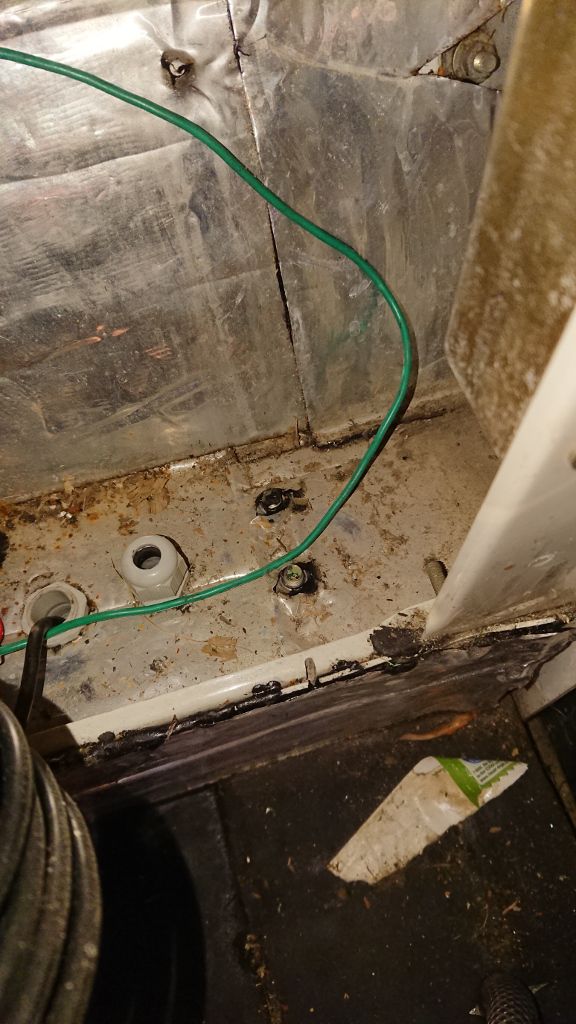

On the picture I see two bolts for the belt winding casing?

I seached for pictures how the belts are attached to the chassis, but did not really find anything usefull...

could please anybody make a picture of the outer belt installation from a 130 87-06?
I checked on lrworkshop but the diagram does not make sense in my eyes. Are the two screws from my ast post needed for the belts, if not where are they mounted?


many thanks!
