Classic Electric Seats

Dorset VogueSE · Mar 31, 2009

I have picked up a set of RR Classic electric leather seats which I'm in the process of fitting in my Disco.

The seats came without switches but all motors are present. has anyone got a link to/or can post details of wiring on the seat plug so that I can coble together something to get them comfortable.

I'm not worried about permenant function, just someway of making it move.

I have Rave for P38 but not classic. Can anyone help, please

al-one-arm · Mar 31, 2009

if i remember correctly, the motors have only 2 wires to them, depending on which polarity you connect it up at , depends which way it runs: ie possitive in one lead , negative in the other, if it then runs forward, and you want it backward, change the 2 wires over

Stickybackbob · Mar 31, 2009

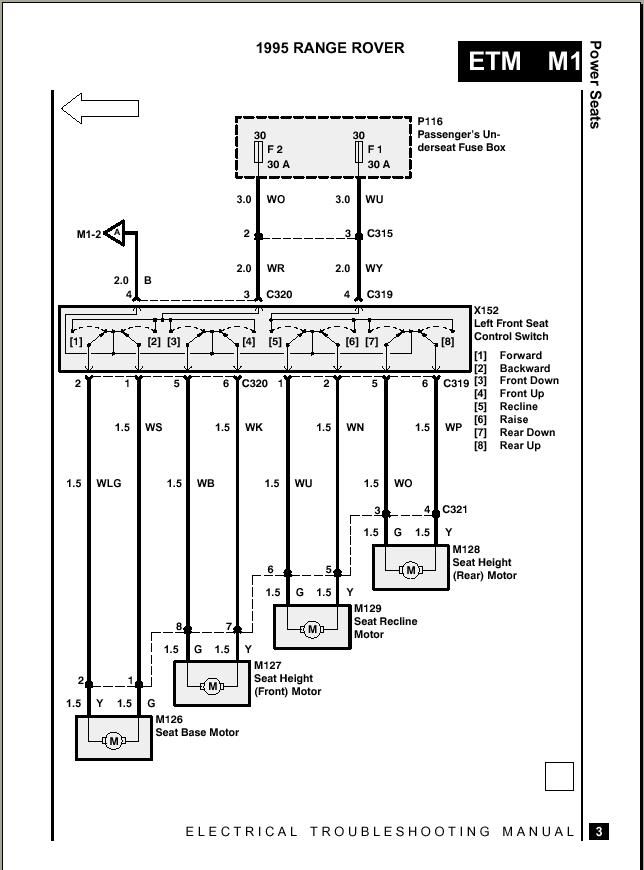

Hope this helps.

Dorset VogueSE · Mar 31, 2009

Stickybackbob said:
Hope this helps.

Spot on Bob, just what I was looking for.

Many thanks
