Capstan winch

Hi all
I have got me hands on a friary capstan winch and it got the usual bits missing, Drive shaft + UJ + "Rope guide roller" etc.
What I would like is some information from anyone who has one to allow me to make up the parts required.

1. How high is it to the bottom of the "rope guide roller" from the bumper?
2 Does the rope go under or over the "rope guide roller" ?

Any close up pictures of the rope guide and the UJ drive shaft would be appreciated.
Thanks
Clivees

winchrepairs.co.uk - Capstan Drive Dog

Had this bunch in me favourites from ages ago, they seem to make some replacement parts. Was about to send you the other link I had.....but you posted it yerself back in January!

From memory, but I haven't seen one used in anger for years, the rope goes over the roller/fairlead...........but that might also depend on what you're using it to pull i.e. something high or low.

Aye i have looked a lot at this site and if they had put some dimentions on it i would have been well happy.
But i refuse to buy anything from them as there pricing is taking the ****
(£18 for a bolt)

Hee hee, thort yer might say that!

Ere', motor passed it's re-test today, so big thanks to you & Patman for yer weldering.

Your welcome

That welding passed !???!!!!
Ace. If you want the whole section cutting out and welding up with 1 neat plate in the future then give us a shout and get us some really good metal.

Patman1200 said:

That welding passed !???!!!!

Click to expand...

Oi you casting dispersions on my upsidedown welding

it was a bugger righting his series after tho - werent it

Originally Posted by Patman1200
That welding passed !???!!!!

Oi you casting dispersions on my upsidedown welding

Click to expand...

Did you see the welding I did on Daft's axle???

Can you get a Landy rotisserie ?

now, now, gurlz - we both appreciated wot yu did - just wait till we is qualified to set fire to our own motors

TeHe

I did hear of somone using a capstan to cook a cow.

I heard of an old lady who swallowed a fly

werent it Capstan Pugwash?

Ouch!!!

My gawd, more of us who know how to use electricity to turn a perfectly good Landy into a white hot puddle! ;-)

Patman1200 said:

Did you see the welding I did on Daft's axle???

Click to expand...

That wuz welding? Ah fort a robot had dribbled on it!

That wuz welding?

Click to expand...

You said it not me

HI Clivees

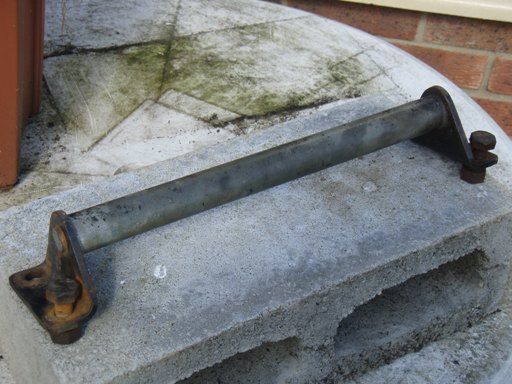

Pic attached to help explanation
the major roller diameter is 1.25" and 14 inches long, it is reduced to 0.75" dia at each end for 0.4" long for the brackets (overall length 14.8")

the brackets are made from 0.25" plate the holes in btm to match base plate are 0.5" clearance and approx 2.45" between centres.
the bracket length is 3.5" and overall width 1.5"

the hole for the roller shaft is neat fit for the 0.75" shaft
the height from underside of bracket to centreline of shaft is 1.875"

the brackets have approx 1" radius around the hole

Cheers Steve just what i needed.
Does the saft rotate and if so is it on bearings or just sitting in a hole?
