L322 Bottom ball joint

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

Wazzajnr

Well-Known Member
Posts
2,391
Location
Chorley

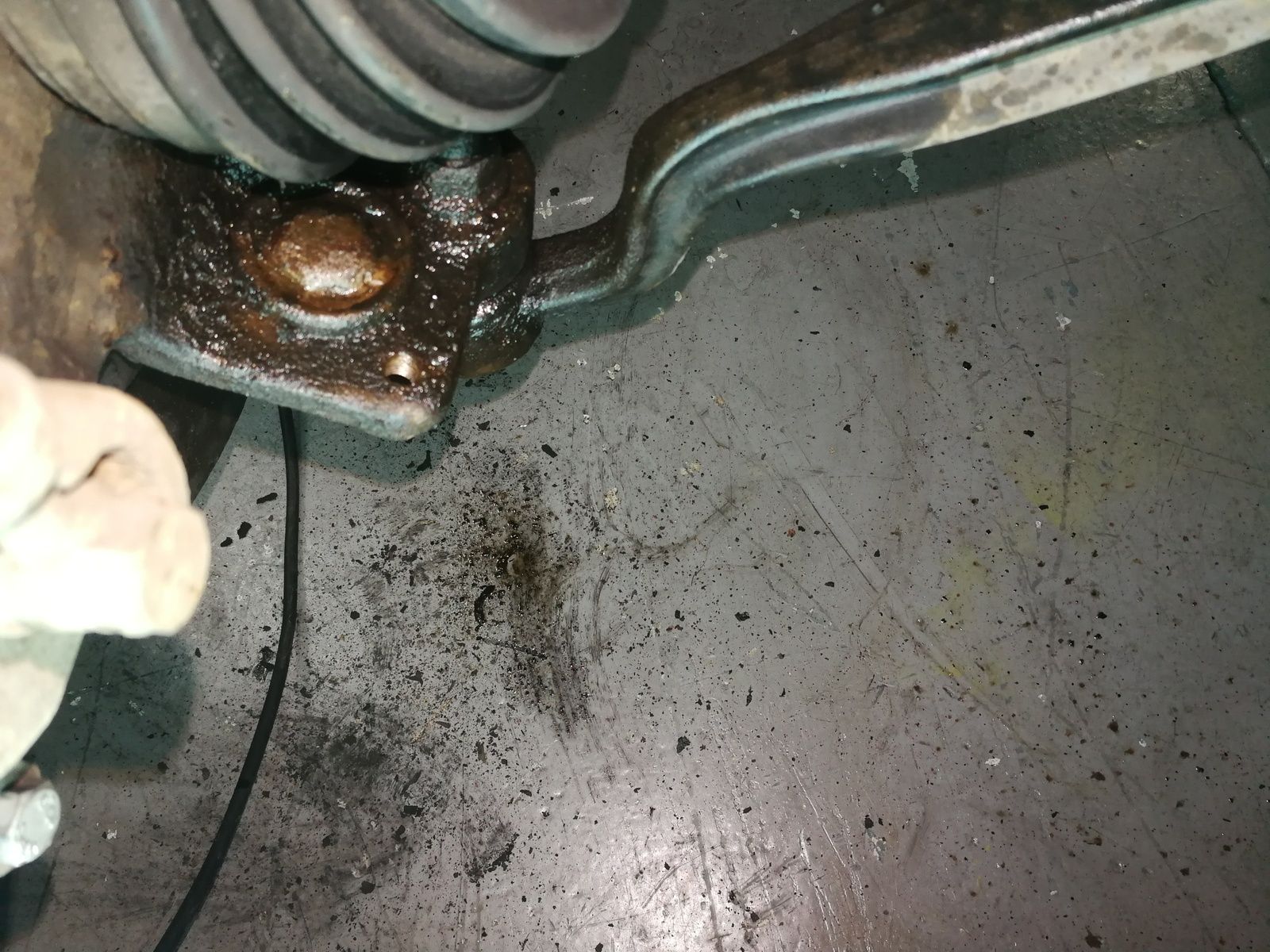

Anyone got any tips on how to get them out without removing the whole hub to the press?
Battered them for a while but zero movement!


Attachments

  • IMG_20191031_115235.jpg
    328.4 KB · Views: 142

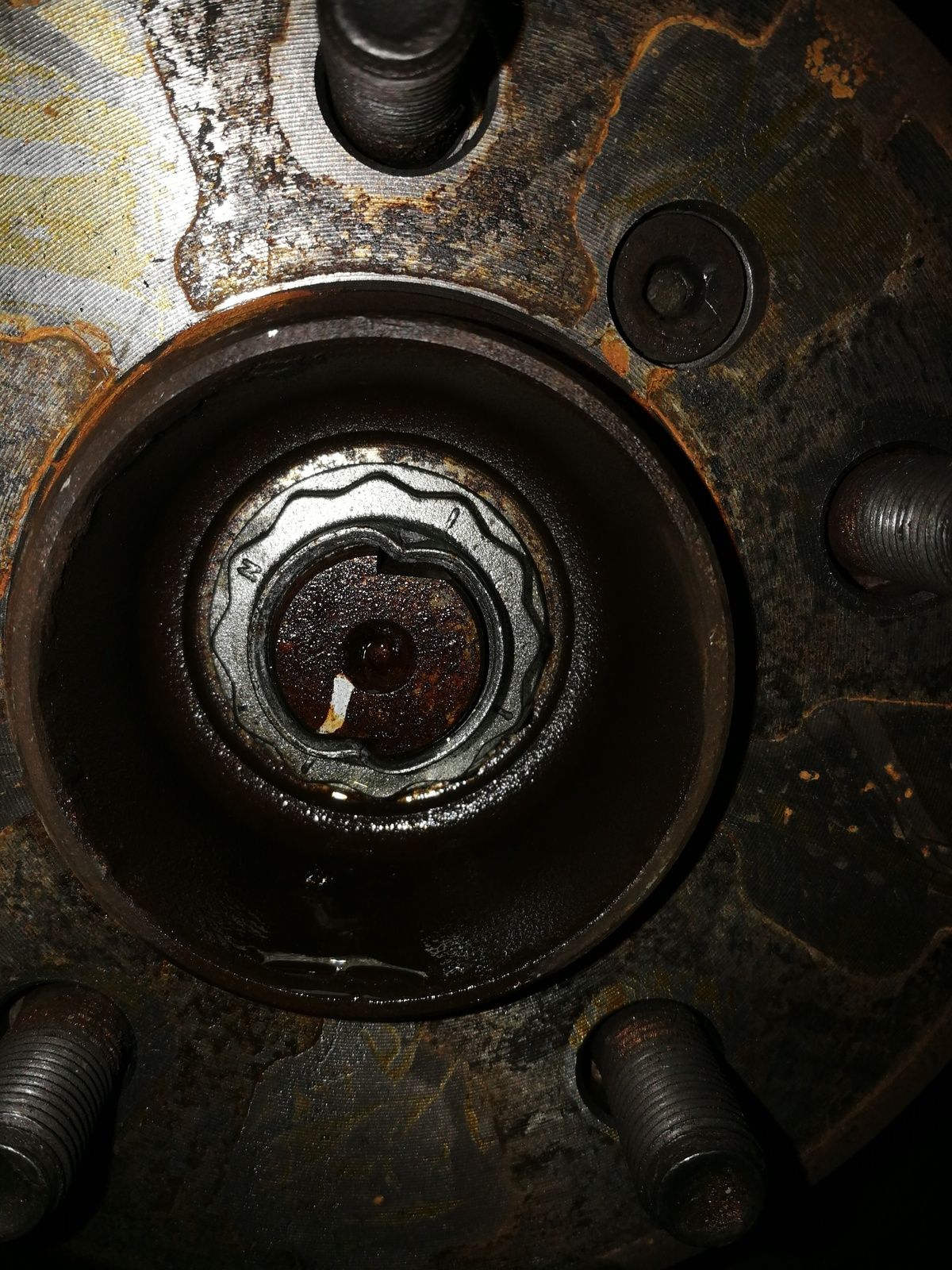

What size socket is the driveshaft nut? It's a weird star shaped nut.


Attachments

  • IMG_20191031_125046.jpg
    360.1 KB · Views: 89

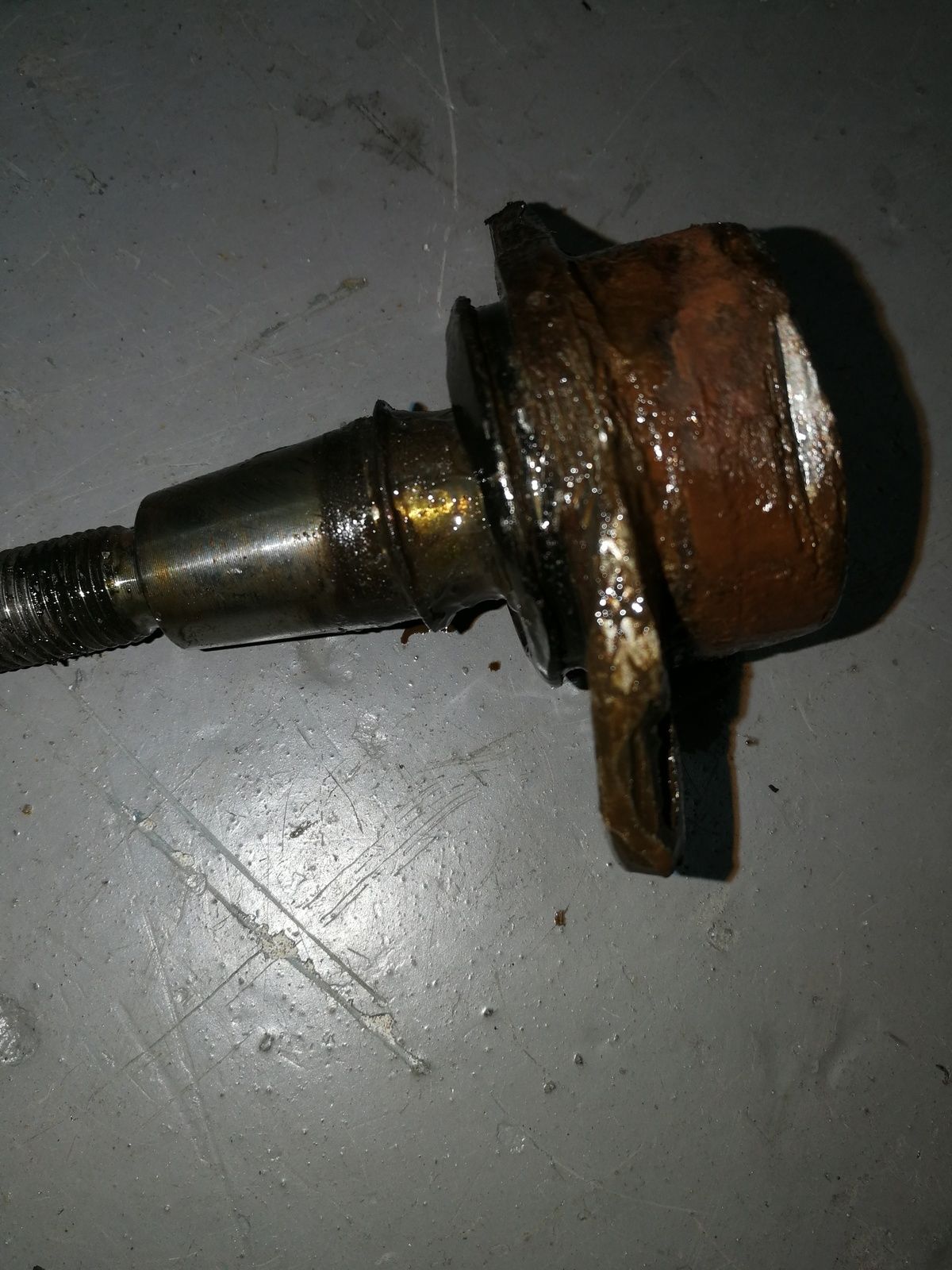

Got one of the buggers out.
I'll have to make a temporary repair to the cv boot until I have more time to replace it.


Attachments

  • IMG_20191031_130252.jpg
    230.6 KB · Views: 106
Got one of the buggers out.
I'll have to make a temporary repair to the cv boot until I have more time to replace it.
LR I believe have a slide hammer type extractor.

When I did mine I used a combination of slim chisels and a large punch and sledge hammer on the top, taking care around the CV boot of course.;)

One side finished, just need to find a socket to fit the drive shaft nut so I can take the hub off to do the other side. I'll also get some new cv gaitors and might do wheel bearings whilst it's in bits. It'll have to wait a week or two though now.
