Freelander 1 Bottom ball joint boot disintegrated 10 months old

Discussion in 'Land Rover Freelander' started by andyfreelandy, Jan 13, 2021.

< Previous Thread | Next Thread >
  1. andyfreelandy

    andyfreelandy Well-Known Member

    Joined:
    Jul 29, 2010
    Posts:
    2,732
    Likes Received:
    920
    Location:
    Devon
    Having finished the work on my 2002 TD4, rebuilding rear end and suspension. I thought I'd give the rest of it a visual before taking it off the ramp.
    Shock, horror, one side bottom ball joint on the front wishbone has shreaded. Only fitted last April.

    Comapny offers a 2 year Warranty and having seen the photo will replace it but what a pain!!

    Anyone fitted poly boots? Anyone know the size?? I think for the work involved in changing the wishbone it is worth upgrading.
    Anyone else had very short lived rubber boots?
    My bloody wellies didn't last long either!!!

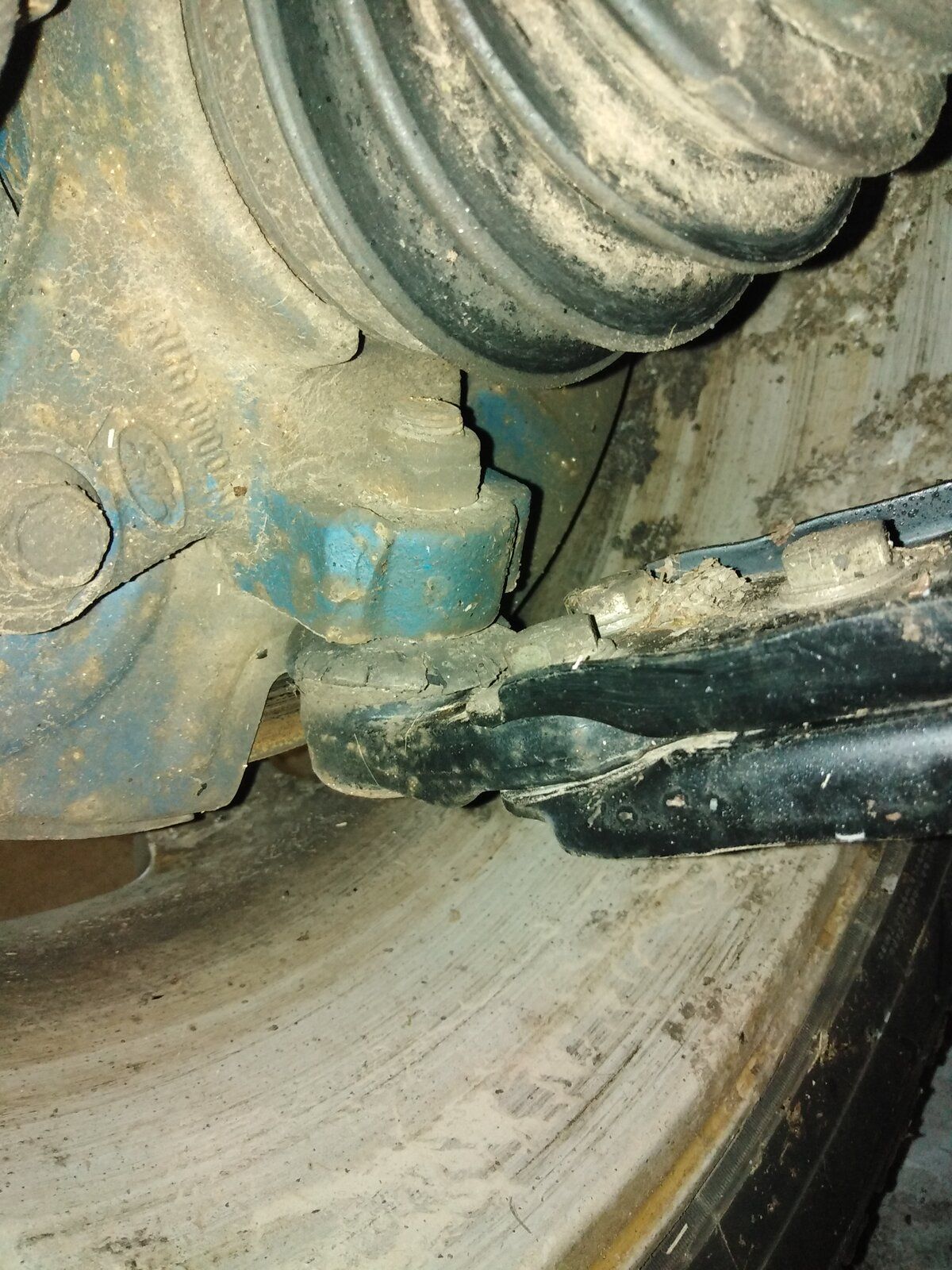

    See photo

  2. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    24,071
    Likes Received:
    5,998
    Location:
    Near Newquay
    Yes, although on my D3.
    No idea on FL1 size, but easy enough to measure with a digital caliper. ;)
    Yes. I've had track rods and drop link boots fail in a similar time.
    Cheap rubber boots seem to disintegrate in months, rather than years now.

  3. andyfreelandy

    andyfreelandy Well-Known Member

    Joined:
    Jul 29, 2010
    Posts:
    2,732
    Likes Received:
    920
    Location:
    Devon
    Yes I can measure it, probs easier when it is off, or I receive the replacement.

    Didn't expect to be redoing this within 9 months. It's continuous due to poor part quality. You don't get reimbursed for the hour or so to change the damn thing!!

    I remember rubber parts for the MG were always naff. Seems like we can't make rubber compounds that last any more. Doesn't seem rocket science!!

  4. freespaña

    freespaña Active Member

    Joined:
    Nov 1, 2020
    Posts:
    133
    Likes Received:
    29
    Location:
    España
    Hi Andyfreelandy:
    I have both front ball joints. My nexth project it was going to be changing the ball joints or the complete arms. is it worth just putting on the boots? my kneecaps don't make noise. If you see it possible, can you please add photos of the work and where buy? Thank you!!!!

  5. andyfreelandy

    andyfreelandy Well-Known Member

    Joined:
    Jul 29, 2010
    Posts:
    2,732
    Likes Received:
    920
    Location:
    Devon
    I have changed just the ball joint but it is a lot of work drilling out hard rivets.

    The whole arm makes sense as if the boot has gone the joint will be worn even if not knocking.

    I am buying the whole arm and upgrading the boots to polyurethane as they hopefully will last longer than 10 months!

    I will post the link.

    freespaña likes this.
  6. andyfreelandy

    andyfreelandy Well-Known Member

    Joined:
    Jul 29, 2010
    Posts:
    2,732
    Likes Received:
    920
    Location:
    Devon
  7. freespaña

    freespaña Active Member

    Joined:
    Nov 1, 2020
    Posts:
    133
    Likes Received:
    29
    Location:
    España
    Ok. Thanks. I floow this threat with interest.

  8. freespaña

    freespaña Active Member

    Joined:
    Nov 1, 2020
    Posts:
    133
    Likes Received:
    29
    Location:
    España
    Bad Bad Bad. Sorry.
    I follow this topic with interest.

  9. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    24,071
    Likes Received:
    5,998
    Location:
    Near Newquay
    I've suffered with this same issue for years now. :(

    It's crazy that original ball joint boots last over a decade, but replacements don't even manage to last until the MOT.
    Although the supplier might replace them, as you say it's the wasted time, and return postage which is the killer.
    I used poly on my D3, after the drop link boots I fitted, didn't make it till the following MOT. The poly were fit n forget, which is what I was hoping, and so were worth the little extra cost at the time. Next time I replace a ball joint, I'm going to fit poly from the start, which safes having to go back in a few months to do it again. :)

  10. andyfreelandy

    andyfreelandy Well-Known Member

    Joined:
    Jul 29, 2010
    Posts:
    2,732
    Likes Received:
    920
    Location:
    Devon
    Yes agreed.
    I measured the boots in the retaining ring and have a supplier hunting for them.

    Will list part number if they come good.

    Nodge68 likes this.
  11. Kev12

    Kev12 Well-Known Member

    Joined:
    Jan 1, 2018
    Posts:
    1,335
    Likes Received:
    737
    Location:
    Cornwall
  12. andyfreelandy

    andyfreelandy Well-Known Member

    Joined:
    Jul 29, 2010
    Posts:
    2,732
    Likes Received:
    920
    Location:
    Devon
    Thanks Kev.

    Going to try to find poly ones to last me out!!!

  13. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    24,071
    Likes Received:
    5,998
    Location:
    Near Newquay
  14. andyfreelandy

    andyfreelandy Well-Known Member

    Joined:
    Jul 29, 2010
    Posts:
    2,732
    Likes Received:
    920
    Location:
    Devon
    Chat with a few suppliers.
    Unfortunately my vernier let me down!!!

    It is measuring then changing number whilst holding it still. I didn't notice the first time so now have wrong size boots!!

    Have replaced it with a plastic rubber one for now to preserve the joint.

    Managed to loosen, drop the arm and change the boot without taking the arm off.

    Size is 17mm top, 32.5mm bottom and needs to be 27mm + deep.
    If anyone locates poly ones please let me know.

    Last edited: Jan 18, 2021
  15. andyfreelandy

    andyfreelandy Well-Known Member

    Joined:
    Jul 29, 2010
    Posts:
    2,732
    Likes Received:
    920
    Location:
    Devon
    Nodge68 likes this.
  16. teddywood1

    teddywood1 Well-Known Member

    Joined:
    Jul 7, 2011
    Posts:
    5,547
    Likes Received:
    299
    Location:
    stoke-on-trent
    it looks as though you have been through a lot of sand or mud if it is sand then that will ware anything out .

  17. andyfreelandy

    andyfreelandy Well-Known Member

    Joined:
    Jul 29, 2010
    Posts:
    2,732
    Likes Received:
    920
    Location:
    Devon
    Just Devon road mud!! The other side was fine. This one had shreaded.
