Battery/Alternator problems

Discussion in 'Range Rover' started by countryboy, May 4, 2013.

< Previous Thread | Next Thread >
  1. countryboy

    countryboy Member

    Joined:
    Aug 25, 2012
    Posts:
    47
    Likes Received:
    0
    Hi all,

    Am a little stuck with an electrical issue - can't find any similar issues online thus far!

    Using my 03 L322 daily, I rarely have any issues. However, after leaving the vehicle unused for over a week, the battery drains and needs a jump.

    The battery is almost new so would be surprised if it is that - so I took it to be checked at a local garage. He put his computer over the battery - results as follows:

    Battery test: Voltage 12.03v and in good condition

    Alternator test: Ripple too big, regular volt 14.04V.

    The mechanic said it was an alternator drain, something to do with the diodes...anyone seen this before and if so is in an alternator change??

    TVM, CB

  2. Datatek

    Datatek Well-Known Member

    Joined:
    Feb 5, 2009
    Posts:
    35,022
    Likes Received:
    2,910
    Location:
    Near Poitiers SW France
    Diode pack failure is not uncommon. You can DIY replace the diode pack and regulator if you are handy. Otherwise it's a new alternator.

  3. Deasy

    Deasy Well-Known Member

    Joined:
    Oct 2, 2011
    Posts:
    4,070
    Likes Received:
    5
    Location:
    Warwick-on-the-shire
    I think mine had that issue before I bought it. I've seen the service sheets that showed an investigation into battery drain which resulted in a new batt and alternator

    But I didn't have it done was the previous owners do I any give you much more info

  4. Saint.V8

    Saint.V8 Dyed-in-the-wool 100% RR Junkie

    Joined:
    Apr 27, 2008
    Posts:
    16,223
    Likes Received:
    2,021
    Location:
    Wiltshire - Nadder valley - its rather pretty
    Can you get a diode pack for the L322 Alternators??

    To the OP - Petrol or Diesel??

  5. countryboy

    countryboy Member

    Joined:
    Aug 25, 2012
    Posts:
    47
    Likes Received:
    0
    Cheers, how handy does one have to be?? Can you explain the process?

  6. countryboy

    countryboy Member

    Joined:
    Aug 25, 2012
    Posts:
    47
    Likes Received:
    0
    Diesel - 2003.

  7. Saint.V8

    Saint.V8 Dyed-in-the-wool 100% RR Junkie

    Joined:
    Apr 27, 2008
    Posts:
    16,223
    Likes Received:
    2,021
    Location:
    Wiltshire - Nadder valley - its rather pretty

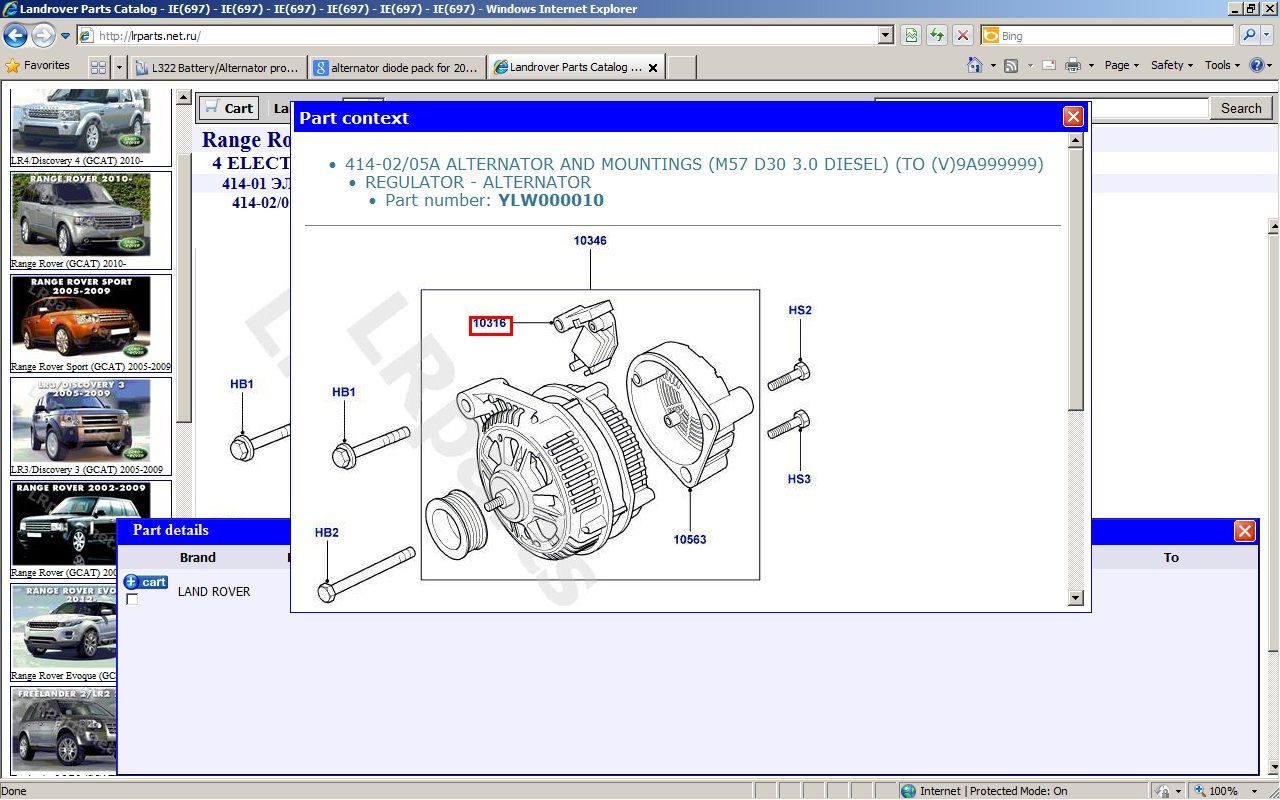

    Part number for regulator as attached....

    Britcar parts list at £124 and Famous Four at £118


    Attached Files:

    Last edited: May 4, 2013
  8. countryboy

    countryboy Member

    Joined:
    Aug 25, 2012
    Posts:
    47
    Likes Received:
    0
    Super, thanks. Assume it is an alternator off job to fit?

  9. Saint.V8

    Saint.V8 Dyed-in-the-wool 100% RR Junkie

    Joined:
    Apr 27, 2008
    Posts:
    16,223
    Likes Received:
    2,021
    Location:
    Wiltshire - Nadder valley - its rather pretty
    'Fraid so, it is mounted on the back of the alternator under a cover I believe!

  10. Datatek

    Datatek Well-Known Member

    Joined:
    Feb 5, 2009
    Posts:
    35,022
    Likes Received:
    2,910
    Location:
    Near Poitiers SW France
    Do the regulator and brushes at the same time, also check the bearings, then it will be good for another 100K miles.

  11. 2.0_hippo

    2.0_hippo Well-Known Member

    Joined:
    Jun 5, 2009
    Posts:
    6,069
    Likes Received:
    16
    Location:
    Hertfordshire
    You sure the issue couldn't be any of the other common draining issues ?

    Headlight wipers , final stage resistor ?

  12. countryboy

    countryboy Member

    Joined:
    Aug 25, 2012
    Posts:
    47
    Likes Received:
    0
    No, not sure. How can I check?

  13. Datatek

    Datatek Well-Known Member

    Joined:
    Feb 5, 2009
    Posts:
    35,022
    Likes Received:
    2,910
    Location:
    Near Poitiers SW France
    He's had the alternator diagnosed as faulty, why confuse the issue?

  14. 2.0_hippo

    2.0_hippo Well-Known Member

    Joined:
    Jun 5, 2009
    Posts:
    6,069
    Likes Received:
    16
    Location:
    Hertfordshire
    Sometimes people like to make some money on a job

    Not confusing things

    Just you don't here of the alternators causing battery drain problems !

  15. countryboy

    countryboy Member

    Joined:
    Aug 25, 2012
    Posts:
    47
    Likes Received:
    0
    Thanks for your concern, the guy who tested the battery/alternator is trusted and not after a quick buck, I saw the test result and have the computer printout!

  16. 2.0_hippo

    2.0_hippo Well-Known Member

    Joined:
    Jun 5, 2009
    Posts:
    6,069
    Likes Received:
    16
    Location:
    Hertfordshire
    Ok, that's good news then!

    Good luck !

  17. Datatek

    Datatek Well-Known Member

    Joined:
    Feb 5, 2009
    Posts:
    35,022
    Likes Received:
    2,910
    Location:
    Near Poitiers SW France
    There have been a fair few alternators causing drain/poor charging problems on here, it's a common enough problem, I used to re-furb them as a sideline.:)

  18. 2.0_hippo

    2.0_hippo Well-Known Member

    Joined:
    Jun 5, 2009
    Posts:
    6,069
    Likes Received:
    16
    Location:
    Hertfordshire
    Oh right, iv never noticed them to be honest

    Do they fail on the p38 too ?

    Ever rebuilt one on an l322 ?

  19. Datatek

    Datatek Well-Known Member

    Joined:
    Feb 5, 2009
    Posts:
    35,022
    Likes Received:
    2,910
    Location:
    Near Poitiers SW France
    They can fail on all cars. Never seen or touched one off an L322, some, stupidly, are watercooled so I wouldn't touch them with a barge pole.
