P38A Back to Air.?

ronnierix · May 26, 2022

This is the first P38 I’ve ever owned / driven and it’s got springs on. Therefor I don’t know what it’s like on air.

can I have some opinions .? On who thinks what.

thanks as always.

marjon · May 26, 2022

Dont ask why, just do it

.

Tell us what you have left and then the advise of what you need will flood in

J

tarphenry · May 26, 2022

Its a different animal on air. The one I bought was on springs and I changed it back to air cost was about £500 and 2 days work (new bags, Repai compressor and valve block and 4 Chinese sensors) its been fine for 2 years now. Worth the effort

kermit_rr · May 26, 2022

You won't need to tell your insurance it's been modified anymore

ronnierix · May 26, 2022

marjon said:
Dont ask why, just do it.

Tell us what you have left and then the advise of what you need will flood in
J

I don’t suppose anyone can tell me what I’m looking for and there locations .? I’m hoping they haven’t ripped it all out

marjon · May 26, 2022

Look in the engine bay. Do you have a big black box on your right? What’s in it? Does it have pipes coming out of it?

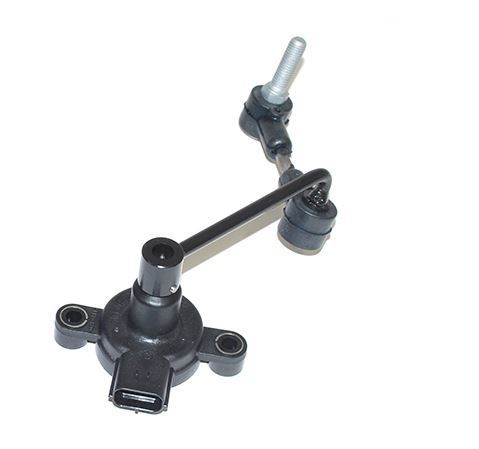

then look around the suspension to body, each corner needs something like this

There should also be a long looking relay under the passenger seat (lhd so may be drivers on rhd).

Does it still bleep at you and flash lights for the air suspension?

J

pete12345 · May 26, 2022

One of these in each corner

ronnierix · May 26, 2022

Thanks lads. I’ll check tonight

Datatek · May 26, 2022

IMO, the EAS is the best feature of the P38. I did a full overhaul on my first one about 12/13 years ago which included replacing the front height sensors and a new dryer which I replace fairly often.
Since then I have experienced very little trouble.
In addition to the other suggestions, check the EAS ECU is there under the left hand front seat.

marjon · May 26, 2022

pete12345 said:
One of these in each corner

I didn’t mention them as it’s obvious he hasn’t got them being on coils

.

But they will be needed that’s for sure

.

J

ronnierix · May 26, 2022

marjon said:
I didn’t mention them as it’s obvious he hasn’t got them being on coils.

But they will be needed that’s for sure.

J

I’ll defiantly be needing them lol

ronnierix · May 26, 2022

marjon said:
Look in the engine bay. Do you have a big black box on your right? What’s in it? Does it have pipes coming out of it?

then look around the suspension to body, each corner needs something like this View attachment 265813

There should also be a long looking relay under the passenger seat (lhd so may be drivers on rhd).

Does it still bleep at you and flash lights for the air suspension?

That’s the box and what’s in it. There are pipes coming out of it and the dash flashes up eas manual. But it currently won’t start after I’ve changed the battery but that’s another issue lol

J

Ratae · May 26, 2022

That's the valve block & the bottom of the mounting box.
Lrcat

kermit_rr · May 26, 2022

Missing pump, could be worse

kermit_rr · May 26, 2022

ronnierix said:
I’ll defiantly be needing them lol

Yes you'll definitely need some defiance

marjon · May 26, 2022

At least that expensive blue pipe is intact.

what’s on the outside of the box? I.E pipes.

J

ronnierix · May 26, 2022

marjon said:
At least that expensive blue pipe is intact.

what’s on the outside of the box? I.E pipes.

J

ronnierix · May 26, 2022

So I’ll need to get under it. And see what else is there but at the min we’re missing the pump.

brianp38dse · May 26, 2022

Its looking encouraging so far

so if the ecu is still there and the height sensors and pipes you will only need bags and pump and a rebuild kit for the valve block
and speak to Datatek about a cable and software to talk to the system unless you have a Nanocom allready.

ronnierix · May 26, 2022

brianp38dse said:
Its looking encouraging so far so if the ecu is still there and the height sensors and pipes you will only need bags and pump and a rebuild kit for the valve block
and speak to Datatek about a cable and software to talk to the system unless you have a Nanocom allready.

Fingers crossed. When you say it like that it seems a straight forward job. (I’m certain it won’t be on the driveway lol)
