Auxiliary pulley cover panel

pedro63 · Feb 4, 2019

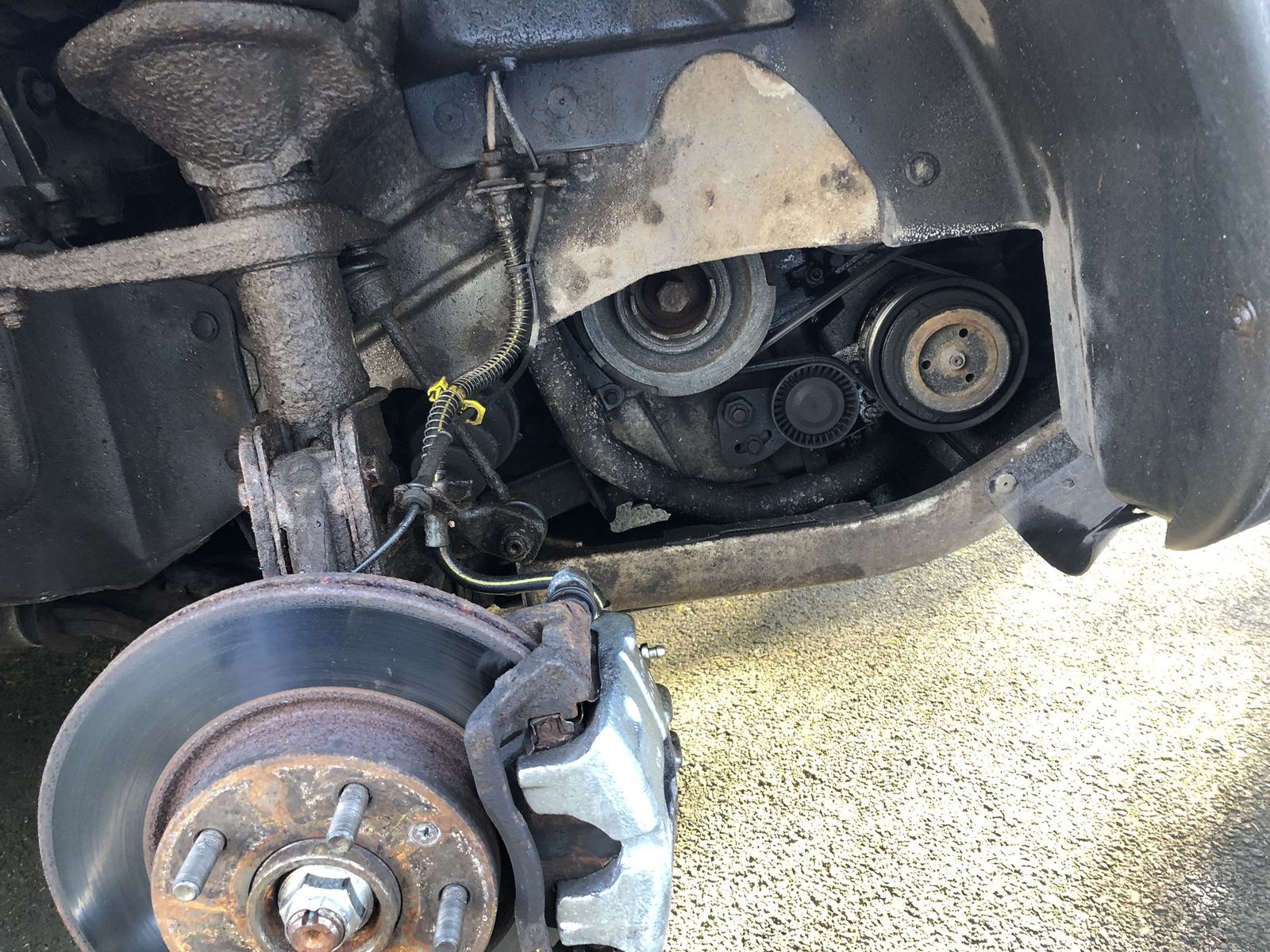

Hi newby here ! Hello everyone. I am trying to find if there is a cover panel for the aux pulley in the front wheel arch and if so any ideas where I can get one
See attached photo Thanks Peter

GrumpyGel · Feb 4, 2019

There is a plastic 'piece' that sits in there and secured with 3 screws at the top (bottom is molded to clip over the undertray).

Best bet is a trip to a breakers yard - think you need to remove the undertray to get at the screws cos they are on the inside of the plastic bit.

Nodge68 · Feb 4, 2019

The splash screen is missing. Also the brake disc is past its best.

pedro63 · Feb 4, 2019

Thanks. Just had new caliphers and pads fitted mechanic said discs fine ?

pedro63 · Feb 4, 2019

GrumpyGel said:
There is a plastic 'piece' that sits in there and secured with 3 screws at the top (bottom is molded to clip over the undertray).

Best bet is a trip to a breakers yard - think you need to remove the undertray to get at the screws cos they are on the inside of the plastic bit.

Thanks Grumpy

Nodge68 · Feb 4, 2019

pedro63 said:
Thanks. Just had new caliphers and pads fitted mechanic said discs fine ?

Ok.

I'd not have wasted money putting new pads on those discs as 20% of the disc surface isn't doing anything to stop the vehicle.

pedro63 · Feb 4, 2019

Nodge68 said:
Ok. I'd not have wasted money putting new pads on those discs as 20% of the disc surface isn't doing anything to stop the vehicle.

To be honest the discs are fine and brakes working perfectly the car had been sitting for a while before I got it

baptista · Feb 4, 2019

What is the plastic part riveted to the front of the undertray?
looks like some kind of extension...

pedro63 · Feb 4, 2019

baptista said:
What is the plastic part riveted to the front of the undertray?
looks like some kind of extension...

There is one on each side a sort of deflector

andyfreelandy · Feb 5, 2019

Replacement part on its way to you. Donor car is still giving!!!

baptista · Feb 6, 2019

pedro63 said:
There is one on each side a sort of deflector

are they original from the car?
could you please post some pictures of those, do you know the part number?
I know the Camel Trophy Freelander had some snow deflectors on rear suspension but have never seen anything allike for the front?

pedro63 · Feb 6, 2019

baptista said:
are they original from the car?
could you please post some pictures of those, do you know the part number?
I know the Camel Trophy Freelander had some snow deflectors on rear suspension but have never seen anything allike for the front?

Can do next time I have wheel off

Madmustang · Feb 7, 2019

andyfreelandy said:
Replacement part on its way to you. Donor car is still giving!!!

I am missing the three bolts for one of these do you have the other set available?

andyfreelandy · Feb 8, 2019

Bolts that were not rusted went with the above to Pedro !
Sorry !

Nodge68 · Feb 8, 2019

Madmustang said:
I am missing the three bolts for one of these do you have the other set available?

Google "KYP500320". You'll find they cost about 40 Pence each from several LR parts suppliers.
