Disco 2 Auto Transmission fault code

Discussion in 'Land Rover Discovery' started by TorsionBhudda, Mar 17, 2019.

< Previous Thread | Next Thread >
  1. TorsionBhudda

    TorsionBhudda Well-Known Member

    Joined:
    Nov 15, 2014
    Posts:
    1,159
    Likes Received:
    186
    Location:
    Falkirk
    Hi my daughters Automatic Disco 2 TD5 when you press the accelerator and go into kickdown it like the car is surging you can feel and hear the revs build then die down but doesn’t pick up any speed it’s especially noticeable on hills at lower speeds it does it without being in kick down on steep hills. I plugged the Hawkeye in and have this fault code from the transmission 87AD57DB-41AA-4B2C-9931-46D9E575DEA7.jpeg 87AD57DB-41AA-4B2C-9931-46D9E575DEA7.jpeg What does the fault code mean where do I start looking to fix the issue she’s having?
    Thanks
    Gordon


    Attached Files:

  2. sierrafery

    sierrafery Well-Known Member

    Joined:
    Jun 30, 2007
    Posts:
    11,680
    Likes Received:
    1,298
    Location:
    West of Transylvania
    First of all prompt as to go to the next page on hawkeye to see the whole message what's after ''NOT''... also clear that code then after the symptom occurs read again cos as long as the M+S warnings are not flashing that code is hystorical

  3. JUKE179r

    JUKE179r Well-Known Member

    Joined:
    Jul 5, 2018
    Posts:
    410
    Likes Received:
    150
    Location:
    Suffolk County
    I've only seen that code triggered for loose/corroded battery connections and/or a low voltage battery.
    Is that fault code (P1884 33) the only one that you are getting? Has there been other maintenance done to the Disco?

  4. TorsionBhudda

    TorsionBhudda Well-Known Member

    Joined:
    Nov 15, 2014
    Posts:
    1,159
    Likes Received:
    186
    Location:
    Falkirk
    It’s not a historical code I clear it and it comes back especially if car has been driven up a long hill and tried to accelerate. DF0DB9C5-FBBD-482A-B4BC-195BE3BFE56C.jpeg This is what it says as I scroll down. The M&S lights aren’t flashing. This message appears after the surging (like clutch slipping) has happened if It’s driven around town without big hills then it doesn’t appear but once you take it say to where my parents live which has steep fast road hills to get there you feel it and when stop this is the message

    Last edited: Mar 18, 2019
  5. TorsionBhudda

    TorsionBhudda Well-Known Member

    Joined:
    Nov 15, 2014
    Posts:
    1,159
    Likes Received:
    186
    Location:
    Falkirk
    Yeah it’s the only code I’m getting the battery is brand new. It’s had gearbox oil and filter changed(no difference) front brakes replace with new callipers as one was seized, the drivers wheel bearing,steering ball joints and cv replaced as all worn for MOT.

  6. TorsionBhudda

    TorsionBhudda Well-Known Member

    Joined:
    Nov 15, 2014
    Posts:
    1,159
    Likes Received:
    186
    Location:
    Falkirk
    Next time I’m in her Discovery I’ll try and do a video to show what I mean by the surging/slipping I’m not sure if I’m describing it correctly it’s a weird one.

    When I first got the Hawkeye there was all sorts off old fault codes and I deleted them all this is only one that keeps coming back and only after going up hill whilst trying to accelerate

  7. sierrafery

    sierrafery Well-Known Member

    Joined:
    Jun 30, 2007
    Posts:
    11,680
    Likes Received:
    1,298
    Location:
    West of Transylvania
    Just confirm no codes logged in the engine ECU?

  8. TorsionBhudda

    TorsionBhudda Well-Known Member

    Joined:
    Nov 15, 2014
    Posts:
    1,159
    Likes Received:
    186
    Location:
    Falkirk
    No that’s the only code

  9. sierrafery

    sierrafery Well-Known Member

    Joined:
    Jun 30, 2007
    Posts:
    11,680
    Likes Received:
    1,298
    Location:
    West of Transylvania
    The wheels are standard dimension or bigger?... anyway in this particular case hawkeye might not be the best tool cos a nanocom would be the best to record a live data log as to see all the readings when the symptom occurs, that fault code is generated on the CAN when the calculated torque by the engine ECU is out of the range expected by the autobox ECU though no code in the engine ECU can lead to a fuelling issue

    is it 10P or 15+P engine?

    Last edited: Mar 18, 2019
  10. TorsionBhudda

    TorsionBhudda Well-Known Member

    Joined:
    Nov 15, 2014
    Posts:
    1,159
    Likes Received:
    186
    Location:
    Falkirk
    It’s a 15P the wheels and tyres are standard 255/65r16 I’ll need to ask about see if someone can loan me a nanocom. Could the MAF sensor be faulty? Been googling all day and seems to be a million different things but can’t find a Definitive answer :( Could the torque converter be on way out?

  11. sierrafery

    sierrafery Well-Known Member

    Joined:
    Jun 30, 2007
    Posts:
    11,680
    Likes Received:
    1,298
    Location:
    West of Transylvania

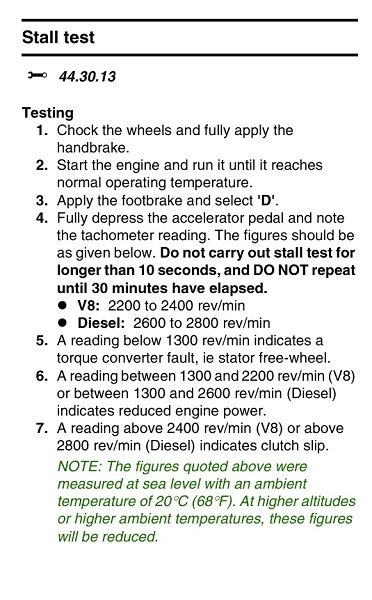

    To rule out the MAF unplug it and drive it so...if the symptom goes away then that's it, to rule out an autobox fault run a stall test on it and see the result, according to the fault code you should get the "reduced engine power" thing
    Stall test.jpg

  12. TorsionBhudda

    TorsionBhudda Well-Known Member

    Joined:
    Nov 15, 2014
    Posts:
    1,159
    Likes Received:
    186
    Location:
    Falkirk
    Cheers @sierrafery I'll give that a go sometime this week unfortunately I'm going be mostly busy with my 90's gearbox which went on Saturday and sounds like the Layshaft is away :( If it wasn't for bad luck i'd have no luck at all :eek:

    I'll get back to you once i've done the stall test and tried it with MAF disconnected.
