Attaching the clutch slave bracket?!

nebdefender

New Member

Posts

1

Location

USA

• Jan 9, 2021

• #1

Hi everyone!

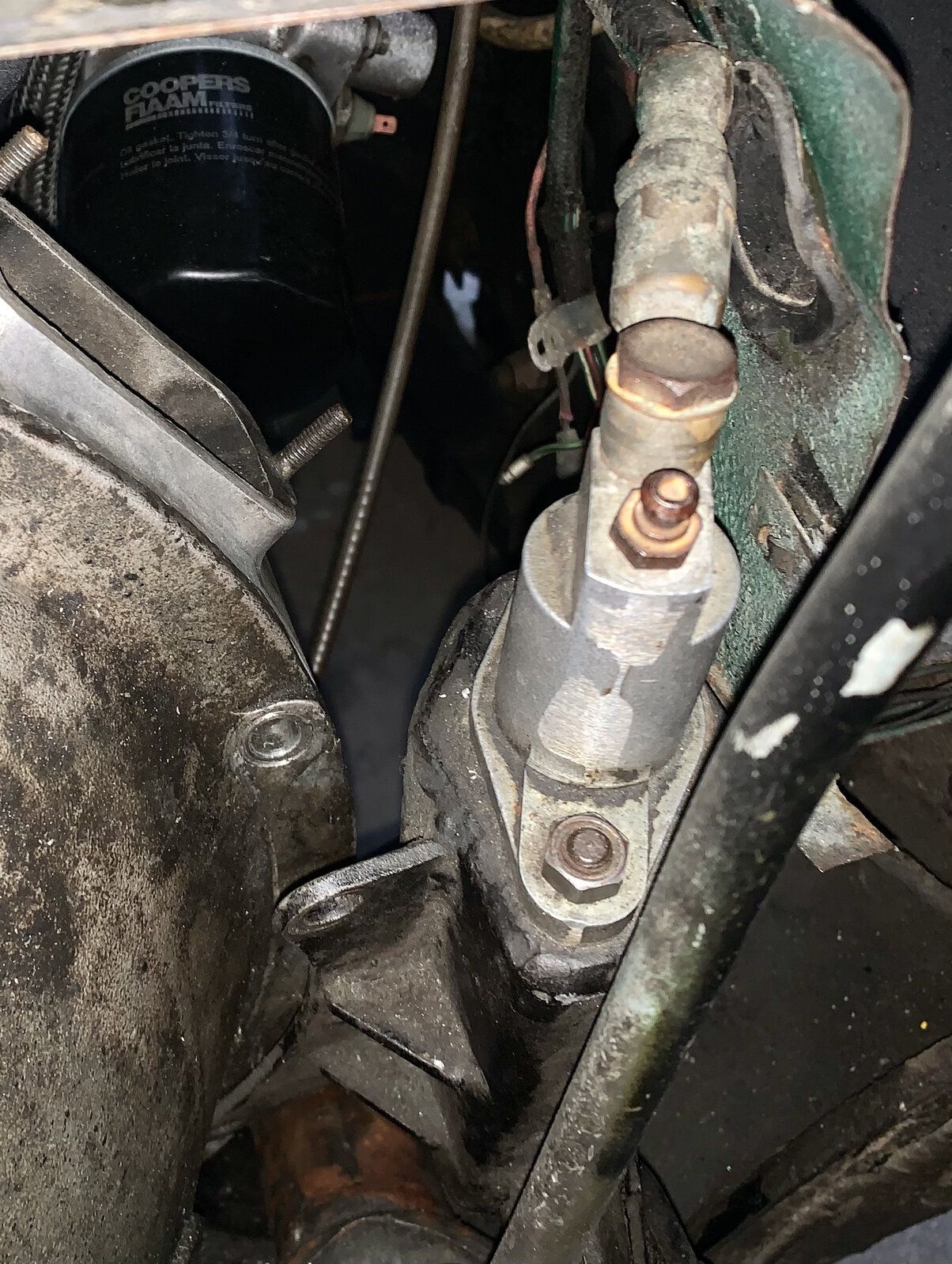

I just installed a 200tdi into my land rover 109 but am having trouble bolting the bracket which houses the clutch slave cylinder onto the transmission! Its is really tight and am not able to move it close enough to get a bolt on it. Are there any tricks to get this on or do i possibly have an issue preventing me from getting this installed?

Thanks in advance!



Attachments

•

  386.5 KB · Views: 73

R

rob1miles

Well-Known Member

Posts

3,565

Location

Slough and Bath

• Jan 10, 2021

• #2

How are the engine/gearbox mounts?



L

lynall

Well-Known Member

Full Member

Posts

25,892

Location

Kent

• Jan 10, 2021

• #3

You sure you have the gearbox mount/wedge things on the right side?



L

lynall

Well-Known Member

Full Member

Posts

25,892

Location

Kent

• Jan 10, 2021

• #4

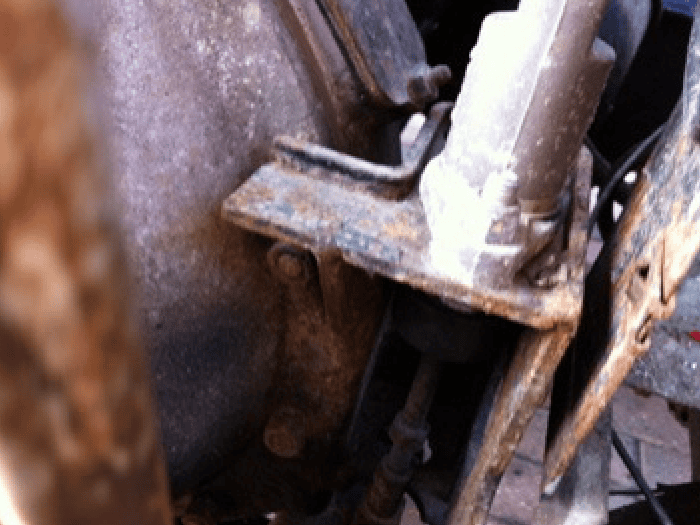

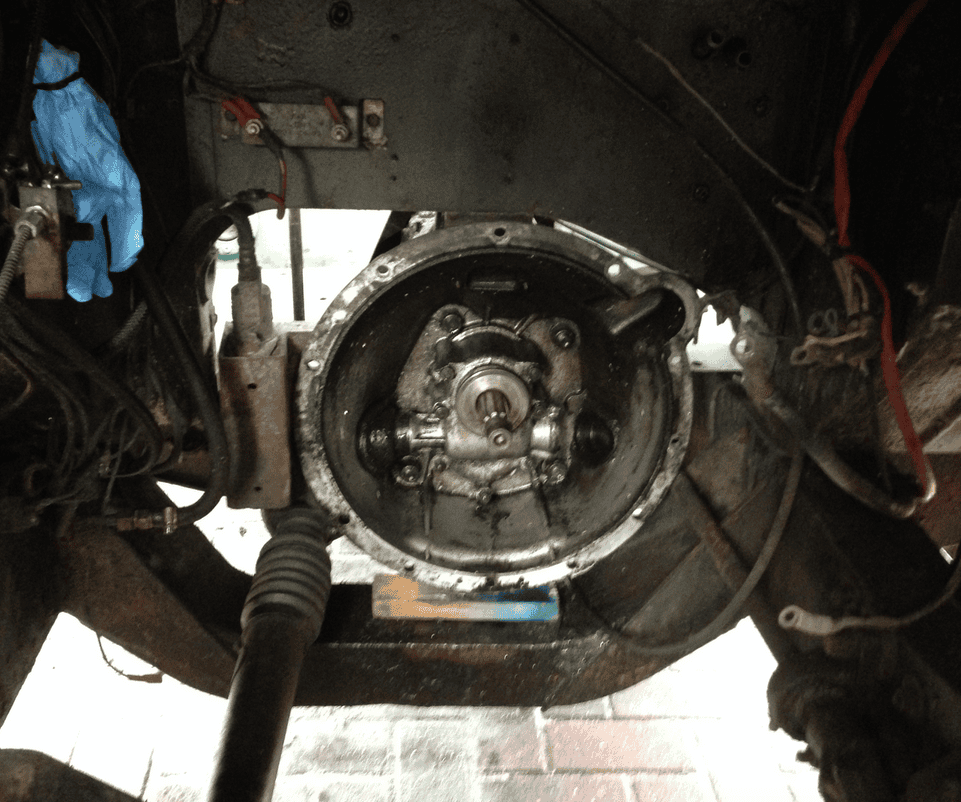

Couple of pics of mine, notice my slave bracket holds the slave in line wth the engine/gearbox, wheras yours seems to twist the slave an angle?



Last edited: Jan 10, 2021

Blackburn

Well-Known Member

Posts

3,105

Location

Tyneside

• Jan 10, 2021

• #5

What happens if you slacken the banjo bolt on the clutch slave cylinder hose to allow it to turn away from bulkhead?



tottot

Well-Known Member

Posts

8,081

Location

west wales coast

• Jan 10, 2021

• #6

As above, pipe is clashing with bulkhead.
