Other Anyone used a brake pressure bleeder?

Discussion in 'Land Rover Discovery' started by lynall, Oct 5, 2020.

< Previous Thread | Next Thread >
  1. lynall

    lynall Well-Known Member Full Member

    Joined:
    Feb 28, 2011
    Posts:
    15,616
    Likes Received:
    10,059
    Location:
    Current
    I have wanted one for ages and ummed and arred, then thought sod it I am buying one.
    So today replaced brake fluid on the S2, the 90 and the D3.
    Got to say it makes life real easy, no pedal pusher needed.

    Strangely I replaced front brake hoses on the D3 a few weeks back, and got the wife to do the pedal pushing for me, and today with the machine still got some air out of the system!

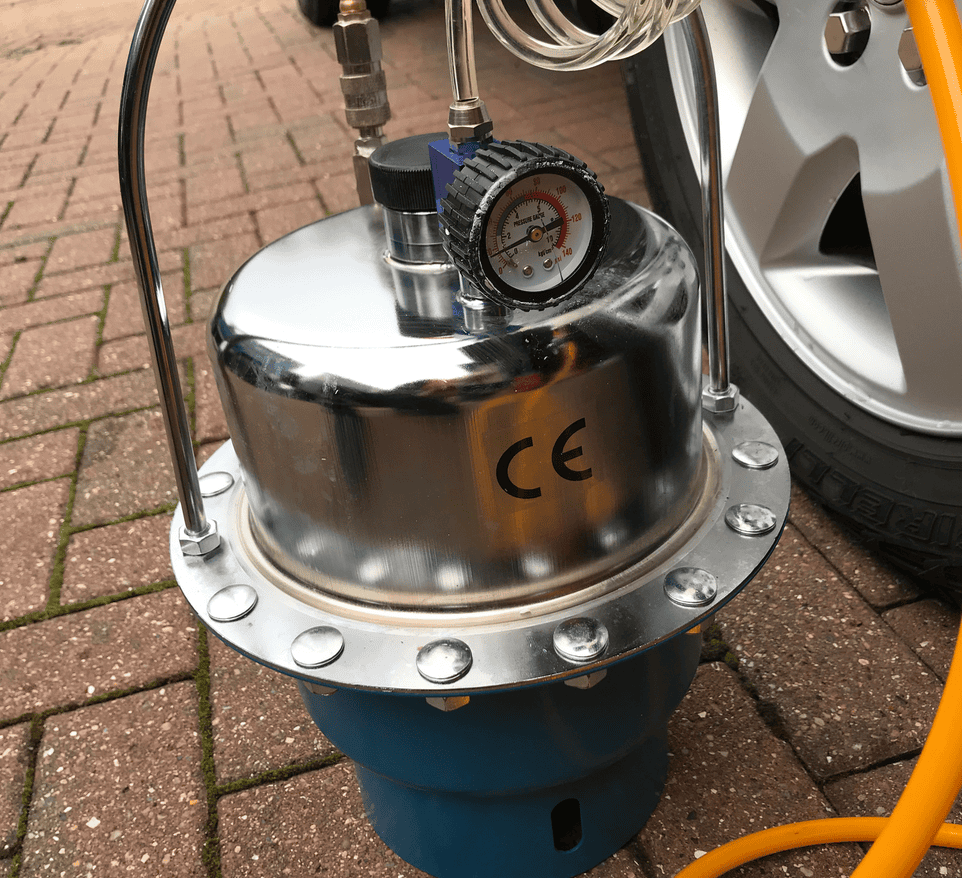

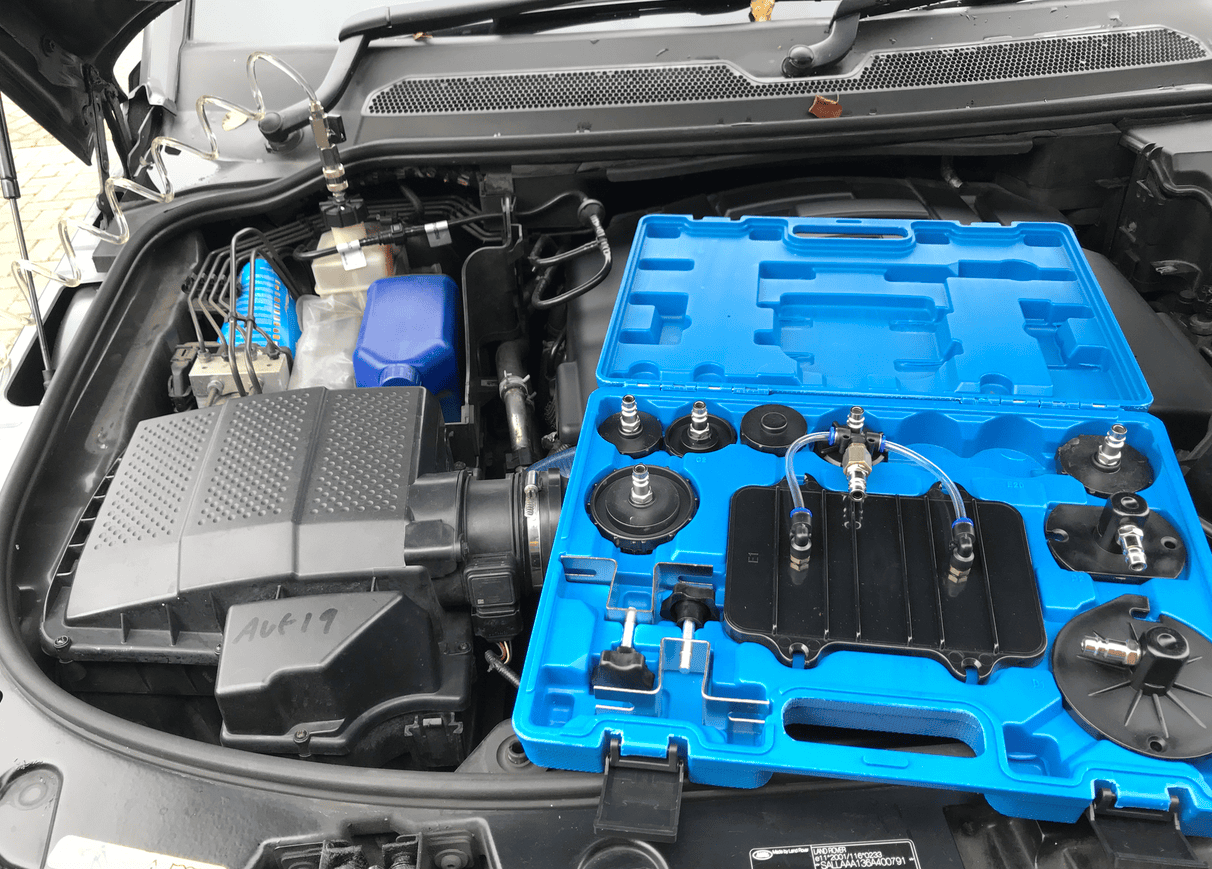

    Ebay 75 quid with all the master cylinder adaptors

    Screen Shot 2020-10-05 at 16.41.25.png Screen Shot 2020-10-05 at 16.42.45.png

    landowner, flat, Henry_b and 2 others like this.
  2. Pawl

    Pawl Well-Known Member

    Joined:
    Mar 16, 2011
    Posts:
    441
    Likes Received:
    111
    Location:
    West Midlands, UK
    I've used 1 of the tyre pressure based pressure bleeders in the past.
    It worked well, but the biggest challenge was fixing the dummy reservoir caps to the reservoirs - especially some of the more exotic bayonet fittings.
    Clamping right round the mastercylinder worked, but was sometimes a bit unstable.

    lynall likes this.
  3. lynall

    lynall Well-Known Member Full Member

    Joined:
    Feb 28, 2011
    Posts:
    15,616
    Likes Received:
    10,059
    Location:
    Current
    Tbh 2/3rds of the adaptors in the box I have never seen caps like it in real life!

  4. Bantam1

    Bantam1 Well-Known Member

    Joined:
    Nov 26, 2017
    Posts:
    1,494
    Likes Received:
    1,107
    Location:
    North Wales, UK
    I use a suction pump fixed to the bleed nipple rather than positive pressure through the reservoir.
    I find this works best for my motorbikes and therefore use the same for the cars.
    I too had a cheaper Easibleed system but no good for the motorbikes.

    Stanleysteamer and backinblack like this.
  5. lynall

    lynall Well-Known Member Full Member

    Joined:
    Feb 28, 2011
    Posts:
    15,616
    Likes Received:
    10,059
    Location:
    Current
    I have tried the sucky the nipple jobs! but I always seemed to draw in air through the nipples threads, so it was difficult to see when the fluid was clear of air.

  6. Henry_b

    Henry_b ̿̿ ̿ ̿'̿'\̵͇̿̿\з= ( ▀ ͜͞ʖ▀) =ε/̵͇̿̿/’̿’̿ ̿ ̿̿

    Joined:
    Jan 29, 2018
    Posts:
    13,291
    Likes Received:
    13,039
    Location:
    Its Full of WIN.....
    I have both :eek:

    The pressure bleeder is the better option, i used it first on a D3 too funnily enough after a complete set of brake lines..

    They're a bitch to do when all the fluid is lost..

    The pressure bleeder made it a much easier process! :D

    lynall likes this.
  7. Feathers McGraw

    Feathers McGraw Well-Known Member

    Joined:
    Jul 27, 2015
    Posts:
    2,643
    Likes Received:
    2,597
    Location:
    Cumbria
    I replaced the bleed nipples with one way valve versions. Back it off about one turn, attach a hose, pump the pedal a few times and tighten back up.
    Goodridge speed bleeders.

    JUKE179r likes this.
  8. lynall

    lynall Well-Known Member Full Member

    Joined:
    Feb 28, 2011
    Posts:
    15,616
    Likes Received:
    10,059
    Location:
    Current
    New one on me, just looked and notice they have sealant on their threads, bloody expensive as well.

  9. Feathers McGraw

    Feathers McGraw Well-Known Member

    Joined:
    Jul 27, 2015
    Posts:
    2,643
    Likes Received:
    2,597
    Location:
    Cumbria
    Agreed. Worse if you have a few cars in the "fleet".
    Back in the 80s I found a similar set, ABV I think with a spring loaded conical end, unused in my Dad's garage. Seeing as he'd never miss them they went on my Dolly Sprint :)

  10. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    23,699
    Likes Received:
    5,829
    Location:
    Near Newquay
    I remove the bleed nipples and coat the threads with a good covering of brake grease. This then prevents the vacuum bleeder sucking air through the threads, allowing better suction on the fluid, and no additional air to give a false indication of air in the system. The grease will also reduce the chance of the threads corroding for the next time. ;)

    Stanleysteamer and lynall like this.
  11. discool

    discool Well-Known Member

    Joined:
    Apr 25, 2007
    Posts:
    12,644
    Likes Received:
    1,437
    Location:
    Sector 12 in Kent, The Garden of England
    Last edited: Oct 6, 2020
    lynall likes this.
  12. lynall

    lynall Well-Known Member Full Member

    Joined:
    Feb 28, 2011
    Posts:
    15,616
    Likes Received:
    10,059
    Location:
    Current
    Just done wifes car, timed bleed time 40 seconds per wheel, not incl jack car/remove wheels and set up pressure bleeder etc.
    Obviously the land rovers were fast to do as nowt needed removing to gain access.

    Defo one of my best buys this year.

    Nodge68 likes this.
  13. lynall

    lynall Well-Known Member Full Member

    Joined:
    Feb 28, 2011
    Posts:
    15,616
    Likes Received:
    10,059
    Location:
    Current
    I have a similair one, the silicone pipe with the slit in the end, this was what I used to bleed the D3 brakes, but still got air out with the pressure bleeder.

  14. discool

    discool Well-Known Member

    Joined:
    Apr 25, 2007
    Posts:
    12,644
    Likes Received:
    1,437
    Location:
    Sector 12 in Kent, The Garden of England
    My item is just for fluid replacement, therefore there’s no air in the system to start with, but if there was, there’s no indication that bleeding has removed all the air from the pipe, because there’s no eyes on the fluid flowing into the jam jar to indicate it has, so it’s two persons or another bit of kit. :)

    lynall likes this.
  15. NPG

    NPG Well-Known Member

    Joined:
    Mar 29, 2019
    Posts:
    300
    Likes Received:
    133
    Location:
    Ireland
    Is pressure bleeding a substitute for power bleeding with a diagnostic tool ? I see the benefits of having a second reservoir of fluid so you won't need to top up with each bleed but is there anything else besides that ?

  16. meego

    meego Well-Known Member

    Joined:
    May 20, 2010
    Posts:
    6,091
    Likes Received:
    5,397
    Location:
    Caledonia
    Is there a cap in there that will fit a D2 reservoir??

  17. meego

    meego Well-Known Member

    Joined:
    May 20, 2010
    Posts:
    6,091
    Likes Received:
    5,397
    Location:
    Caledonia
    This type

  18. meego

    meego Well-Known Member

    Joined:
    May 20, 2010
    Posts:
    6,091
    Likes Received:
    5,397
    Location:
    Caledonia
    Can you put a link up to the kit ? I’ve searched eBay and can’t find it and I’m keen to get one if still available

    lynall likes this.
  19. lynall

    lynall Well-Known Member Full Member

    Joined:
    Feb 28, 2011
    Posts:
    15,616
    Likes Received:
    10,059
    Location:
    Current
    I could be wrong, but I thought the power bleed bit was if you had removed the abs modulator?

    In a workshop the sheer speed of the bleed process is where this set up is a winner, i did chat to one of the other mechs at work who used to work on vans, and they used to use an electric bleeder, which from how he desrcibed it to me is pretty much what this is with the cars battery providing the inbuilt compressor with power, which then pressurised the fluid, I did look and they were over 300 quid for a cheapie!

    Last edited: Oct 6, 2020
    NPG likes this.
  20. lynall

    lynall Well-Known Member Full Member

    Joined:
    Feb 28, 2011
    Posts:
    15,616
    Likes Received:
    10,059
    Location:
    Current
