Anyone in leicester with a nanocom please

Discussion in 'Range Rover' started by tyke100, Aug 7, 2020.

< Previous Thread | Next Thread >
  1. Datatek

    Datatek Well-Known Member

    Joined:
    Feb 5, 2009
    Posts:
    36,897
    Likes Received:
    3,886
    Location:
    Near Poitiers SW France
    Faultmate firmware is much the same as Nanocom.

  2. wammers

    wammers STILL BREATHING. Donater

    Joined:
    Oct 19, 2008
    Posts:
    58,171
    Likes Received:
    11,646
    Location:
    Preston Lancs.
    If you can't do it with Faultmate i don't know why, but you can certainly do it with Nanocom.

  3. Datatek

    Datatek Well-Known Member

    Joined:
    Feb 5, 2009
    Posts:
    36,897
    Likes Received:
    3,886
    Location:
    Near Poitiers SW France

  4. Datatek

    Datatek Well-Known Member

    Joined:
    Feb 5, 2009
    Posts:
    36,897
    Likes Received:
    3,886
    Location:
    Near Poitiers SW France
    I think you are confused. If the dash is asking for EKA, you cannot turn EKA off with diagnostics, the two functions are mutually exclusive.

  5. wammers

    wammers STILL BREATHING. Donater

    Joined:
    Oct 19, 2008
    Posts:
    58,171
    Likes Received:
    11,646
    Location:
    Preston Lancs.
    I will say this once more so you understand, IF YOU HAVE ENGINE DISABLED MESSAGED WHICH NEEDS THE EKA CODE TO CLEAR YOU CAN DISABLE BOTH EKA CODE AND IMMOBILISER IN BECM DIAGNOSTIC MODE WITH A NANOCOM. End of story.

  6. tyke100

    tyke100 Active Member

    Joined:
    Jun 6, 2020
    Posts:
    334
    Likes Received:
    48
    Location:
    derby
    right. i got the right eka code from land rover now.
    still dont work.
    door panel of seems all fine in there.
    driver seat out. becm looks like is in there since the dark ages.

    what i also noticed. i can unlock from the inside the passenger door. while playing with the button pressing up and down some surring noise is there.
    the same on the rear driver door.
    on the rear passenger door is not.
    i also can not unlock or open this door. biut all the others. apart from the tankflap. that is not working either.

    i wonder when all started, the window on that door came down on his own and i had to shut it with the button.

    i have non reaction on this rear passenger door whatsoever by trying to lift the lock button.

    also when i had to set the windows and sunroof after recharging the batterie yesterday before i started with the eka, this window is not one of the displayed one to set.
    but it works.
    if that door has a fault can that be the problem on the whole thing not to accepting the code or imobilised the vehicle and dont let me open it ?

  7. pwood999

    pwood999 Well-Known Member Full Member

    Joined:
    Nov 6, 2006
    Posts:
    1,480
    Likes Received:
    599
    Location:
    Near Heathrow.
    • Do the door latch switch checks according to the PDF that Brian posted earlier in this thread. These MUST all work to allow entering the EKA.
      • If all the switches pass testing, but EKA doesn't work, either BECM has been changed or is corrupt.
    • Tank Flap is opened by button in Instrument Cluster. Should work if car is unlocked.
    • Left & Right front doors usually both trigger the central locking for other doors. (unless the microswitches are faulty)
    • All doors should individually unlock manually from the button. If not you have bigger problems.

    tyke100 likes this.
  8. wammers

    wammers STILL BREATHING. Donater

    Joined:
    Oct 19, 2008
    Posts:
    58,171
    Likes Received:
    11,646
    Location:
    Preston Lancs.
    Tyke go to here https://www.nanocom-diagnostics.com/ click on emulator and look through it to familiarise yourself. Goto P38 > EDC > then click right hand green arrow until you see BECM. Click on BECM, then settings, then Alarm. Top of first page is immobiliser that will need setting disabled. Click on right hand green arrow until you see EKA that will need setting disabled. You can't do anything on emulator but will be able to when plugged into car. To put BECM into diagnostic mode Leave ignition OFF. Plug Nanocom in wait until it loads then goto BECM as above. After a few seconds dash message will read Diagnostic mode. Follow above then when immobiliser and EKA have been set disabled, go back one page by pressing red cross and select write settings. wait for Nanocom to do it's thing. Switch Nanocom off. Switch ignition on message should go and car will start. DO NOT start car with Nanocom on. Always switch it off before operating starter. You can switch it back on for system checks when engine is running.

    tyke100 likes this.
  9. tyke100

    tyke100 Active Member

    Joined:
    Jun 6, 2020
    Posts:
    334
    Likes Received:
    48
    Location:
    derby
    Thank you. I will.

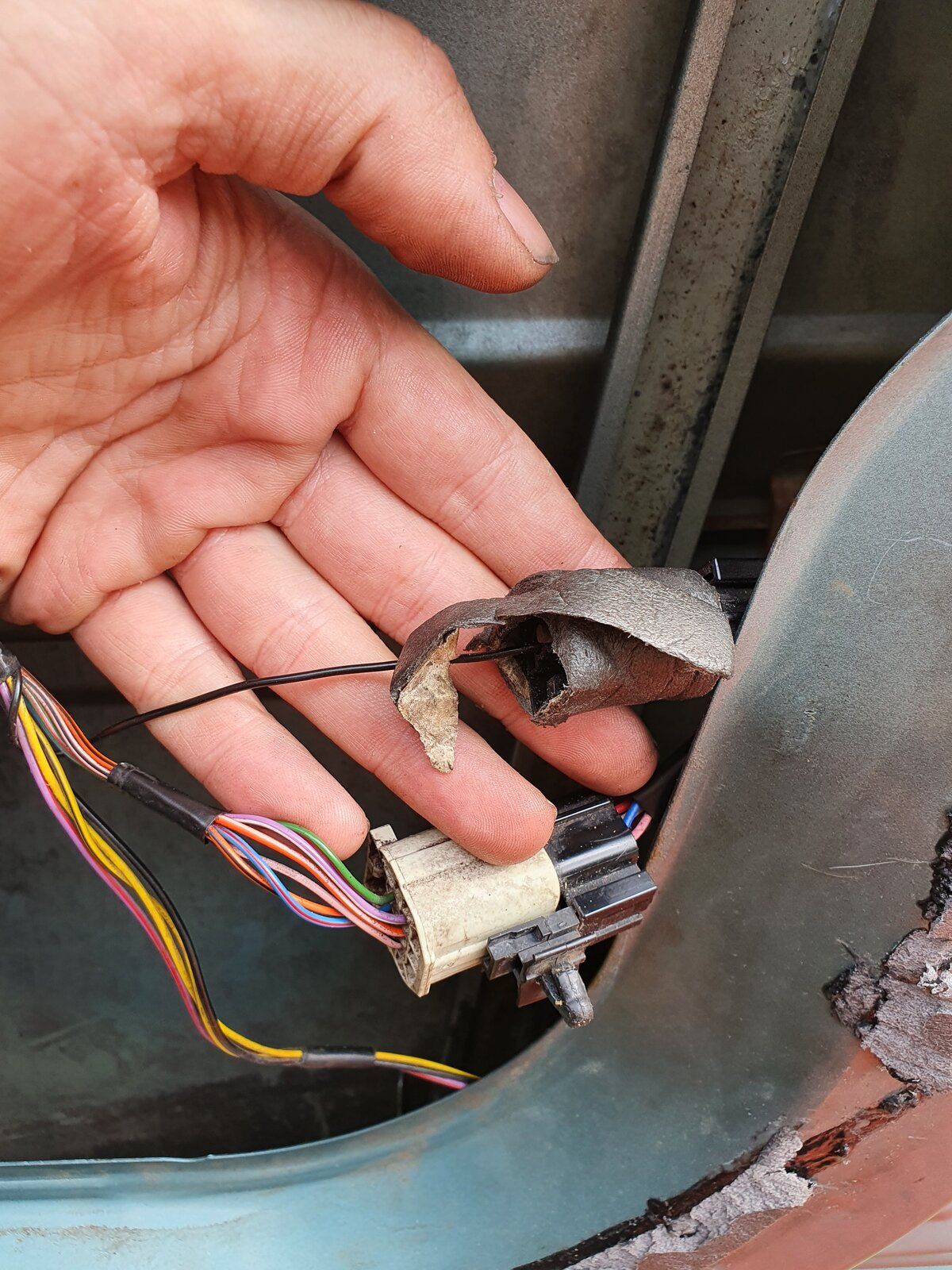

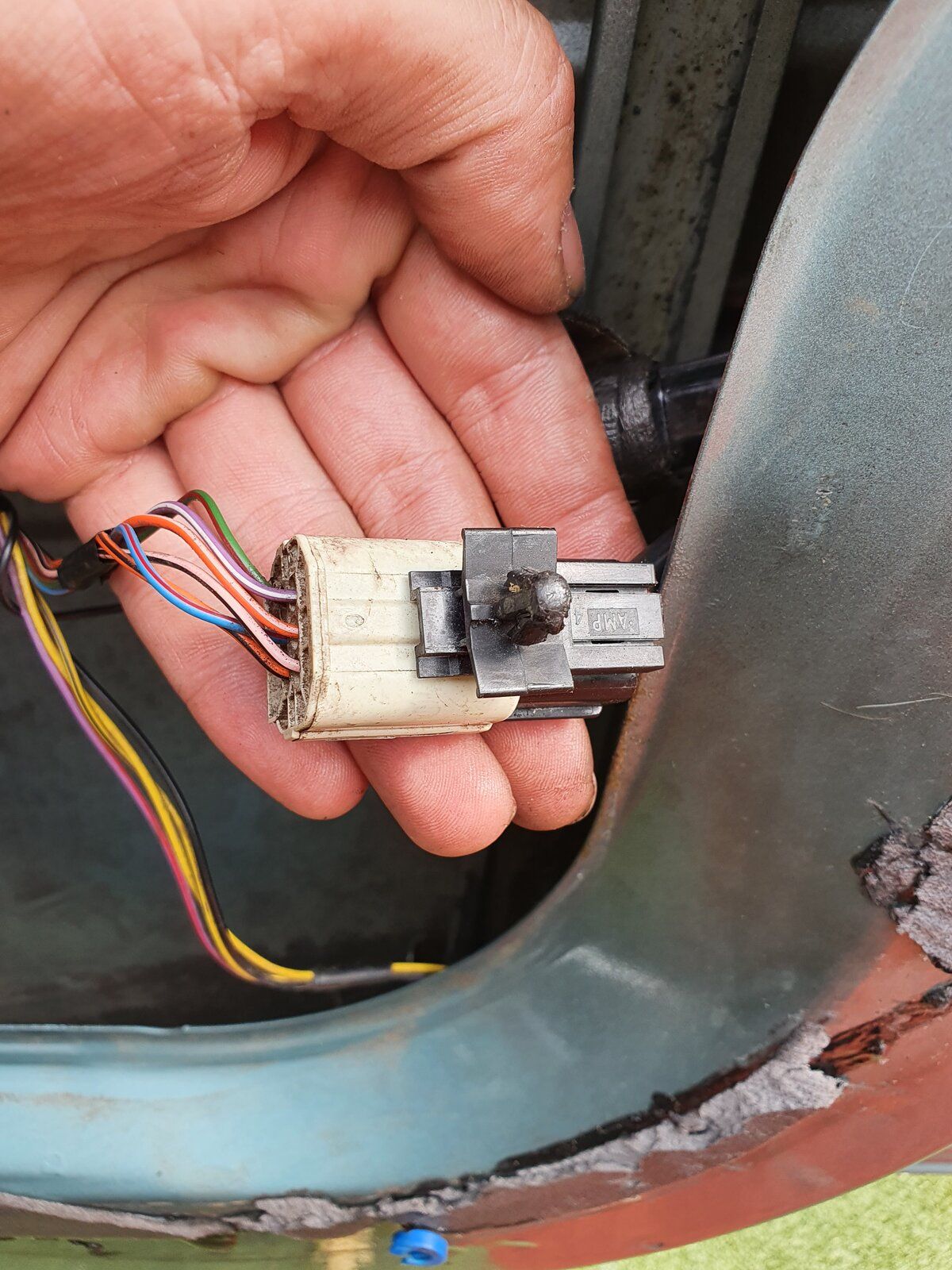

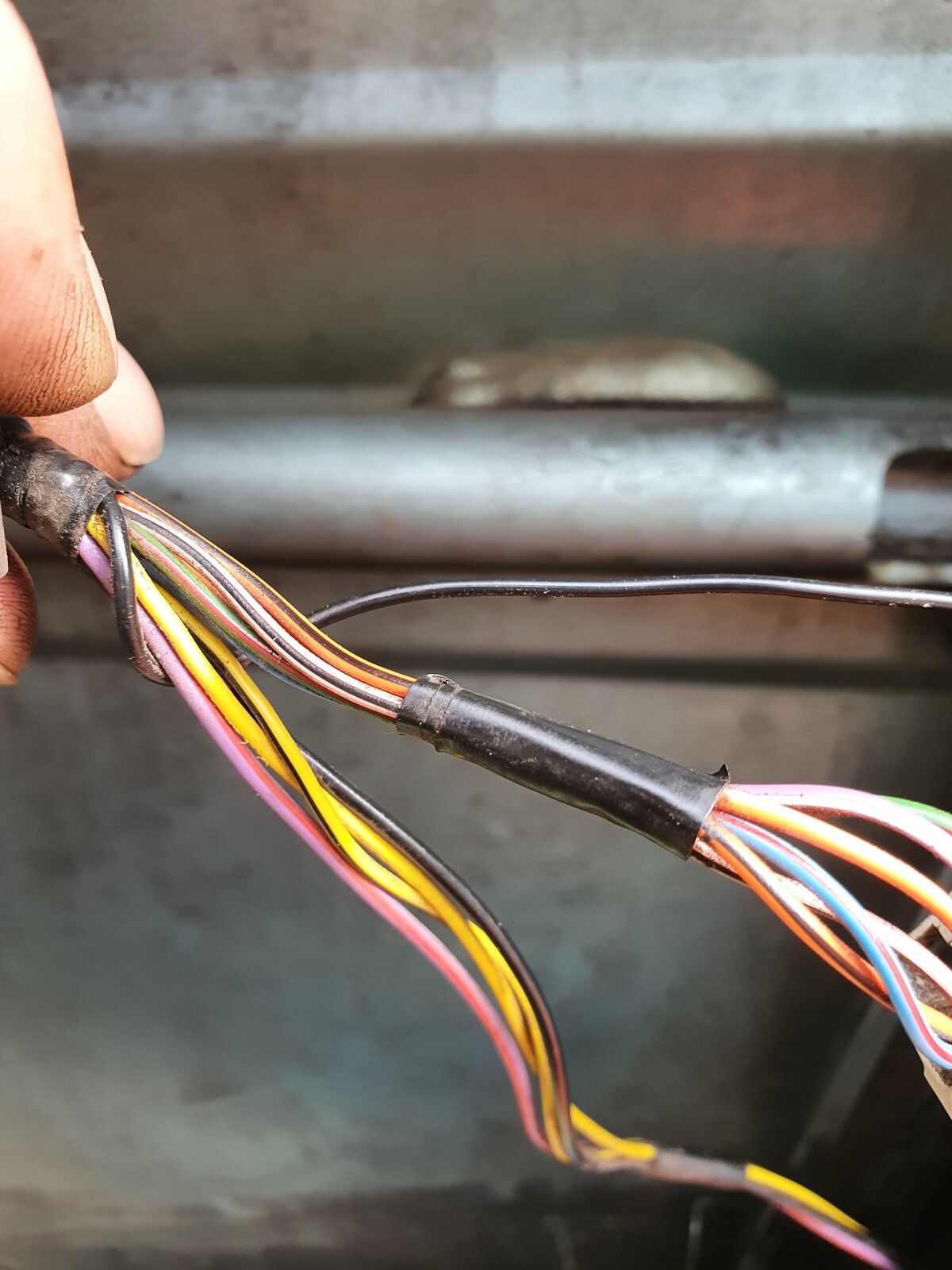

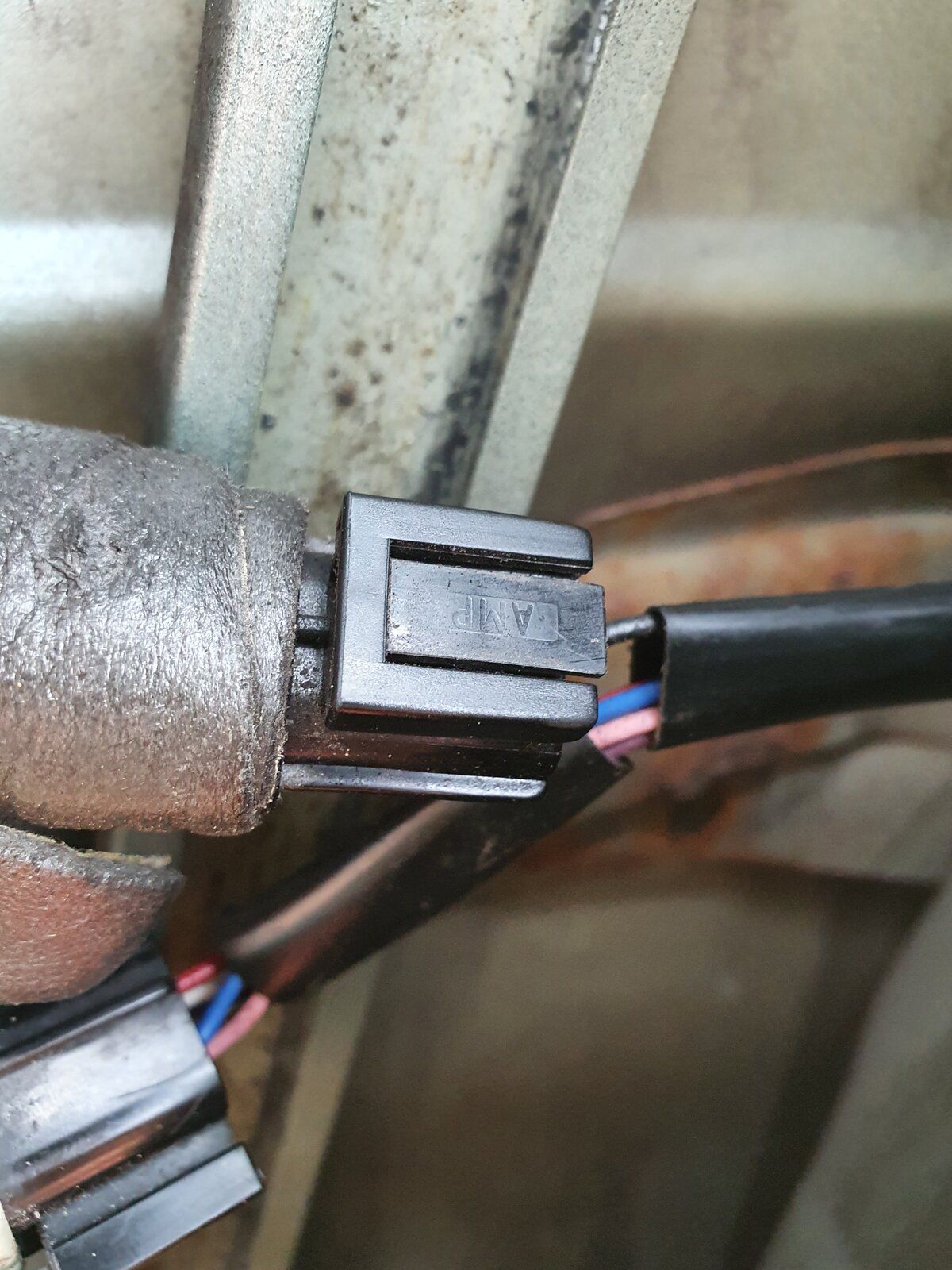

    In the meantime.i got access to them door switch pack cable loom.

    Looking rave pictures and what i have. Different.

    Looks.like something was already bodged with a black wire. Unless I missing this in rave amd it should be there ?
    I try uploading the pictures. 20200810_154919.jpg 20200810_154913.jpg


    Attached Files:

  10. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    14,816
    Likes Received:
    6,494
    Location:
    wirral and triquivijate
    That's not a bodge, you have the older type door latch with two plugs,the black wire is a ground. Were the plugs retained in the door frame? They are known to get caught in the window mechanism as @RangeRoller dt found out.

    RangeRoller dt likes this.
  11. RangeRoller dt

    RangeRoller dt Well-Sprung Member

    Joined:
    Dec 23, 2018
    Posts:
    12,293
    Likes Received:
    6,394
    Location:
    Trapped inside my head @ LZ asylum

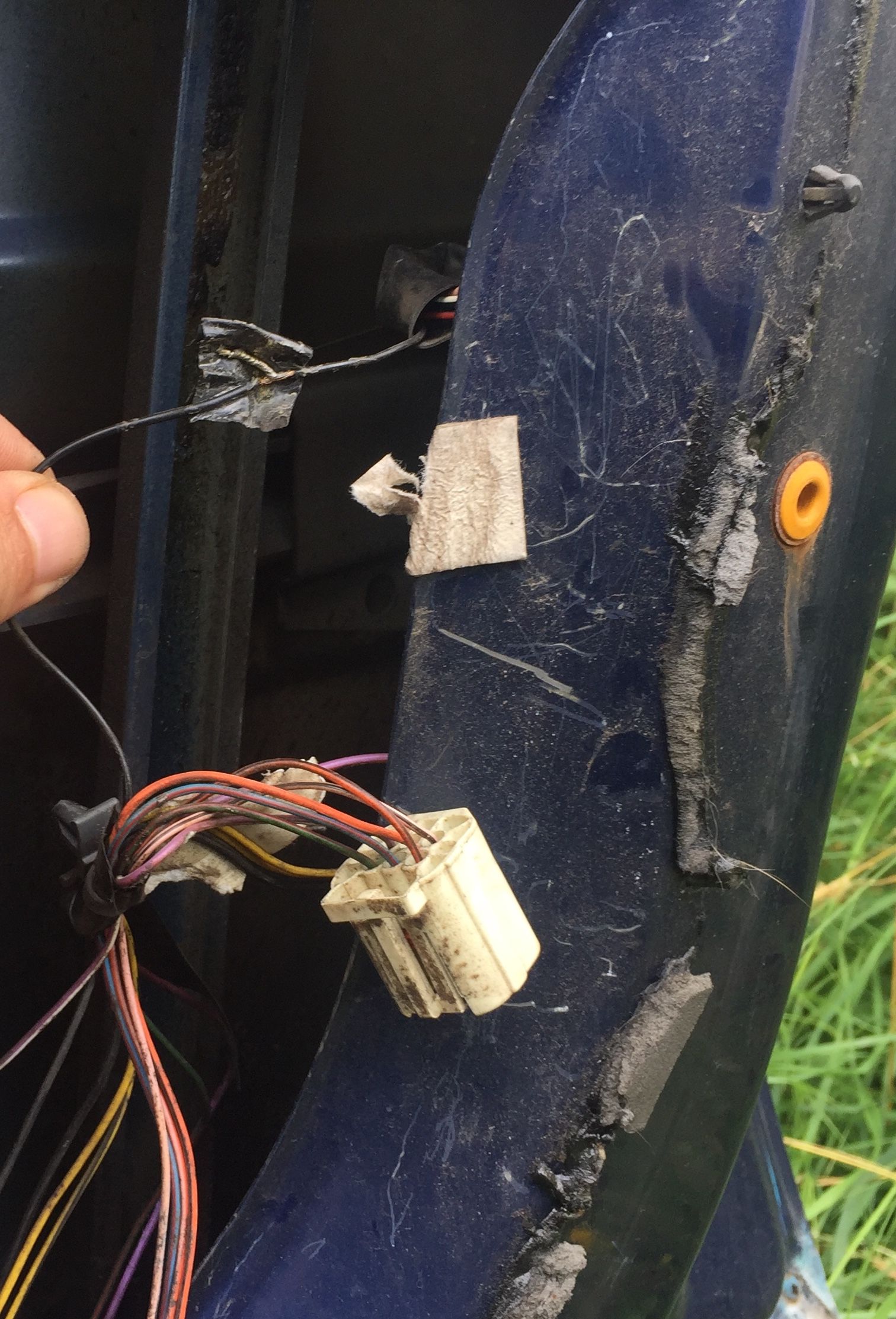

    4470619A-2496-4E98-9352-EC8B9C6EC685.jpeg Yes I have the bodge black wire too :D

  12. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    14,816
    Likes Received:
    6,494
    Location:
    wirral and triquivijate
    But we now know what caused yours.:eek::D:D

  13. RangeRoller dt

    RangeRoller dt Well-Sprung Member

    Joined:
    Dec 23, 2018
    Posts:
    12,293
    Likes Received:
    6,394
    Location:
    Trapped inside my head @ LZ asylum
    Yes chewed wires by window mechanism and detached connector where it pulled it were easy to spot.

    Whats wrong with his then?

  14. RangeRoller dt

    RangeRoller dt Well-Sprung Member

    Joined:
    Dec 23, 2018
    Posts:
    12,293
    Likes Received:
    6,394
    Location:
    Trapped inside my head @ LZ asylum
    Things not making sense in RAVE is normal bud
    Even when I had a version I stayed out of the end section ;)

    tomcat59alan likes this.
  15. RangeRoller dt

    RangeRoller dt Well-Sprung Member

    Joined:
    Dec 23, 2018
    Posts:
    12,293
    Likes Received:
    6,394
    Location:
    Trapped inside my head @ LZ asylum
    The gurus here explain it much betterer anyway

    tyke100 likes this.
  16. tyke100

    tyke100 Active Member

    Joined:
    Jun 6, 2020
    Posts:
    334
    Likes Received:
    48
    Location:
    derby
    yes they been properly attached. no wire damaged inside the door at all.
    that was my only concern someone may already bodged it.

  17. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    14,816
    Likes Received:
    6,494
    Location:
    wirral and triquivijate
    Have you done @martyuk 's microswitch test?

  18. tyke100

    tyke100 Active Member

    Joined:
    Jun 6, 2020
    Posts:
    334
    Likes Received:
    48
    Location:
    derby
    nope. i dont have an ohm meter. i get one tomorrow if the nanocom dont come beforehand. that should tell me faulty switches too.

    sorry i never ever used one of them and have not a cue what im doing with an ohm meter. lol.
    its like welding. i wouldnt have the slightes idea how to. i may would blow something up with it.

  19. tyke100

    tyke100 Active Member

    Joined:
    Jun 6, 2020
    Posts:
    334
    Likes Received:
    48
    Location:
    derby
    all we figured out so far i had the wrong eka. which is sorted. ( well if its still the right becm in there )
    the other thing we know for sure - the door dos not accept any clockwise turn apart from unlocking the driver door and boot.
    there is nothing it dos. no noise no surring nothing.
    usual the indicators flash when locking and unlocking. the flash when locking but not unlocking.

  20. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    14,816
    Likes Received:
    6,494
    Location:
    wirral and triquivijate
    Just follow marty's guide.

    Grrrrrr and tyke100 like this.
