Another Air Ride issue.

No pics of rear but I'll have a look in the morning when it's light.

Ok. So something different today. Running live data on the snap on still but maybe getting somewhere. Dropped pressure out of the reservoir, the compressor actually stayed on for a minute or 2 instead of the usual few seconds but as soon as it hits 4.3bar it shuts off. Would I be right in thinking the sensor on the actual reservoir is faulty? Checked levellers this morning and all seem fine. Unplugged them one at a time and each produced fault codes when unplugged.

I only know the P38 but sounds like you have leaky airbags or lines to the back bags

oakey said:

I only know the P38 but sounds like you have leaky airbags or lines to the back bags

Click to expand...

The l322 is a bit more complicated than the P38, someone posted a schematic diagram some time ago but I can't find it.

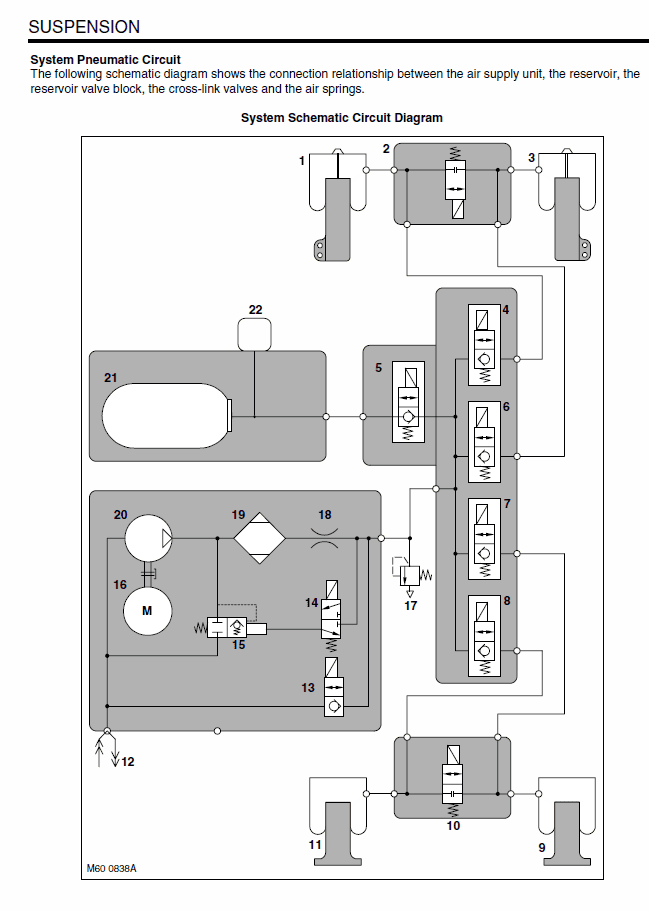

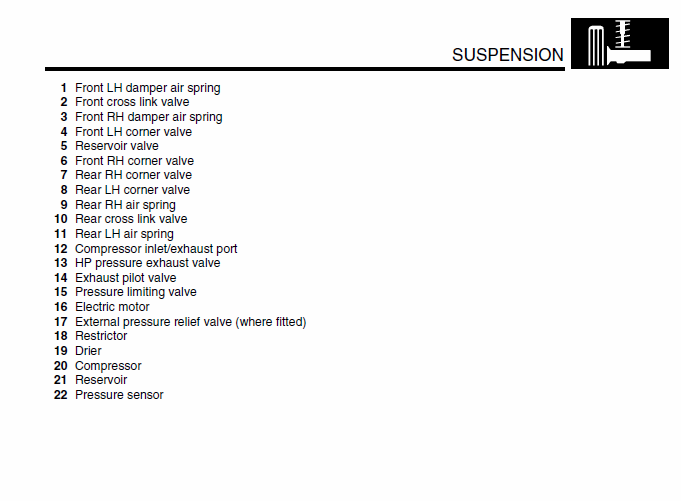

It's all in the later RAVE docs pages 230-258. Here's the diagram & legend.

pwood999 said:

It's all in the later RAVE docs pages 230-258. Here's the diagram & legend.
View attachment 252071


View attachment 252072

Click to expand...

Well done Pete.

I did create a PDF of the relevant section, but it ended up as 21MB and will not upload !!

Final word from me on this one. After going through the whole system and finding nothing, I started swapping out parts from a friends RR and turned out the 3 compressors I had were all faulty, the 4th one worked a treat and was left in there.

Well done
Get Kurt to repair your spares
