Another 200tdi in a Series

StuntmanAd · Apr 13, 2010

I'm in the middle of fitting a 200 tdi in to my Series 3 swb.

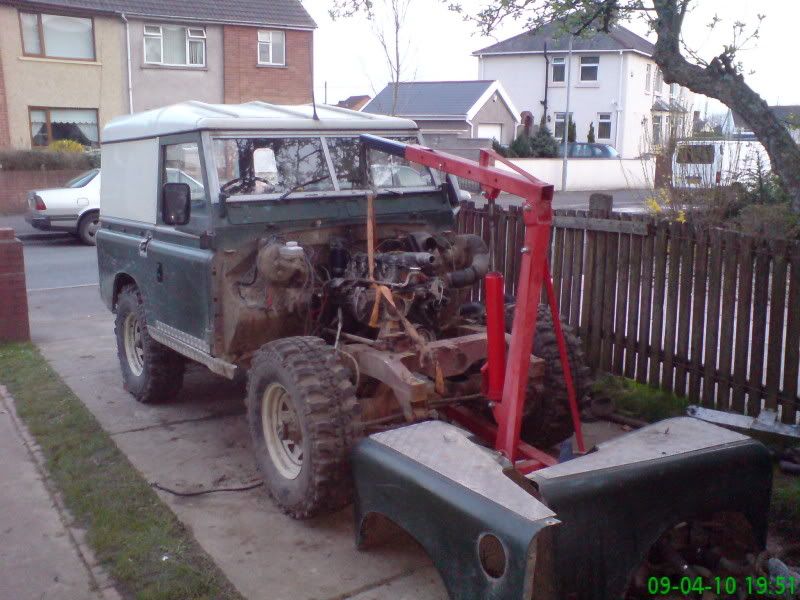

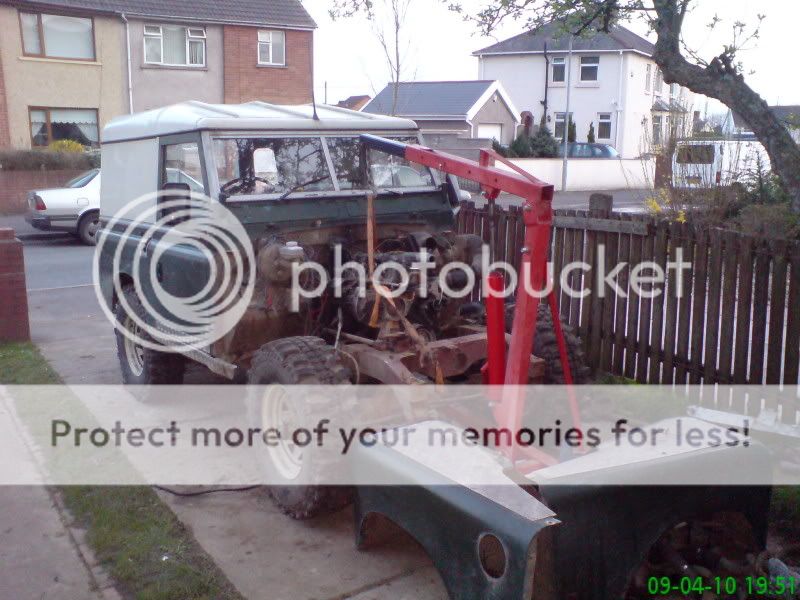

See

I've got the injectors to fit, wiring to hook up, boost pipes to attatch and then the radiator pipes.

Can anybody share me some under bonnet pics of a 200tdi in a series please. So I can get an idea where the rad hoses run too and what to do about an expansion bottle.

Tar, Ad

oversteer · Apr 14, 2010

yeah i can if you pm me your e-mail address. The pics may not be much use if you used the standard series rad as i used one from a TDi.

let me know

cheers

steve2286w · Apr 16, 2010

put em here so we can see

oversteer · Apr 19, 2010

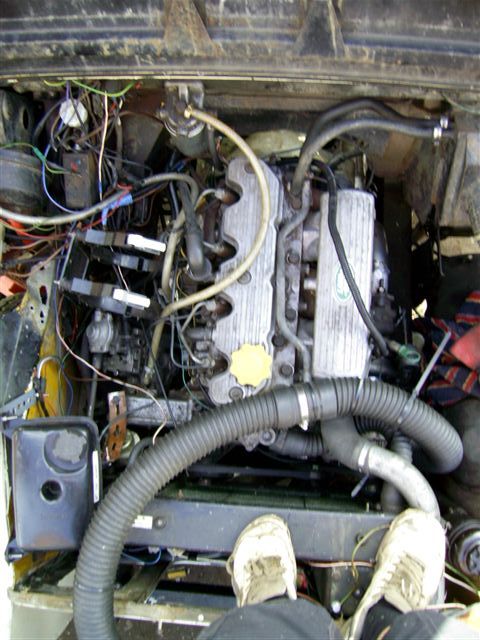

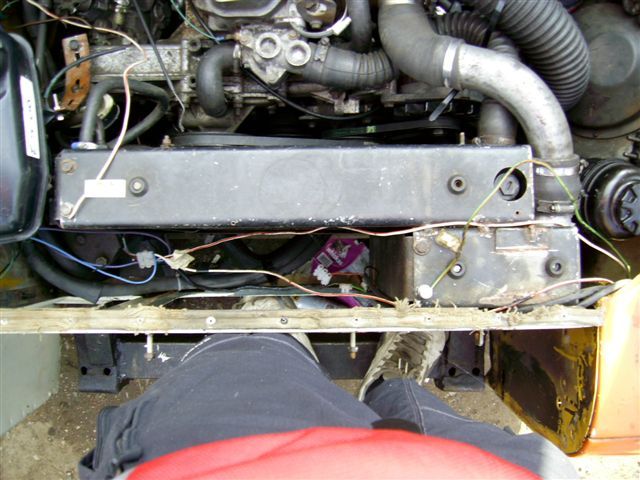

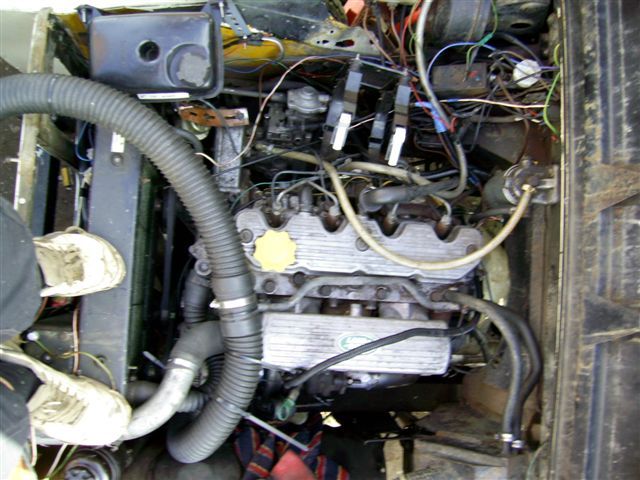

am trying to add photos but am hopeless at this sort of thing...

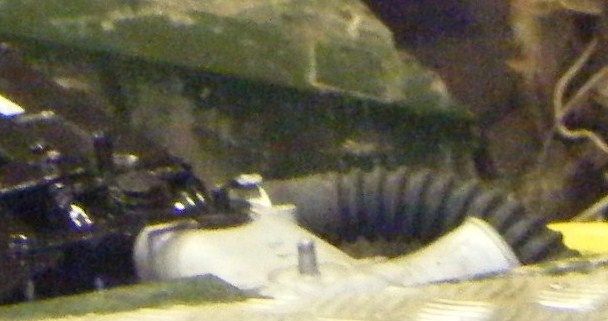

I used a 3ooTDI rad and intercooler with Tdi expansion bottle.

oversteer · Apr 19, 2010

Disco1000A · Apr 20, 2010

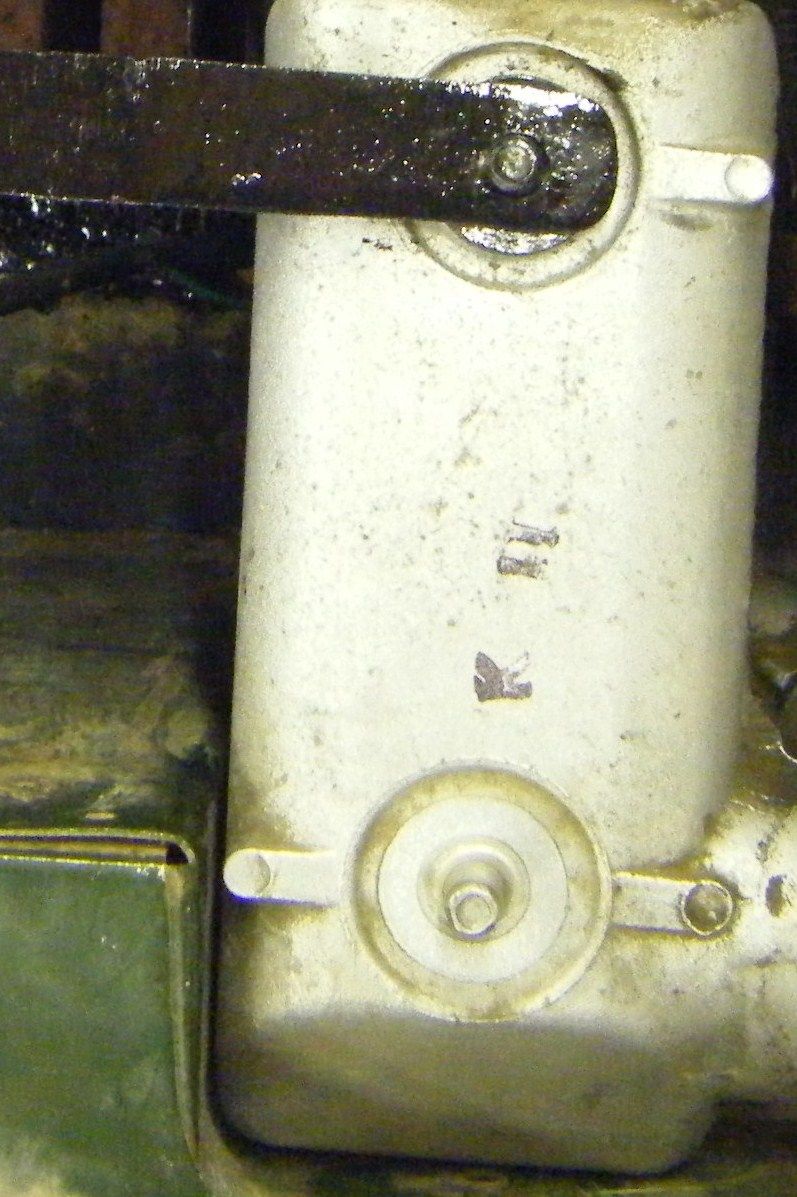

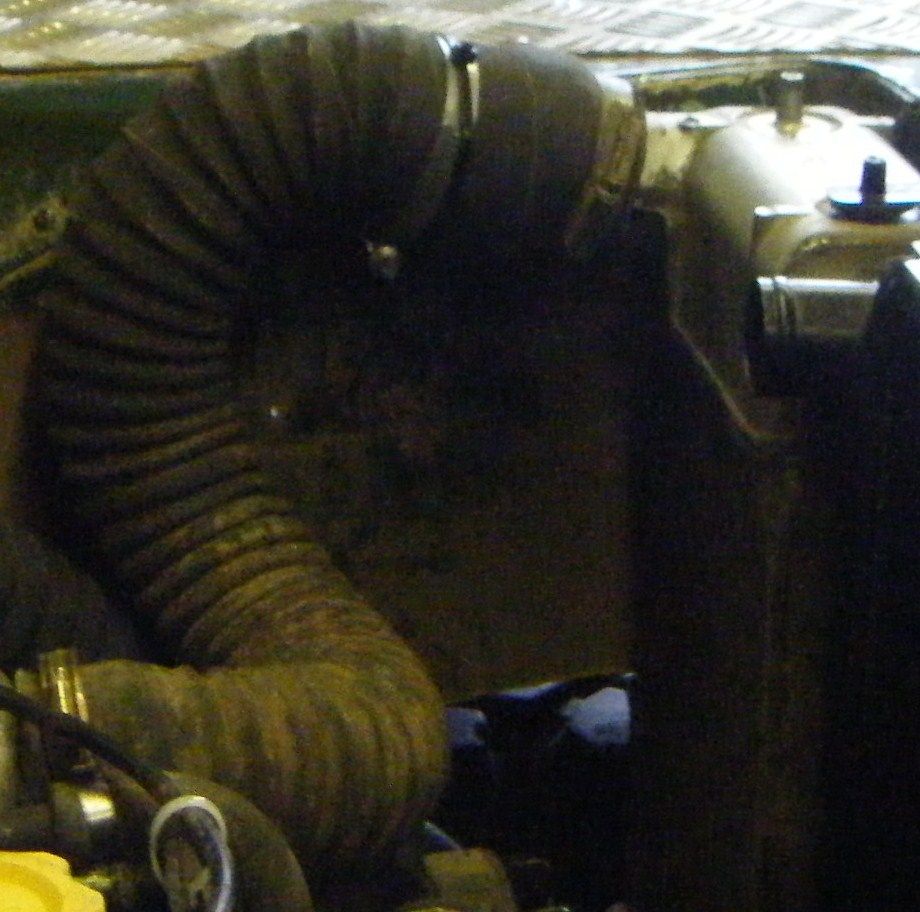

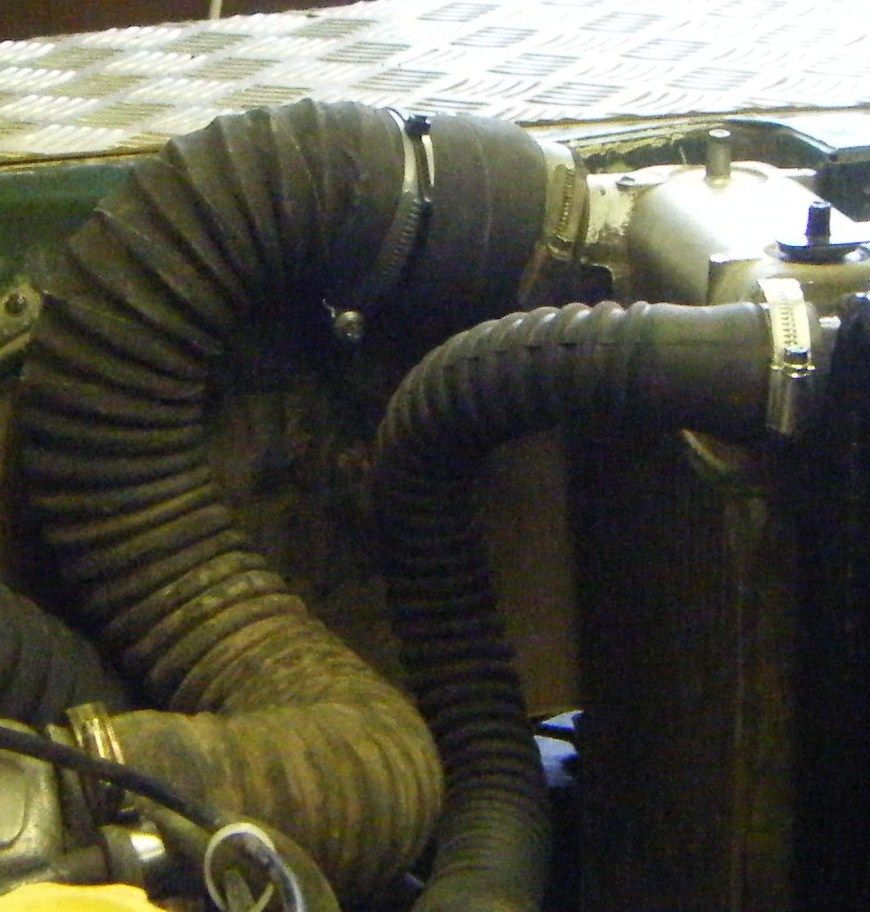

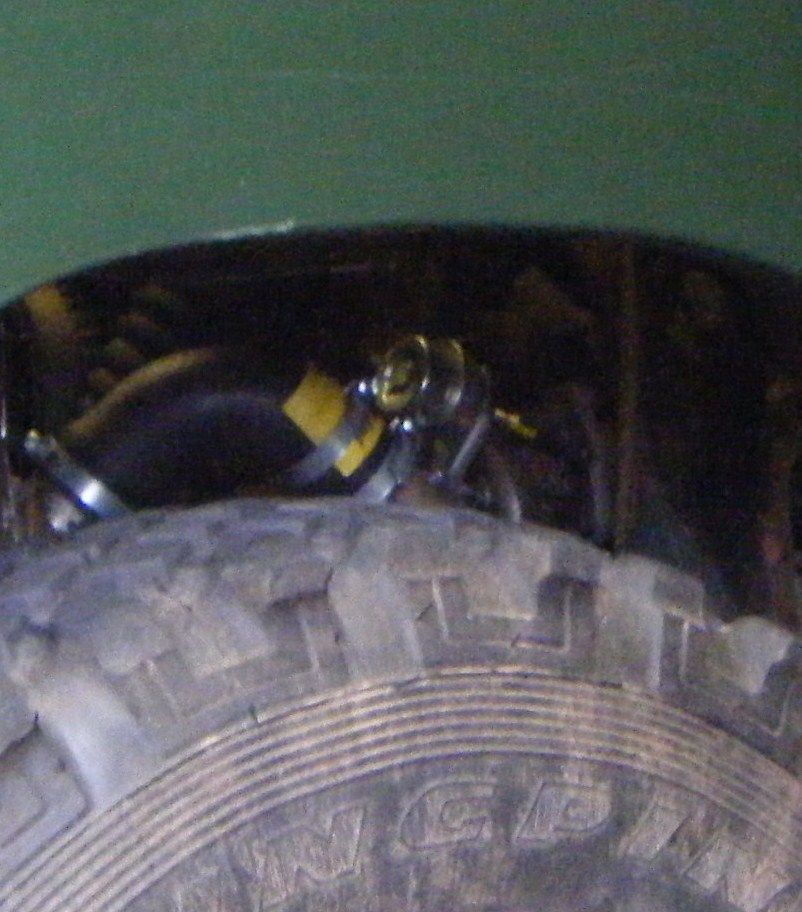

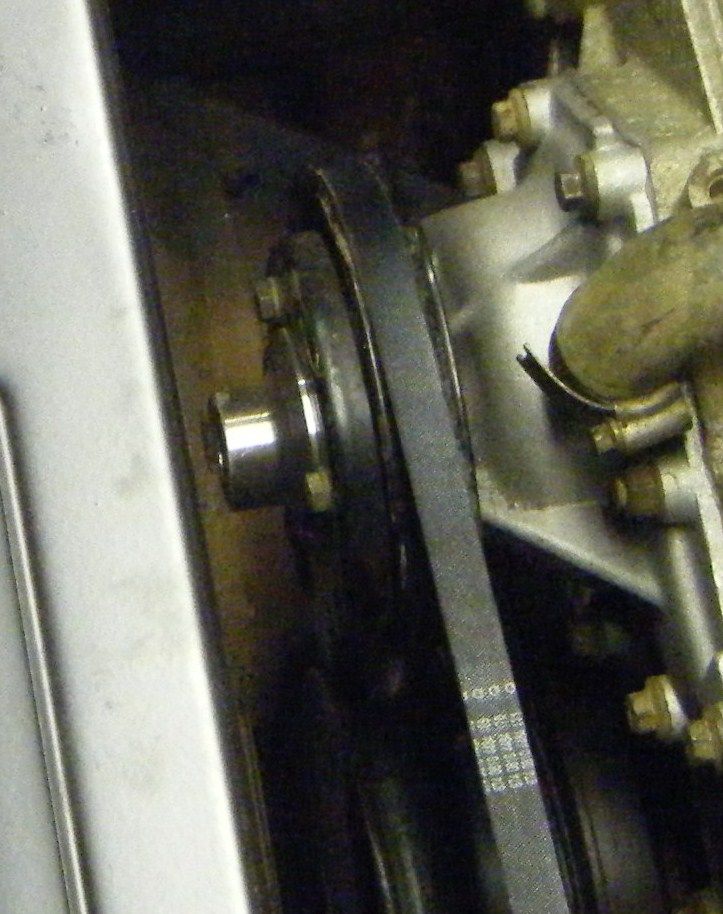

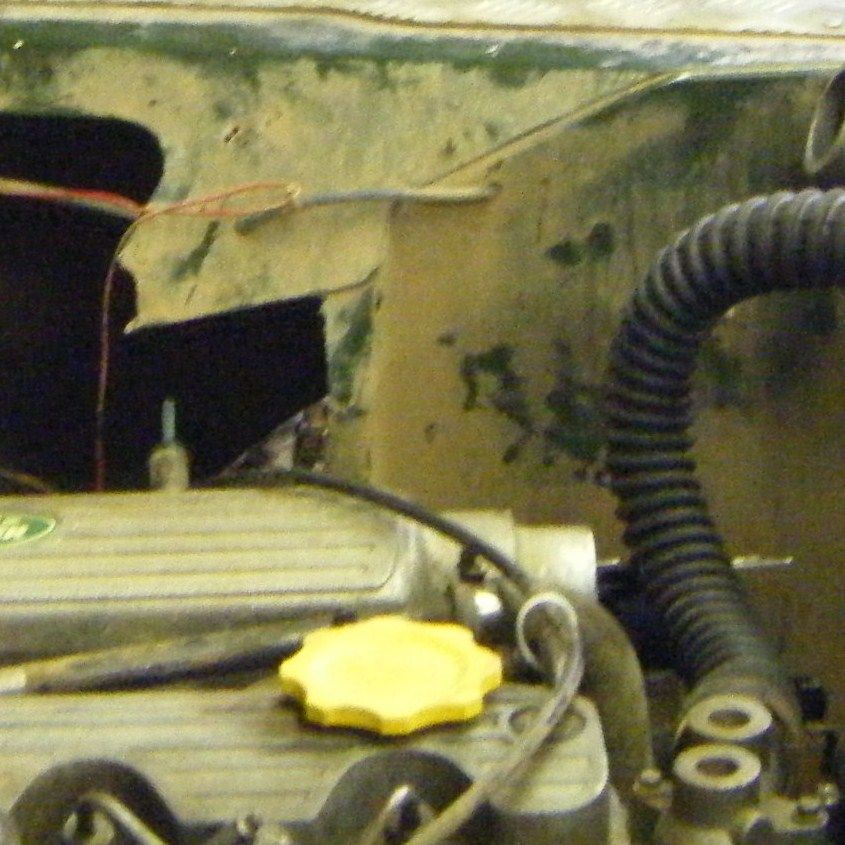

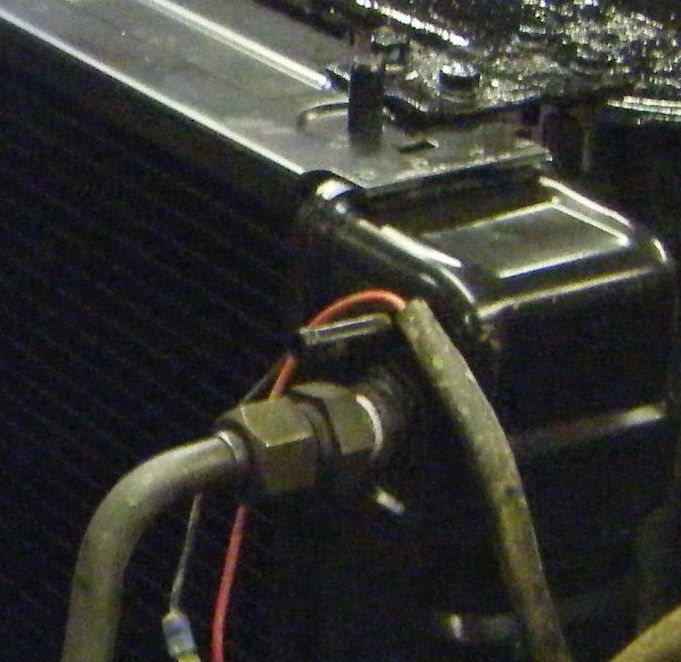

here are some pics of mine when i converted mine to tdi.

graham
___________________
03 d2 td5 auto e.s.
97 d1 300 tdi man.

Disco1000A · Apr 20, 2010

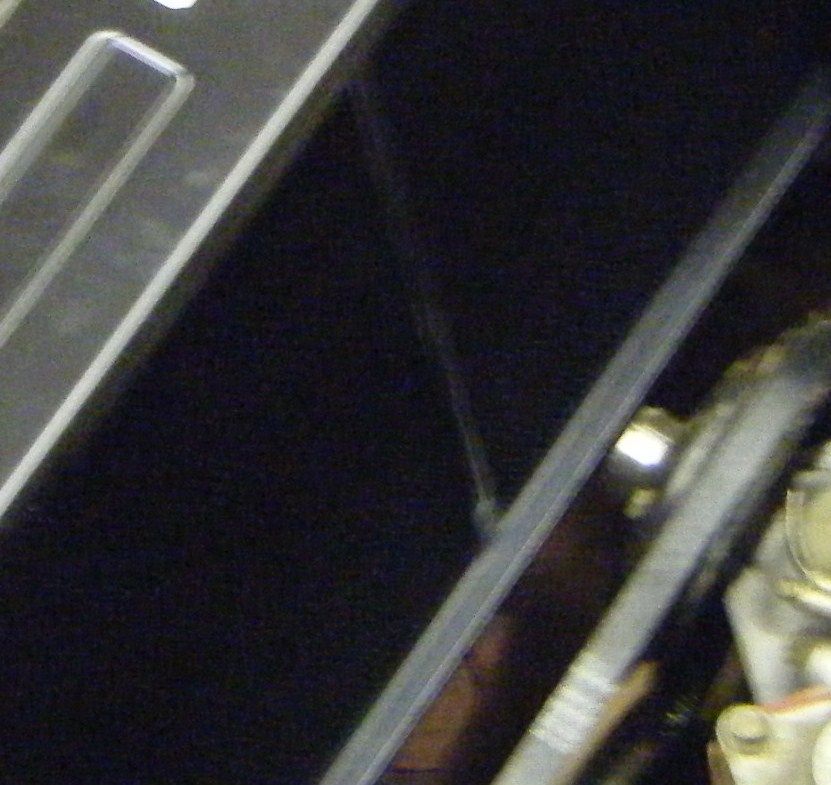

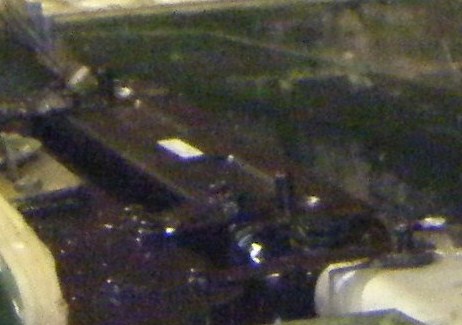

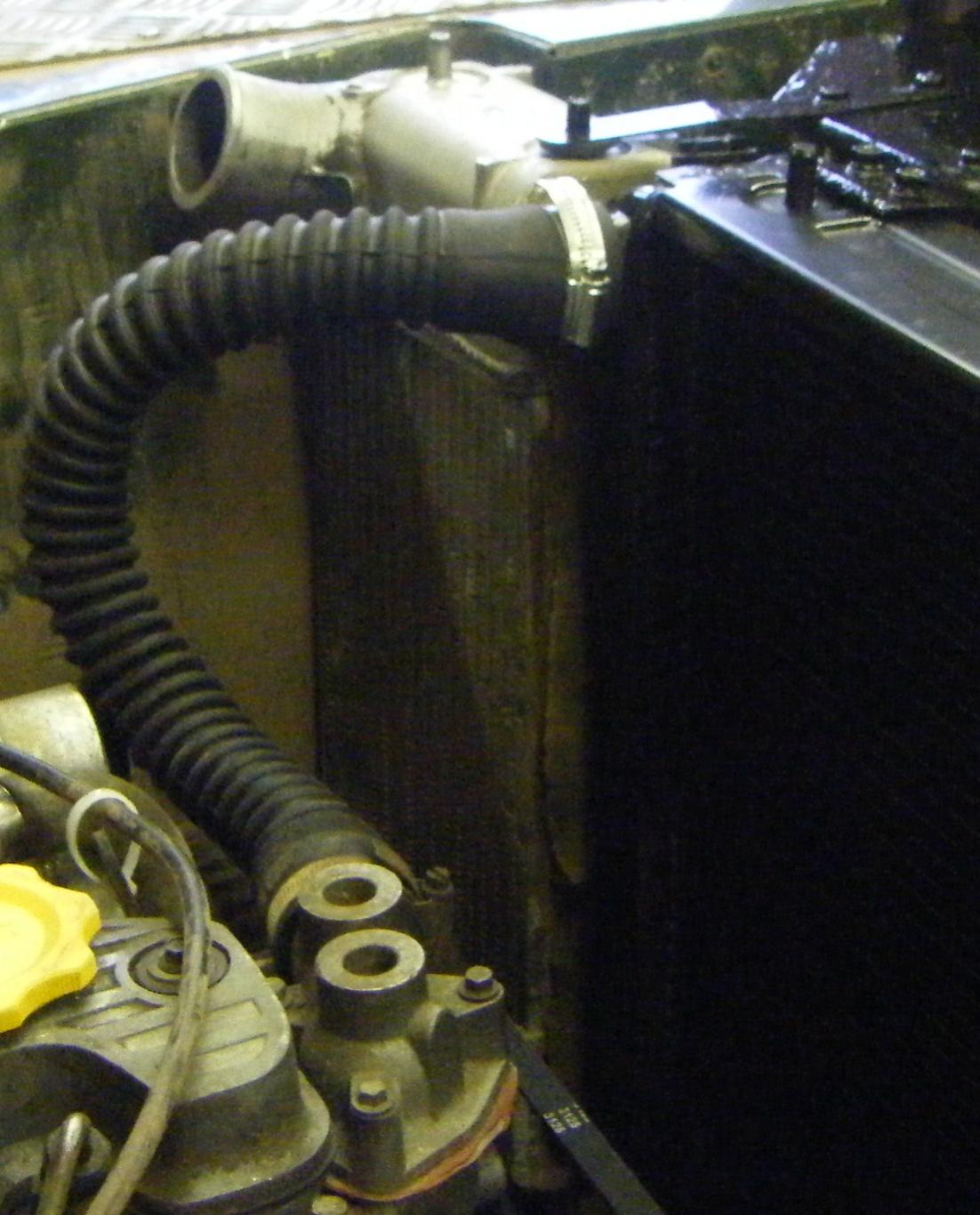

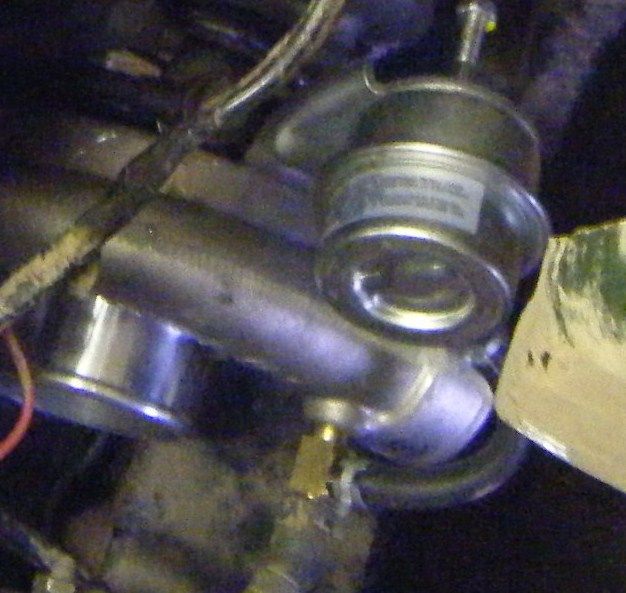

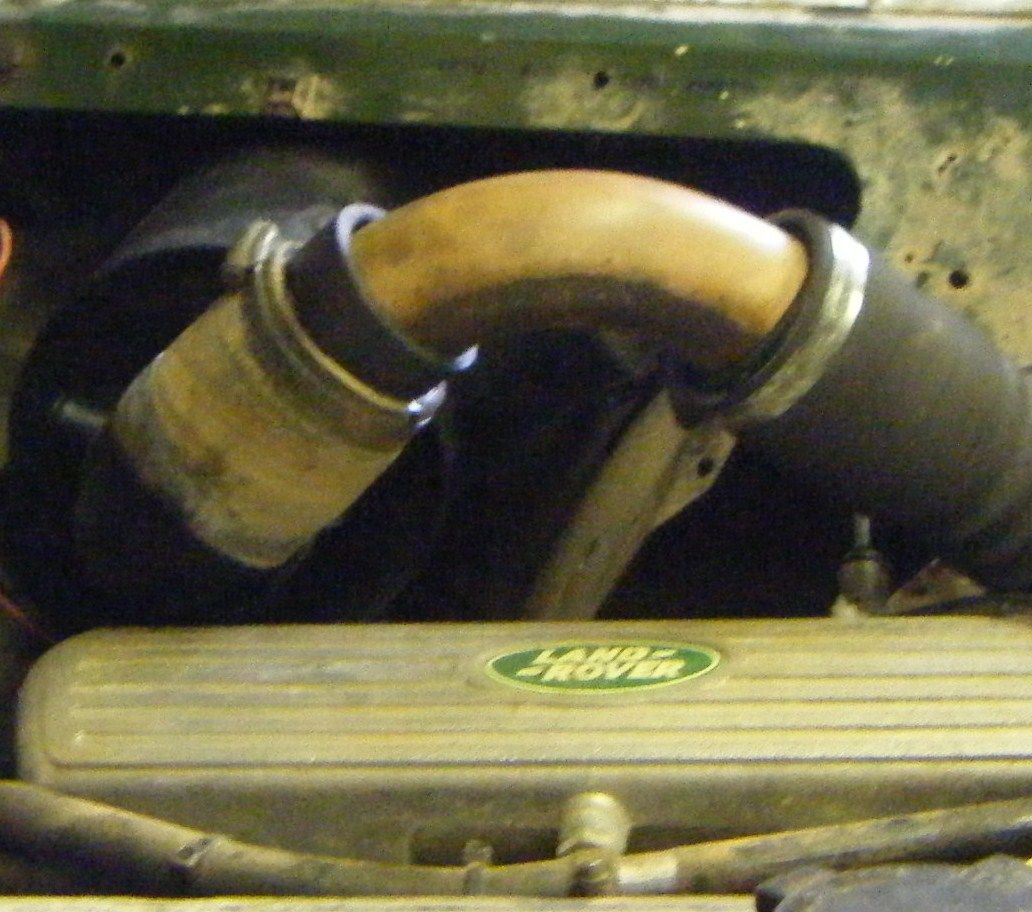

and some more.

graham
___________________
03 d2 td5 auto e.s.
97 d1 300 tdi man.

Beneagles · Apr 20, 2010

Graham - where did you get the flexi top rad hose? (pic 10)

Disco1000A · Apr 20, 2010

halfords sell them part no is HLF 215 £13 each i also used two more joined together for the bottom hose as i used a new 300 tdi rad, don't ask any of the numpties in there as they will just say they don't have them just pull draws out from under the shelves where the hoses are or look in pigeon holes if they have them ours does.

graham
__________________
03 d2 td5 auto e.s.
97 d1 300 tdi man.

Beneagles · Apr 21, 2010

cheers for that

oversteer · Apr 21, 2010

Graham - looking at the pics you posted the engine sits a lot lower than mine, what sort of clearance do you have between the crankshft pulley and the front diff / axle??

cheers

Disco1000A · Apr 21, 2010

oversteer said:
Graham - looking at the pics you posted the engine sits a lot lower than mine, what sort of clearance do you have between the crankshft pulley and the front diff / axle??

cheers

Hi oversteer

i don't have the landy anymore as i sold it two months ago so can't measure it but from memory with std springs and off roading some times the front axle would skim the crank pulley so i changed to parabolics since then it never touched as the chassis sits about 2"- 3" higher and when off roading it never touched, the engine was sat on std petrol engine mounts and rubbers hope this helps.

gragam
_________________
03 d2 td5 auto e.s.
97 d1 300 tdi man.

dr pepper · Apr 23, 2010

I'm having clearance issues with my 300 tdi.
I did mange to weld on new mounts and get everything in without taking the wings off.
Having probs now getting the pipes to the rad, the 300 is a bit longer.

zojdson · Apr 25, 2010

http://www.landyzone.co.uk/lz/f6/200tdid-lhd-series-3-a-89329.html

mine is a LHD, so a bit different..
