Anderson plug in blank air vent?!?

Discussion in 'Defender 90 / 110 / 130' started by huffhuff, Aug 1, 2015.

< Previous Thread | Next Thread >
  1. huffhuff

    huffhuff Well-Known Member

    Joined:
    Feb 26, 2015
    Posts:
    766
    Likes Received:
    109
    Location:
    Home Counties
    Evening all,

    I've been thinking about where to fit my Anderson plug as I don't really want it in the typical battery box location. I'd rather it was external and not needing doors/windows open for use.

    I've been thinking about using the blanked air vent on the wing to house something already, so what are people's opinions on mounting the Anderson plug in there too?

    I'm going to fit the flap with a hinge and filing cabinet-esque lock. I'll run the positive to the back of the starter motor and the negative to ground somewhere close on the chassis.

    Anything obvious I'm missing?!?

  2. lynall

    lynall Well-Known Member Full Member

    Joined:
    Feb 28, 2011
    Posts:
    15,666
    Likes Received:
    10,163
    Location:
    Current
    Why not just mount it behind the grill then all you have to do is slide the plug though the grill slats to plug it in, I think I read on the D3 forum where a guy had made the land rover grill badge removable and the anderson plug was behind the badge.
    Front of the vehicle is probably the most user friendly, just nose the car up to where you want it and you are sorted.
    Prob with outside mounting is corrosion, Im sure is vaselined up it will be fine, on trucks over the years Ive seen badly rotted out anderson plugs.

  3. lynall

    lynall Well-Known Member Full Member

    Joined:
    Feb 28, 2011
    Posts:
    15,666
    Likes Received:
    10,163
    Location:
    Current
  4. huffhuff

    huffhuff Well-Known Member

    Joined:
    Feb 26, 2015
    Posts:
    766
    Likes Received:
    109
    Location:
    Home Counties
  5. JohnM70

    JohnM70 Seen Your Member LZIR Despatch Agent

    Joined:
    Jun 13, 2013
    Posts:
    35,501
    Likes Received:
    31,490
    Location:
    Over there
    Damn good idea! Will add to the list on the re-build!

  6. FlyingPete

    FlyingPete Well-Known Member

    Joined:
    Aug 17, 2013
    Posts:
    1,219
    Likes Received:
    208
    Location:
    Coventry
    I've seen this before which looks like a good (if expensive!) solution: http://www.mudstuff.co.uk/gmb-fender-locker.html

    I daresay that with some sheet metal, tin snips and a bit of ingenuity you could make up something very similar. I'd be tempted to glue the original plastic cover to the top of the lid too to disguise it.

    If you're not bothered too much about the appearance, we have a defender tow truck at work that has an anderson connector simply bolted to the cover plate, with the wires going through a pair of holes in it to the battery.

  7. huffhuff

    huffhuff Well-Known Member

    Joined:
    Feb 26, 2015
    Posts:
    766
    Likes Received:
    109
    Location:
    Home Counties
    Slowly gathering the bits and bobs for the above. Where's best for 35mm battery cable? No cheaper than good old eBay? I'm in two minds now, do I just get a couple of meters and to fit and then chop the ends off my 'ok' jump leads of buy a proper heavy duty set?!?

    Last edited: Aug 3, 2015
  8. timtheenchanteruk

    timtheenchanteruk Well-Known Member

    Joined:
    Aug 24, 2011
    Posts:
    4,633
    Likes Received:
    22
    Location:
    Leeds
    welding suppliers are good source for 35mm cable, and its nice and flexible too.

  9. huffhuff

    huffhuff Well-Known Member

    Joined:
    Feb 26, 2015
    Posts:
    766
    Likes Received:
    109
    Location:
    Home Counties
  10. ratty

    ratty I'm not special I'm limited edition

    Joined:
    Sep 18, 2007
    Posts:
    34,277
    Likes Received:
    55
    Location:
    Stuck in a ditch somewhere in Somerset

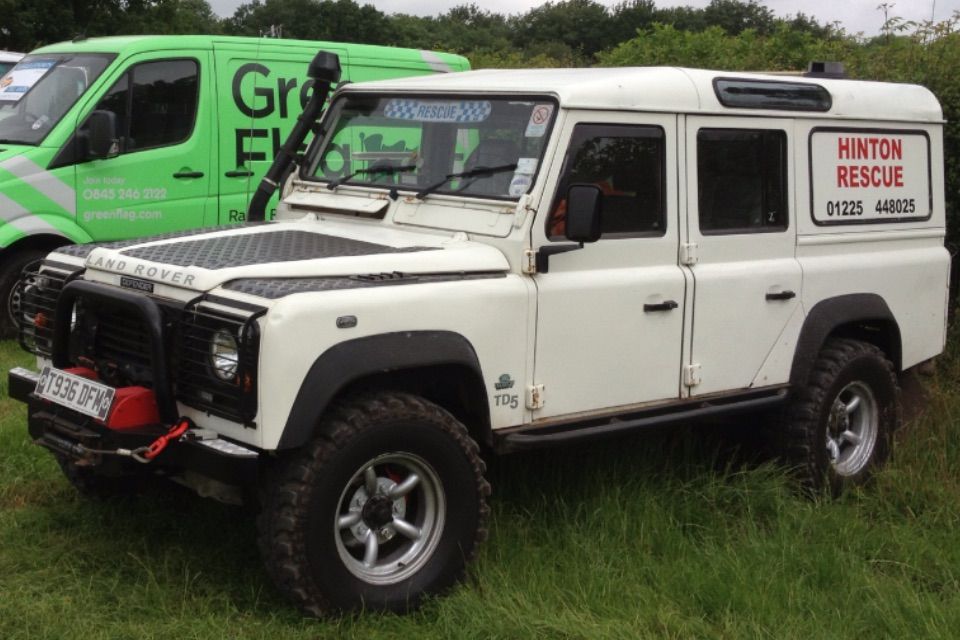

    Bolted Straight onto the front bumper.


    bankz5152 likes this.
  11. huffhuff

    huffhuff Well-Known Member

    Joined:
    Feb 26, 2015
    Posts:
    766
    Likes Received:
    109
    Location:
    Home Counties
    Super thanks, what do they use it for? Torch extension? Just so I know what to ask for when I call, there are 2 semi-local

    Thanks

  12. ratty

    ratty I'm not special I'm limited edition

    Joined:
    Sep 18, 2007
    Posts:
    34,277
    Likes Received:
    55
    Location:
    Stuck in a ditch somewhere in Somerset
    Earth cable

  13. huffhuff

    huffhuff Well-Known Member

    Joined:
    Feb 26, 2015
    Posts:
    766
    Likes Received:
    109
    Location:
    Home Counties
    Simple yet effective ratty. I do like the idea of concealing it behind the badge though - it's a bit more James Bond! :)

  14. huffhuff

    huffhuff Well-Known Member

    Joined:
    Feb 26, 2015
    Posts:
    766
    Likes Received:
    109
    Location:
    Home Counties
    Excellent, cheers

  15. timtheenchanteruk

    timtheenchanteruk Well-Known Member

    Joined:
    Aug 24, 2011
    Posts:
    4,633
    Likes Received:
    22
    Location:
    Leeds
    earth lead replacements mainly, just mark the ends so you know which is +ve, I use a bit of heat shrink, but a red tie wrap is just as good, or at a stretch red tape (tho it does come off) for jump leads just get the ones with red and black insulation on the clamps.

  16. huffhuff

    huffhuff Well-Known Member

    Joined:
    Feb 26, 2015
    Posts:
    766
    Likes Received:
    109
    Location:
    Home Counties
    Will, red heat shrink it is :)

    Thanks all, I will update with progress.

  17. lynall

    lynall Well-Known Member Full Member

    Joined:
    Feb 28, 2011
    Posts:
    15,666
    Likes Received:
    10,163
    Location:
    Current
    If it can be seen from outside the car a mega fuse is also a good idea just in case someone comes along with a chunk of steel and shorts it out.
    Remember the stories a few years ago where people were pulling the winch cable over the car and hooking it on the rear and then shorting the winch solenoid out!

  18. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    8,667
    Likes Received:
    2,550
    Location:
    South London/North Kent
    :eek: I fitted mine to the passenger side footwell, short amount of cable, inside and It can reach near enough anywhere I need it to. Bad point passenger door has to be open.. Though I suppose that will stop me driving away before disconnecting! haha

    If it makes any odds I used 175amp battery cable from Maplin, did the trick nicely, also used spiral wrap to make one cable black.

  19. huffhuff

    huffhuff Well-Known Member

    Joined:
    Feb 26, 2015
    Posts:
    766
    Likes Received:
    109
    Location:
    Home Counties
    I just got some cable from the local welding supply place, £2.50 a meter for the 35mm stuff! Billy bargain!

    bankz5152 likes this.
  20. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    8,667
    Likes Received:
    2,550
    Location:
    South London/North Kent
    Nice job!
