Air suspension

Discussion in 'Land Rover Discovery' started by Davrav, Nov 22, 2020.

< Previous Thread | Next Thread >
  1. Davrav

    Davrav Member

    Joined:
    Sep 2, 2020
    Posts:
    14
    Likes Received:
    3
    Location:
    Essec
    Hi,
    I have a 2003 td5 auto
    Thought I would covert my car back to air, easy I thought. well you as you know nothing is.

    I have put new air bags on new sensors and rebuilt the compressor.

    when I start the car up the pump doesn’t come on, although if I go into nanocom I did inflate the bags a bit but now they do not seem to pump up have had it jacked up driven over speed bumps , turned the ignition on and off numerous times all to no avail.

    the compressor does work via nanocom but seems unable to put any more air into the bags.

    help what am I doing wrong. ?
    Tia Dave

  2. sierrafery

    sierrafery Well-Known Member

    Joined:
    Jun 30, 2007
    Posts:
    14,363
    Likes Received:
    2,328
    Location:
    West of Transylvania

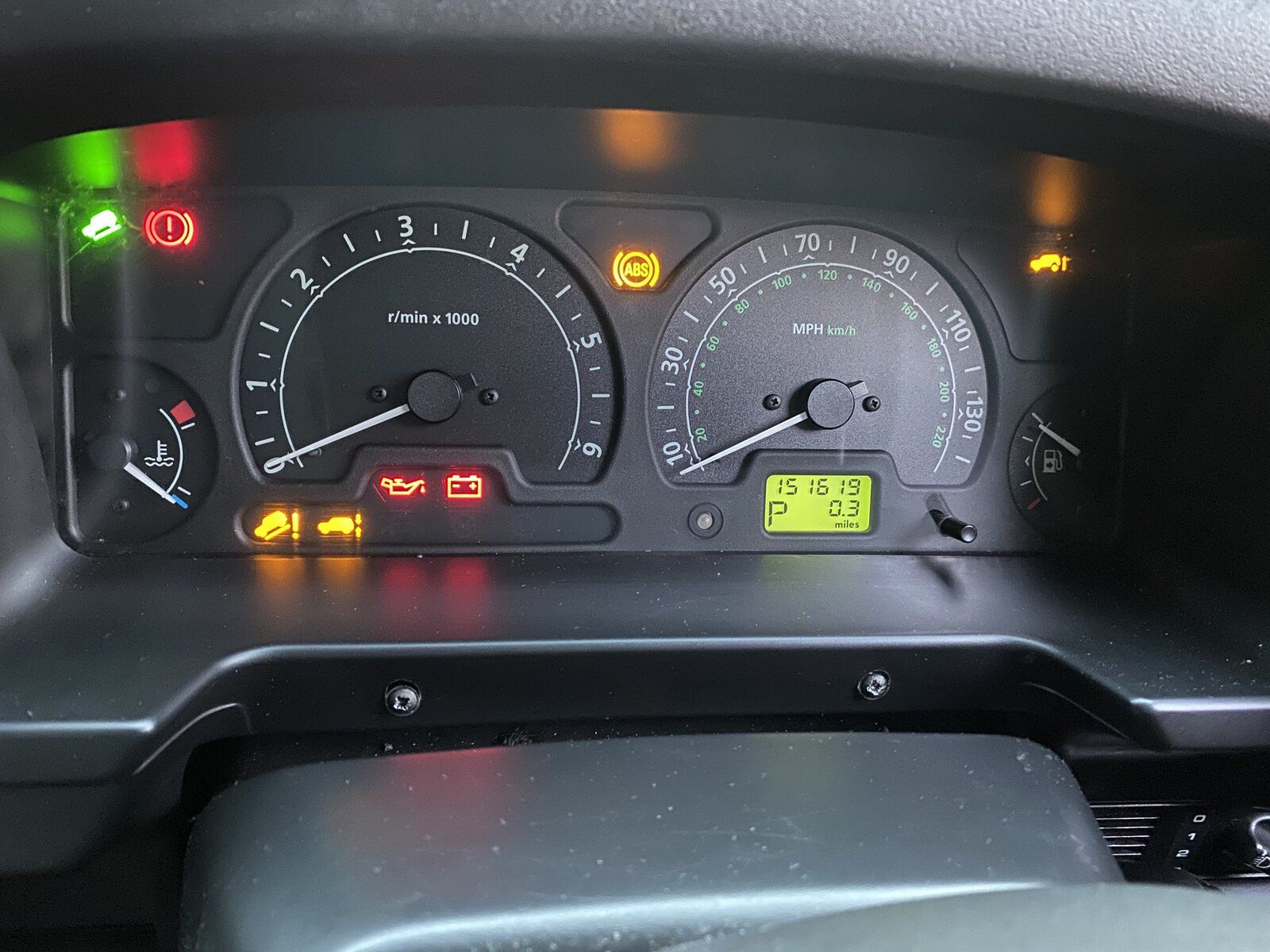

    Hi, do you mean that the compressor is running but the rear is not rising ? Anyway, did you double check if the setting in SLABS and BCU are both saved for air suspension ? Can you see the SLS related warning lamps ?

  3. Davrav

    Davrav Member

    Joined:
    Sep 2, 2020
    Posts:
    14
    Likes Received:
    3
    Location:
    Essec

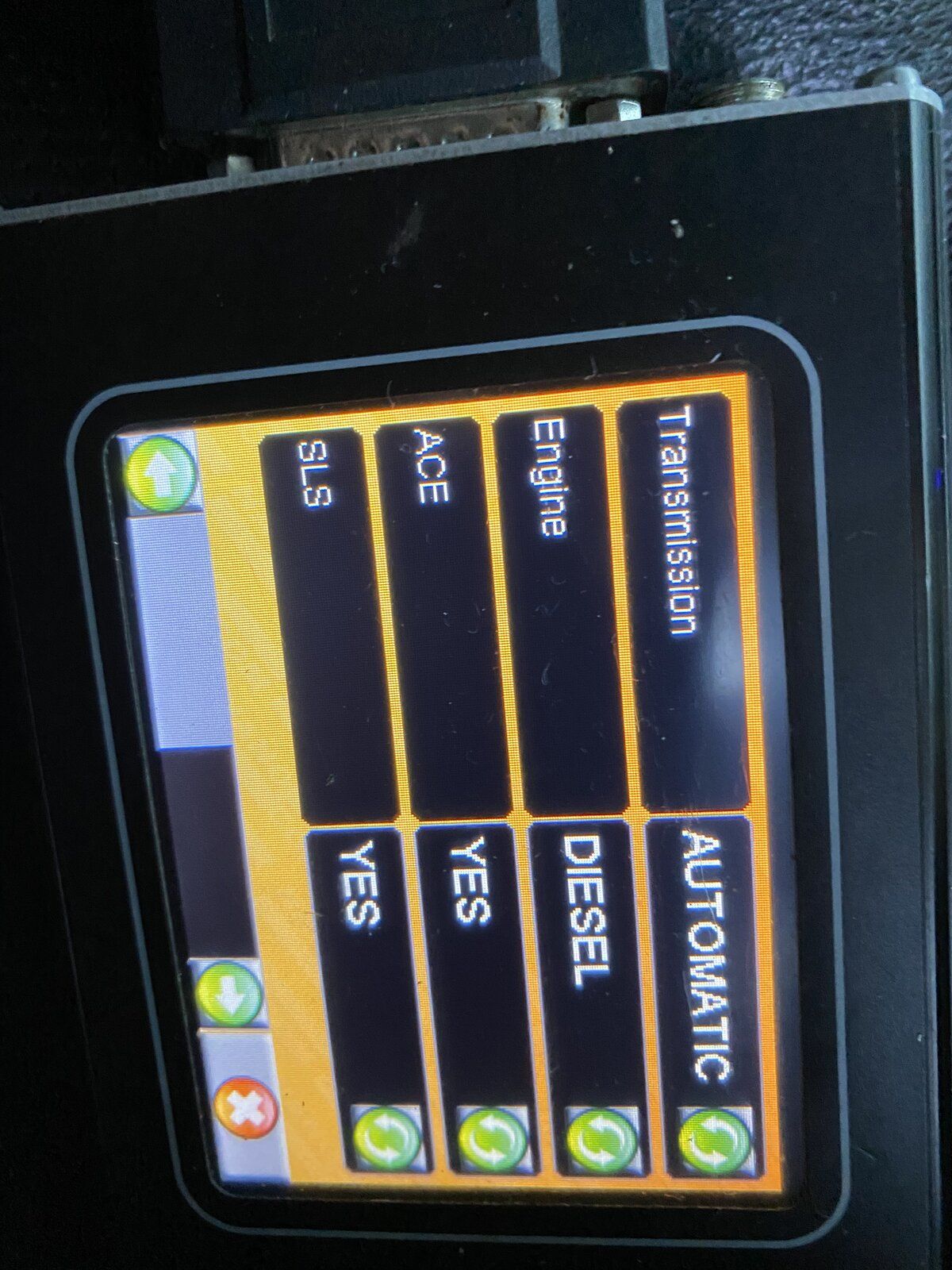

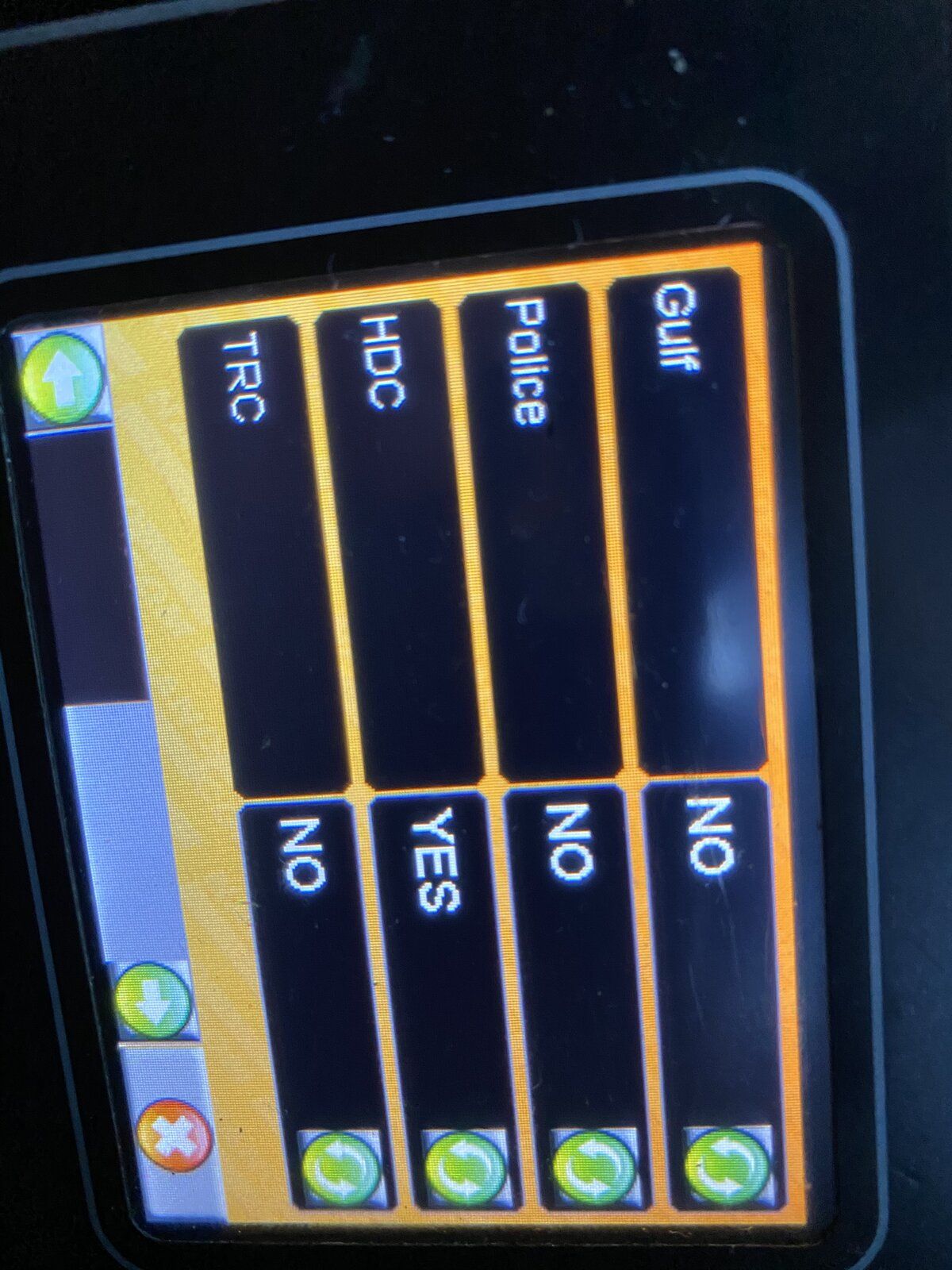

    Yes the compressor will run when I do it via nanocom but not raising, also you can har I it for about 10 minutes or so (when switched off ) I guess trying to sort it self. I have checked the bcu seem ok to me. Hope you don’t mind I’ve included some screen shots..


    Attached Files:

  4. sierrafery

    sierrafery Well-Known Member

    Joined:
    Jun 30, 2007
    Posts:
    14,363
    Likes Received:
    2,328
    Location:
    West of Transylvania
    You have to check the setting in SLABS too not only BCU but it seems that the compressor is not up to the job anyway also you have to calibrate it

  5. Davrav

    Davrav Member

    Joined:
    Sep 2, 2020
    Posts:
    14
    Likes Received:
    3
    Location:
    Essec
    Thanks &or the reply it is set to air in slabs also. I was wondering that. How do you mean Callicrates it ?
    Thanks

  6. Henry_b

    Henry_b Waiting..........

    Joined:
    Jan 29, 2018
    Posts:
    12,656
    Likes Received:
    11,920
    Location:
    Its Full of WIN.....
    Calibrate it, you need to set the standard and extended height IIRC

  7. sierrafery

    sierrafery Well-Known Member

    Joined:
    Jun 30, 2007
    Posts:
    14,363
    Likes Received:
    2,328
    Location:
    West of Transylvania
    In the SLABS - Utility - SLS calibration menu you have to inflate each side step by step(as it inflates only few cm at once) untill the vehicle is on even level then store those heights but if the compressor is not powerfull enough for that you need a good one

    Last edited: Nov 22, 2020
  8. Davrav

    Davrav Member

    Joined:
    Sep 2, 2020
    Posts:
    14
    Likes Received:
    3
    Location:
    Essec
    Ahh ok. I have been trying that via the calibration on the nanocom nut it won’t go up any further than it is at the moment guess it’s time to look at a new compressor !
