air suspension problem???????

Hi lad i new i was tempting fate in a previous thread i said i had no problems with my RR did'nt hold a big enough bit of wood . The air suspension gone on the blink wont go up now orderd a new seal for the pump off ebay fingers crossed it works

Teach me to keep me gob shut wont it but still love it

hi mate,did the seal work....my p38 takes about 5 min to go up most of the time then it will go up in 5 sec...doing my head in..

Hi mack

The old seal was fooked but it was the pump that was on the blink.
Not running for long enough so not making enough air

mack333 said:

hi mate,did the seal work....my p38 takes about 5 min to go up most of the time then it will go up in 5 sec...doing my head in..

Click to expand...

this sounds like a def seal, the same as i had, it took ages to get a tank full of air from empty but when full it was fine, the seal in my compressor was so knackered i was amazed it worked at all, £80 and 20 mins all fixed.

Compresser thermocouple on mine was fooked new compresser all ok now

thanx nice one..

where is the seal on the compressor?

mine sometimes takes ages to go up, but then only takes a few seconds other times.. WTF??

what could this be?

cheers,

Sam

curly
have a look at this link it will tell you all you nead
Range Rover Air Compressor Rebuild
hope this helps M8

alan h said:

curly
have a look at this link it will tell you all you nead
Range Rover Air Compressor Rebuild
hope this helps M8

Click to expand...

thanks for that matey! i'll have a dam good read of that a bit later. i just took my pump out, and held my finger over the end while it was on, and it was making pressure, but not loads. what pressure is it supposed to get upto? it goes up eventually, but this morning it went up like normal.

any other ideas, cos i think my pump is ok..

also, i couldn't hear any hissing from underneith just now either..

bummer!

cheers,

CURLY

hi mate,
i got a recon kit for my pump of ebay,takes about 20 min to fit and it work fine now..
the old seal was so bad but wood pump car up very slow...
if i was u i wood try that...
good luck

The pump should manage 10 barg (145 psi) air pressure as that is the max rated pressure of the system.

I suspect my pump is on the worn side, in my case I can hear it running ,not all the time, but most of the time, and it is vibrating thru the cab even though mounting rubbers aren't shot.

Hope Santa is bringing me one of those rebuild kits from eBay...

just ordered a teflon seal from ebay too.. fingers crossed thats what it is eh? he he

thanks for your advice.. much appreciated!

CURLY

just in the middle of changing the seal, and i have the piston and con rod sitting in front of me.. how do you get the piston seal off? i dont want to use grips on it surely?

help!

CURLY

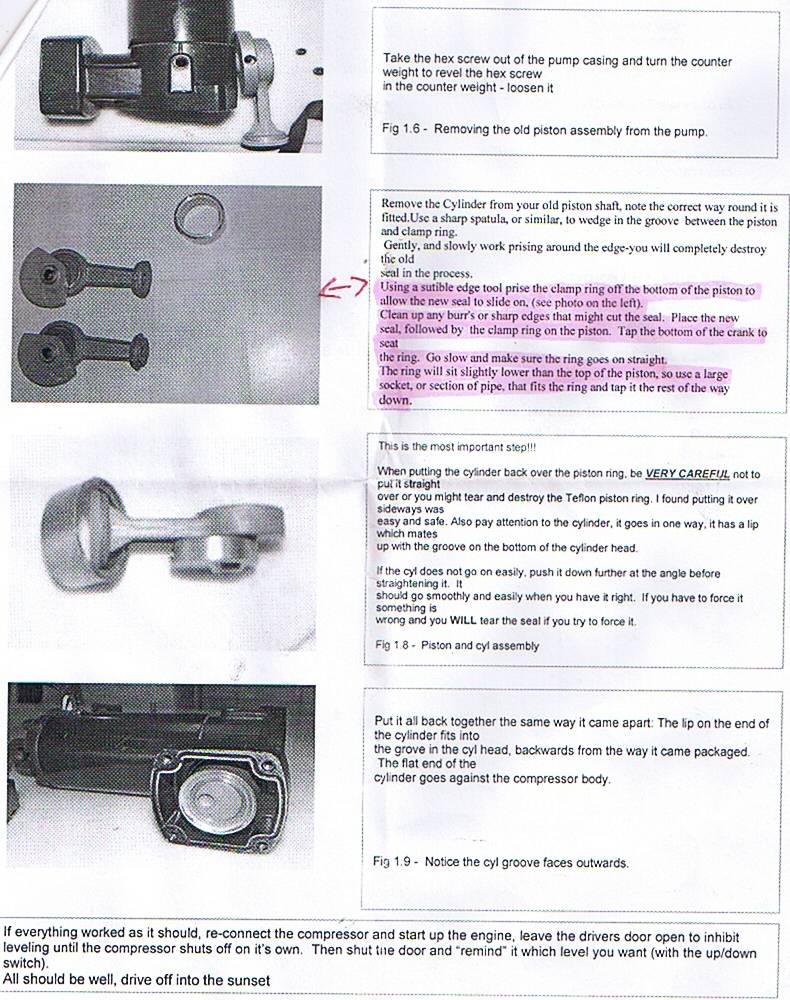

Curly prise off the clamp ring see attachment m8

alan h said:

Curly prise off the clamp ring see attachment m8

Click to expand...

brill thanks mate, i prized it of with a screwdriver as the ebay seller said! thanks for the reply though!

works a treat now too! goes from lowest 'get in mode' to max mode in under a minute!

nearly takes off!! he he

CURLY
