Air suspension fault

JayRB · Jul 30, 2023

Hi, please can anyone help me how to resolve these fault codes? I have a 2008 3.6 I've checked the controls module by the footwell and it looked fine visually. When I start the car up and try to use the suspension dial I can hear the pump in the boot come on for a few seconds and goes back off again. After plugging in the machine these are the codes I keep getting even though I clear them they come back. Thank you in advance for any feedback.

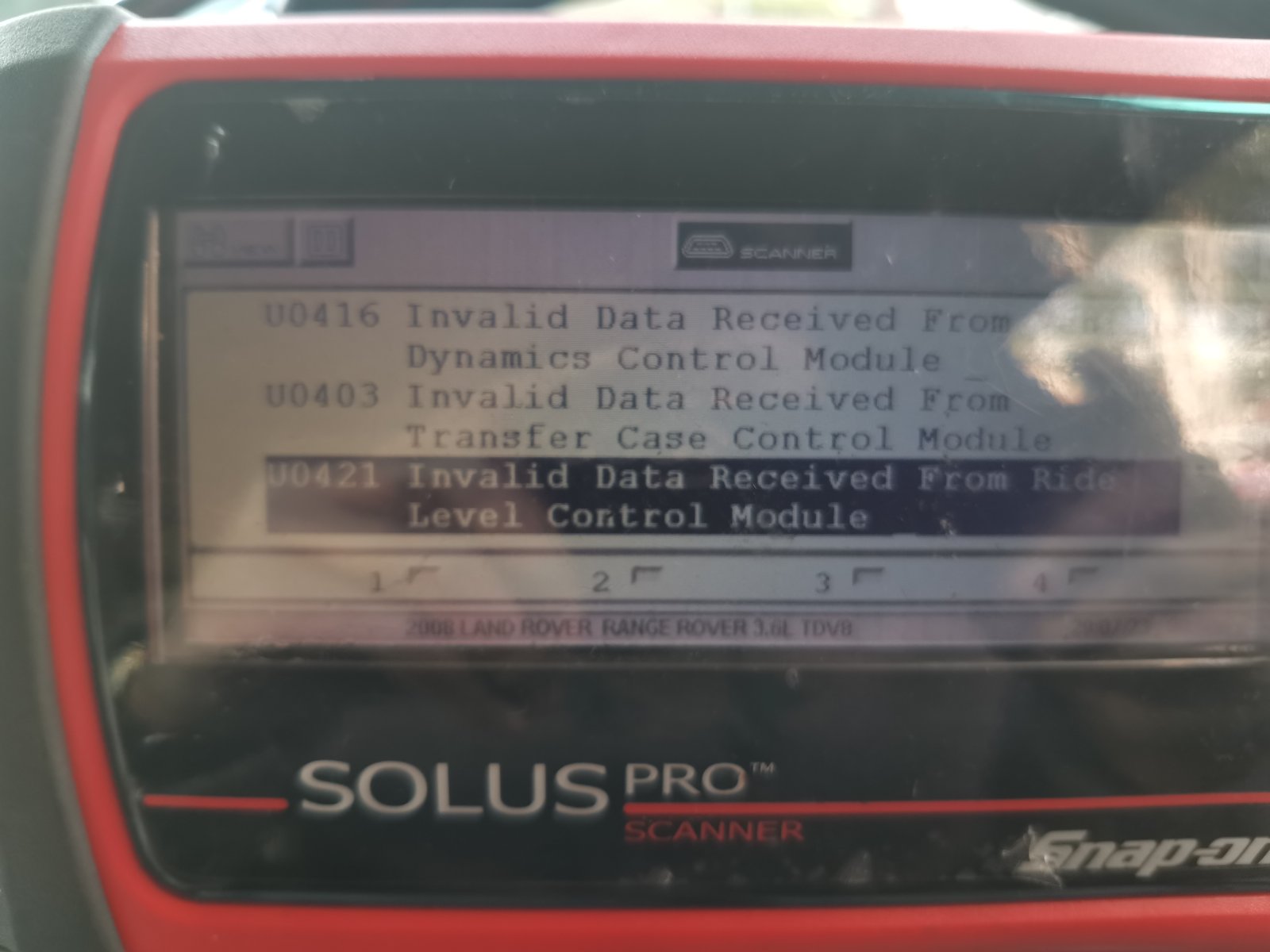

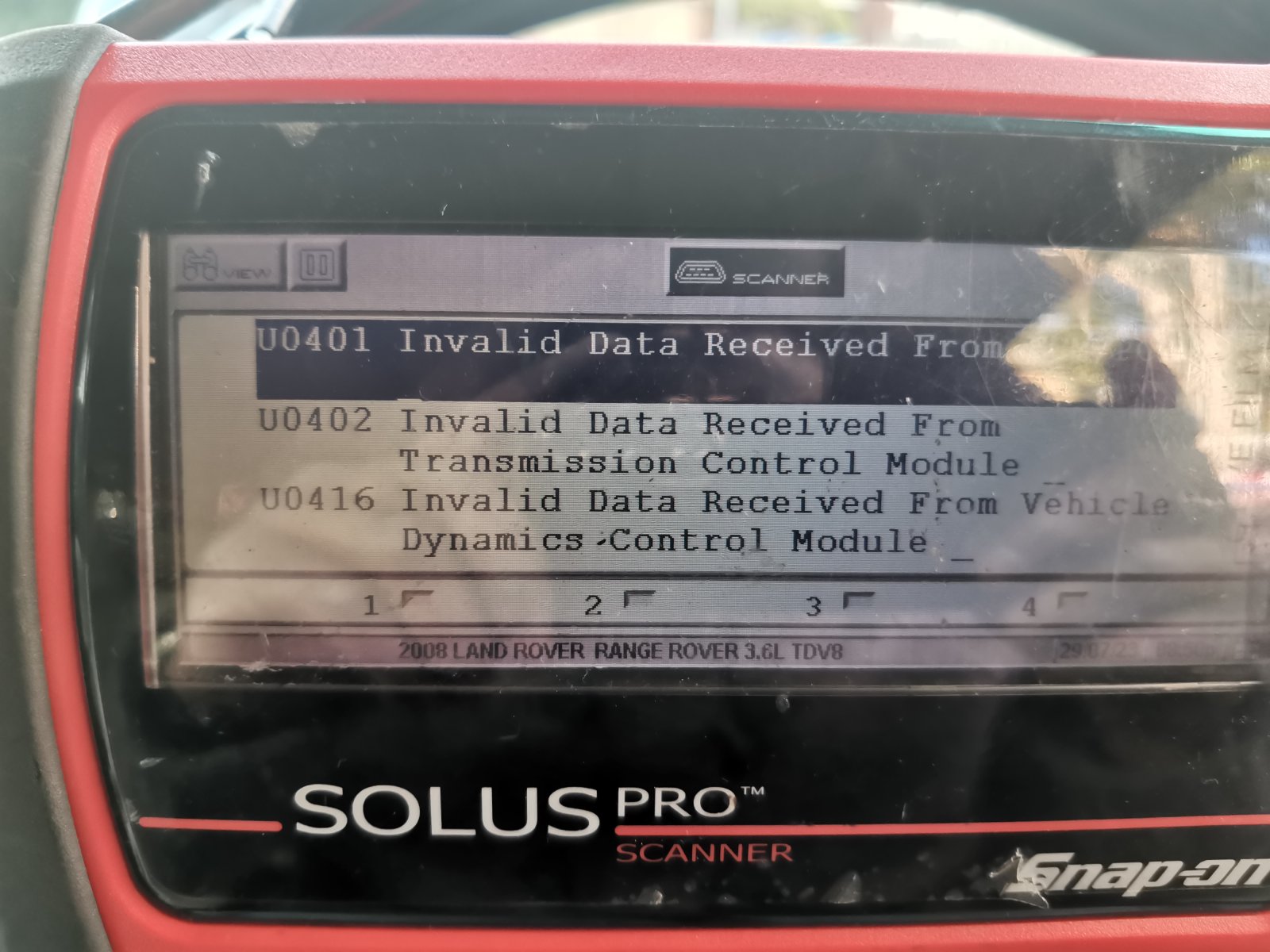

Codes are:
U0401
U0402
U0403
U0416
U0421
P0480

marjon · Jul 30, 2023

Welcome first off

.

The P0 code is too do with the engine fan I think, so not related which maybe why you haven't included it in your pics.

The others are all coms issue 1s, I often have them but generally ignore . But as you have so many and they come straight back it maybe an issue with your CAN network.
My knowledge of this is slim to none, all I can suggest is that you check the plugs at those modules and ensure they are all clean/dry

Does you reader do live data that you can see what the suspension is trying to do if anything? because that is usually more helpful with diagnosing a problem, (well it is to me).

Does the suspension stay at normal height, but just not allow you to change heights?
Any messages on the screen?

@gstuart has a bit of a handle on how to test CAN and could probably give some tips.

J

JayRB · Jul 30, 2023

marjon said:
Welcome first off .

The P0 code is too do with the engine fan I think, so not related which maybe why you haven't included it in your pics.

The others are all coms issue 1s, I often have them but generally ignore . But as you have so many and they come straight back it maybe an issue with your CAN network.
My knowledge of this is slim to none, all I can suggest is that you check the plugs at those modules and ensure they are all clean/dry

Does you reader do live data that you can see what the suspension is trying to do if anything? because that is usually more helpful with diagnosing a problem, (well it is to me).

Does the suspension stay at normal height, but just not allow you to change heights?
Any messages on the screen?

@gstuart has a bit of a handle on how to test CAN and could probably give some tips.

J

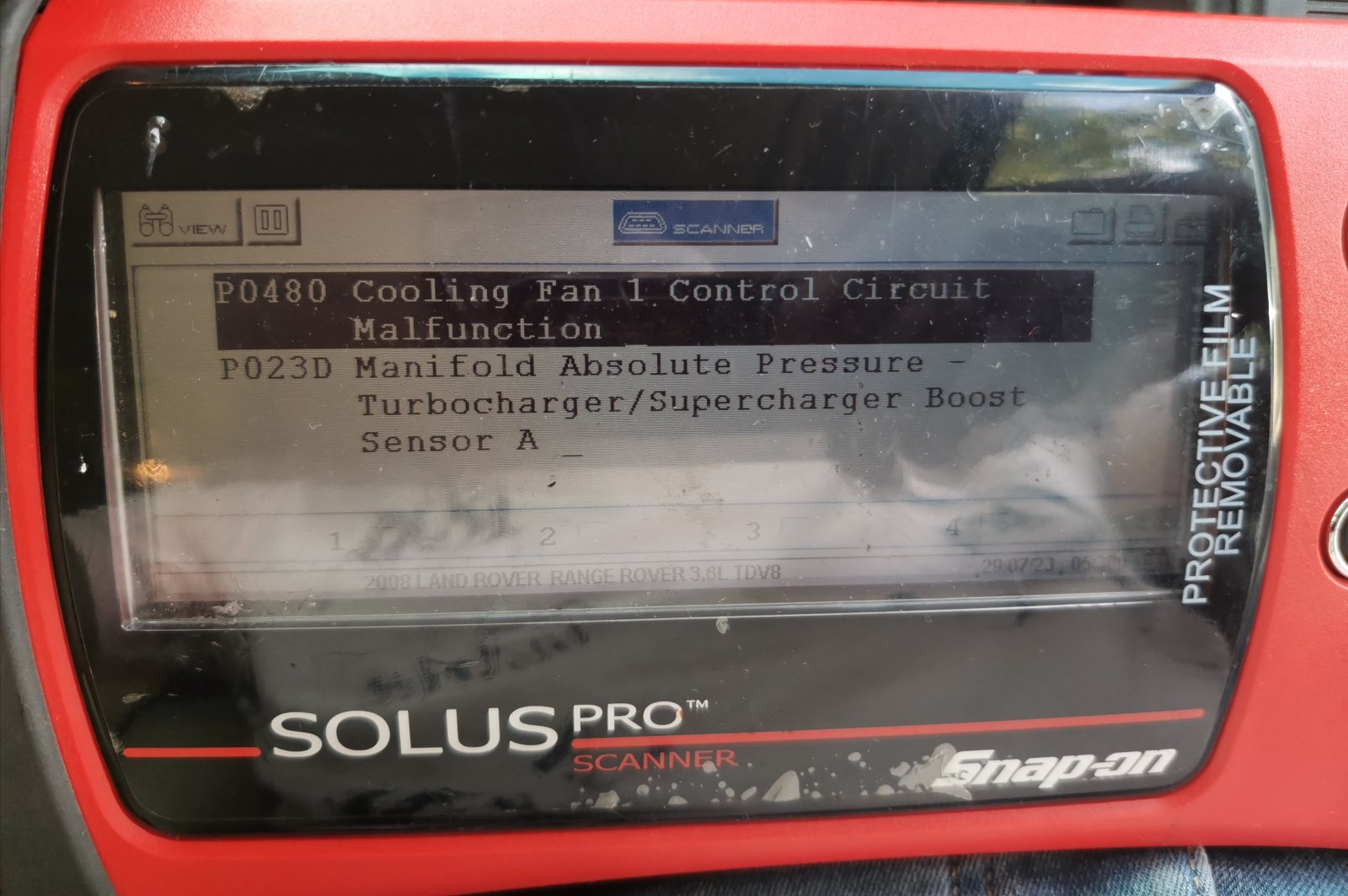

Hi Marjon, Thank you for your feedback. The message I keep getting on the is 'terrain response special programs off' won't allow me to change the height. I've also attached photo of the PO error message. Thank you once again
