Air Suspension D2

Discussion in 'Land Rover Discovery' started by Graham Allen, Feb 24, 2018.

< Previous Thread | Next Thread >
  1. slither22

    slither22 Active Member

    Joined:
    Sep 22, 2006
    Posts:
    293
    Likes Received:
    11
    Location:
    cardiff
    When you use the button to lift the suspension make sure that all the doors are properly closed as when i finished the repair i didn't realise at first the tailgate door wasent closed properly so the suspension wouldn't lift. If replacing airbags and the height sensors are quite old it maybe worth replacing them aswell. There are videos on YouTube for the repair kit for the compressor. I think having someone diagnose the problem saved me alot of time and working blind without really knowing what the issue was.

    Graham Allen likes this.
  2. slither22

    slither22 Active Member

    Joined:
    Sep 22, 2006
    Posts:
    293
    Likes Received:
    11
    Location:
    cardiff
    I'm looking to upgrade my diagnostics to one that also scans the sls aswell the one i have at the moment does everything apart from suspension on the td5 disco.

  3. brianconwy

    brianconwy Well-Known Member

    Joined:
    Nov 1, 2007
    Posts:
    554
    Likes Received:
    105
    Location:
    conwy, north wales
    I changed the air filter, dessicant and piston ring on my compressor and it ran alright for a while and then the compressor packed in altogether.

  4. slither22

    slither22 Active Member

    Joined:
    Sep 22, 2006
    Posts:
    293
    Likes Received:
    11
    Location:
    cardiff
    Have you connected it direct to a battery as mine kept cutting out and it turned out tobe height sensor failure.

  5. brian47

    brian47 Well-Known Member

    Joined:
    Jan 24, 2013
    Posts:
    8,763
    Likes Received:
    5,218
    Location:
    Bridgend, Mid Glam. Somebody's got to live here.
    It does rise slowly and will continue to rise while the little light is flashing. Don't expect to press the button and the disco to pop up.

    slither22 and Graham Allen like this.
  6. Graham Allen

    Graham Allen Member

    Joined:
    Oct 16, 2016
    Posts:
    35
    Likes Received:
    1
    Location:
    Bognor Regis
    Question, when I fit new bags tomorrow, could air be leaking back through the pipe, as I can't find leaks on the old bags

  7. Alpinejim

    Alpinejim Member

    Joined:
    Apr 14, 2014
    Posts:
    81
    Likes Received:
    16
    Location:
    Sunny Suffolk
    Yes, your solenoids valves could be playing up as I mentioned in a previous post.
    They open to let air to each bag but if they don't close, or open by themselves later, the air will come out again.

  8. Graham Allen

    Graham Allen Member

    Joined:
    Oct 16, 2016
    Posts:
    35
    Likes Received:
    1
    Location:
    Bognor Regis
    Thanks for that. anyway I can check? or service them

  9. Graham Allen

    Graham Allen Member

    Joined:
    Oct 16, 2016
    Posts:
    35
    Likes Received:
    1
    Location:
    Bognor Regis
    cool, where are they located?

  10. Landmark2

    Landmark2 Active Member

    Joined:
    Aug 1, 2013
    Posts:
    409
    Likes Received:
    42
    Location:
    Shropshire
    In the compressor.
    Griff

    Graham Allen likes this.
  11. brian47

    brian47 Well-Known Member

    Joined:
    Jan 24, 2013
    Posts:
    8,763
    Likes Received:
    5,218
    Location:
    Bridgend, Mid Glam. Somebody's got to live here.

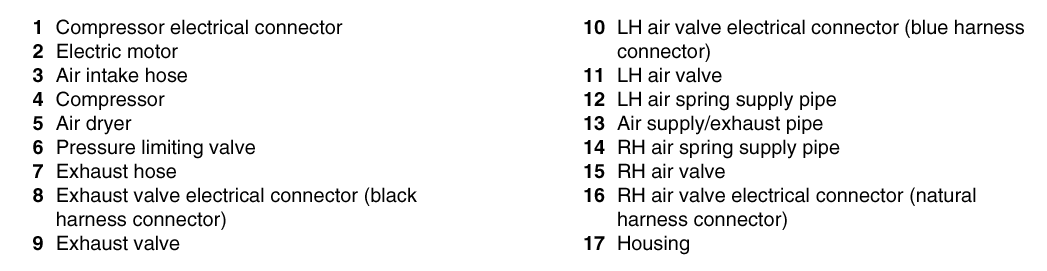

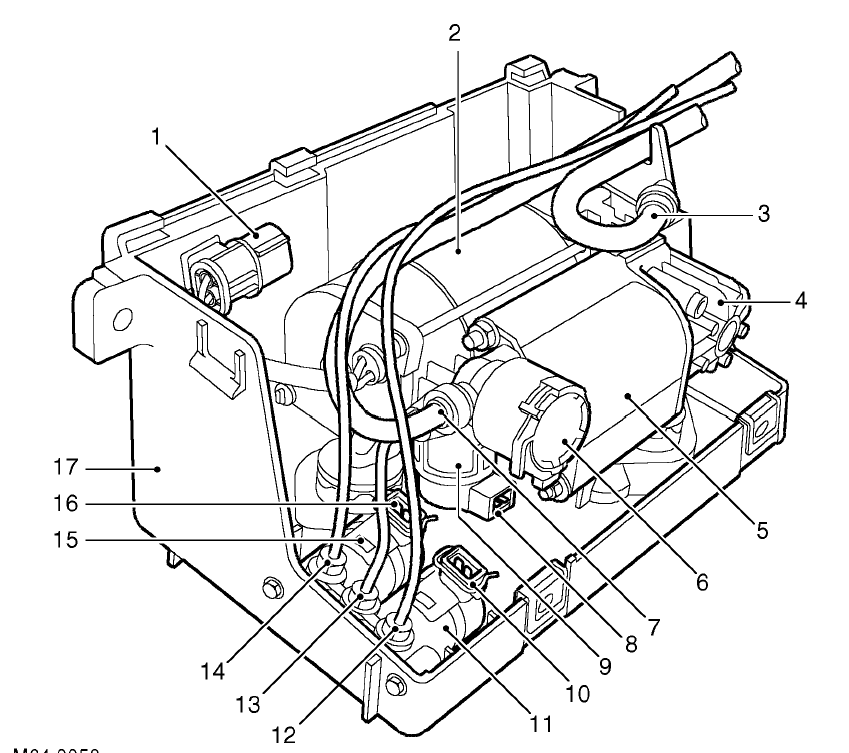

    This should give you some idea:-


    Last edited: Mar 7, 2018
  12. Graham Allen

    Graham Allen Member

    Joined:
    Oct 16, 2016
    Posts:
    35
    Likes Received:
    1
    Location:
    Bognor Regis
    Thanks That's brilliant, another silly question, when fitting new height sensors, do you tighten the bottom arm up tight or leave a bit of movement?

  13. Graham Allen

    Graham Allen Member

    Joined:
    Oct 16, 2016
    Posts:
    35
    Likes Received:
    1
    Location:
    Bognor Regis
    Really appreciate all the help. I have replaced the airbag on the offending offside and all seems good, will replace the nearside this weekend, just one problem, I lost the olive from the valve, doesn't look like I can get another valve, so any ideas, the old bags had the guest push in type but the ones I bought came with the screw in valve, that in itself is a mission trying to get a spanner on it

  14. slither22

    slither22 Active Member

    Joined:
    Sep 22, 2006
    Posts:
    293
    Likes Received:
    11
    Location:
    cardiff
    I did my sensors tight but i think they need abit of movement so when i get a chance i think that i will adjust them so they can move and see what happens.

    Graham Allen likes this.
  15. brian47

    brian47 Well-Known Member

    Joined:
    Jan 24, 2013
    Posts:
    8,763
    Likes Received:
    5,218
    Location:
    Bridgend, Mid Glam. Somebody's got to live here.

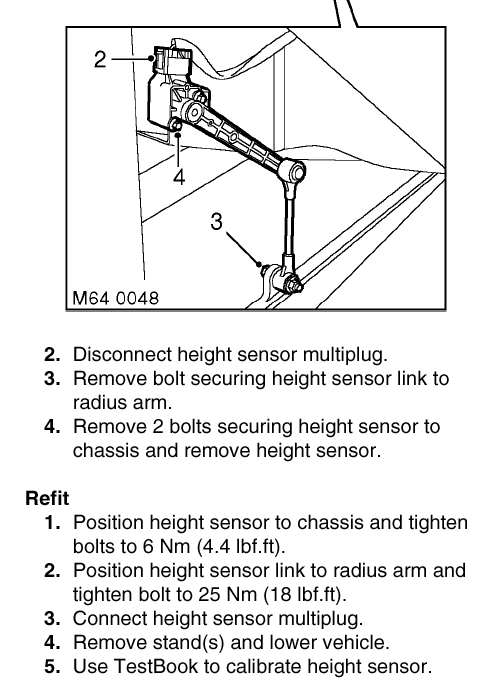

    According to the w/shop manual, they should be tight:-


  16. slither22

    slither22 Active Member

    Joined:
    Sep 22, 2006
    Posts:
    293
    Likes Received:
    11
    Location:
    cardiff
    In that case i think i will leave them alone then. Thanks for the info. I just thought that they needed to rotate.

  17. brianconwy

    brianconwy Well-Known Member

    Joined:
    Nov 1, 2007
    Posts:
    554
    Likes Received:
    105
    Location:
    conwy, north wales
    It makes you wonder why they use a bush if they are not supposed to pivot.

  18. slither22

    slither22 Active Member

    Joined:
    Sep 22, 2006
    Posts:
    293
    Likes Received:
    11
    Location:
    cardiff
    I had to break the old sensors up abit when i removed them as the female thread on the chassis side of the sensor was broken the bolt was just spinning and the other side of the disco the sensor arm was stuck on the bolt on the radius arm so i did the engineers solution i hit them with a big hammer.

  19. brian47

    brian47 Well-Known Member

    Joined:
    Jan 24, 2013
    Posts:
    8,763
    Likes Received:
    5,218
    Location:
    Bridgend, Mid Glam. Somebody's got to live here.
    If all else fails, use a bigger 'ammer!

  20. Graham Allen

    Graham Allen Member

    Joined:
    Oct 16, 2016
    Posts:
    35
    Likes Received:
    1
    Location:
    Bognor Regis
    It does say tighten bolt, but to my way of thinking,they fail due to the metal rod going through the rubber by the metal sleeve, if there was a small bit of movement that wouldn't happen
