Advice on heater matrix

Rubberknees · Feb 5, 2021

Confirmed today I have the slightest of leaks from heater matrix. Its going to be a few weeks before we can get round to changing it. So as a temporary help do I
1 just keep an eye on it
2 bypass the matrix at the curtain wall
3 uncouple feed and return to matrix rig up pump to them and flow a drop of K seal through for 30mins or so. Have had previous success years ago with a couple of non RR's doing this but don't want to risk anything untoward.
4 any other thoughts
Cheers guys all comments of any sort welcome

Grrrrrr · Feb 5, 2021

1 gets my vote, then replace with an Audi core. It isn't as if you're going far at the moment.

All are viable.

Rubberknees · Feb 5, 2021

Grrrrrr said:
1 gets my vote, then replace with an Audi core. It isn't as if you're going far at the moment.

All are viable.

That's my thinking but I am just worried it might go pop. Then again could just bypass matrix quick enough to get going

brianp38dse · Feb 5, 2021

No 1 atm that way you still get some heat in the car, If you go the Audi core route its a nissens 70220 and 18mm id hose.

pwood999 · Feb 6, 2021

1 then 2 until weather warms. Then take dash out & do Audi matrix.

Otherwise get 12v to 240v converter & fan heater while we have this “global warming “ weather.

Rubberknees · Feb 6, 2021

brianp38dse said:
No 1 atm that way you still get some heat in the car, If you go the Audi core route its a nissens 70220 and 18mm id hose.

Cheers Brian that's the info I've been looking for

dubbleRR · Feb 6, 2021

I don't like k seal if its the one with copper flakes in it ,you will never get rid of the evidence that uv used it ,if you ever go to sell the vehicle ,and watch out for bars sealant some are not compatible with rovers rubber ...

,

domino · Feb 6, 2021

Grrrrrr said:
1 gets my vote, then replace with an Audi core. It isn't as if you're going far at the moment.

All are viable.

I've seen quite a few people saying the Audi matrix isn't all that and reduces the heat output you get.

brianp38dse · Feb 6, 2021

Rubberknees said:
Cheers Brian that's the info I've been looking for

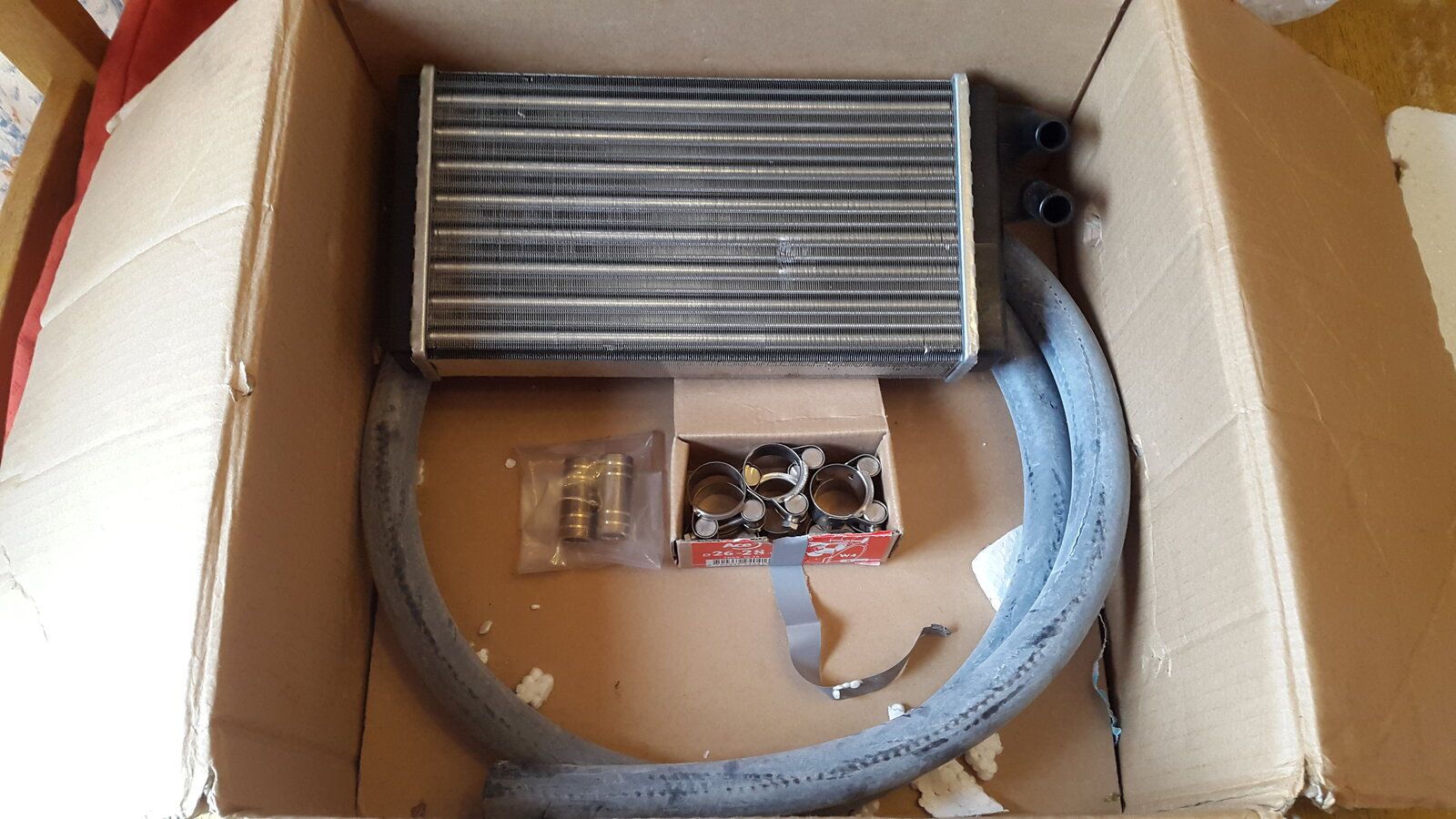

I only know the numbers as i was given a kit to do it by one of the other members on here who scraped his p38, here's the kit

pwood999 · Feb 6, 2021

I've had the Audi matrix in mine for about 3 years. Plenty of heat out of it.

Marshall8hp · Feb 6, 2021

Actually it is the Nissens 70230 you want, not the 70220, as it has the correct sized inlet and outlet to match the P38, 19mm.

Rubberknees · Feb 6, 2021

brianp38dse said:
I only know the numbers as i was given a kit to do it by one of the other members on here who scraped his p38, here's the kit View attachment 230221

Have just ordered one, not bad at £19.99 free delivery. Do you know what size the couplers are for the hoses? please

brianp38dse · Feb 6, 2021

Marshall8hp said:
Actually it is the Nissens 70230 you want, not the 70220, as it has the correct sized inlet and outlet to match the P38, 19mm.

All the 70230`s i can find have 20mm tails.

oakey · Feb 6, 2021

I got the Audi heater and as I was unable to change it myself at the time, I gave it to a local non LR garage and they said it didnt fit

Rubberknees · Feb 6, 2021

oakey said:
I got the Audi heater and as I was unable to change it myself at the time, I gave it to a local non LR garage and they said it didnt fit

I've found a step by step with photos on internet showing how to do it They couldn't have tried very hard

pete12345 · Feb 6, 2021

It can be done with a small bit of cutting I think and it’s supposed to cure them poxy o rings leaking I’m not sure but the pipes just go on with jubilee clips

Rubberknees · Feb 6, 2021

pete12345 said:
It can be done with a small bit of cutting I think and it’s supposed to cure them poxy o rings leaking I’m not sure but the pipes just go on with jubilee clips

That's right replaces metal pipes with hoses . Lot simpler

pete12345 · Feb 6, 2021

The fella to follow is Paul p38 he also does a right up with pics on the valve block and compressor

Rubberknees · Feb 6, 2021

pete12345 said:
The fella to follow is Paul p38 he also does a right up with pics on the valve block and compressor

That's the one I've found

pete12345 · Feb 6, 2021

I’m doing mine soon got to strip all the dash out anyway so will do it why I’m in there
